Roller Types

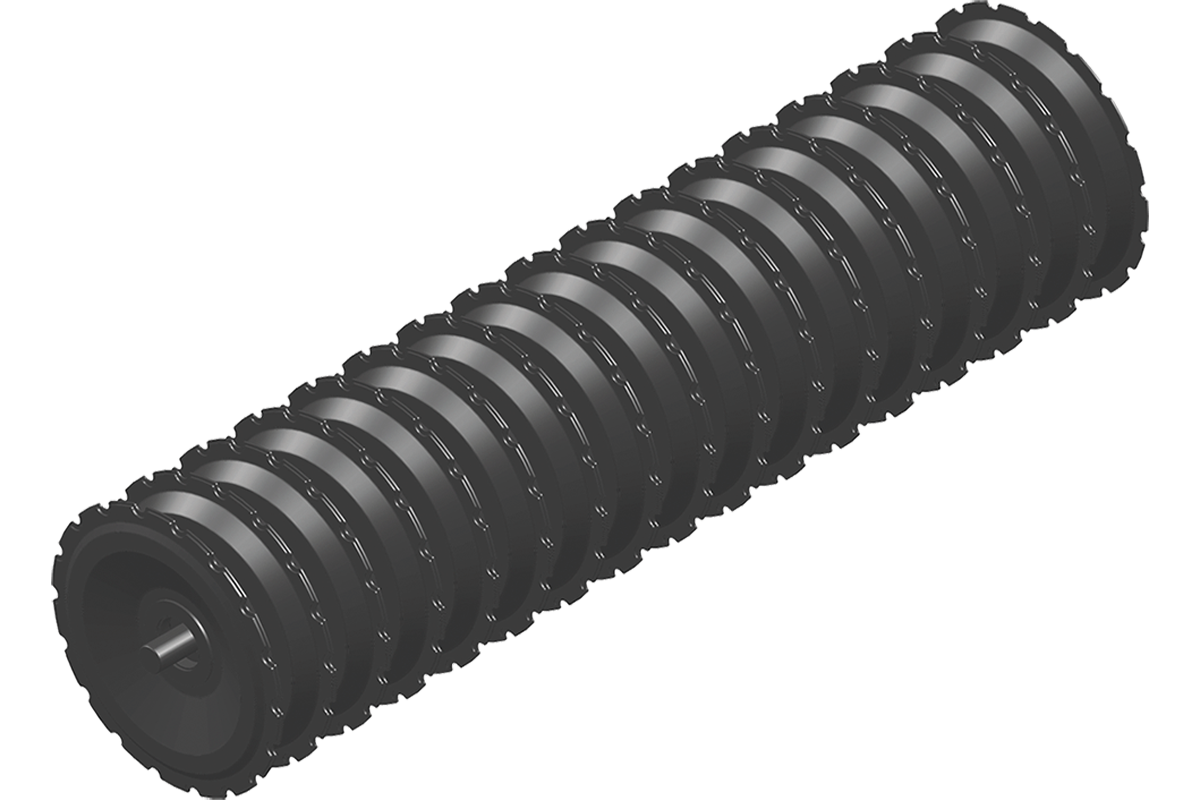

V-PROFILE Roller - Ø600 & Ø700

The V-Profile Roller aggressively crushes clods and leaves the surface nice and level. The V-Profile rings create optimal conditions for a good stale seedbed as the structure of the surface is maintained. The weight of the roller makes the farm machine suitable for processing stubble, seedbed preparation and consolidation after ploughing.

The V-Profile Roller aggressively crushes clods and leaves the surface nice and level. The V-Profile rings create optimal conditions for a good stale seedbed as the structure of the surface is maintained. The weight of the roller makes the farm machine suitable for processing stubble, seedbed preparation and consolidation after ploughing.

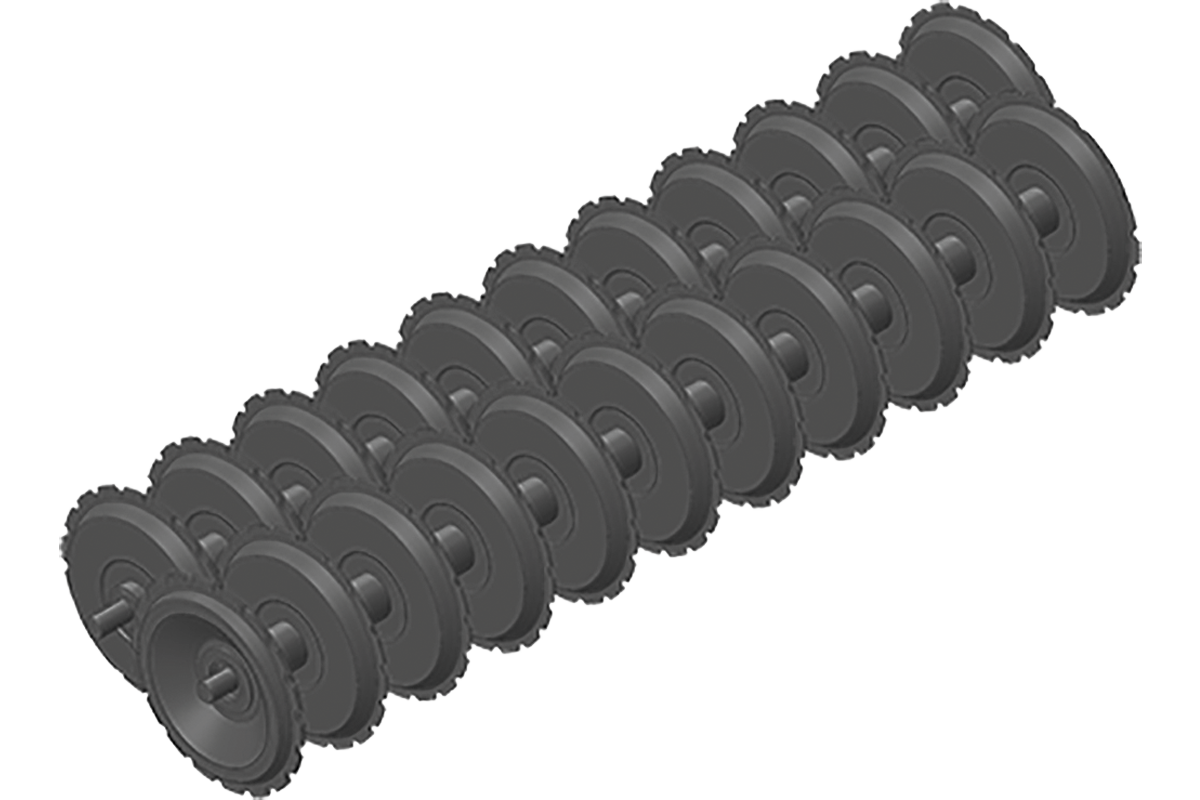

TWIN V-PROFILE - Ø600/Ø600 & Ø700/Ø700

Twin V-Profile Roller is the maintenance-free solution due to the fact that the rollers are self-cleaning. The surface of the soil is left slightly wavy, which has a draining effect and contributes to quick heating and drying.

Twin V-Profile Roller is the maintenance-free solution due to the fact that the rollers are self-cleaning. The surface of the soil is left slightly wavy, which has a draining effect and contributes to quick heating and drying.

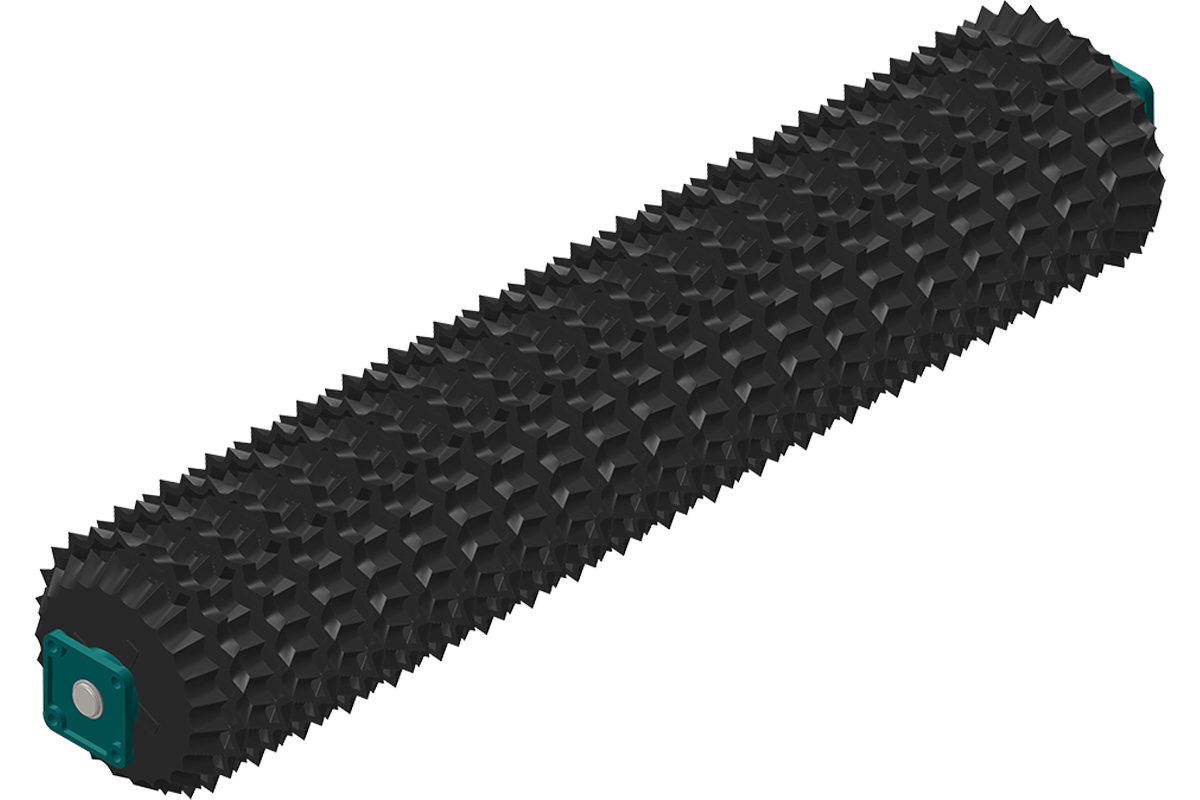

Star Roller - Ø450/Ø500

The Star Roller consolidates the soil and leaves it loose. The Star ring is particularly efficient for grass field maintenance as the points ensure light aeration of the grass resulting in optimal growth conditions.

The Star Roller consolidates the soil and leaves it loose. The Star ring is particularly efficient for grass field maintenance as the points ensure light aeration of the grass resulting in optimal growth conditions.

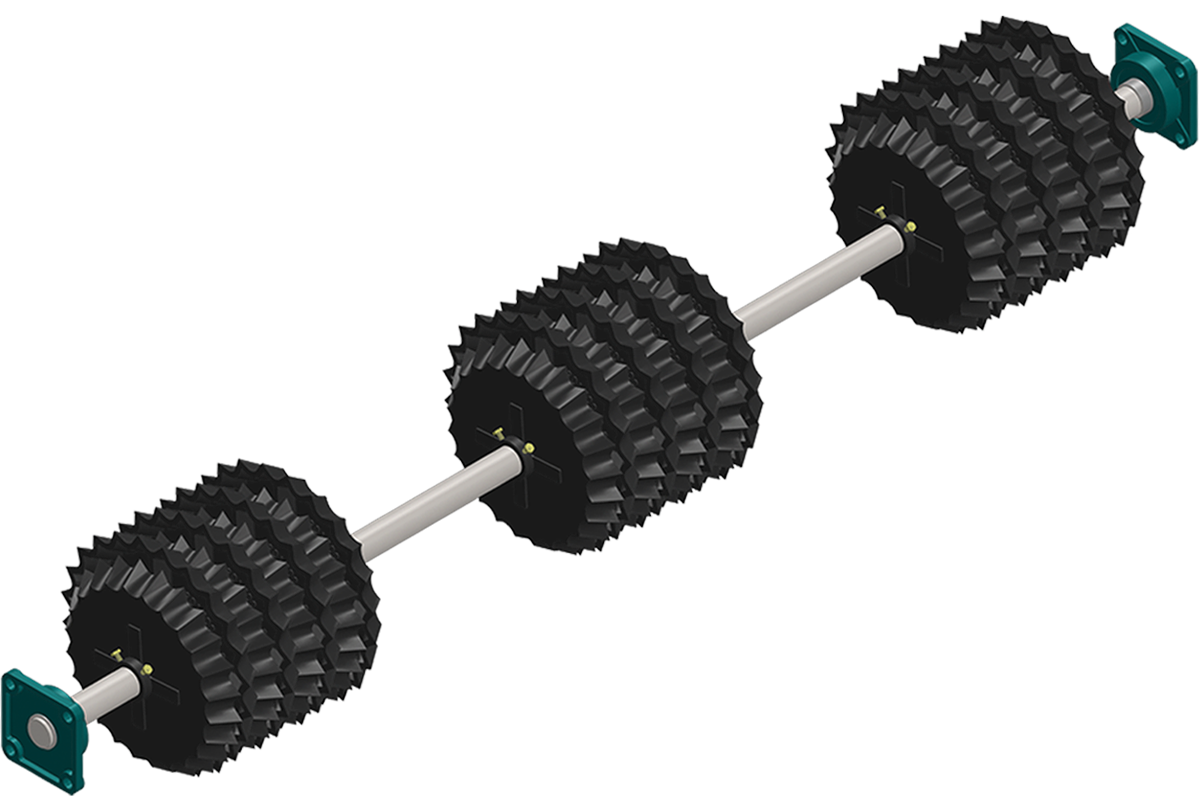

SYNCHRONE STAR ROLLER - Ø450/Ø500

This particular roller “synchrone” consolidates the soil after the sub-soiling tines on e.g. a Grass-Tiller ensuring minimal interruption of the micro organisms in the grass due to the fact that the soil is only consolidated in the tracks of the sub-soiling tines. The weight of the machine is distributed onto smaller surfaces and so, the pressure on to the soil will be harder resulting in a highly efficient consolidation.

This particular roller “synchrone” consolidates the soil after the sub-soiling tines on e.g. a Grass-Tiller ensuring minimal interruption of the micro organisms in the grass due to the fact that the soil is only consolidated in the tracks of the sub-soiling tines. The weight of the machine is distributed onto smaller surfaces and so, the pressure on to the soil will be harder resulting in a highly efficient consolidation.

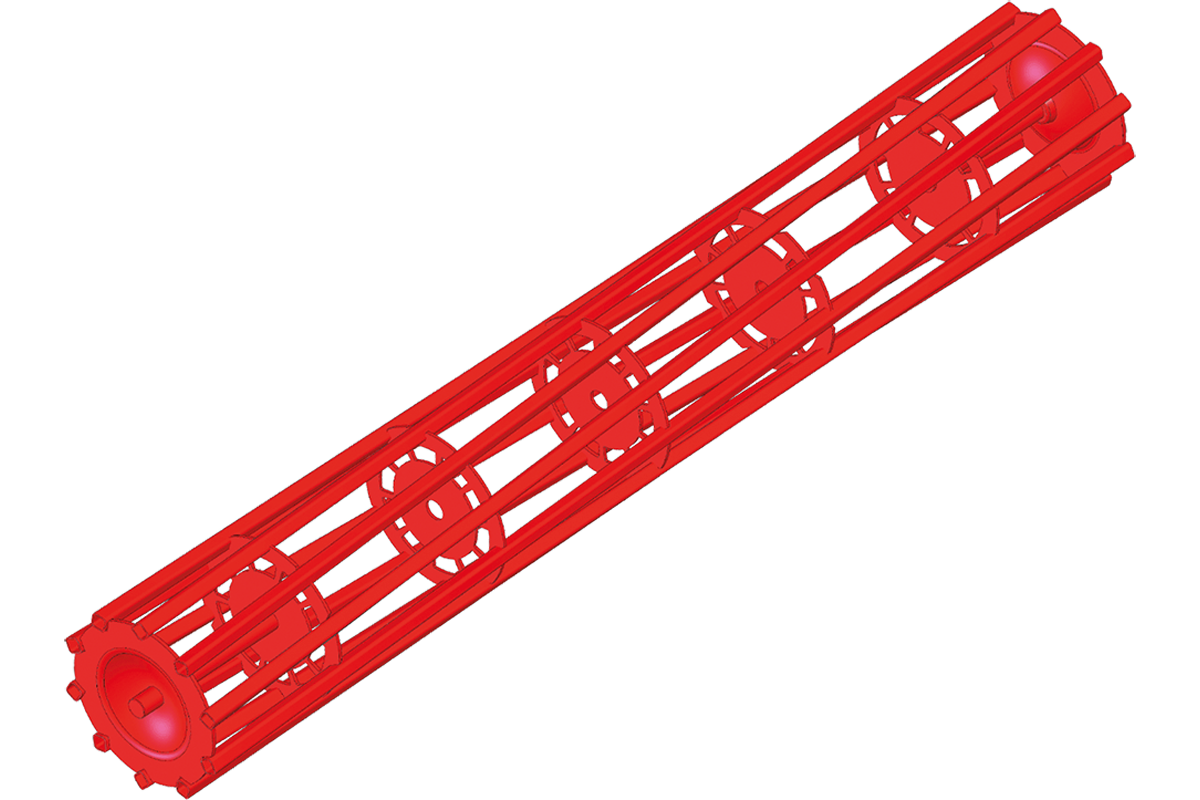

Square Tube Roller - Ø550

The Square Tube Roller contributes to a depth control and crushes clods on light soil types. A 550 mm tube roller is recommended for loose soil types.

The Square Tube Roller contributes to a depth control and crushes clods on light soil types. A 550 mm tube roller is recommended for loose soil types.

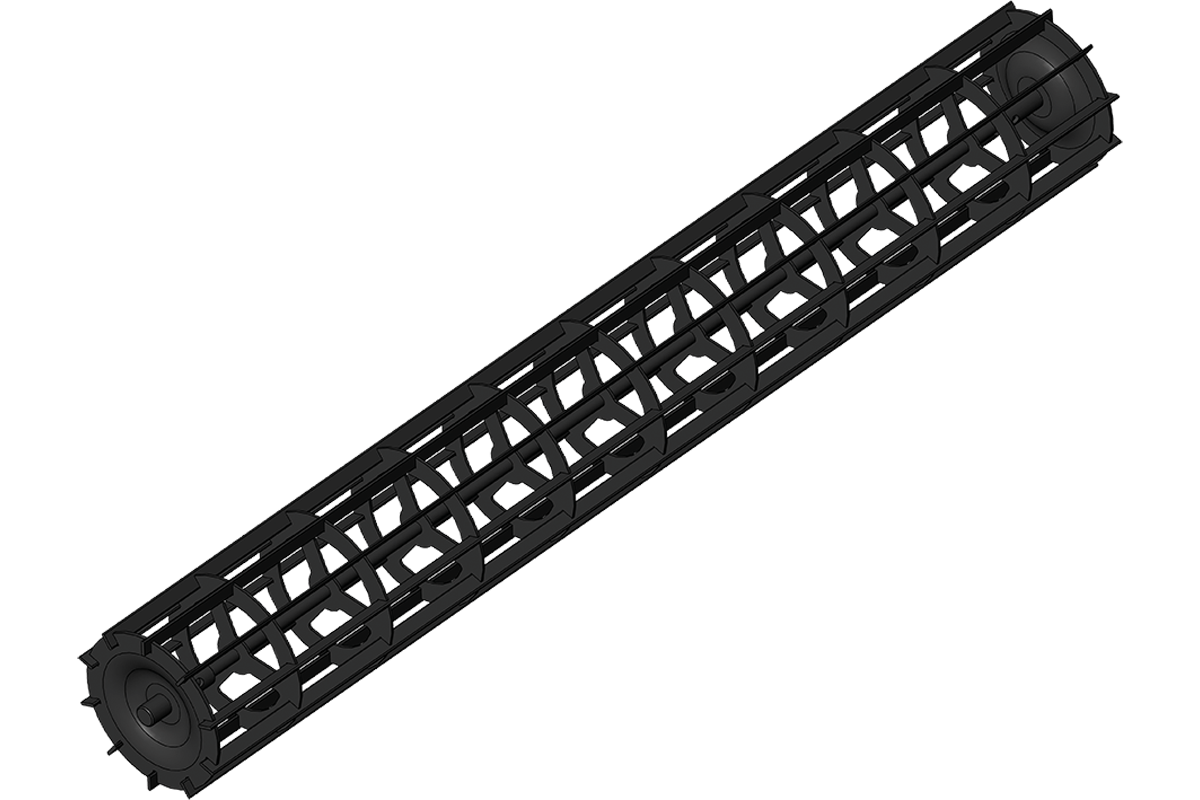

FLAT BAR ROLLER - Ø410

The Flat Bar Roller leaves a finely ground surface. A Ø410 mm Flat Bar Roller can advantageously be mounted together with a longfinger harrow, which will leave the ground surface fine and easily compressed. The roller is built with 12 pcs. flat steel 8 x 40 mm, which gives the field a fine structure.

The Flat Bar Roller leaves a finely ground surface. A Ø410 mm Flat Bar Roller can advantageously be mounted together with a longfinger harrow, which will leave the ground surface fine and easily compressed. The roller is built with 12 pcs. flat steel 8 x 40 mm, which gives the field a fine structure.

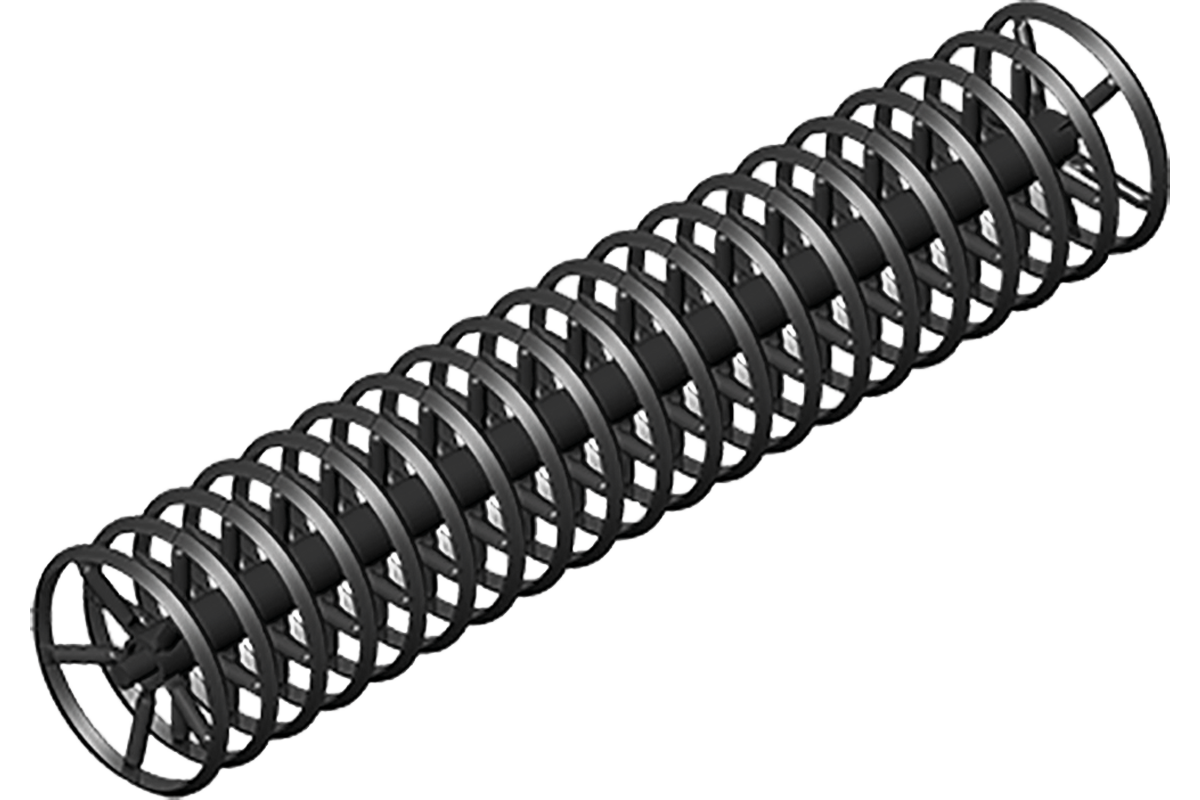

WAVE ROLLER - Ø600

The roller offers soil-to-soil consolidation and allows the machine to perform at its best even in moist and loose soil types.

The roller offers soil-to-soil consolidation and allows the machine to perform at its best even in moist and loose soil types.

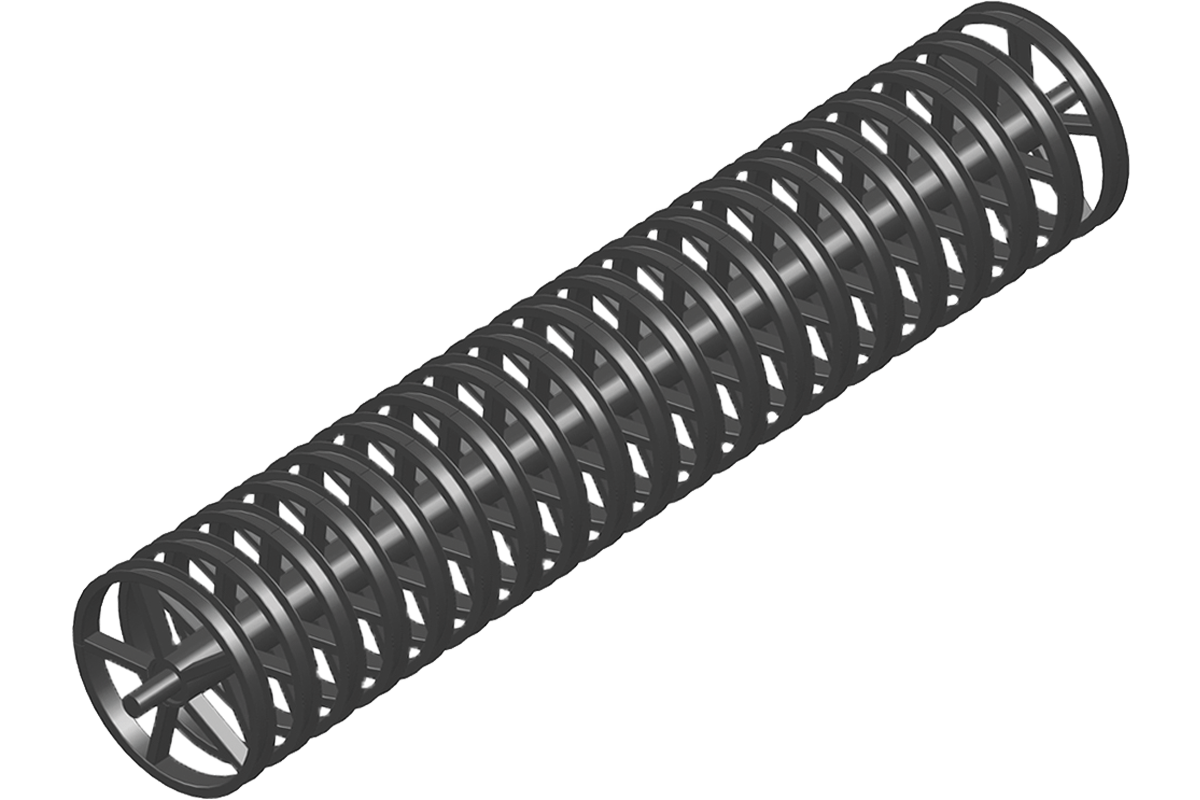

U-PROFILE Roller - Ø600

The U-Profile Roller is filled with soil, when working in the field, which results in a good soilto- soil consolidation. This way, the surface gets a good, natural structure and minimises the risk of glazing.

The U-Profile Roller is filled with soil, when working in the field, which results in a good soilto- soil consolidation. This way, the surface gets a good, natural structure and minimises the risk of glazing.

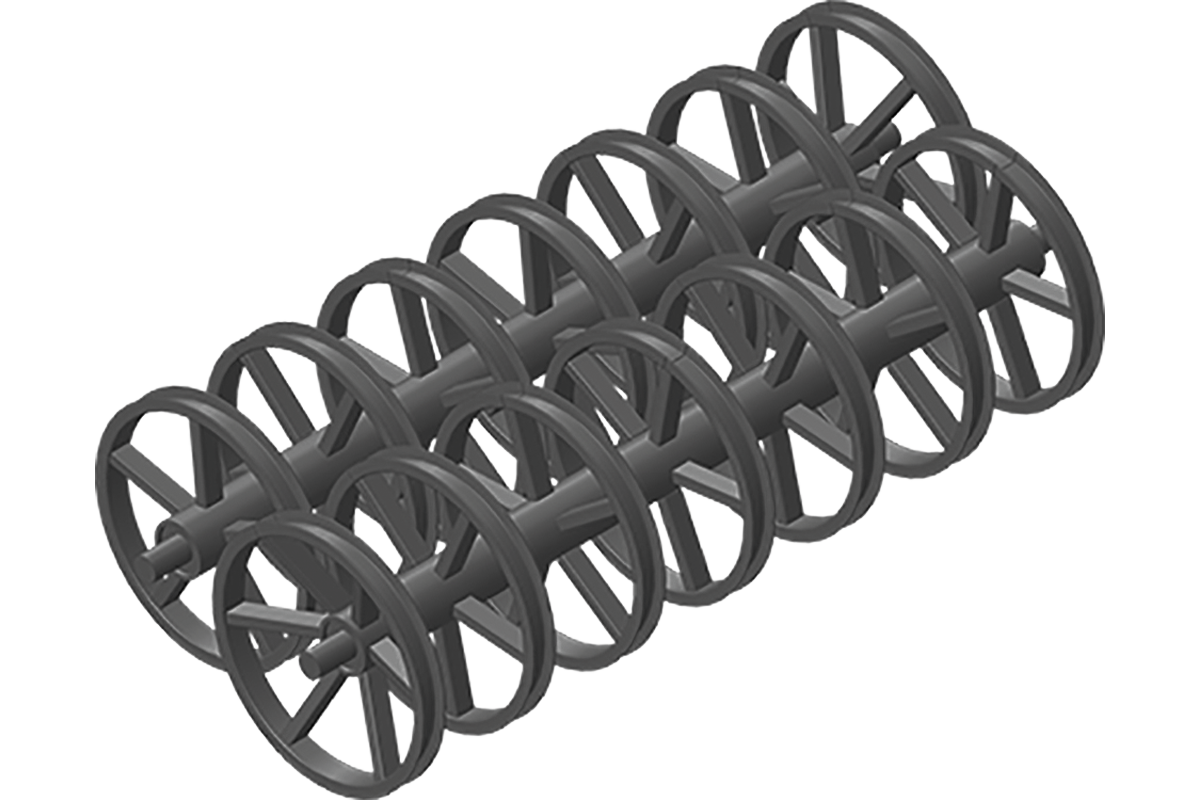

TWIN U-PROFILE - Ø600/Ø600

The Twin U-Profile Roller offers a good and maintenance-free solution as the rollers clean each other after use. The U-Profile Roller is filled with soil during consolidation of the field and resulting in good soil-to-soil packing. The surface is left nicely packed with a rough structure.

The Twin U-Profile Roller offers a good and maintenance-free solution as the rollers clean each other after use. The U-Profile Roller is filled with soil during consolidation of the field and resulting in good soil-to-soil packing. The surface is left nicely packed with a rough structure.

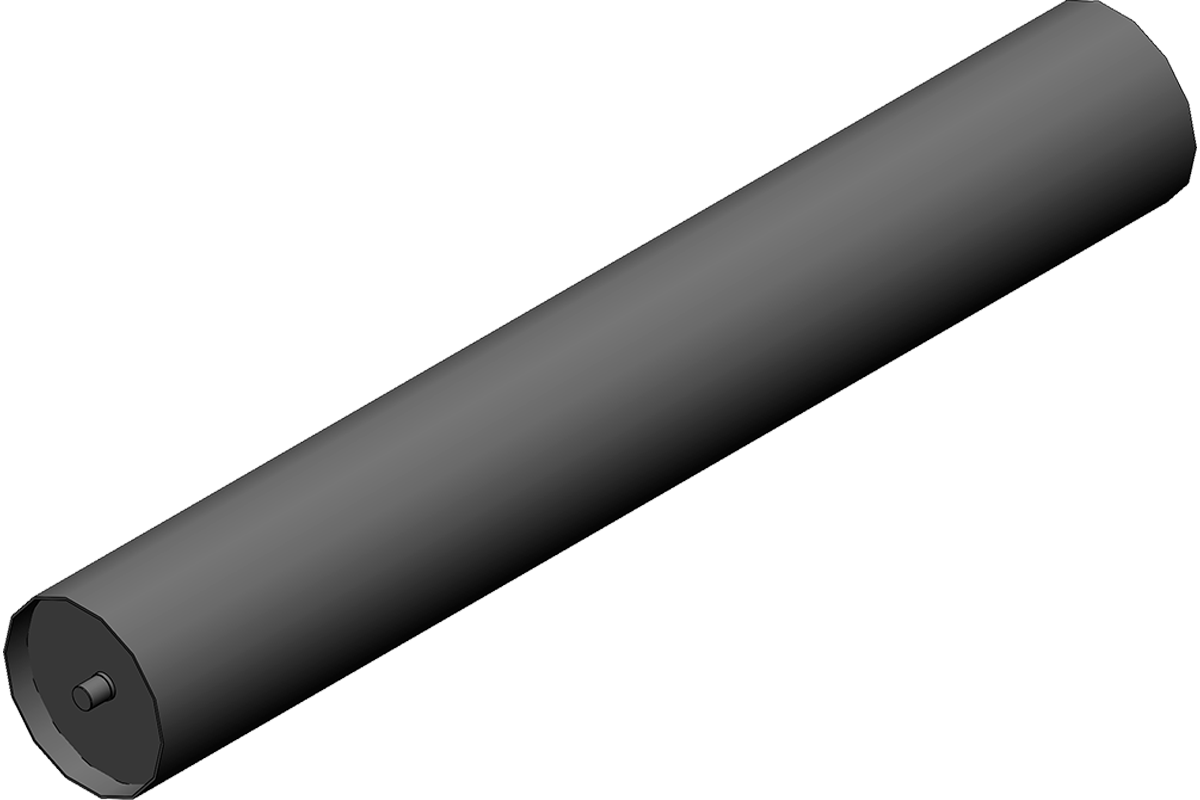

Plain Roller - Ø406

The Plain Roller has been specifically developed for grass field maintenance. If filled with water, the weight is increased and it can press and level the surface very efficiently.

The Plain Roller has been specifically developed for grass field maintenance. If filled with water, the weight is increased and it can press and level the surface very efficiently.

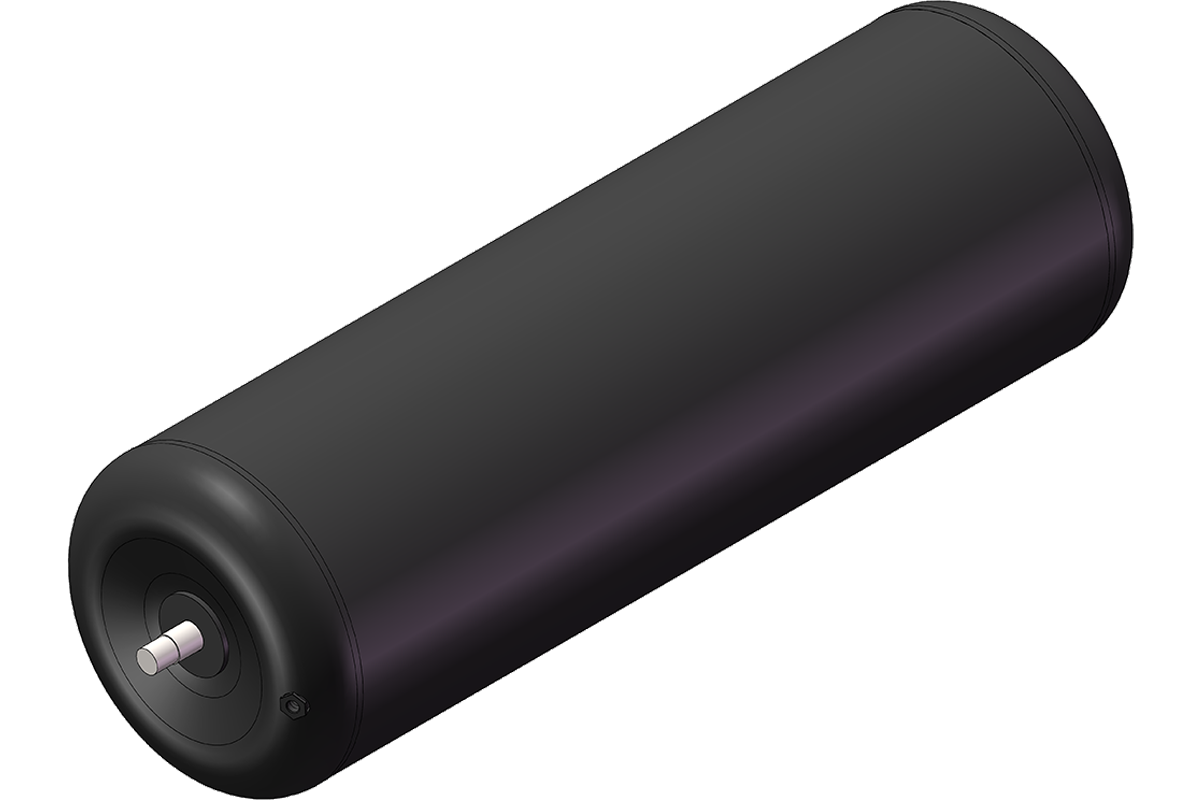

Plain Roller - Ø610 & Ø710

The Plain Roller has been specifically developed for grass field maintenance. If filled with water, the weight is increased and it can press and level the surface very efficiently.

The Plain Roller has been specifically developed for grass field maintenance. If filled with water, the weight is increased and it can press and level the surface very efficiently.

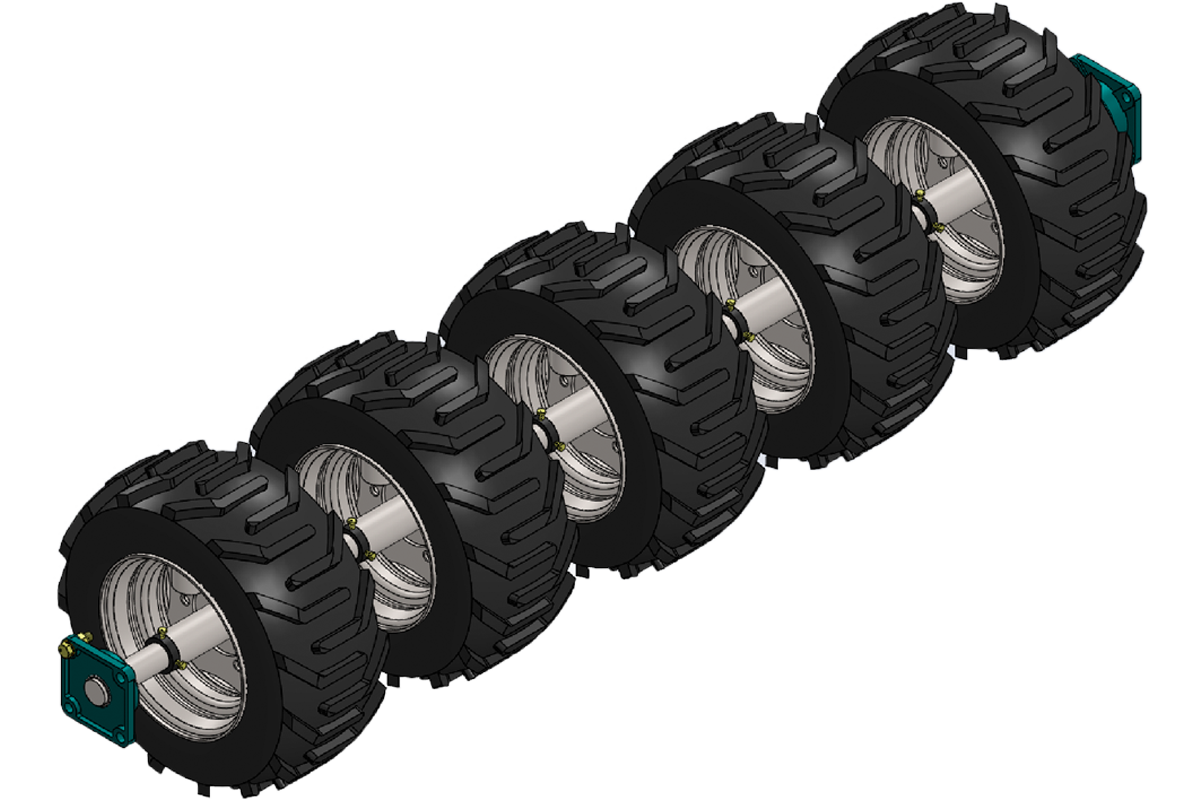

SYNCHRONE ROLLER 300/55

Synchrone Roller 300/55 packs the soil in a concentrated manner where tillage takes place, so that the soil is left untouched. Suitable for all types of soil due to the large diameter of the wheels.

Synchrone Roller 300/55 packs the soil in a concentrated manner where tillage takes place, so that the soil is left untouched. Suitable for all types of soil due to the large diameter of the wheels.

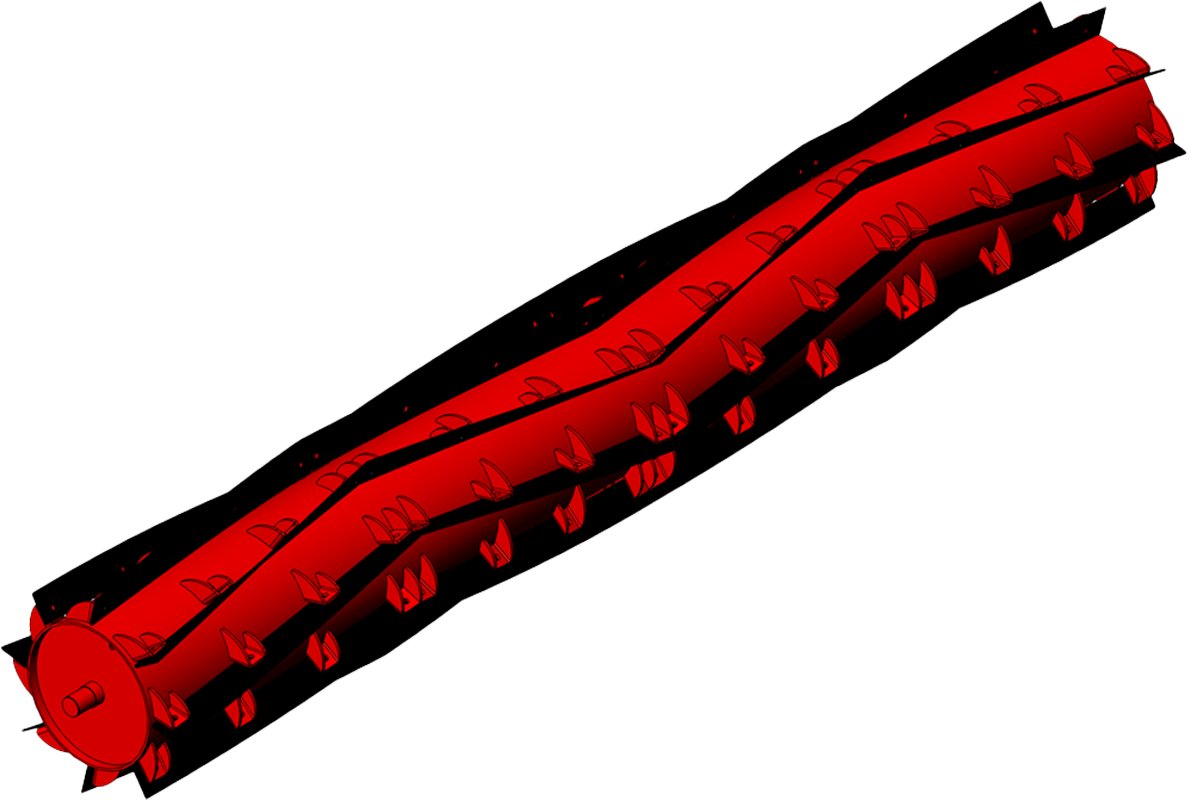

CUTTER-ROLLER KNIFE ROLLER - Ø545 & Ø595

The Cutter-Roller with 8 hard metal knives provides efficient chopping and faster decomposition of crop residues.

The Cutter-Roller with 8 hard metal knives provides efficient chopping and faster decomposition of crop residues.
