Lift-Roller

2.60 - 3.00 M

30 - 60 HP

680 - 1,430 KG

Specifications

Extras

Downloads

Images & videos

rotate device to see table.

Work Width, m	Ring Type	No. of Rings	No. of Spokes	Power Req., HP	Lifting Req., kg	Weight, kg
2.60	510 mm/21” Cambridge	45	3	40	1,400	930
2.60	510 mm/21” Cambridge	45	8	40	1,400	950
2.60	560 mm/22,5” Cambridge	45	9	45	1,630	1,160
2.60	620 mm/24” Cambridge	45	10	45	1,880	1,250
2.60	450/500 mm Star ring	42	-	45	1,470	980
2.60	550/600 mm Star ring	42	-	45	1,850	1,230
2.60	550 mm Cam ring	16	-	30	1,020	680
2.60	485-530 mm Crosskill	25	-	40	1,100	730
2.60	550-600 mm Crosskill	25	-	40	1,570	1,050
2.60	500 mm 2D-Corrugated	31	8	40	1,250	830
2.60	550 mm 2D-Corrugated	31	9	40	1,290	860
2.60	600 mm 2D-Corrugated	31	10	45	1,320	860
3.00	510 mm/21” Cambridge	53	3	55	1,590	1,060
3.00	510 mm/21” Cambridge	53	8	55	1,590	1,590
3.00	560 mm/22,5” Cambridge	53	9	60	1,910	1,320
3.00	620 mm/24” Cambridge	53	10	60	2,150	1,430
3.00	450/500 mm Star ring	50	-	60	1,670	1,110
3.00	550/600 mm Star ring	50	-	60	2,100	1,400
3.00	550 mm Cam ring	19	-	40	1,220	820
3.00	485-530 mm Crosskill	27	-	55	1,250	830
3.00	550-600 mm Crosskill	27	-	55	1,760	1,170
3.00	500 mm 2D-Corrugated	35	8	55	1,380	920
3.00	550 mm 2D-Corrugated	35	9	55	1,440	960
3.00	600 mm 2D-Corrugated	35	10	60	1,480	990

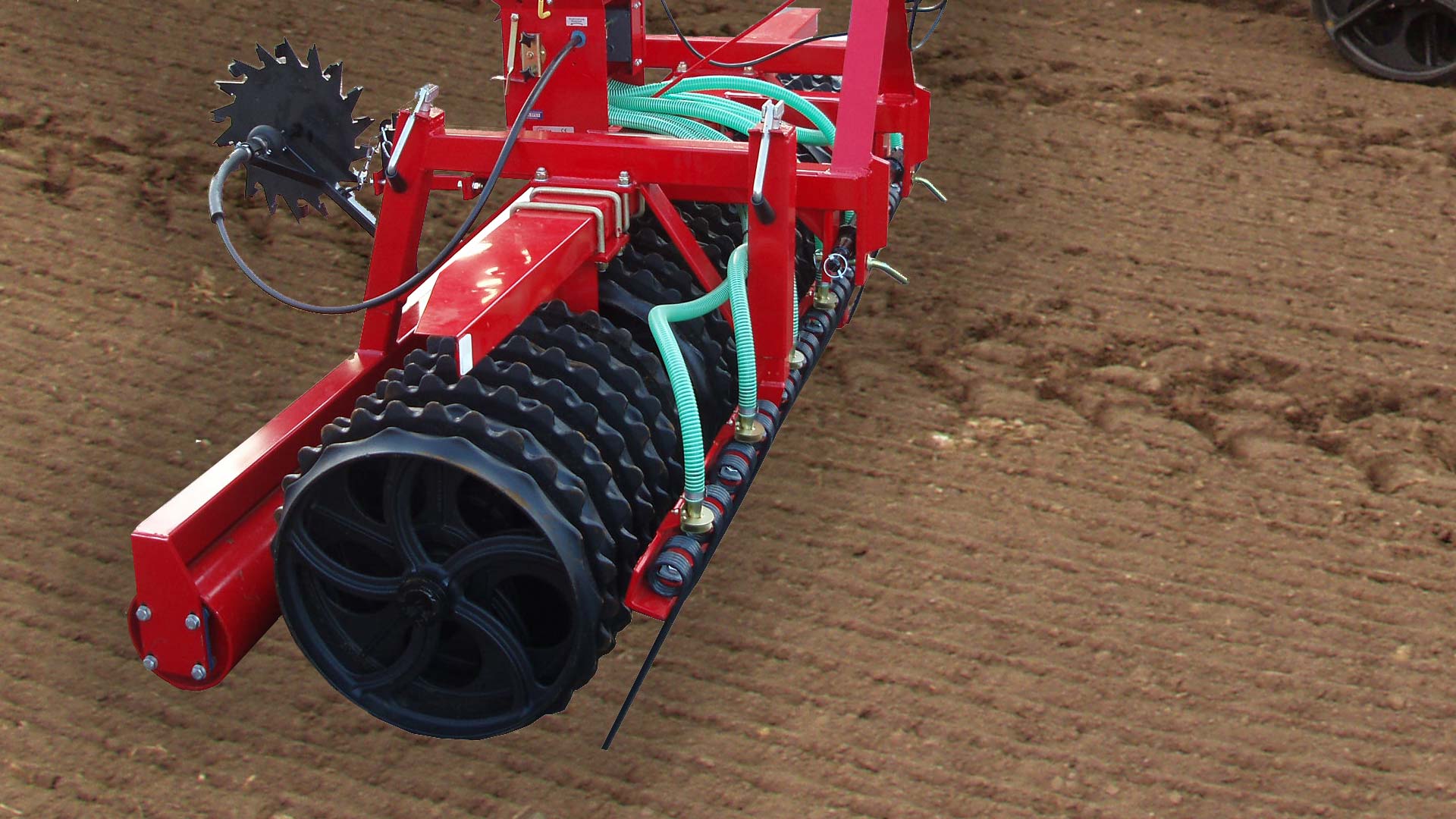

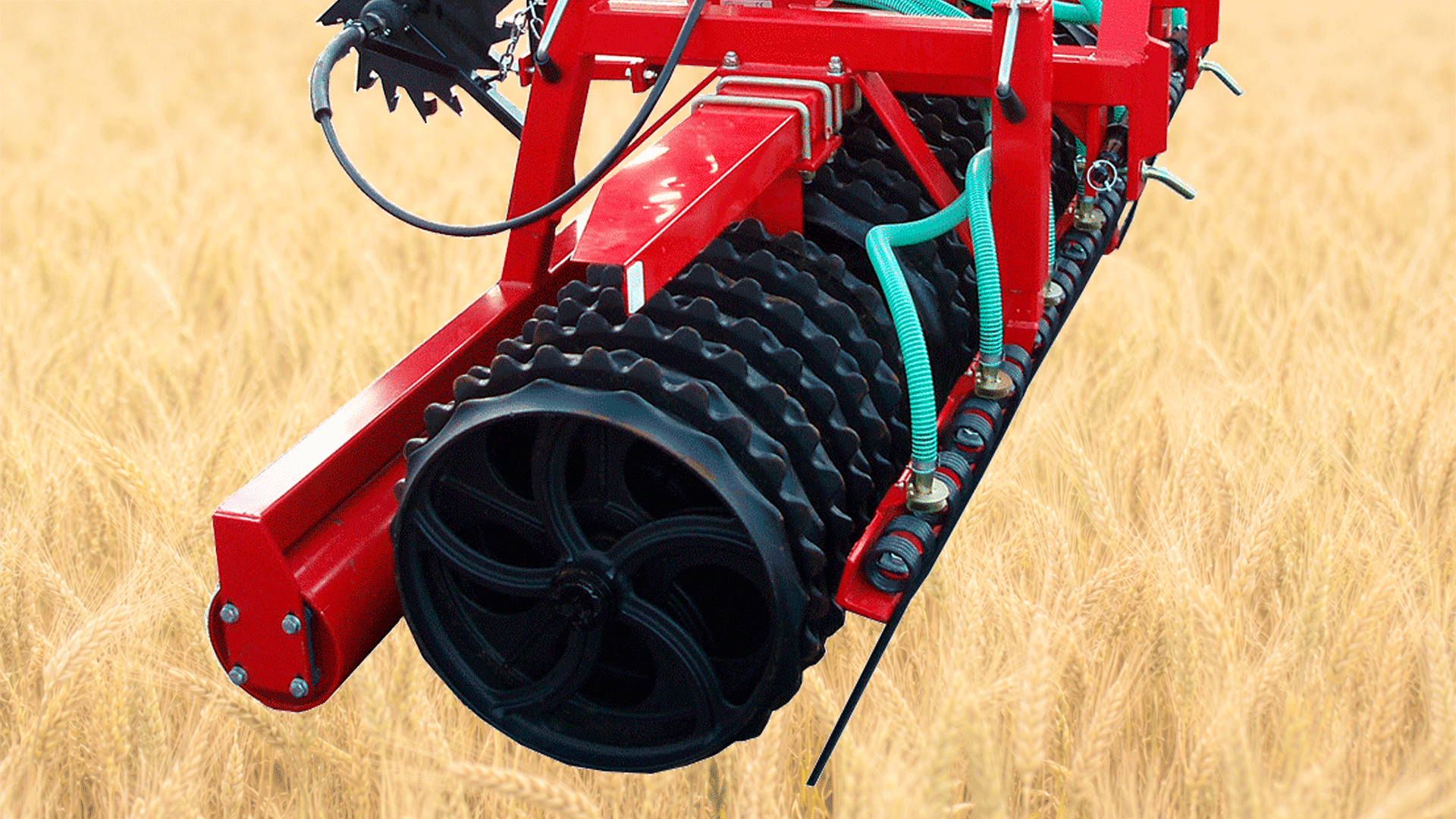

Grass-Seeder kit

Extra equipment	Specification
LED lights	Lights : set with wire and socket
Stone box set	Gathering of rocks : 2 pcs

rotate device to see table.

Languages	Brochure	Technical Specification	Manual / Spare Parts Catalog
Danish
English
German
French
Serbian
Spanish
Finnish
Hungarian
Italian
Norsk
Polish
Swedish

Images

Lift-Roller

The Roller That Is Easy to Maneuver

The HE-VA Lift-Roller is a fast and easy solution for soil consolidation and rolling. Its compact design, with the weight positioned close to the tractor, makes it easy to maneuver even with smaller tractors.

The strong construction increases the roller’s service life, and the bearings are positioned in line with the tractor wheels to reinforce the construction and make the roller extremely strong.

The separate drawbar carrying the roller makes coupling and uncoupling quick and easy, and since the drawbar can move freely up and down, the Lift-Roller adapts flexibly to the field surface.

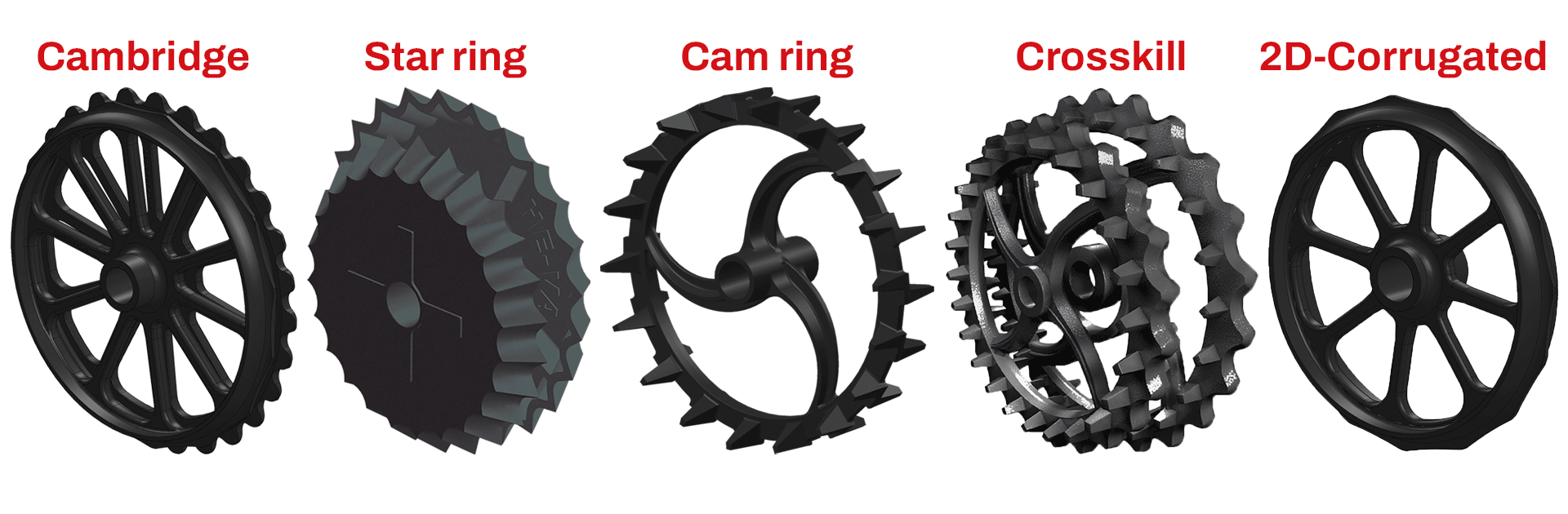

Choose Your Own Roller Ring

Read about ring types here
