Disc-Roller Classic
Disc-Roller Classic
2.25 - 4.75 M
2.45 - 3.50 M
90 - 150 HP
18 - 38 PCS
flip-to-se-table

rotate device to see table.

Three-Point Mounted 1-section models without hydraulic folding

Model, m Work Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
2.50 2.25 Square Tube Roller / 550mm - 18 90 + 1,260
2.50 2.25 Wave Roller / 600mm 20 18 90 + 1,560
2.50 2.25 V-Profile Roller / 600mm 16 18 90 + 1,780
3.00 2.75 Square Tube Roller / 550mm - 22 100 + 1,460
3.00 2.75 Wave Roller / 600mm 24 22 100 + 1,810
3.00 2.75 V-Profile Roller / 600mm 20 22 100 + 2,080
3.50 3.25 Square Tube Roller / 550mm - 26 110 + 1,670
3.50 3.25 Wave Roller / 600mm 28 26 110 + 2,125
3.50 3.25 V-Profile Roller / 600mm 23 26 110 + 2,395
4.00 3.75 Square Tube Roller / 550mm - 30 120 + 1,880
4.00 3.75 Wave Roller / 600 mm 32 30 120 + 2,440
4.00 3.75 V-Profile Roller / 600 mm 26 30 120 + 2,710

Three-Point Mounted 2-section models with hydraulic folding

Model, m Work Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
4.00 3.75 Square Tube Roller / 550mm - 30 120 + -
4.00 3.75 Wave Roller / 600mm 32 30 120 + 2,760
4.00 3.75 V-Profile Roller / 600mm 26 30 120 + 3,120
5.00 4.75 Square Tube Roller / 550mm - 38 150 + -
5.00 4.75 Wave Roller / 600mm 40 38 150 + 3,290
5.00 4.75 V-Profile Roller / 600mm 32 38 150 + 3,750

Trailed 1-section models without hydraulic folding

Model, m Work Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
3.00 2.75 Square Tube Roller / 550mm - 22 100 + 2,248
3.00 2.75 Wave Roller / 600mm 24 22 100 + 2,360
3.00 2.75 V-Profile Roller / 600mm 20 22 100 + 2,630
3.50 3.25 Square Tube Roller / 550mm - 26 110 + -
3.50 3.25 Wave Roller / 600mm 28 26 110 + 2,670
3.50 3.25 V-Profile Roller / 600 mm 23 26 110 + 2,945
4.00 3.75 Square Tube Roller / 550mm - 30 120 + -
4.00 3.75 Wave Roller / 600mm 32 30 120 + 2,990
4.00 3.75 V-Profile Roller / 600 mm 26 30 120 + 3,260

Trailed 2-section models with hydraulic folding

Model, m Work Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
4.00 3.75 Square Tube Roller / 550mm - 30 120 + -
4.00 3.75 Wave Roller / 600mm 32 30 120 + 3,320
4.00 3.75 V-Profile Roller / 600mm 26 30 120 + 3,680
5.00 4.75 Square Tube Roller / 550mm - 38 150 + -
5.00 4.75 Wave Roller / 600mm 40 38 150 + 3,850
5.00 4.75 V-Profile Roller / 600mm 32 38 150 + 4,300

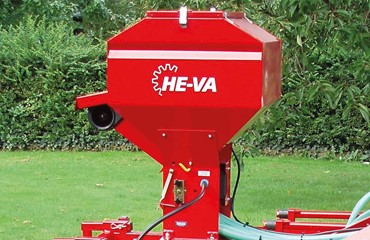

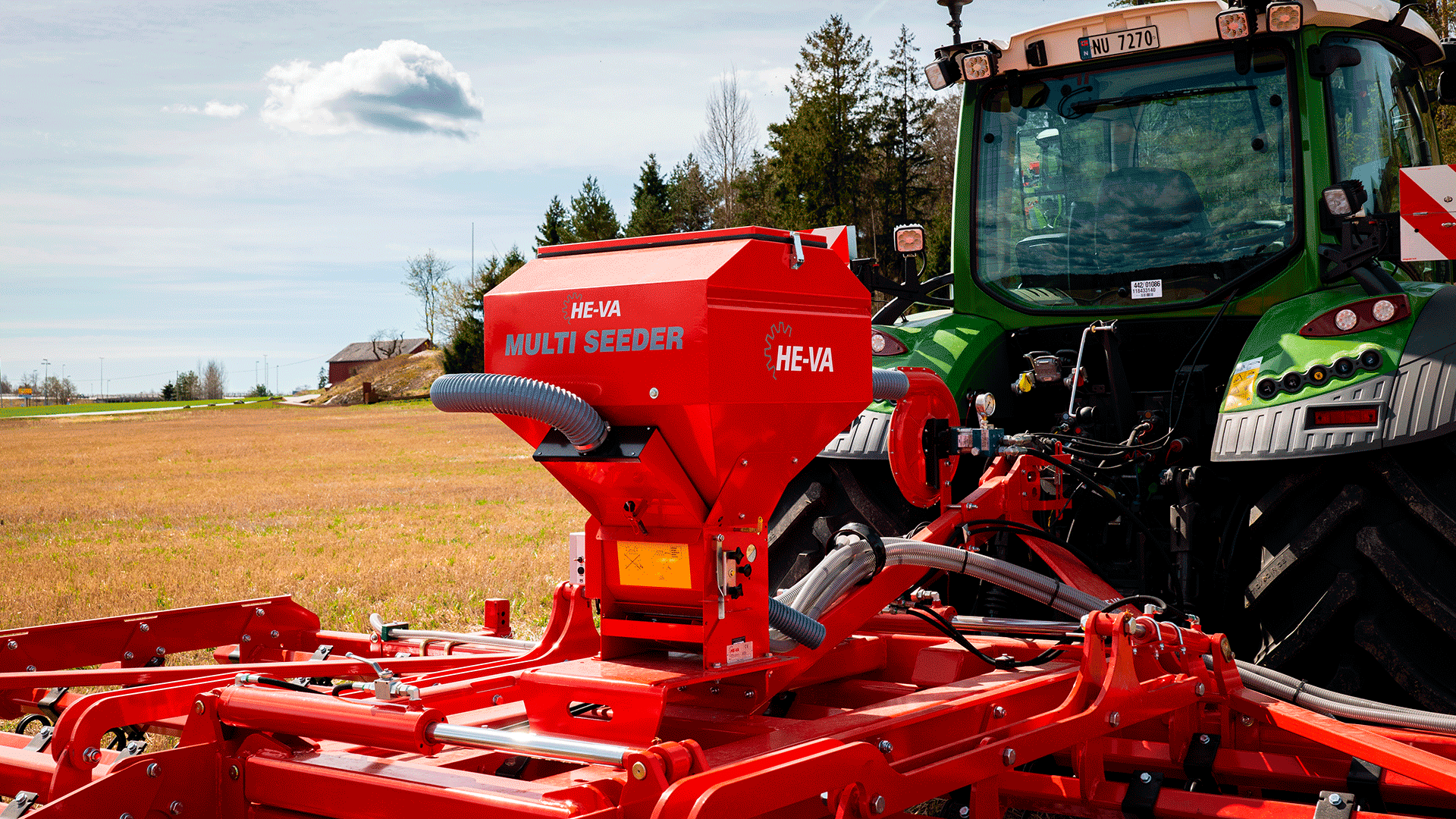

Multi-Seeder
Multi-Seeder

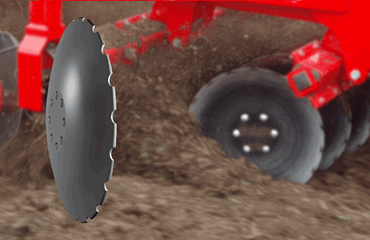

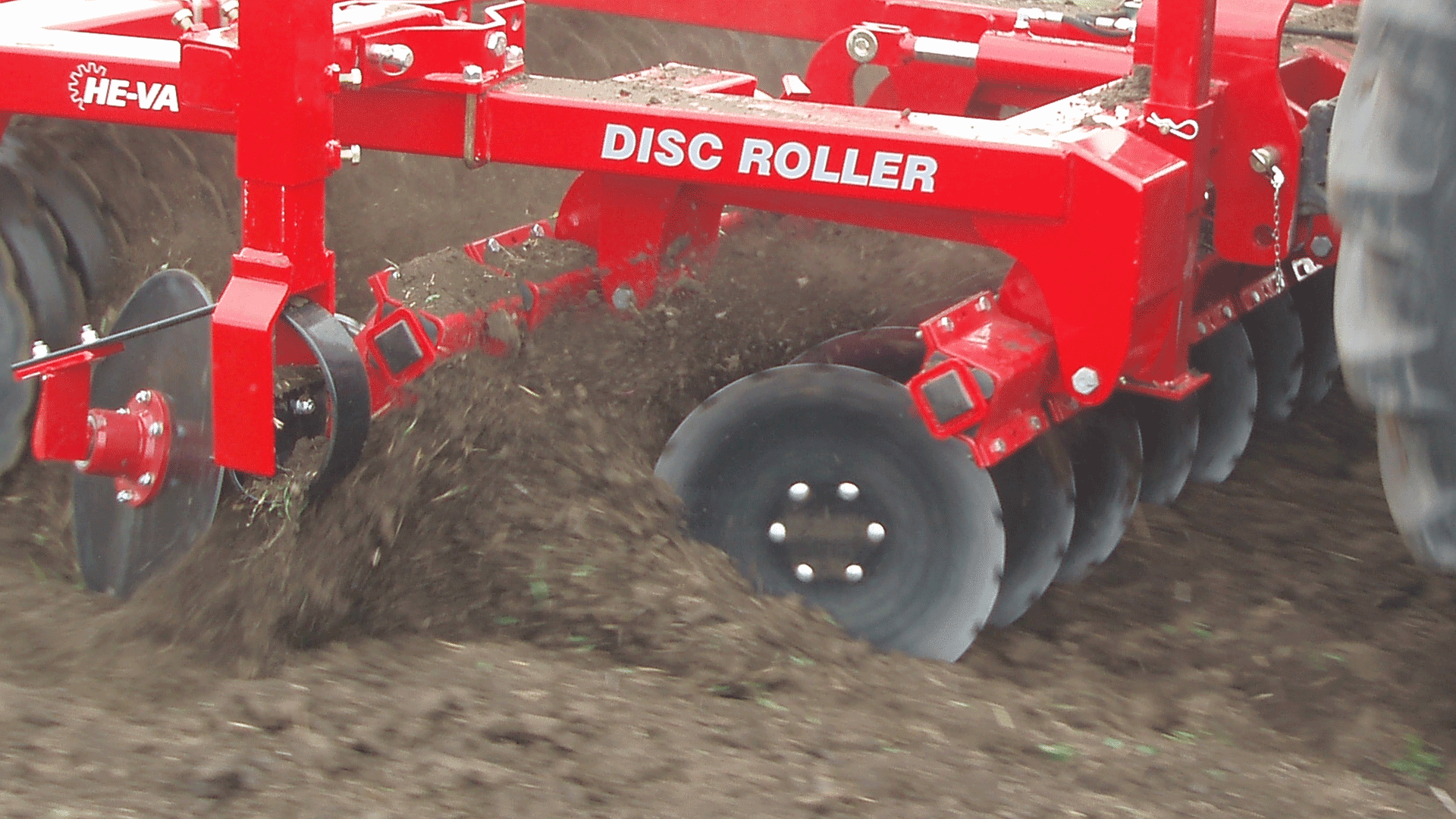

Sabre disc
Sabre disc

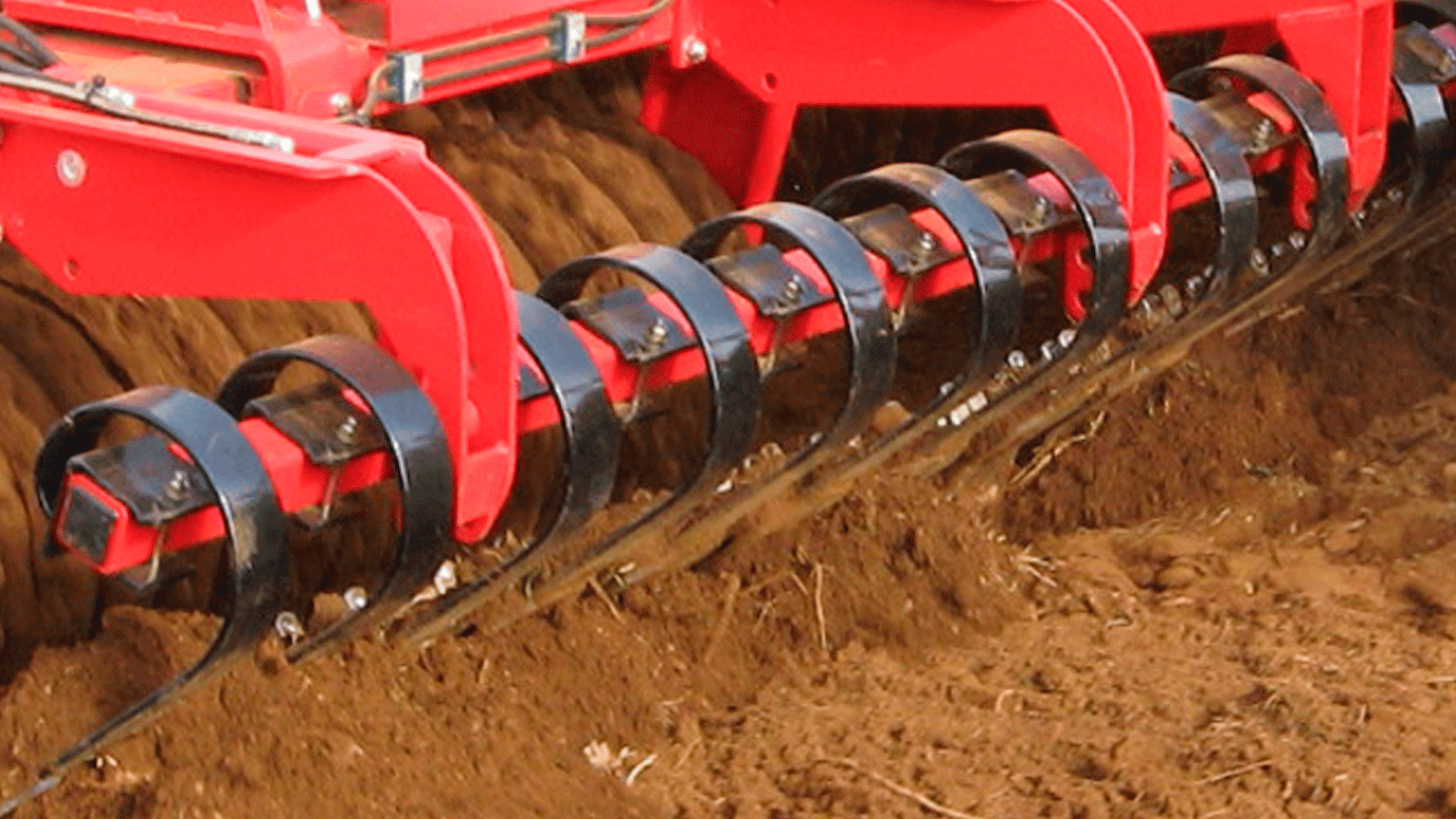

Spring-Board
Spring-Board
Top-Cutter
Top-Cutter
Extra equipment Specification
LED lights Lights : set with wire and socket
Mounting set for Multi-Seeder
Brakes Air : Factory mounted
Brakes 1-circuit Hydraulic : Factory mounted
Brakes 2-circuit Hydraulic : Factory mounted
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Italian
Polish
Swedish
Hungarian
Spanish
Finnish

Disc-Roller Classic

Disc Cultivator

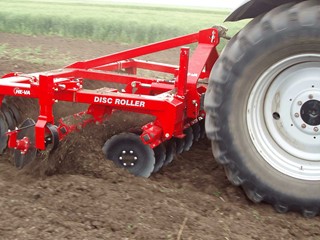

The HE-VA Disc-Roller Classic has been developed and tested in close cooperation with end users. The combination of the correct disc angle and roller ensures perfect cultivation, mixing, and consolidation in one high-speed operation.

Disc-Roller Classic is easy to manoeuvre both in the field and on the road and is an extremely versatile cultivator. It can be used for incorporating stubble and crop residues as well as for seedbed preparation on ploughed land. With a weight of approximately 1 tonne per metre, the machine ensures efficient cutting and effective consolidation of cultivated soil.

The Cultivator for All Types of Farming

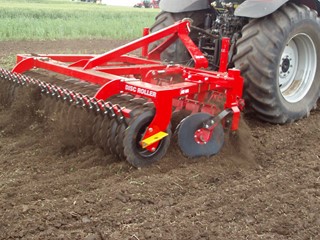

Disc-Roller Classic for Smaller Farms

The single-section Disc-Roller Classic, available in both trailed and mounted versions, is designed for tractors of approximately 100 HP. This allows smaller farms to benefit from Disc-Roller technology and achieve reduced tillage and lower operating costs.

The single-section Disc-Roller Classic, available in both trailed and mounted versions, is designed for tractors of approximately 100 HP. This allows smaller farms to benefit from Disc-Roller technology and achieve reduced tillage and lower operating costs.

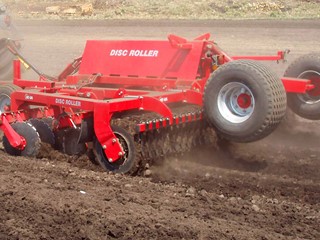

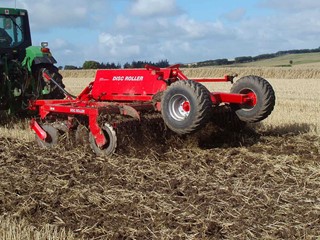

Disc-Roller Classic for Large Farms

The two-section Disc-Roller Classic is especially suitable for medium-sized and large farms. The two-section design requires more than 130 HP to achieve optimal penetration and mixing. The machine is available in both trailed and mounted versions.

The two-section Disc-Roller Classic is especially suitable for medium-sized and large farms. The two-section design requires more than 130 HP to achieve optimal penetration and mixing. The machine is available in both trailed and mounted versions.

Disc-Roller for Individual Requirements

Hydraulic Working Depth Adjustment

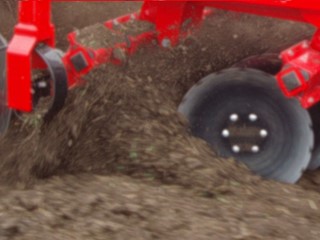

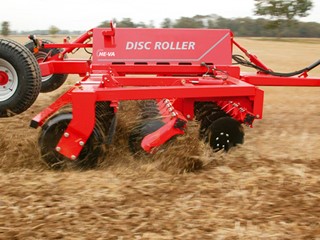

  1. Shallow cultivation should loosen the soil rather than push it. By positioning the discs vertically, the soil is pressed horizontally sideways and the entire surface is moved. This minimises smearing and reduces the risk of compaction.
  2. When using the Disc-Roller Classic for mixing or incorporating crop residues, a more aggressive disc angle is required. The HE-VA DSD system automatically increases the aggressiveness relative to the soil surface.

Consolidation for Different Soil Types

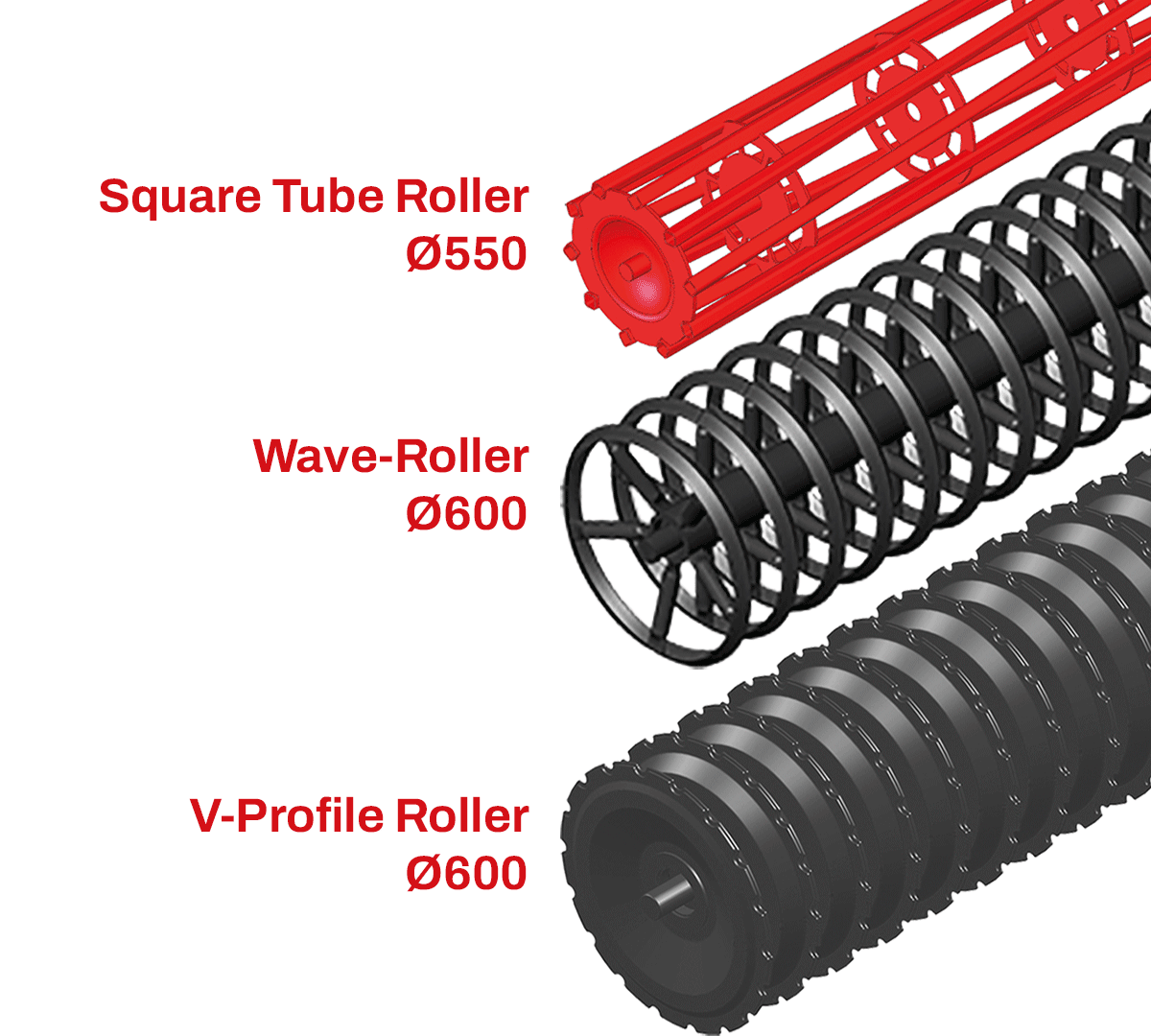

The Disc-Roller Classic can be equipped with three different roller types - Square Tube Roller, Wave-Roller and V-Profile Roller.

Each offers specific advantages depending on soil conditions.



Read more about roller types here

Optional Equipment for the Disc-Roller Classic

If intensive levelling before disc cultivation is required, a Spring-Board can be fitted to the Disc-Roller Classic. Different brake systems are also available, and seed equipment can be mounted to allow seeding and cultivation in a single pass.
