Triple-Tiller Airy
Triple-Tiller Airy
2.50 - 6.00 M
2.48 - 4.00 M
80 - 300 HP
1,250 - 2,450 KG
flip-to-se-table

rotate device to see table.

Work Width, m Type Tine Type No. of Tines Power Req., HP Lifting Req., kg Transport Width, m Weight, kg
2.50 Rigid, 1-section Spring Tine 10 80-160 2,250 2.50 1,250
2.50 Rigid, 1-section Shear bolt 10 80-160 2,250 2.50 1,250
2.50 Rigid, 1-section Automatic 10 80-160 2,250 2.50 1,250
3.00 Rigid, 1-section Spring Tine 12 100-200 2,450 3.00 1,360
3.00 Rigid, 1-section Shear bolt 12 100-200 2,450 3.00 1,360
3.00 Rigid, 1-section Automatic 12 100-200 2,450 3.00 1,500
3.50 Rigid, 1-section Spring Tine 14 120-240 2,650 3.50 1,470
3.50 Rigid, 1-section Shear bolt 14 120-240 2,650 3.50 1,470
3.50 Rigid, 1-section Automatic 14 120-240 2,650 3.50 1,470
4.00 Rigid, 1-section Spring Tine 16 140-250 2,850 4.00 1,580
4.00 Rigid, 1-section Shear bolt 16 140-250 2,850 4.00 1,580
4.00 Rigid, 1-section Automatic 16 140-250 2,850 4.00 1,580
4.00 Foldable, 2-section Spring Tine 16 140-250 4,020 2.48 2,230
4.00 Foldable, 2-section Shear bolt 16 140-250 4,020 2.48 2,230
4.00 Foldable, 2-section Automatic 16 140-250 4,020 2.48 2,230
5.00 Foldable, 2-section Spring Tine 20 160-280 4,220 2.48 2,340
5.00 Foldable, 2-section Shear bolt 20 160-280 4,220 2.48 2,340
5.00 Foldable, 2-section Automatic 20 160-280 4,220 2.48 2,340
6.00 Foldable, 2-section Spring Tine 24 180-300 4,410 2.48 2,800
6.00 Foldable, 2-section Shear bolt 24 180-300 4,410 2.48 2,450
6.00 Foldable, 2-section Automatic 24 180-300 4,410 2.48 2,450
Multi-Seeder
Multi-Seeder
Extra equipment Specification
LED lights Lights : set with wire and socket
Edge disc set Weight : 33-82 kg
Mounting set for Multi-Seeder
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
Swedish
French
Finnish

Images

Triple-Tiller Airy

Ideal for stubble cultivation

Triple-Tiller Airy is ideal for stubble cultivation as it leaves the soil aerated - an advantage in stiff clay during the winter season. Efficient harrowing and effective soil loosening is secured by the 3 rows of harrow tines that are followed by the eradicator discs. The long-finger after-harrow leaves the field even and levelled regardless of depth and speed.

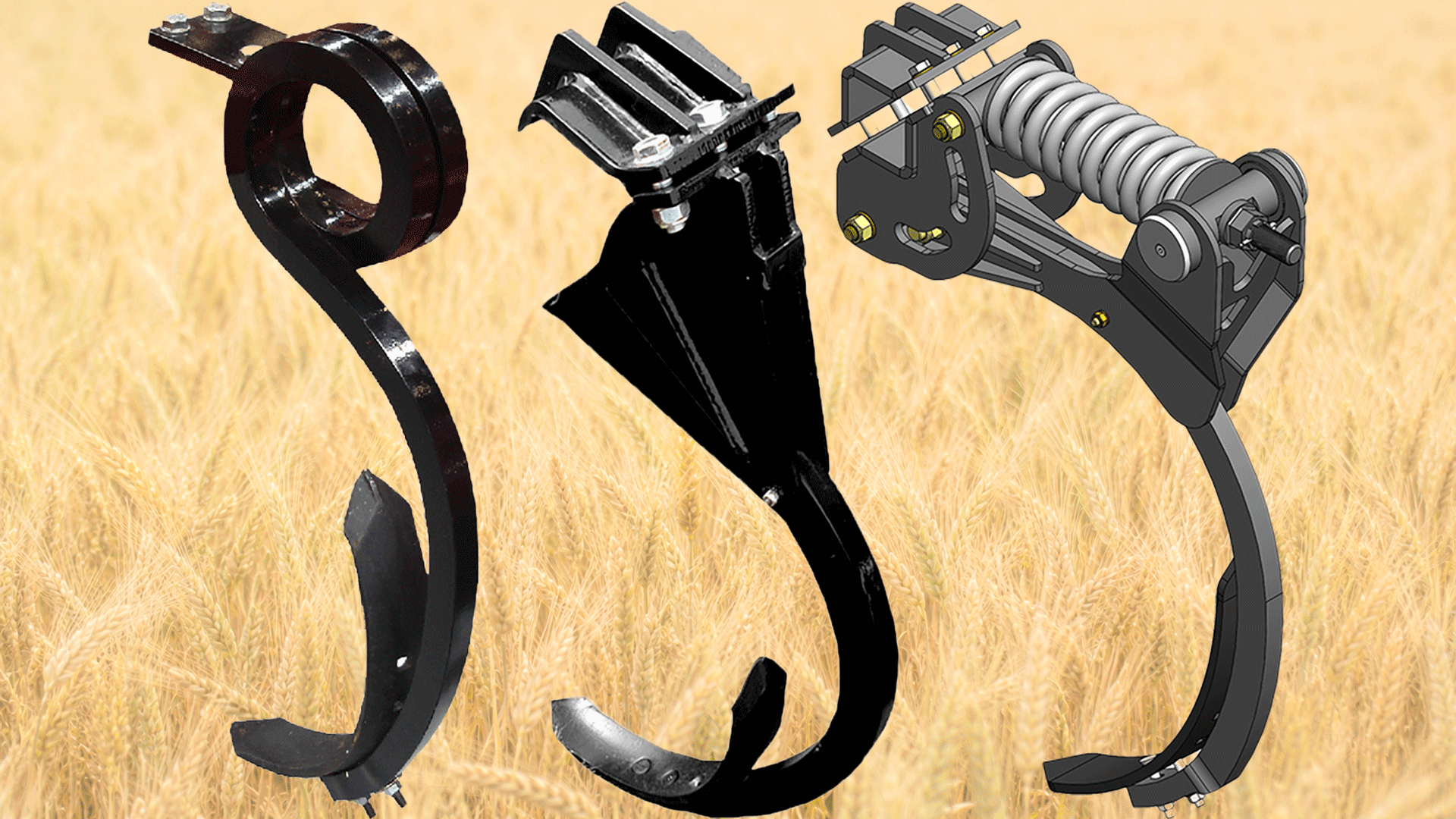

A tine for every need

Triple-Tiller Airy can be mounted with 4 different tines

  • Automatic with spring
  • Shear bolt
  • Double-twisted spring-tine 35x35 mm
  • Double-twisted spring-tine 40x40 mm

The double-twisted spring-tine 35x35 mm has a working depth of 0-20 cm, whereas the automatic tine with spring, the shear bolt and the double-twisted spring-tine 40x40 mm has a working depth of 0 - 30 cm.



More about tines here
