Grass-Roller
Grass-Roller
2.90 - 9.50 M
2.22 - 3.00 M
50 - 160 HP
1,015 - 6,790 KG
flip-to-se-table

rotate device to see table.

Three-point mounted models - 1-section rigid

Work Width, m Roller / Ring Type Rings Spokes Power Req., HP Transport Width, m Weight -water, kg Weight +water, kg
2.90 710 mm Plain Roller - - 80-120 3.00 1,035 1,995
2.90 620 mm/24” Cambridge 54 10 80-120 3.00 1,510 -
2.90 450/500 Star ring 50 - 80-120 3.00 1,140 -
2.90 550/600 mm Star ring 50 - 80-120 3.00 1,440 -

Trailed models

Work Width, m Roller / Ring Type Rings Spokes Power Req., HP Transport Width, m Weight -water, kg Weight +water, kg
2.90 710 mm Plain Roller - - 50-70 3.00 1,515 2,475
2.90 620 mm/24” Cambridge 54 10 50-70 3.00 1,990 -
2.90 550/600 mm Star ring 50 - 50-70 3.00 1,920 -
4.50 610 mm Plain Roller - - 70-90 2.22 1,560 2,830
4.50 620 mm/24” Cambridge 87 10 70-90 2.22 3,240 -
4.50 550-600 mm Crosskill 45 - 70-90 2.22 3,140 -
4.50 450/500 Star ring 88 - 70-90 2.22 2,160 -
4.50 550/600 mm Star ring 88 - 70-90 2.22 2,570 -
6.30 610 mm Plain Roller / Tip-Roller - - 90-110 2.45 2,240 3,860
6.30 610 mm Plain Roller - - 90-110 2.45 2,450 4,070
6.30 710 mm Plain Roller - - 100-120 2.45 3,050 5,280
6.30 550-600 mm Crosskill  63 - 100-120 2.45 3,770 -
6.30 620 mm/24” Cambridge 123 10 100-120 2.45 4,080 -
6.30 550/600 mm Star ring  120 - 100-120 2.45 3,940 -
8.20 610 mm Plain Roller - - 130-160 2.45 3,430 5,180
8.20 710 mm Plain Roller - - 130-160 2.45 3,880 6,790
8.20 550-600 mm Crosskill 81 - 130-160 2.45 5,290 -
8.20 620 mm/24” Cambridge 157 10 130-160 2.45 5,450 -
8.20 550/600 mm Star ring 152 - 130-160 2.45 5,290 -
9.50 610 mm Plain Roller / Tip-Roller - - 140-160 2.45 3,400 5,840

Grass-Roller COMPACT

Work Width, m Roller / Ring Type Rings Spokes Power Req., HP Transport Width, m Weight, kg
2.90 620 mm/24” Cambridge 54 10 80-120 3.00 1,510
2.90 450/500 Star ring 51 - 80-120 3.00 1,100
2.90 550/600 mm Star ring 51 - 80-120 3.00 1,440
2.90 Ø610 Plain Roller - - 80-120 3.00

815 w/o water

1,565 w/water



Transverse locking system
Transverse locking system

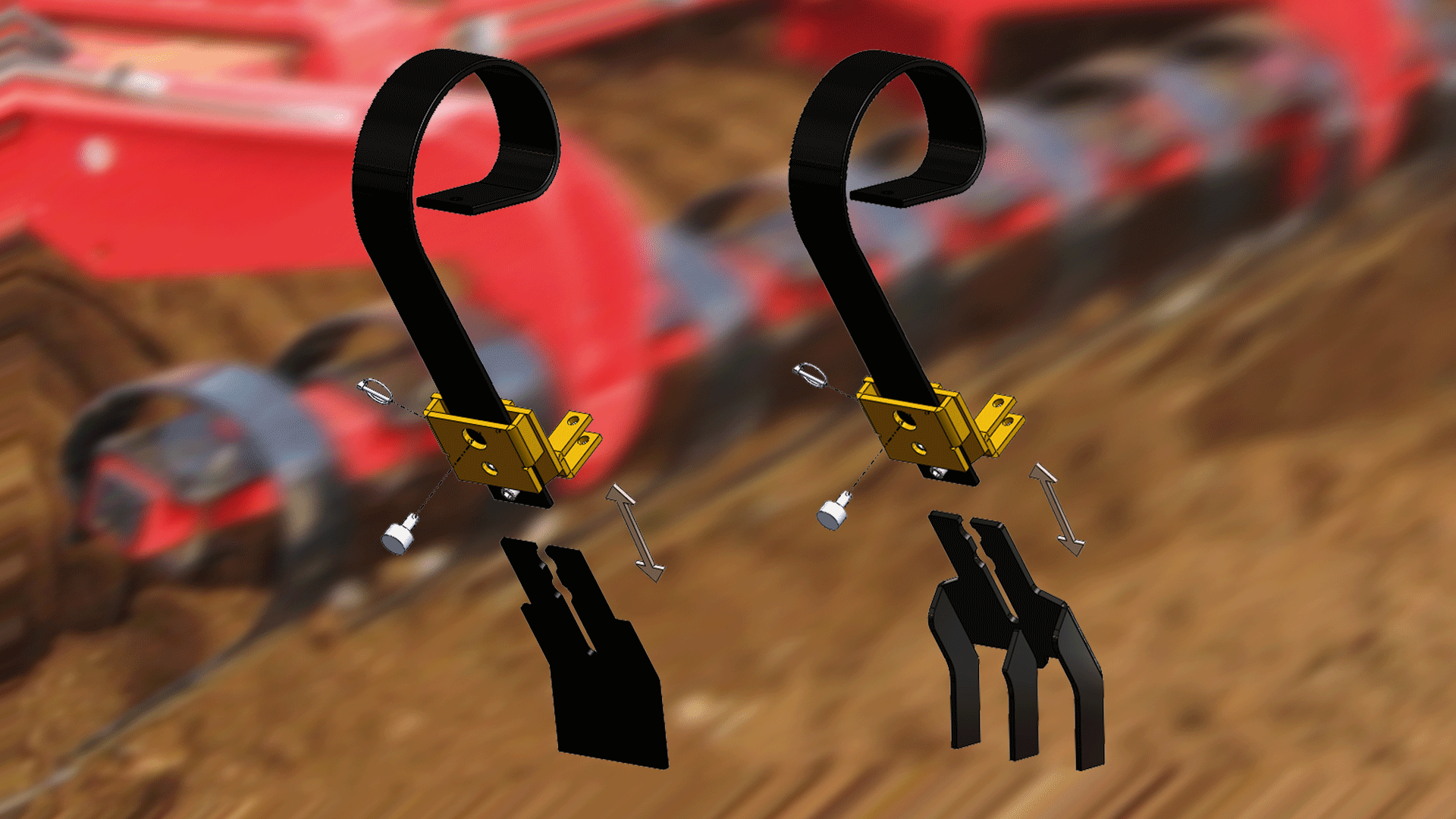

Easy-Change
Easy-Change
Package 1
Package 1

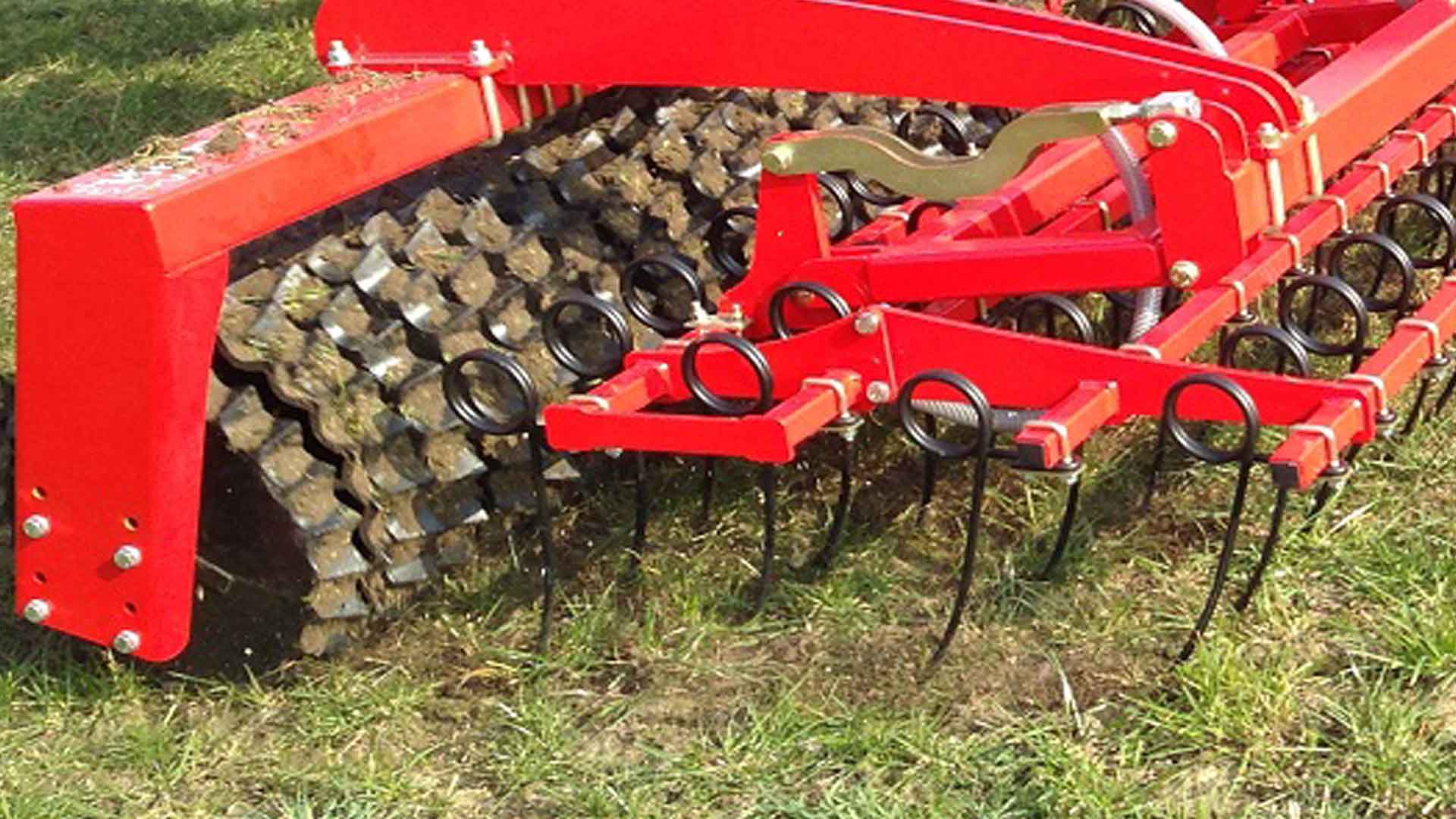

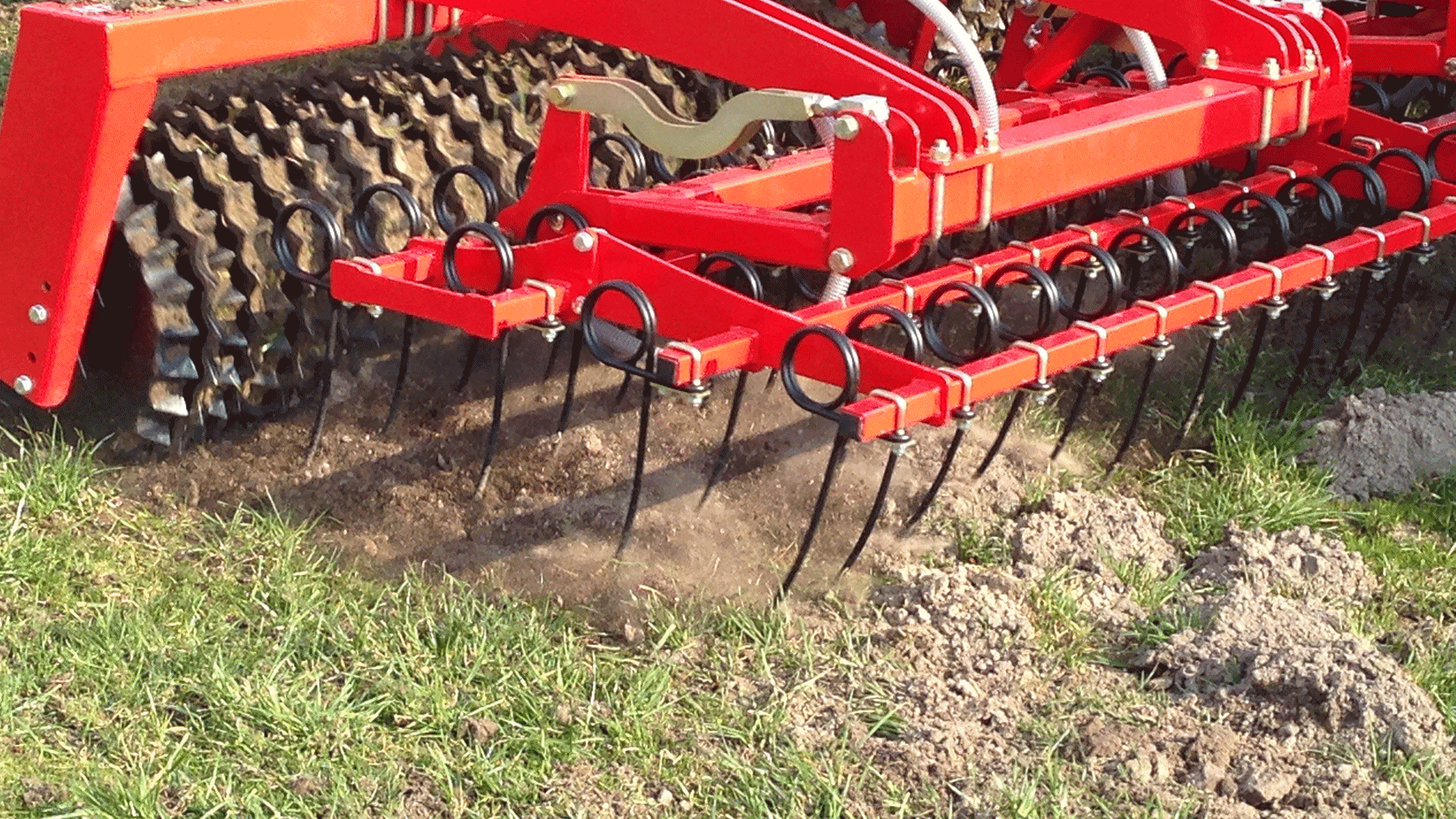

Package 2
Package 2

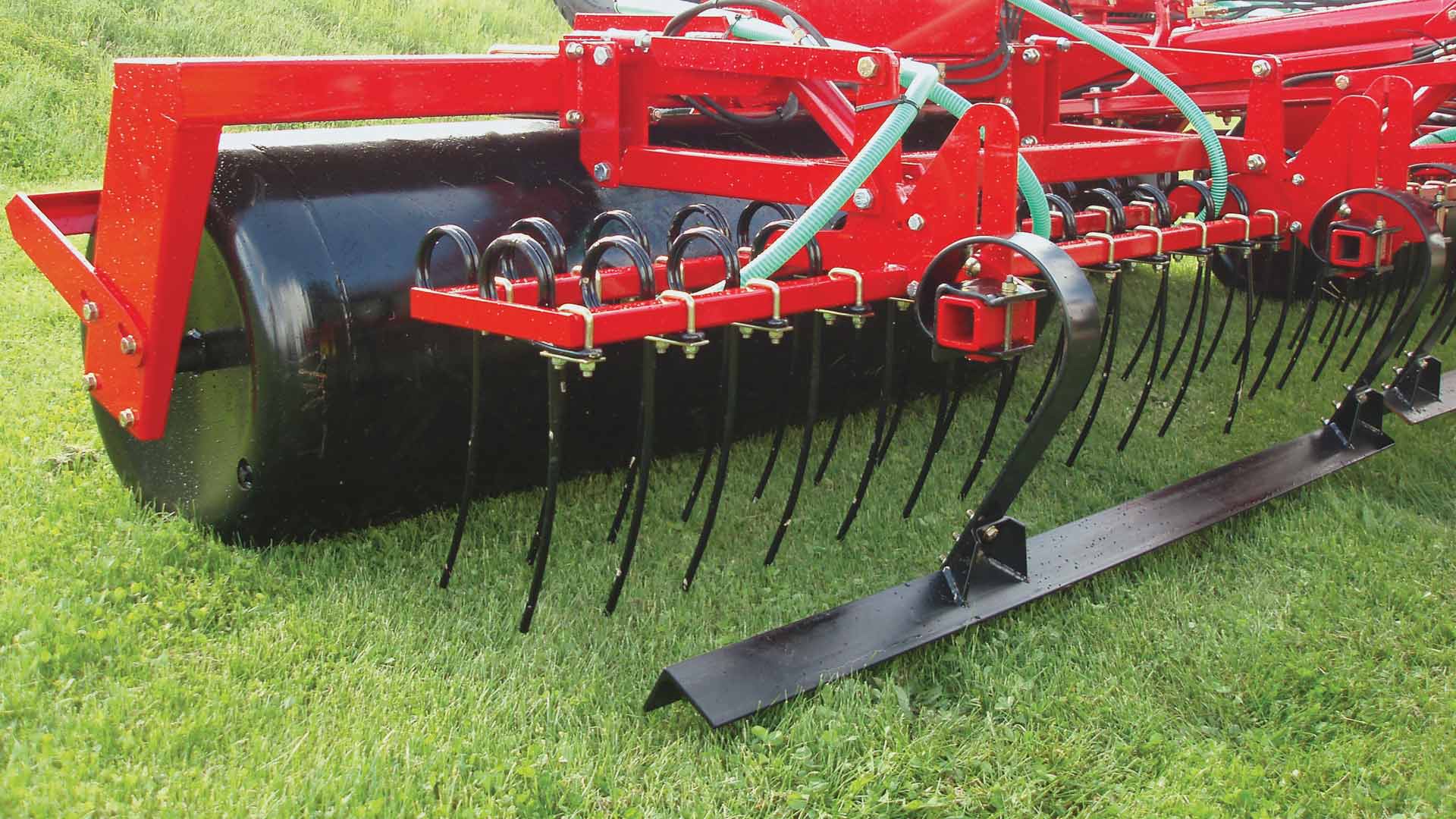

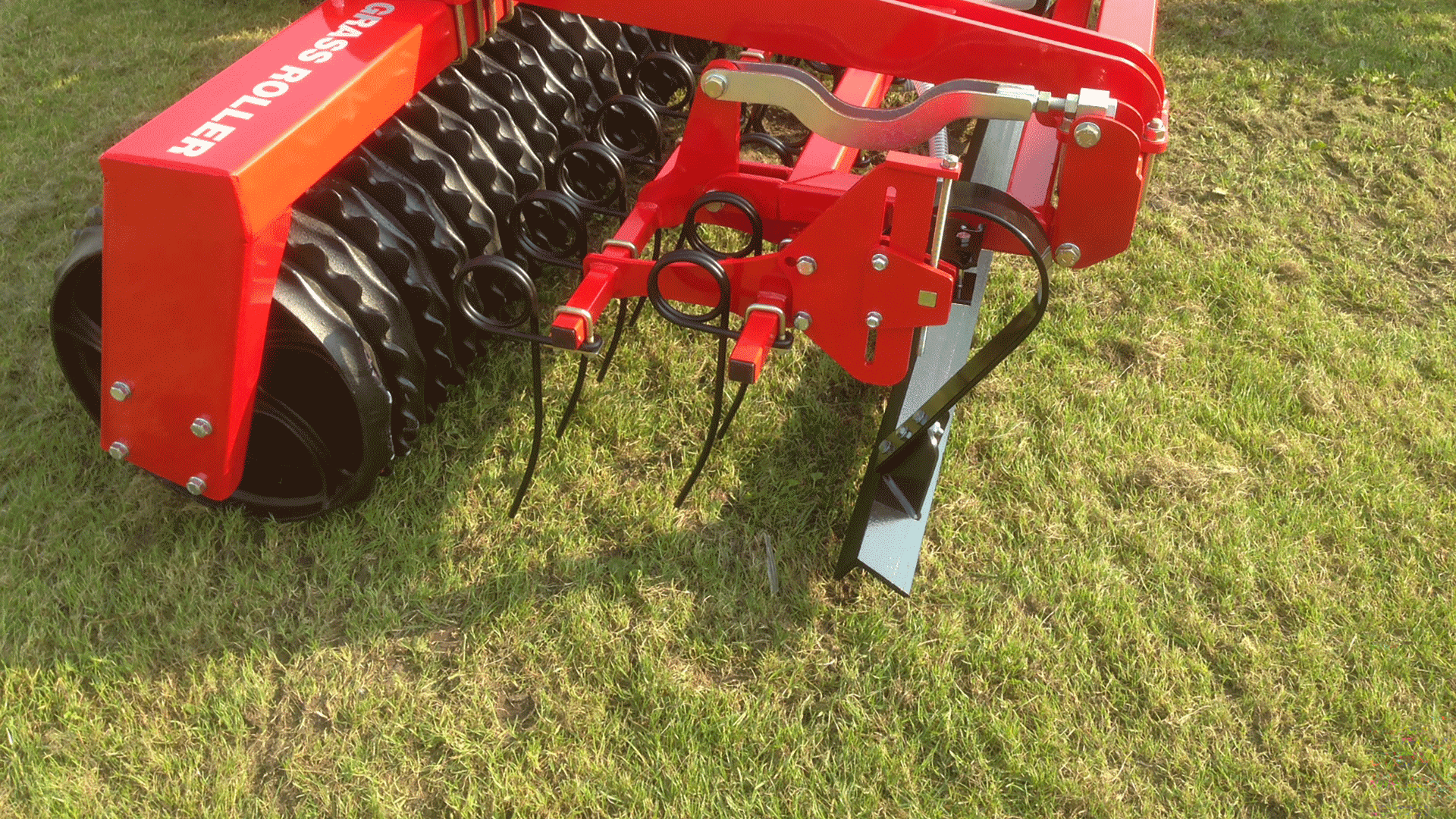

Package 3
Package 3

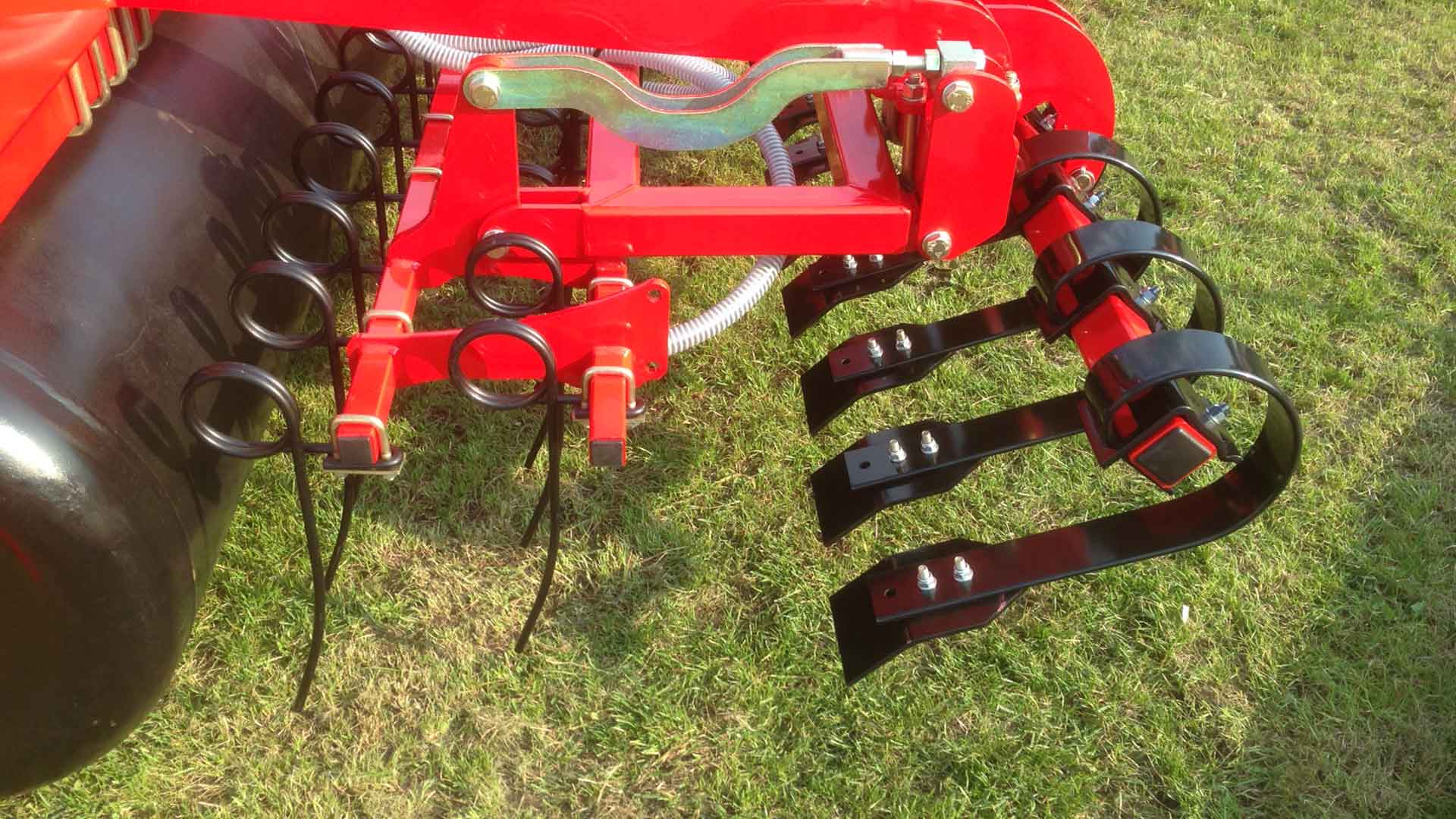

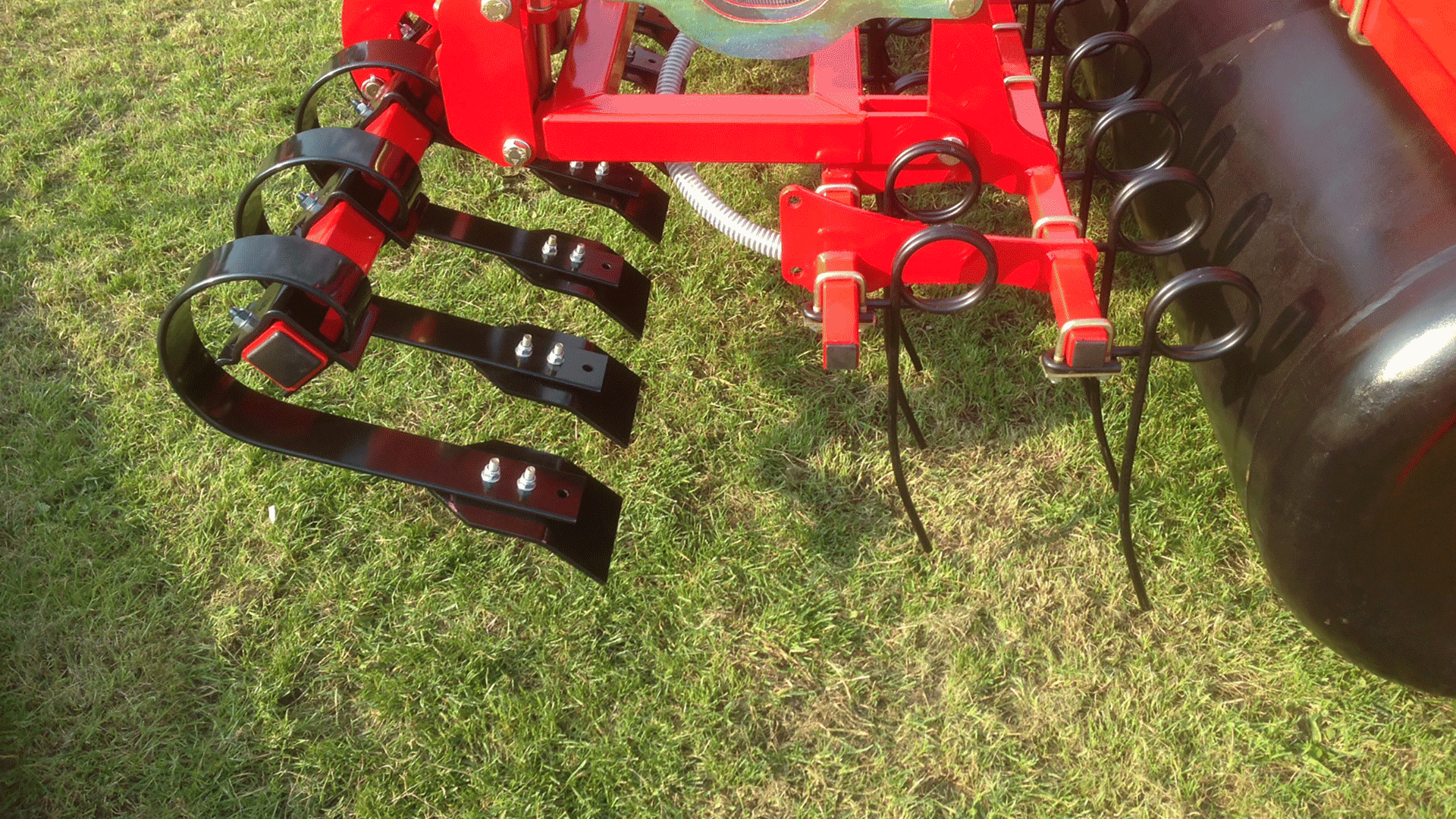

Package 4
Package 4

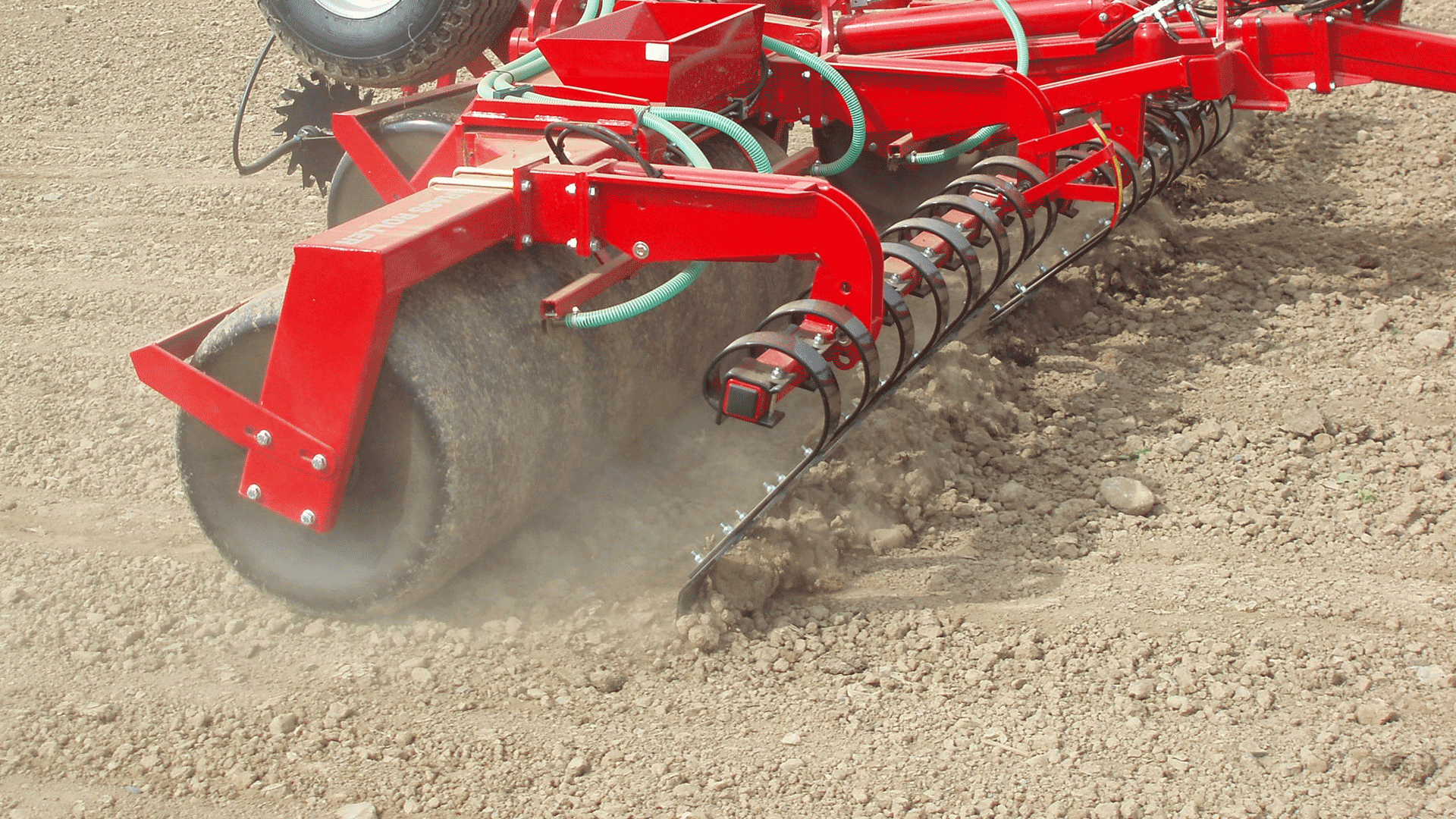

Package 5
Package 5

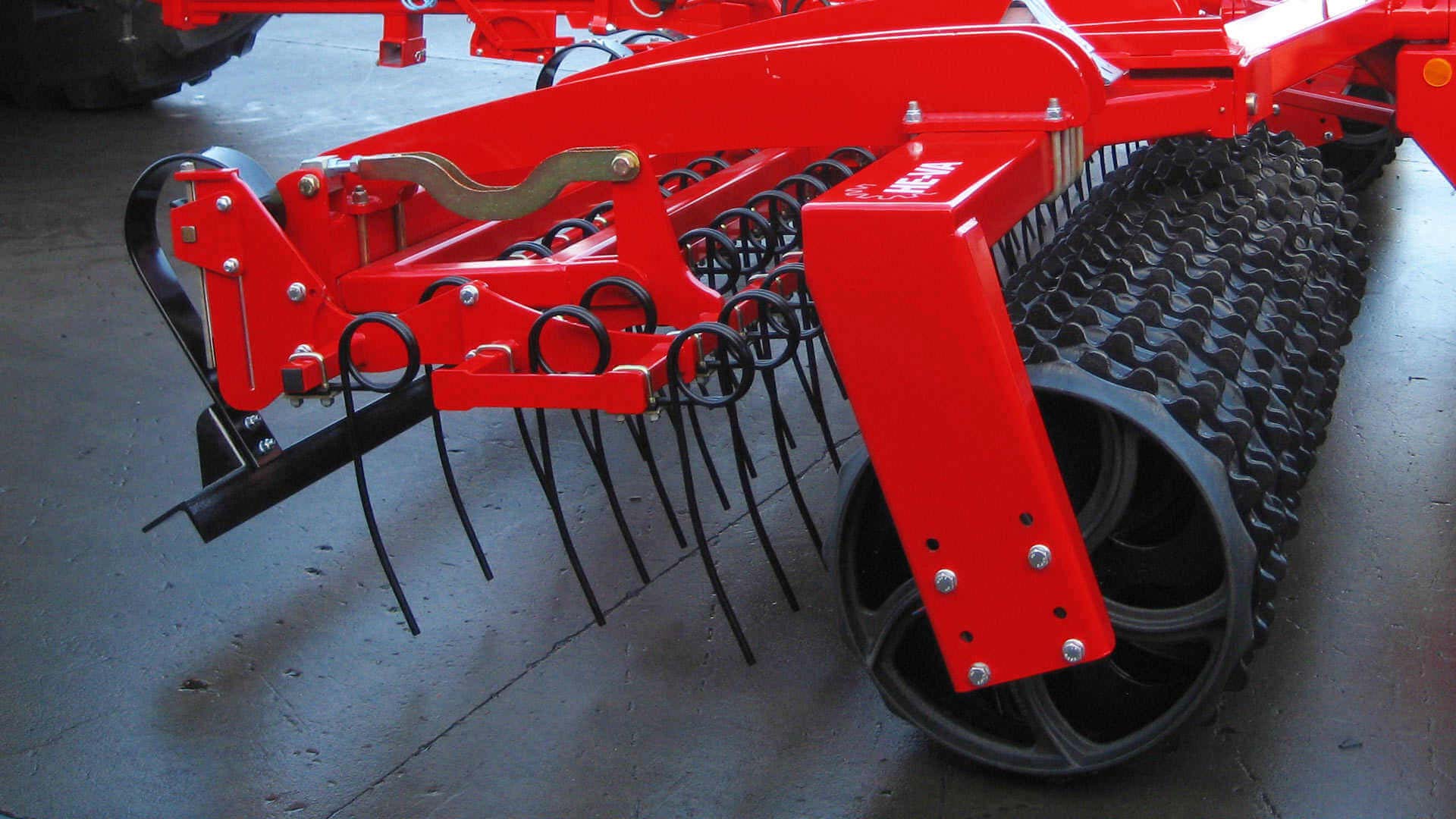

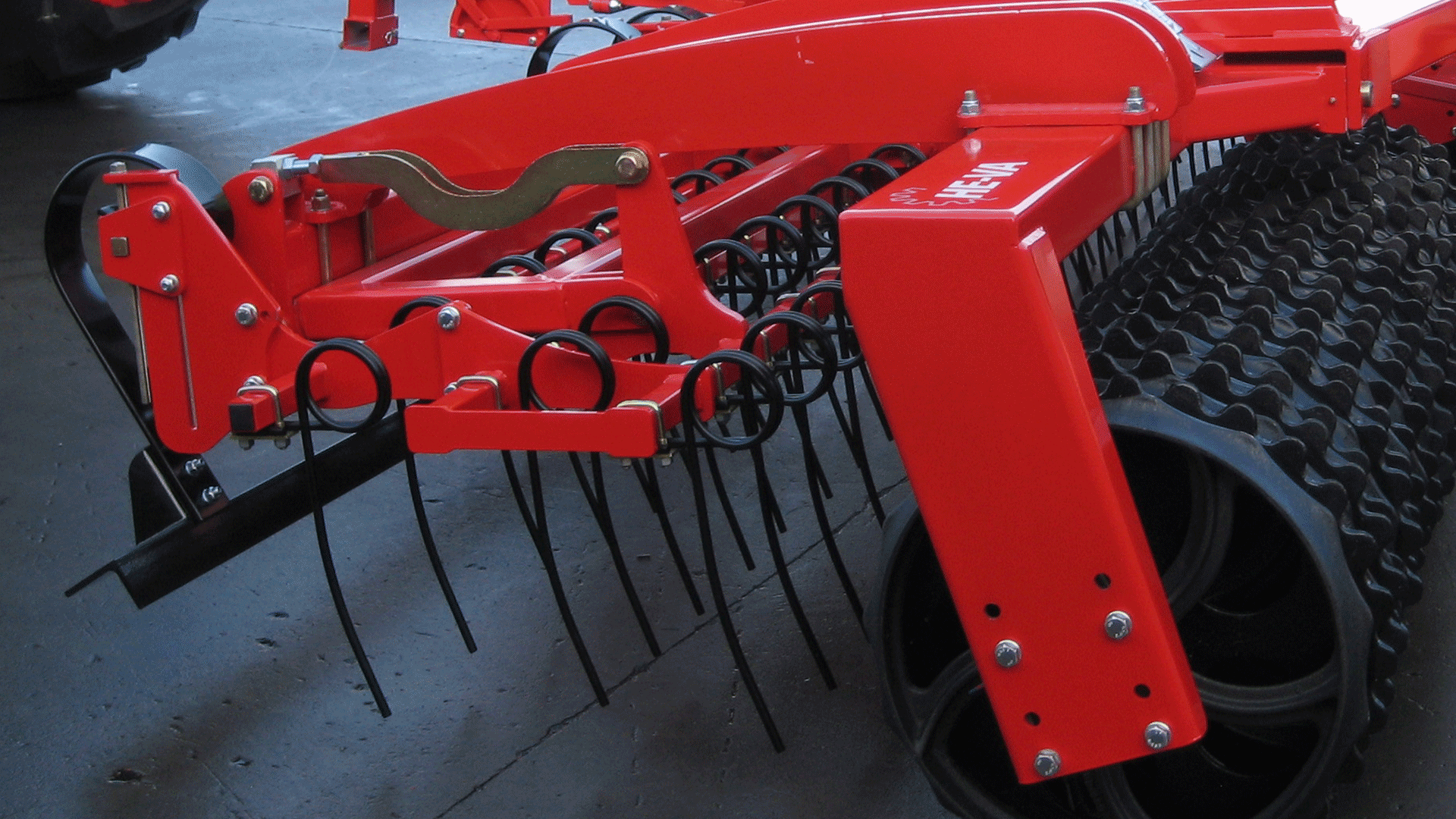

Package 6
Package 6

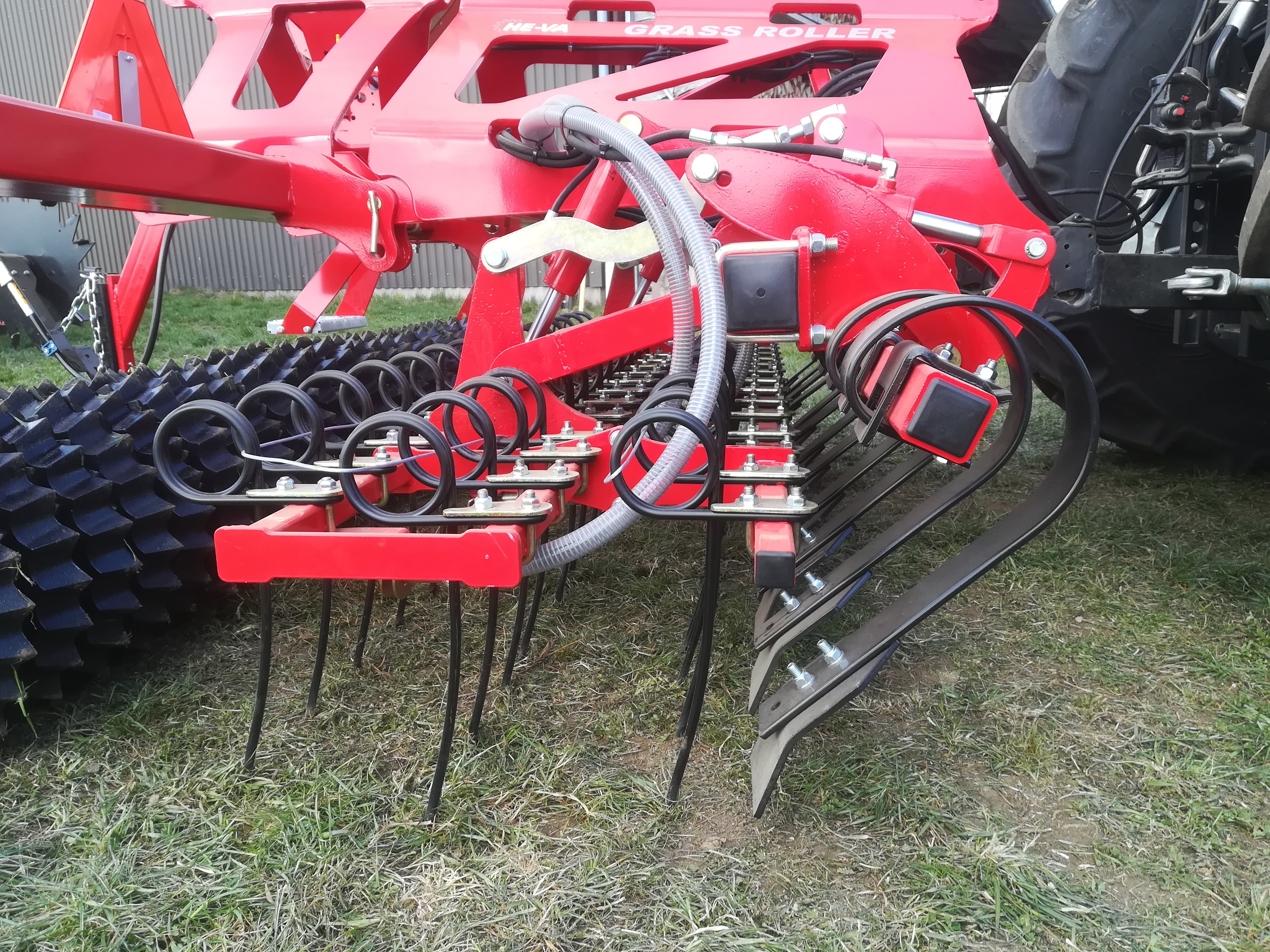

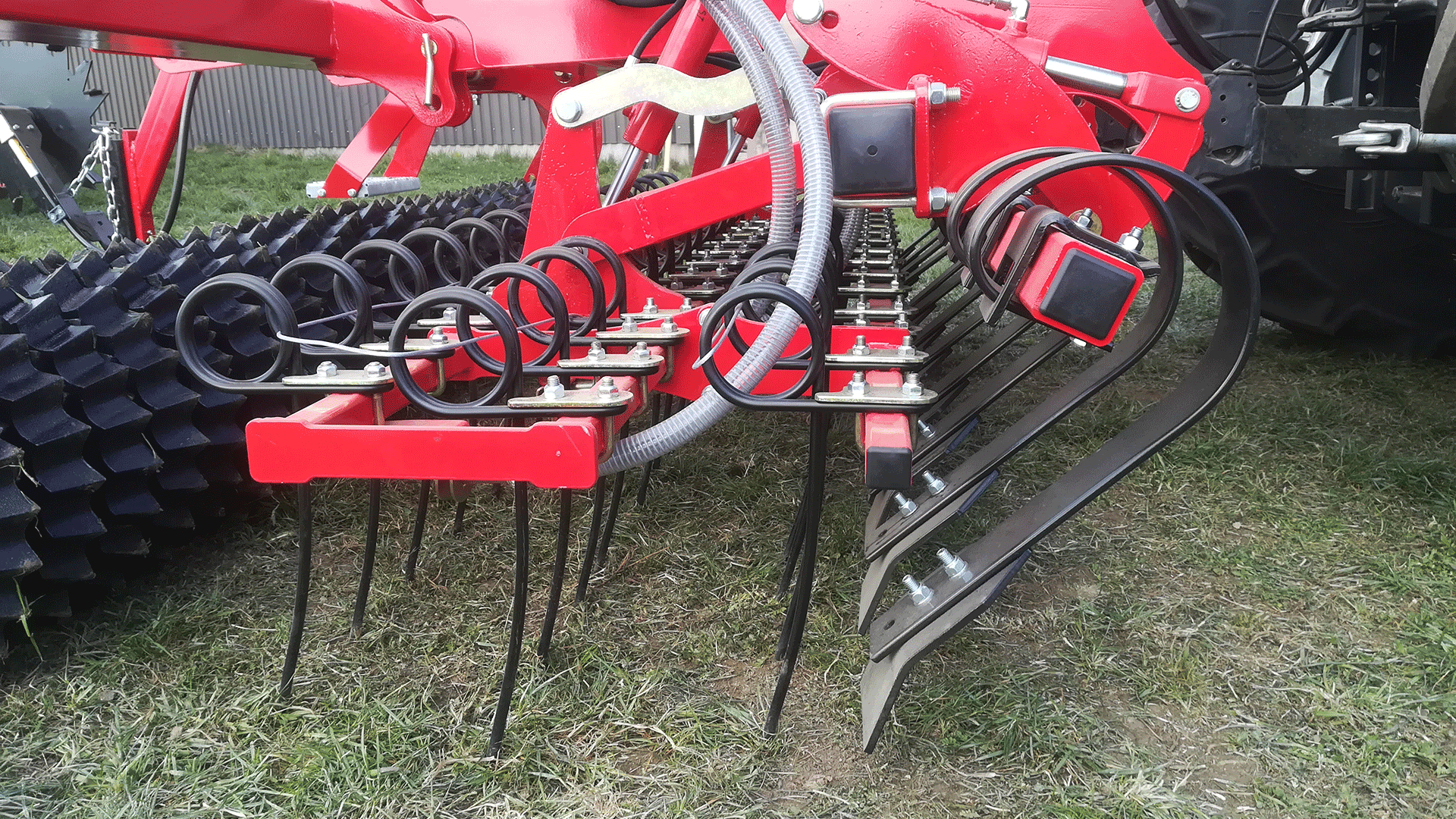

Package 7
Package 7

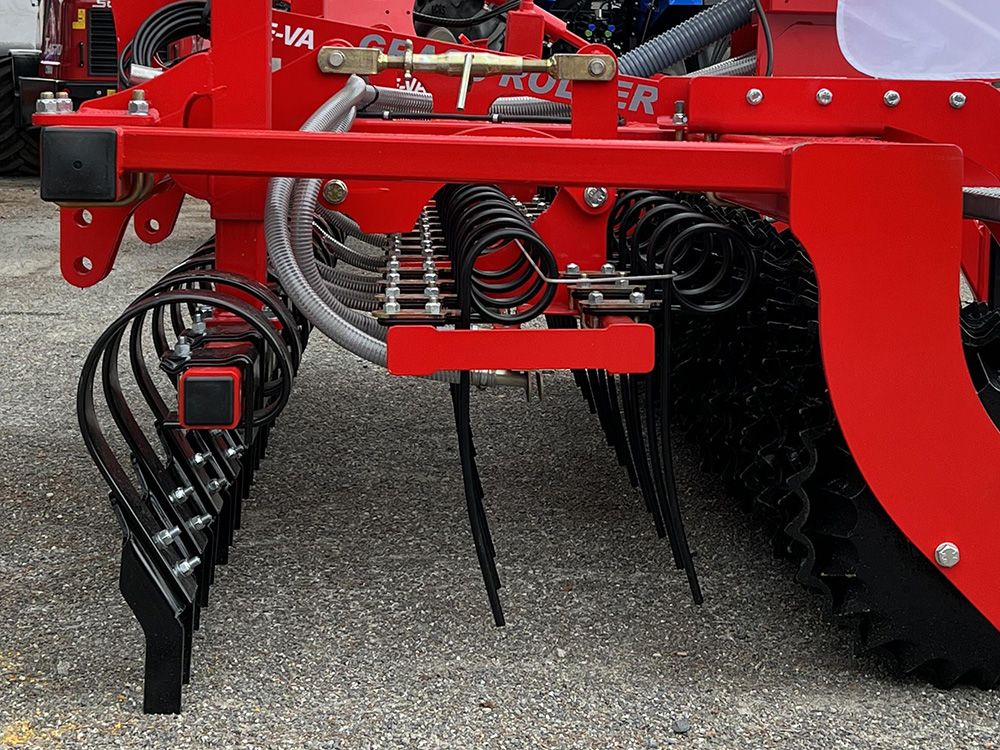

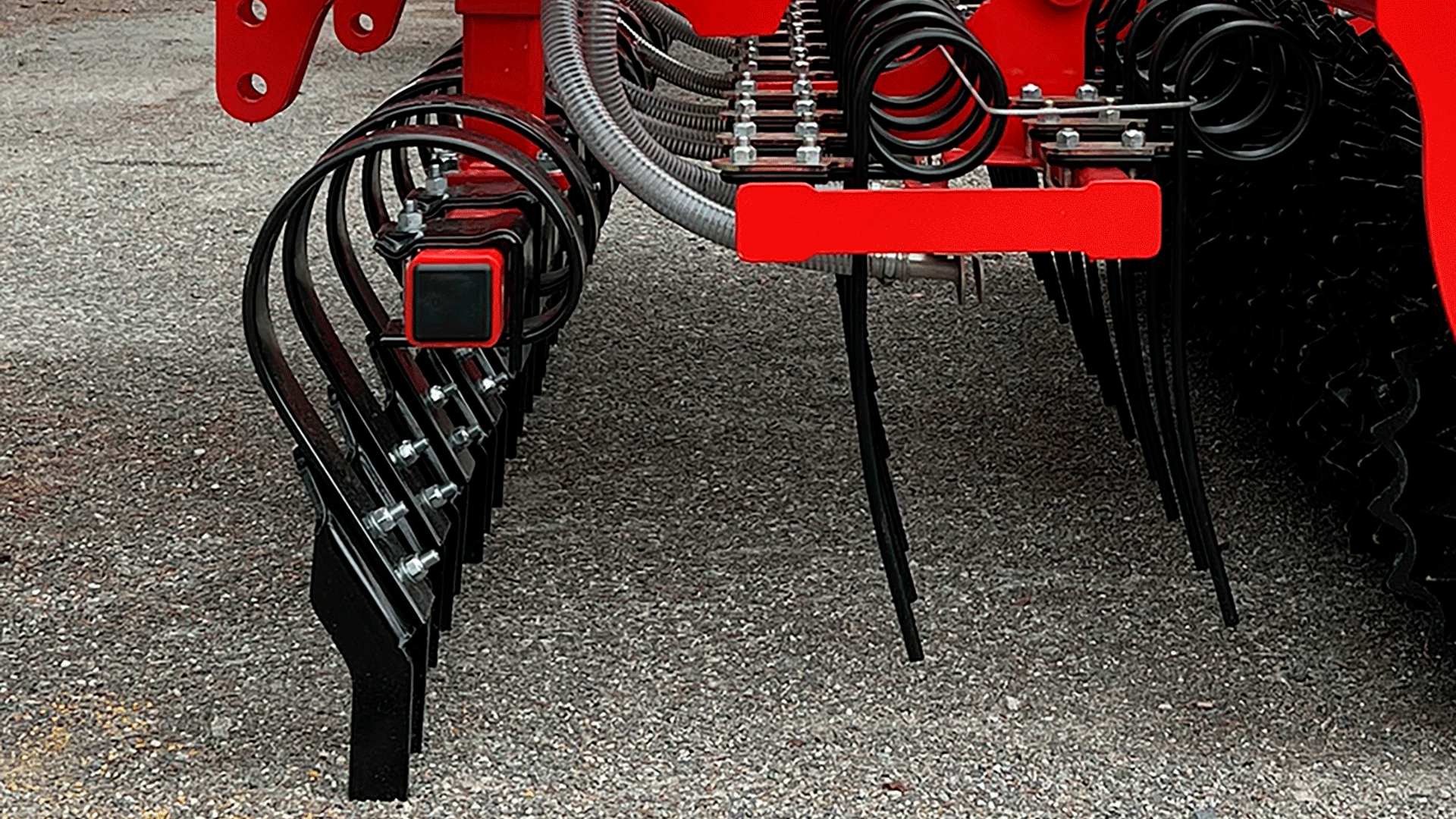

Package COMPACT 1
Package COMPACT 1

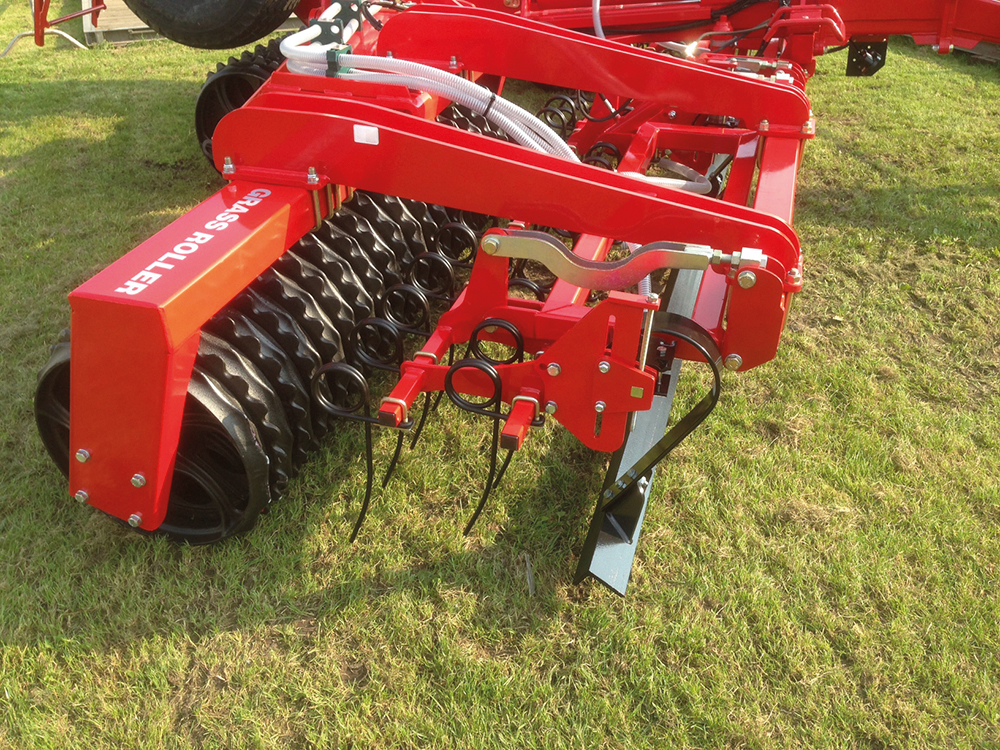

Package COMPACT 2
Package COMPACT 2

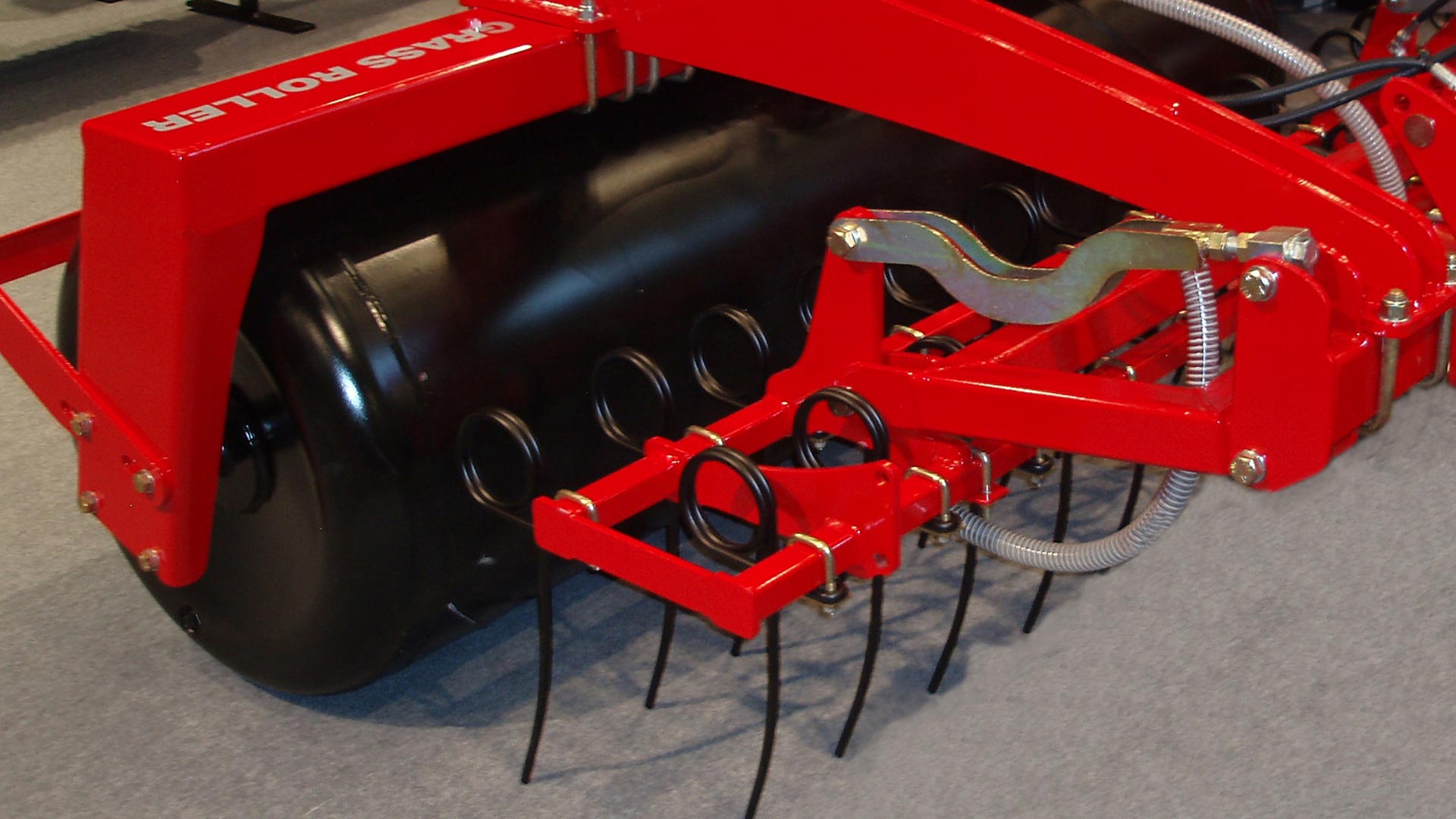

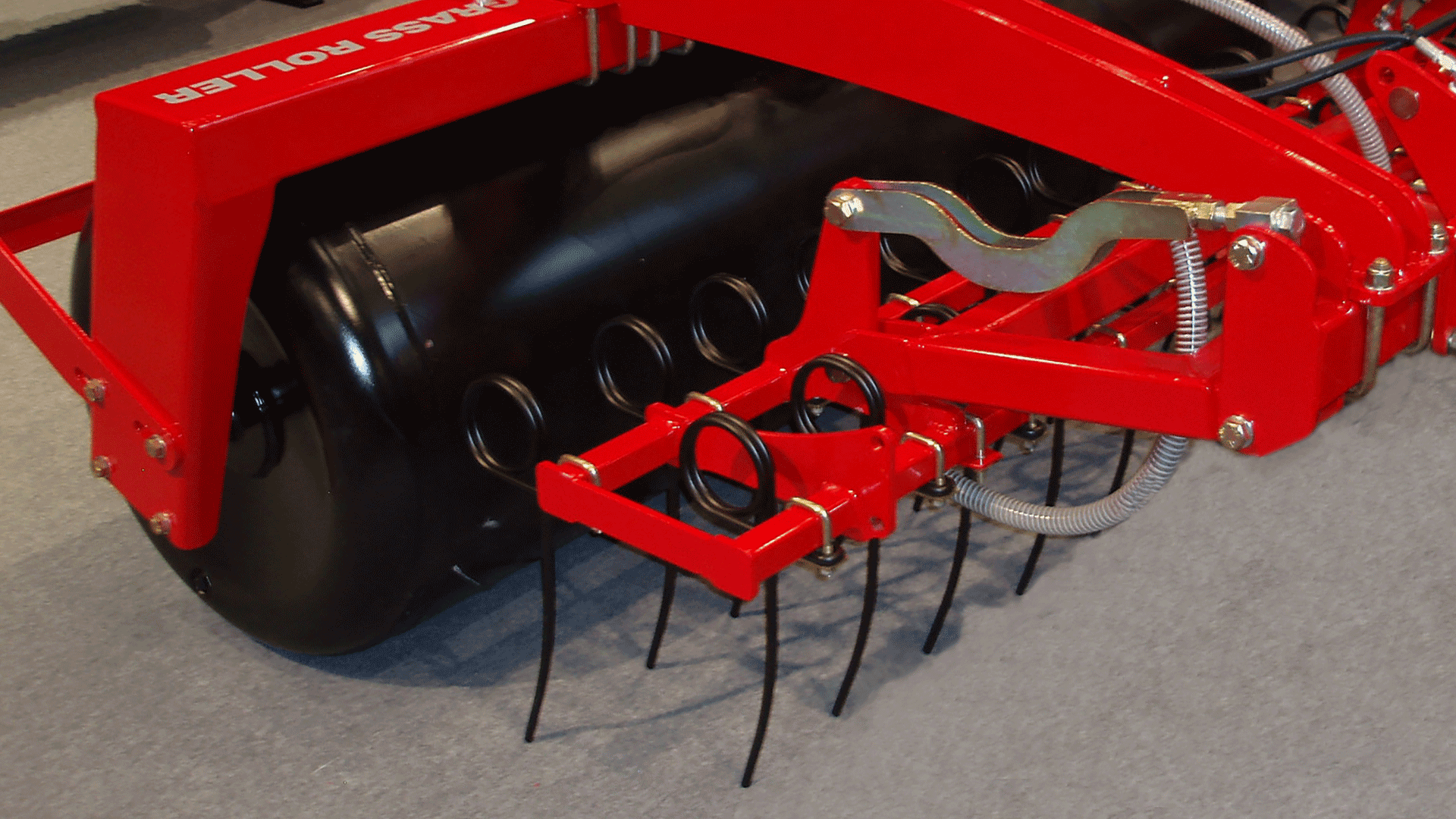

Package COMPACT 3
Package COMPACT 3
Multi-Seeder
Multi-Seeder
Extra equipment Specification
LED lights Lights : set with wire and socket
Stone box set Gathering of rocks : 2 pcs
HPV-Controller Weight : 7,2 kg
Brakes Air : Factory mounted
Brakes 1-circuit Hydraulic : Factory mounted
Brakes 2-circuit Hydraulic : Factory mounted
Mounting set for Multi-Seeder
Platform with railing and ladder for mounting set :
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Italian
Czech
Finnish
Swedish

Grass-Roller

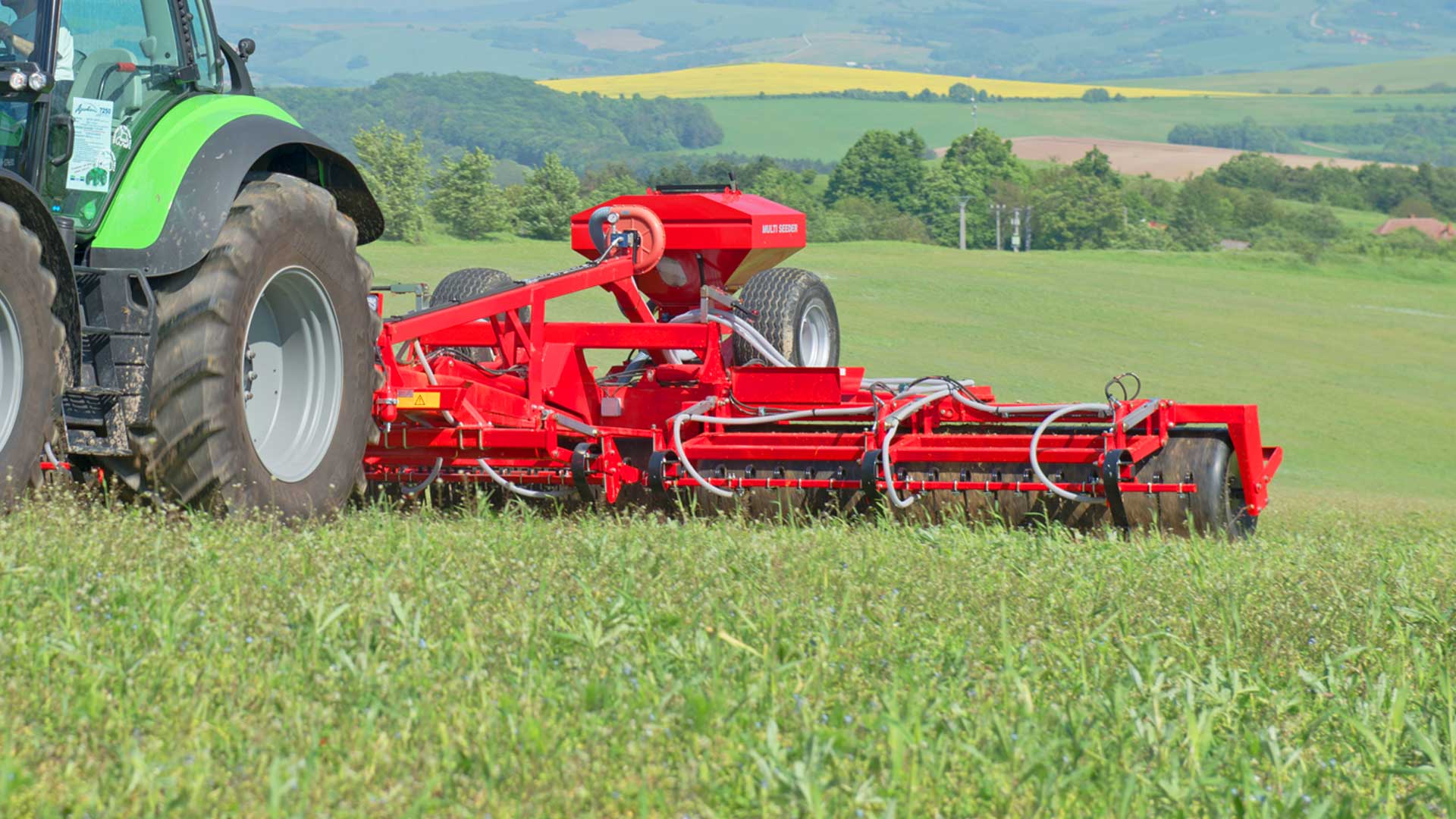

The Grassland Roller for All Farms

The HE-VA Grass-Roller is designed in working widths from 2.90 m to 9.50 m, enabling both small and large farms to find a roller suited to their needs. The Grass-Roller is a solid and heavy roller that effectively rolls grassland, and combined with hydraulic folding, it ensures fast and safe transport to and from the field.

Efficient Rolling Even in Uneven Terrain

Even Surface with a Flexible Roller

Grass-Roller is equipped with freely movable roller sections and a weight transfer system that distributes the weight from the center section to the wing sections. This ensures that the roller follows the contours of the field and rolls with uniform pressure across the entire working width.

HE-VA Grass-Roller transfers weight and follows the field

The tractor driver can easily adjust the weight transfer hydraulically depending on soil conditions and any water content in the roller, providing a high degree of control over the roller’s efficiency.

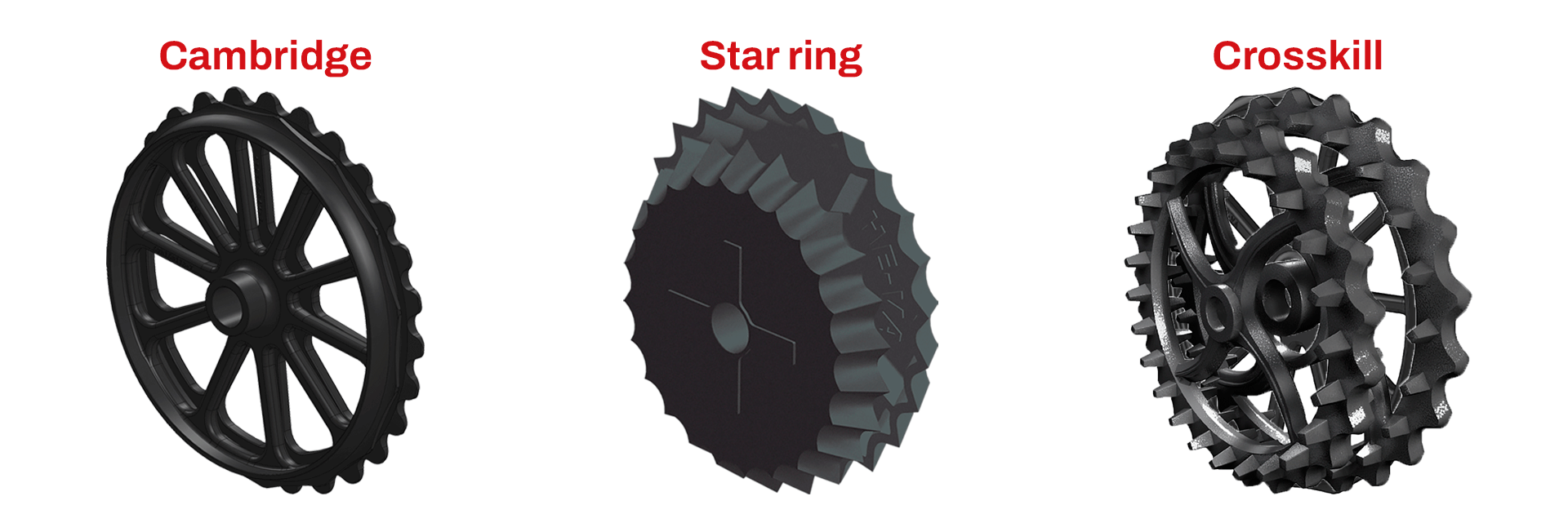

Roller and Ring Types

Efficient Rolling on Grassland and Cultivated Fields

Grass-Roller can be supplied with three different ring types as well as a plain roller.

Read more about the rings here

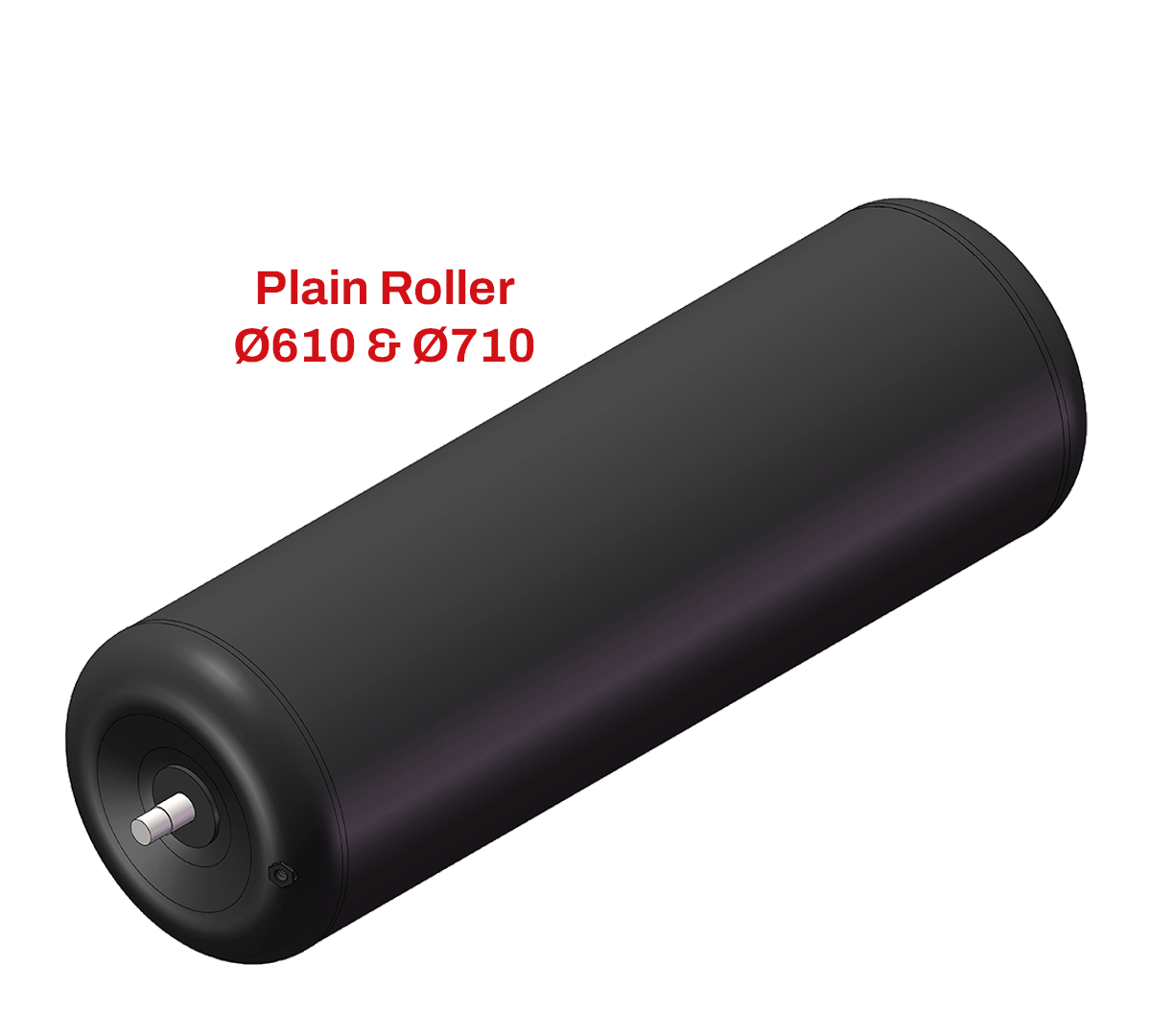

Plain Roller



By filling the plain roller with water, the weight of the Grass-Roller can be increased by up to 70%, ensuring even more effective rolling on both grassland and cultivated fields.



Read more about the roller here

Grass-Roller COMPACT

Grass-Roller COMPACT is 40–45 cm shorter than the standard Grass-Roller. The Multi-Seeder is centrally positioned on the model, providing optimal weight distribution.

The Grass Roller with a Wide Range of Optional Equipment

Choose the Equipment Package That Fits Your Needs

Grass-Roller is available with a very wide range of optional equipment specifically designed to match the many diverse needs of modern farming. In addition to the seven equipment packages, there is a large selection of smaller optional extras that further contribute to the roller’s efficiency. See the extensive range of optional equipment in the tables above.

In addition, three equipment packages are reserved exclusively for the Grass-Roller COMPACT model.
