Swing-Roller
Swing-Roller
10.20 - 12.20 M
MAX 2.70 M
150 - 200 HP
5,500 - 7.050 KG
flip-to-se-table

rotate device to see table.

Work Width, m Ring Type No. of Rings No. of Spokes Power Req., HP Weight, kg
10.20 510 mm/21” Cambridge 199 3 150-180 6,010
10.20 510 mm/21” Cambridge 199 8 150-180 6,330
10.20 450/500 mm Star ring 194 - 150-180 6,120
10.20 485-530 mm Crosskill 105 - 150-180 5,960
10.20 500 mm 2D-Corrugated 125 8 150-180 5,500
12.20 510 mm/21” Cambridge 235 3 170-200 6,680
12.20 510 mm/21” Cambridge 235 8 170-200 7,050
12.20 450/500 mm Star ring 230 - 170-200 6,750
12.20 485-530 mm Crosskill 125 - 170-200 6,650
12.20 500 mm 2D-Corrugated 150 8 170-200 6,130

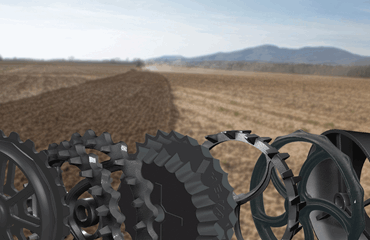

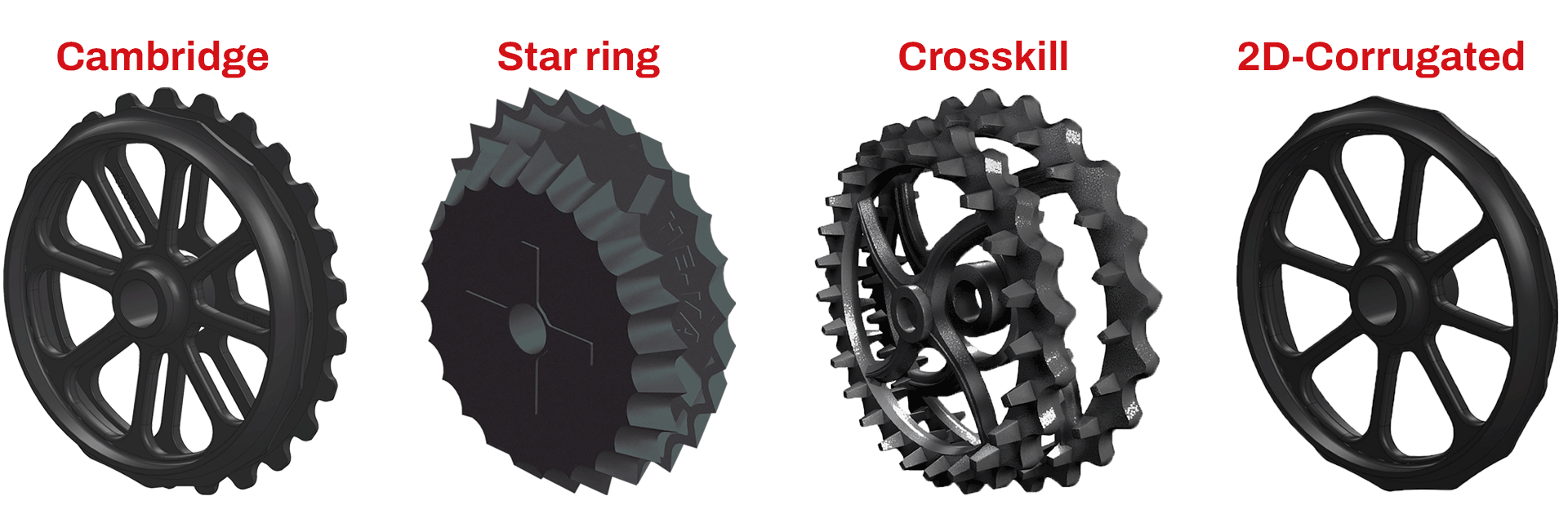

Ring types
Ring types
Extra equipment Specification
Stone box set Gathering of rocks : 2 pcs
Protection of the wing sections during transport :
Air brakes
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Czech
Swedish

Images

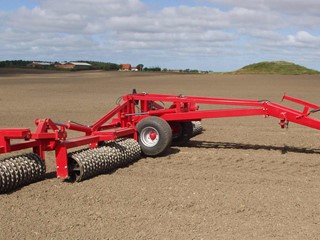

Swing-Roller

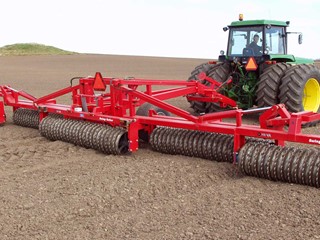

A roller for the big tractor

The Swing-Roller roller is a big, compact roller, that despite its size, is easy to use. It requires more than 150 HP and is designed for bigger farms.

The roller is equipped with 5 sections that are all center-suspended, which ensures free movability and makes each section independent from the others. The roller is compact and low and is therefore safe and steady when working in the field.

Uniform packing in the entire working width

Swing-Roller is equipped with HE-VA SAT-System, which transfers the weight from the centre of the roller to the side sections thus ensuring that the roller is able to follow the contours of the field. The result is a completely uniform packing of the soil in the entire working width of the machine.

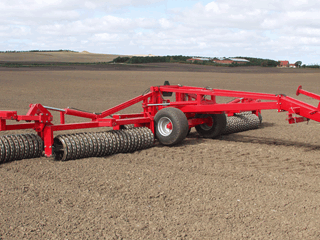

HE-VA Swing-Roller packing the soil

Quick conversion from road to field

The side sections are unfolded, the wheels are lifted, the outer sections are placed on the ground and the Swing-Roller is ready for use.
