Tip-Roller XL
Tip-Roller XL
190 - 250 HP
12,30 - 15,30 M
3,00 M
10.600 - 15.200 KG

Tip-Roller XL

uniform rolling in all kinds of terrain

Tip-Roller XL is more than just a big roller, it also comes with a wide variety of extra equipment. This way, it can easily be adjusted to every needs and soil type.

The roller has been designed to fulfill big demands and consists of a strong frame construction and 5 sections. All 5 sections are centre-suspended and mutually independent and combined with the HE-VA SAT-System - a hydraulic weight transfer system that transfers the weight from the construction to all 5 sections - Tip-Roller XL ensures uniform packing of the soil in the entire working width of the roller.

Easy and safe transportation

This big roller can be folded into a transport width of only 3,00 metres, which means that it can be transported safely and easily to and from the field.

Design your own Tip-Roller XL

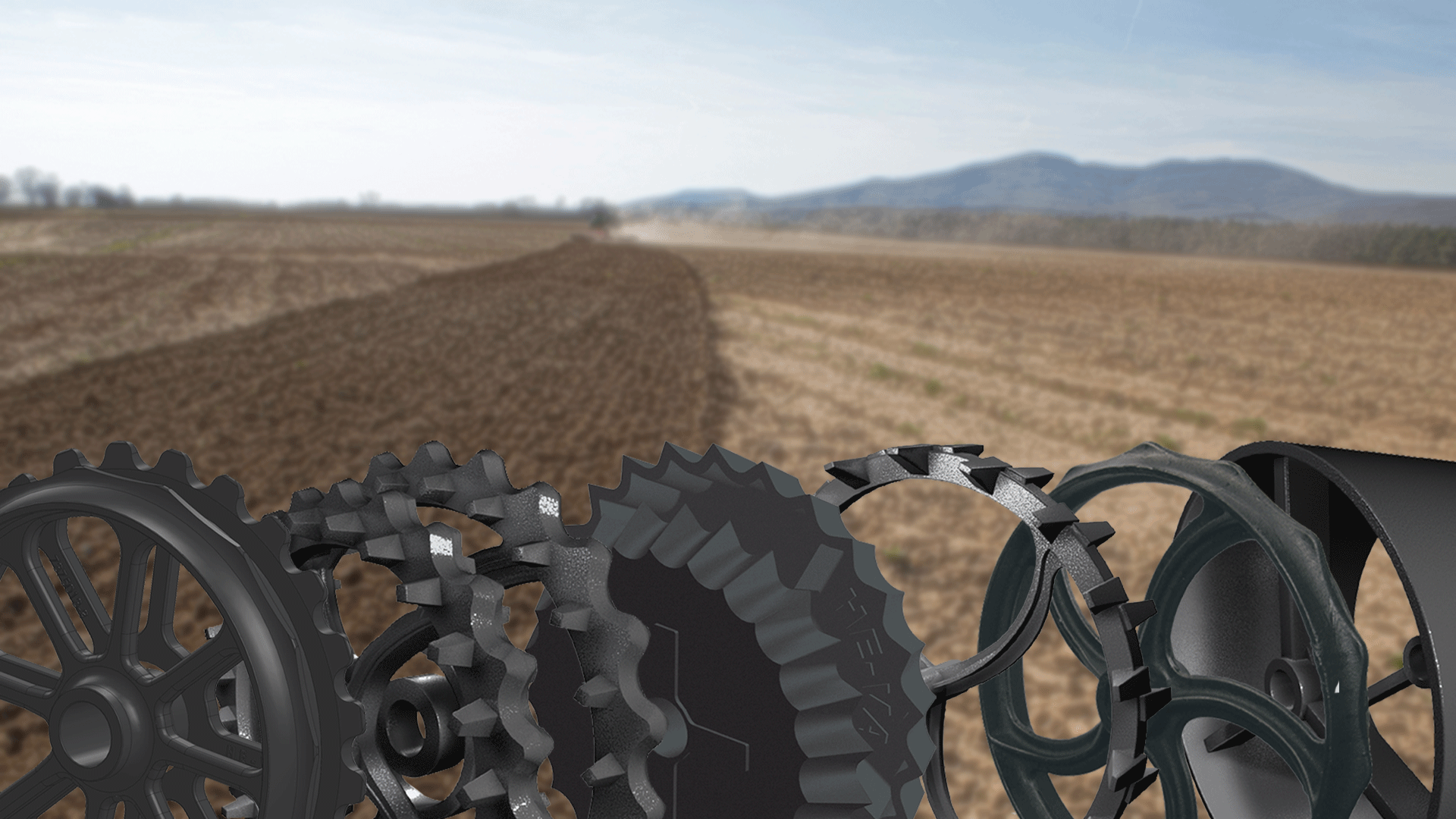

choose your own ring profile

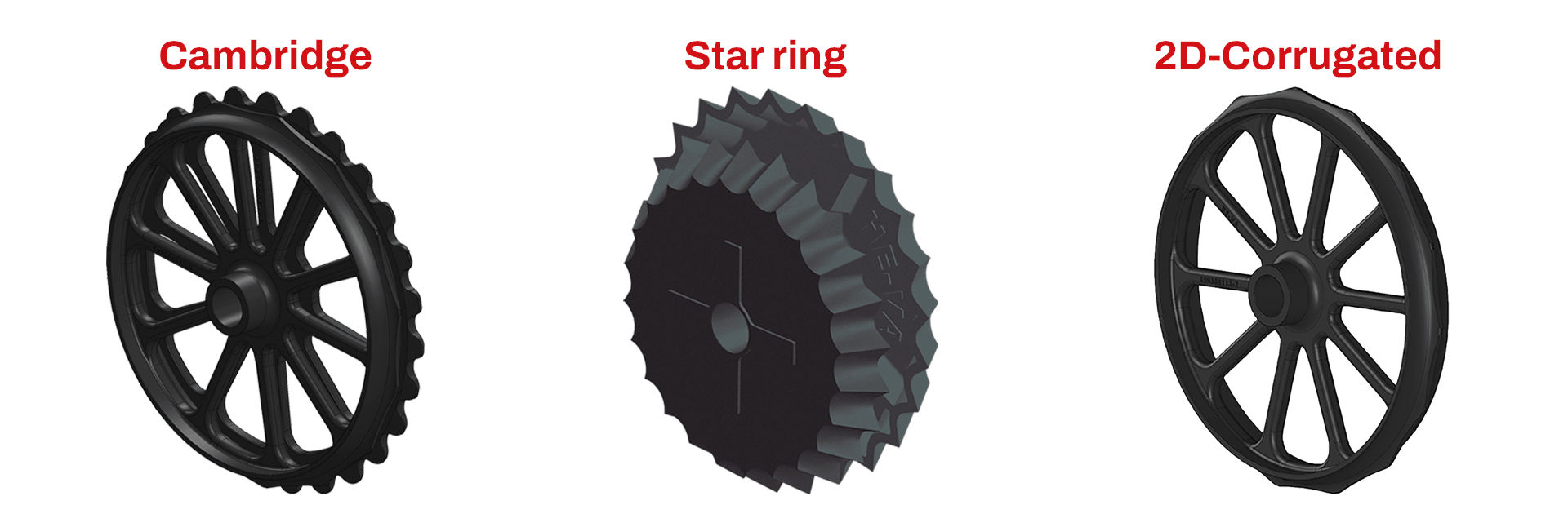

These 4 ring types can be mounted on the Tip-Roller XL. Every ring type has its own advantages depending on the soil you are working in. That way, you can adjust the Tip-Roller XL to match your specific soil types, which ensures the best possible result.

Learn about each ring here

Tip-Roller XL for every type of soil

A big selection of extra equipment makes it possible to adjust the Tip-Roller XL to almost every need.

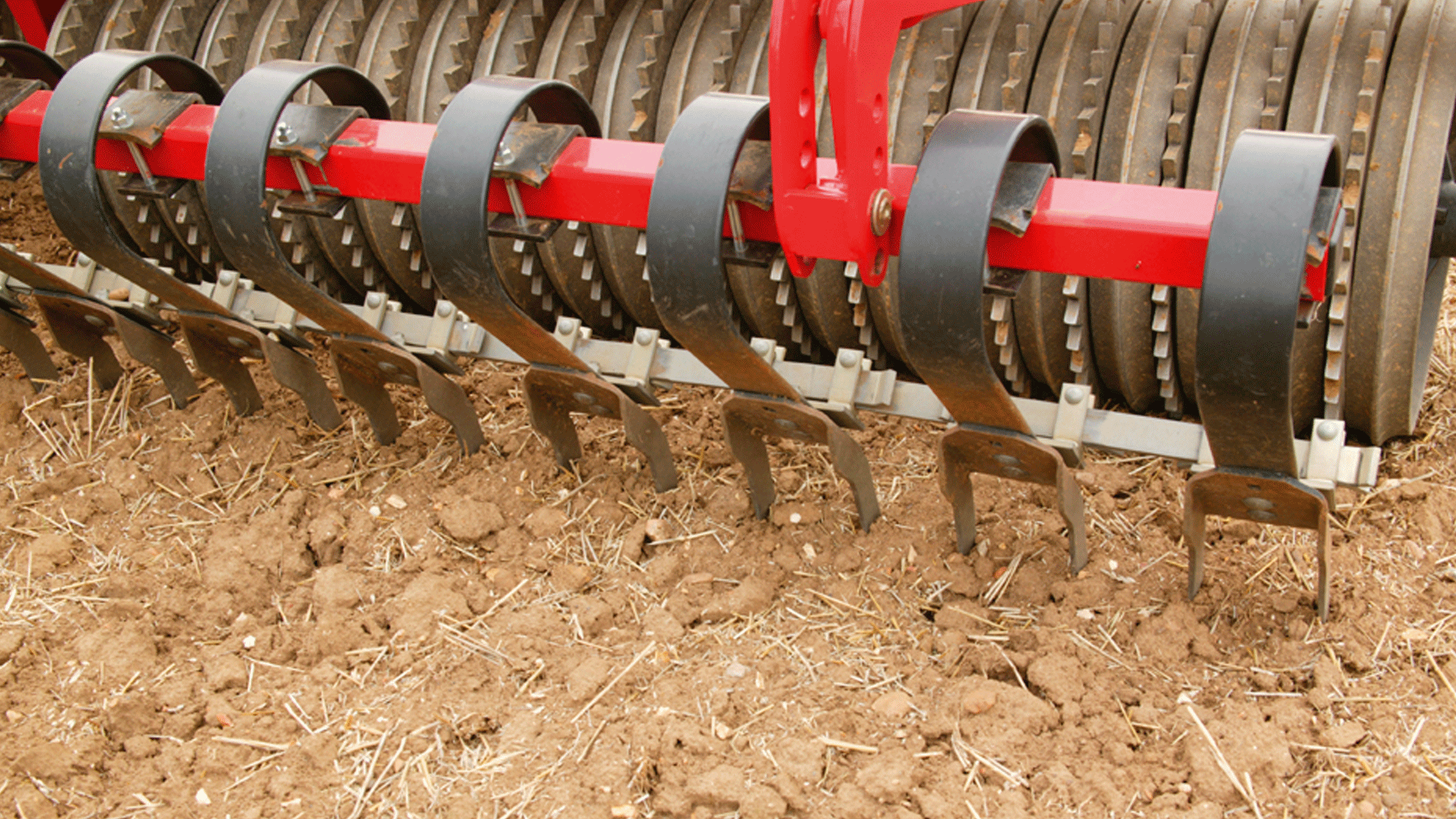

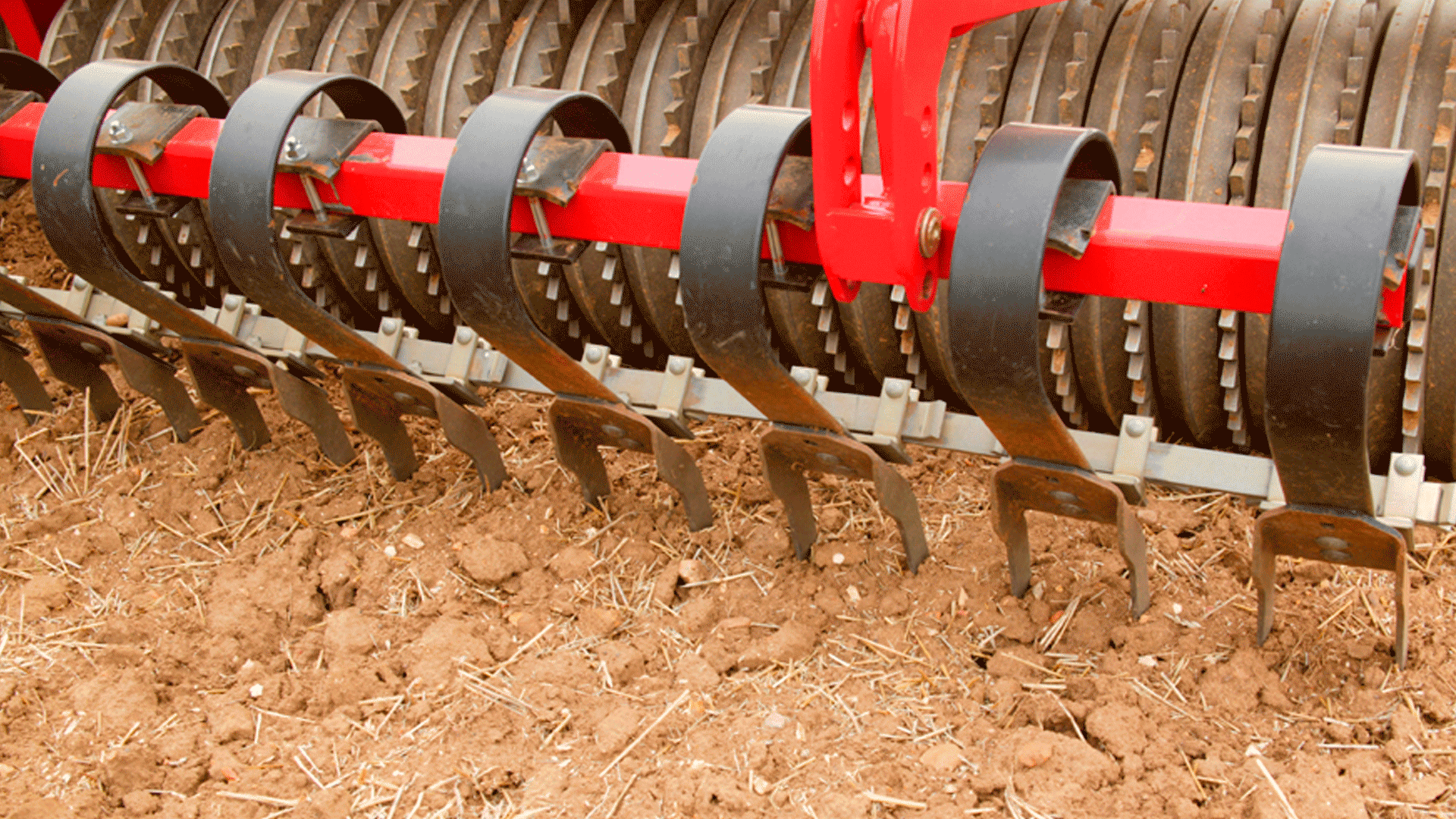

  • Slicing plates secure a more efficient breaking of the soil surface
  • The levelling effect can be increased by mounting a transverse locking system that locks the plates together and transforms the individual tines on the Spring-Board into one big levelling board
  • Seed equipment can be mounted in order to save time and do seeding while tilling.
  • A world of opportunities  - see the great selection of extra equipment below.
flip-to-se-table

rotate device to see table.

Model No. of rings, pcs Weight, kg Power requirement, hp
12,30 m 125 - 244 10.600 - 12.600 170 - 220
15,30 m 153 - 302 13.050 - 15.200 180 - 250



Spring-Board
Spring-Board
Transverse locking system
Transverse locking system
Slicing plates
Slicing plates
Easy-Change
Easy-Change
Multi-Seeder
Multi-Seeder

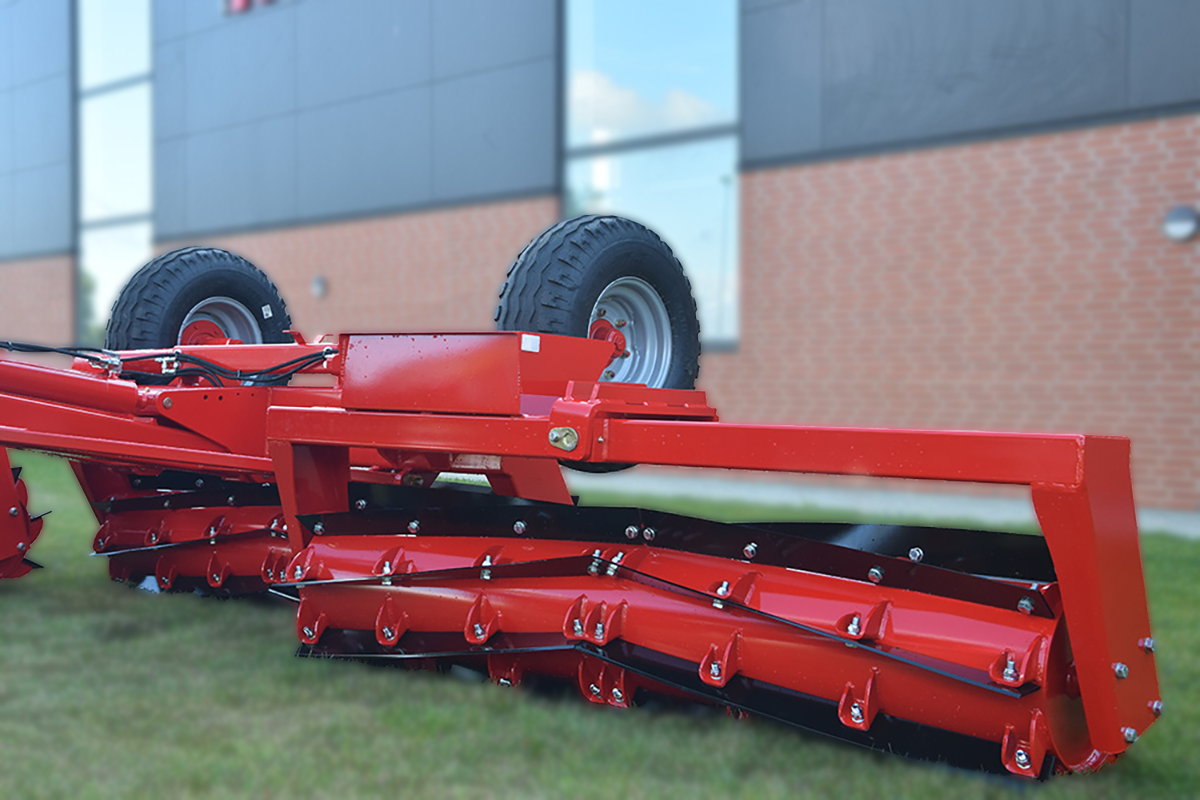

Top-Cutter
Top-Cutter
Extra equipment Specification
Mounting set for Multi-Seeder :
Air brakes Mounted before delivery :
Hydraulic brakes Mounted before delivery :
HPV-Controller Weight : 7,2 kg
flip-to-se-table

rotate device to see table.
