Front-Pakker
Front-Pakker
1.50 - 6.00 M
1.70 - 4.15 M
15 - 55 HP
680 - 2,845 KG
flip-to-se-table

rotate device to see table.

Front-Pakker

Work Width, m Type Ring Type No. of Rings Transport Width, m Power Req., HP Weight, kg
1.50 Rigid 700 mm 10 1.70 15 622
1.50 Rigid 800 mm 10 1.75 15 782
1.65 Rigid 900 mm 10 1.80 15 920
2.60 Rigid 700 mm 16 2.60 20 867
2.60 Rigid 800 mm 16 2.60 20 1,123
2.60 Rigid 900 mm 14 2.60 20 1,443
3.00 Rigid 700 mm 18 3.00 25 953
3.00 Rigid 800 mm 18 3.00 25 1,241
3.00 Rigid 900 mm 17 3.00 25 1,602
3.00 Rigid 700/800/700 mm 18 3.00 25 1,113
3.00 Rigid 800/900/800 mm 17 3.00 25 1,441
3.50 Rigid 700 mm 22 3.50 30 1,079
3.50 Rigid 800 mm 22 3.50 30 1,415
3.50 Rigid 900 mm 19 3.50 30 1,835
3.50 Rigid 700/800/700 mm 22 3.50 30 1,255
3.50 Rigid 800/900/800 mm 19 3.50 30 1,635
4.00 Rigid 700 mm 24 4.15 35 1,247
4.00 Rigid 800 mm 24 4.15 35 1,631
4.00 Rigid 900 mm 23 4.15 35 2,111
4.00 Rigid 700/800/700 mm 24 4.15 35 1,607
4.00 Rigid 800/900/800 mm 23 4.15 35 1,831
4.00 Foldable 700 mm 24 2.55 35 1,370
4.00 Foldable 800 mm 24 2.65 35 1,754
4.00 Foldable 900 mm 21 2.75 35 2,234
4.00 Foldable 700/800/700 mm 24 2.55 35 1,530
4.00 Foldable 800/900/800 mm 21 2.65 35 1,954
4.50 Foldable 700 mm 26 2.55 40 1,466
4.50 Foldable 800 mm 26 2.65 40 1,882
4.50 Foldable 900 mm 23 2.75 40 2,402
4.50 Foldable 700/800/700 mm 26 2.55 40 1,626
4.50 Foldable 800/900/800 mm 23 2.65 40 2,082
5.00 Foldable 700 mm 30 2.85 45 1,814
5.00 Foldable 800 mm 30 2.95 45 2,294
5.00 Foldable 700/800/700 mm 30 2.85 45 2,006
6.00 Foldable 700 mm 36 2.85 55 2,083
6.00 Foldable 800 mm 36 2.95 55 2,659
6.00 Foldable 700/800/700 mm 36 2.95 55 2,275

Front-Pakker TWIN

Work Width, m Type Ring Type No. of Rings Transport Width, m Power Req., HP Weight, kg
1.50 Rigid 700-700 mm 15 1.70 15 975
1.50 Rigid 800-800 mm 15 1.75 20 1,185
1.65 Rigid 900-900 mm 13 1.80 20 1,590
2.60 Rigid 700-700 mm 21 2.60 20 1,380
2.60 Rigid 800-800 mm 21 2.60 25 1,740
3.00 Rigid 700-700 mm 24 3.00 25 1,570
3.00 Rigid 800-800 mm 24 3.00 30 2,010
3.50 Rigid 700-700 mm 30 3.50 35 1,610
3.50 Rigid 800-800 mm 30 3.50 40 2,290
3.50 Foldable 700-700 mm 29 2.55 35 1,780
3.50 Foldable 800-800 mm 29 2.65 40 2,460
4.00 Rigid 700-700 mm 34 4.15 40 1,890
4.00 Rigid 800-800 mm 34 4.15 45 2,665
4.00 Foldable 700-700 mm 32 2.55 40 2,070
4.00 Foldable 800-800 mm 32 2.65 45 2,845

Press-Roller

Work Width, m Type No. of Wheels Transport Width, m Power Req., HP Weight, kg
1.50 Rigid 4 1.70 20 470
4.00 Rigid 1+4+1 4.15 35 705
4.00 Foldable 1+4+1 2.65 35 795

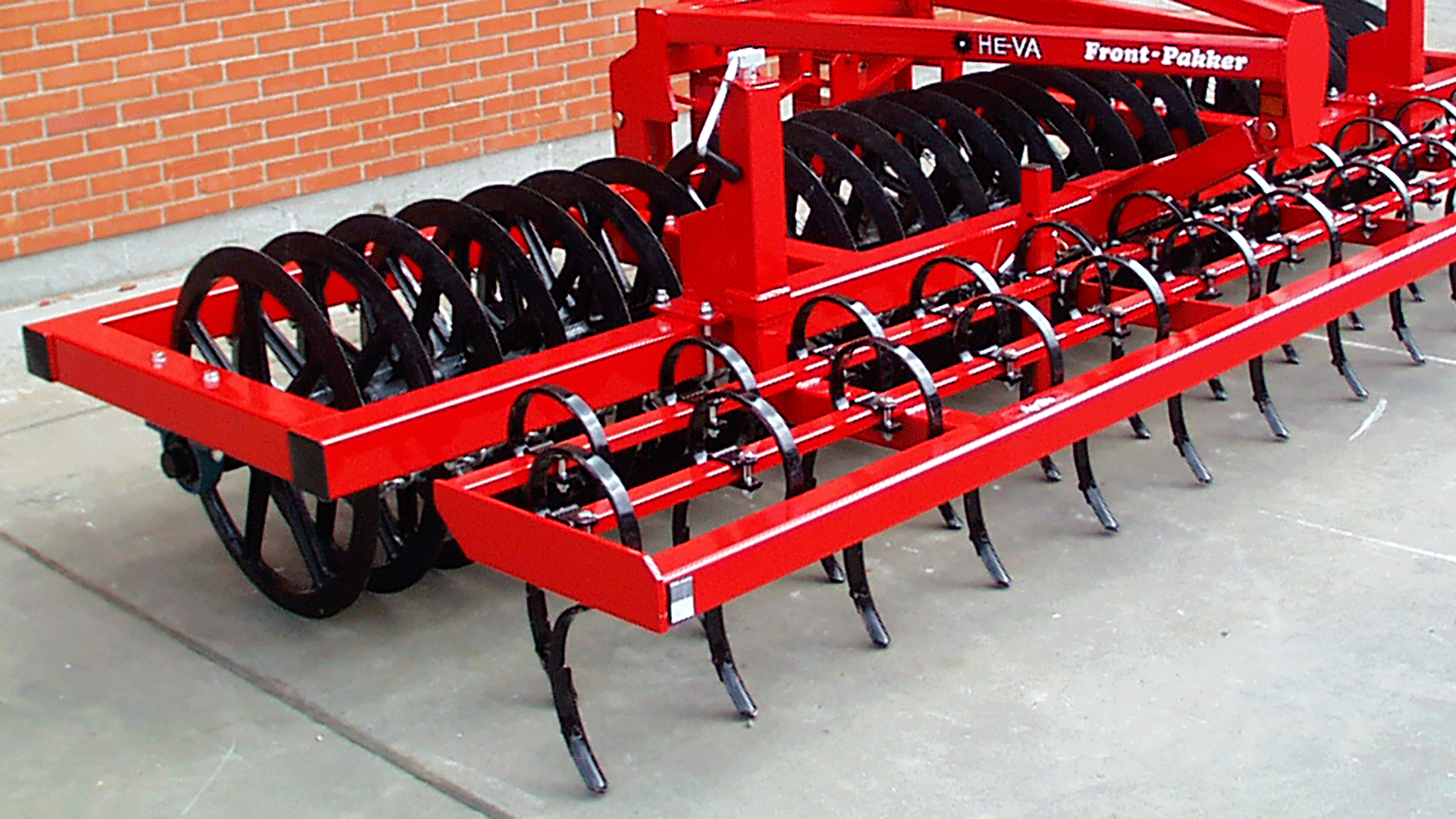

Front-harrow, 2-row
Front-harrow, 2-row

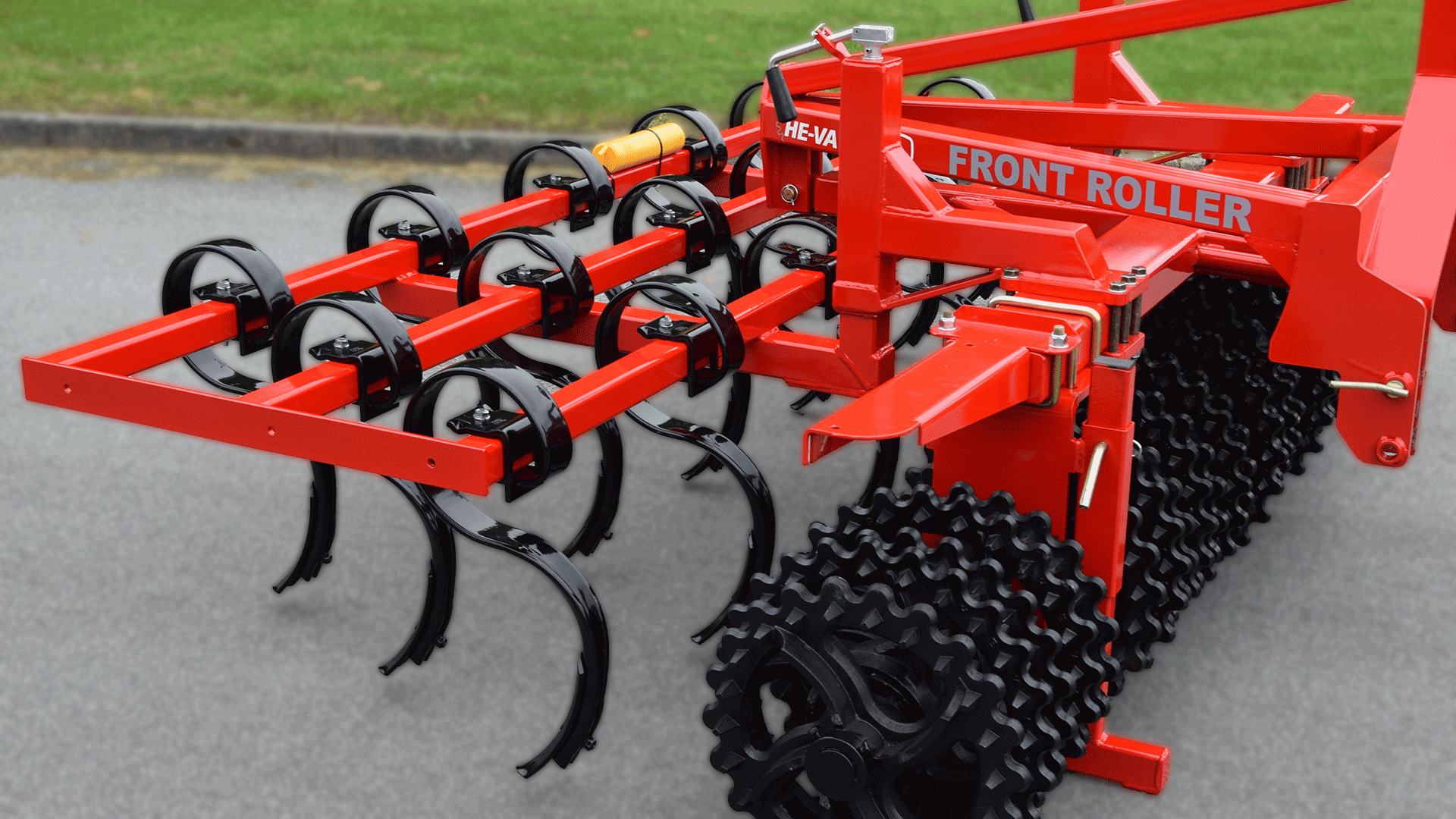

Front-harrow, 3-row
Front-harrow, 3-row
Spring-Board
Spring-Board
Transverse locking system
Transverse locking system
Extra equipment Specification
LED lights Lights : set with wire and socket
Stone box set Gathering of rocks : 2 pcs
Double Three-Point linkage Front- & rear mounting :
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Serbian
Czech
Finnish
Polish
Swedish

Front-Pakker

Efficient soil consolidation regardless of soil type

With a HE-VA Front-Pakker, you can combine soil consolidation with a harrow and seeder, enabling tillage and sowing to be completed in a single pass.

The spacing between the rings on the Front-Pakker ensures that loose soil is left on the surface, allowing a harrow to work the soil easily afterwards. The Front-Pakker can be equipped with three different ring sizes and, regardless of the ring size selected, they all feature a unique shoulder profile that provides exceptional penetration with its 30-degree point.

The shoulder on the ring ensures depth control at the base of the cutting edge, making it possible to prevent the ring from working too deeply in very loose soil types. At the same time, the unique shoulder profile ensures that the aggressive 30-degree points can work effectively even in the heaviest soil conditions, while reducing the risk of deep tractor tracks.

The Front-Pakker is equipped with cleaning chains between the rings to ensure reliable operation in wet and sticky conditions.



Front-Pakker Twin

The Front-Pakker can also be fitted with two staggered rows of Ø700/800 mm rings for even more uniform consolidation across varying soil types.



Press-Roller

The Front-Pakker range also includes a Press Roller.

A Flexible Soil Packer

The Front-Pakker features a flexible linkage, which in practice means that the machine is pulled rather than pushed. This ensures that it runs freely on the soil surface without affecting tractor steering. Heavy-duty greasable support rollers centre the Front-Pakker when lifted on the headland and during transport, ensuring that the machine does not swing loosely from side to side while travelling.

In addition to being a flexible soil packer, a wide range of optional equipment is available, making it possible to tailor the Front-Pakker to very specific requirements. Read more about the optional equipment in the tables above.
