Front-Roller
Front-Roller
1.50 - 6.00 M
2.00 - 4.00 M
15 - 50 HP
550 - 3,030 KG
flip-to-se-table

rotate device to see table.

Front-Roller 1-section rigid models

Work Width, m Type Ring Type No. of Rings Power Req., HP Transport Width, m Weight, kg
1.50 Rigid 510 mm/21” Cambridge 29 15 2.00 620
1.50 Rigid 560 mm/22,5” Cambridge 29 15 2.00 750
1.50 Rigid 620 mm/24” Cambridge 29 15 2.00 820
1.50 Rigid 450/500 mm Star ring 28 15 2.00 640
1.50 Rigid 550/600 mm Star ring 28 15 2.00 790
1.50 Rigid Twin 450/450 mm Star ring  17 15 2.00 560
1.50 Rigid Twin 550/550 mm Star ring 17 15 2.00 650
1.50 Rigid 485-530 mm Crosskill 15 15 2.00 550
1.50 Rigid 550-600 mm Crosskill 15 15 2.00 740
1.50 Rigid 600 mm V-Profile ring 12 15 2.00 570
1.50 Rigid 700 mm V-Profile ring 10 15 2.00 550
2.60 Rigid 510 mm/21” Cambridge 45 20 2.60 930
2.60 Rigid 560 mm/22,5” Cambridge 45 20 2.60 1,160
2.60 Rigid 620 mm/24” Cambridge 45 20 2.60 1,260
2.60 Rigid 450/500 mm Star ring 42 20 2.60 980
2.60 Rigid 550/600 mm Star ring 42 20 2.60 1,240
2.60 Rigid Twin 450/450 mm Star ring  31 20 2.60 830
2.60 Rigid Twin 550/550 mm Star ring 31 20 2.60 980
2.60 Rigid 485-530 mm Crosskill 23 20 2.60 730
2.60 Rigid 550-600 mm Crosskill 23 20 2.60 1,050
2.60 Rigid 600 mm V-Profile ring 19 20 2.60 850
2.60 Rigid 700 mm V-Profile ring 15 20 2.60 850
3.00 Rigid 510 mm/21” Cambridge 53 25 3.00 1,100
3.00 Rigid 560 mm/22,5” Cambridge 53 25 3.00 1,330
3.00 Rigid 620 mm/24” Cambridge 53 25 3.00 1,450
3.00 Rigid 450/500 mm Star ring 50 25 3.00 1,110
3.00 Rigid 550/600 mm Star ring 50 25 3.00 1,410
3.00 Rigid Twin 450/450 mm Star ring  35 25 3.00 820
3.00 Rigid Twin 550/550 mm Star ring 35 25 3.00 1,000
3.00 Rigid 485-530 mm Crosskill 27 25 3.00 830
3.00 Rigid 550-600 mm Crosskill 27 25 3.00 1,170
3.00 Rigid 600 mm V-Profile ring 23 25 3.00 1,020
3.00 Rigid 700 mm V-Profile ring 18 25 3.00 920
3.50 Rigid 510 mm/21” Cambridge 61 30 3.50 1,190
3.50 Rigid 560 mm/22,5” Cambridge 61 30 3.50 1,500
3.50 Rigid 620 mm/24” Cambridge 61 30 3.50 1,640
3.50 Rigid 450/500 mm Star ring 60 30 3.50 1,240
3.50 Rigid 550/600 mm Star ring 60 30 3.50 1,590
3.50 Rigid Twin 450/450 mm Star ring  41 30 3.50 940
3.50 Rigid Twin 550/550 mm Star ring 41 30 3.50 1,290
3.50 Rigid 485-530 mm Crosskill 31 30 3.50 950
3.50 Rigid 550-600 mm Crosskill 31 30 3.50 1,340
3.50 Rigid 600 mm V-Profile ring 27 30 3.50 1,150
3.50 Rigid 700 mm V-Profile ring 22 30 3.50 1,050
4.00 Rigid 510 mm/21” Cambridge 69 35 4.00 1,510
4.00 Rigid 560 mm/22,5” Cambridge 69 35 4.00 1,880
4.00 Rigid 620 mm/24” Cambridge 69 35 4.00 2,040
4.00 Rigid 450/500 mm Star ring 68 35 4.00 1,560
4.00 Rigid 550/600 mm Star ring 68 35 4.00 1,970
4.00 Rigid Twin 450/450 mm Star ring  47 35 4.00 1,210
4.00 Rigid Twin 550/550 mm Star ring 47 35 4.00 1,450
4.00 Rigid 485-530 mm Crosskill 37 35 4.00 1,210
4.00 Rigid 550-600 mm Crosskill 37 35 4.00 1,680
4.00 Rigid 600 mm V-Profile ring 30 35 4.00 1,390
4.00 Rigid 700 mm V-Profile ring 24 35 4.00 1,320

Front-Roller 2-section foldable models

Work Width, m Type Ring Type No. of Rings Power Req., HP Transport Width, m Weight, kg
3.00 Foldable 510 mm/21” Cambridge 50 25 2.13 1,240
3.00 Foldable 560 mm/22,5” Cambridge 50 25 2.13 1,410
3.00 Foldable 620 mm/24” Cambridge 50 25 2.13 1,630
3.00 Foldable 450/500 mm Star ring 24 25 2.13 1,290
3.00 Foldable 550/600 mm Star ring 24 25 2.13 1,590
3.00 Foldable Twin 450/450 mm Star ring  48 25 2.13 1,120
3.00 Foldable Twin 550/550 mm Star ring 48 25 2.13 1,300
3.00 Foldable 485-530 mm Crosskill 24 25 2.13 1,010
3.00 Foldable 550-600 mm Crosskill 24 25 2.13 1,350
3.00 Foldable 600 mm V-Profile ring 20 25 2.13 1,200
3.00 Foldable 700 mm V-Profile ring 18 25 2.13 1,150

Front-Roller 3-section foldable models

Work Width, m Type Ring Type No. of Rings Power Req., HP Transport Width, m Weight, kg
4.00 Foldable 510 mm/21” Cambridge 67 35 2.60 1,660
4.00 Foldable 560 mm/22,5” Cambridge 67 35 2.65 2,020
4.00 Foldable 620 mm/24” Cambridge 67 35 2.70 2,180
4.00 Foldable 450/500 mm Star ring 70 35 2.67 1,710
4.00 Foldable 550/600 mm Star ring 70 35 2.75 2,120
4.00 Foldable Twin 450/450 mm Star ring  43 35 2.67 1,520
4.00 Foldable Twin 550/550 mm Star ring 43 35 2.75 1,760
4.00 Foldable 485-530 mm Crosskill 37 35 2.70 1,360
4.00 Foldable 550-600 mm Crosskill 37 35 2.75 1,830
4.00 Foldable 600 mm V-Profile ring 28 35 2.70 1,540
4.00 Foldable 700 mm V-Profile ring 24 35 2.60 1,470
4.50 Foldable 510 mm/21” Cambridge 75 35 2.60 1,886
4.50 Foldable 560 mm/22,5” Cambridge 75 35 2.65 2,131
4.50 Foldable 620 mm/24” Cambridge 75 35 2.70 2,281
4.50 Foldable 450/500 mm Star ring 70 35 2.67 1,724
4.50 Foldable 550/600 mm Star ring 70 35 2.75 2,098
4.50 Foldable Twin 450/450 mm Star ring  47 35 2.67 1,477
4.50 Foldable Twin 550/550 mm Star ring 47 35 2.75 1,726
4.50 Foldable 485-530 mm Crosskill 34 35 2.70 1,675
4.50 Foldable 550-600 mm Crosskill 34 35 2.75 1,717
4.50 Foldable 600 mm V-Profile ring 32 35 2.70 1,599
4.50 Foldable 700 mm V-Profile ring 26 35 2.75 1,690
5.00 Foldable 510 mm/21” Cambridge 95 40 2.90 1,960
5.00 Foldable 560 mm/22,5” Cambridge 95 40 2.95 2,440
5.00 Foldable 450/500 mm Star ring 90 40 2.92 2,060
5.00 Foldable 550/600 mm Star ring 90 40 3.00 2,570
5.00 Foldable Twin 450/450 mm Star ring  59 40 2.92 1,780
5.00 Foldable Twin 550/550 mm Star ring 59 40 3.00 1,780
5.00 Foldable 485-530 mm Crosskill 47 40 2.95 1,590
5.00 Foldable 550-600 mm Crosskill 47 40 3.00 2,180
5.00 Foldable 600 mm V-Profile ring 38 40 2.95 1,810
5.00 Foldable 700 mm V-Profile ring 30 40 2.85 1,820
6.00 Foldable 510 mm/21” Cambridge 115 50 2.90 2,350
6.00 Foldable 560 mm/22,5” Cambridge 115 50 2.95 2,940
6.00 Foldable 450/500 mm Star ring 110 50 2.92 2,410
6.00 Foldable 550/600 mm Star ring 110 50 3.00 3,030
6.00 Foldable Twin 450/450 mm Star ring  71 50 2.92 2,140
6.00 Foldable Twin 550/550 mm Star ring 71 50 3.00 2,500
6.00 Foldable 485-530 mm Crosskill 57 50 2.95 1,910
6.00 Foldable 550-600 mm Crosskill 57 50 3.00 2,630
6.00 Foldable 600 mm V-Profile ring 46 50 2.95 2,170
6.00 Foldable 700 mm V-Profile ring 36 50 2.85 2,180

Front-Roller Compact

Work Width, m Type Ring Type No. of Rings Power Req., HP Transport Width, m
1.50 Rigid 510 mm/21” Cambridge 29 15 2.00
1.50 Rigid 560 mm/22,5” Cambridge 29 15 2.00
1.50 Rigid 620 mm/24” Cambridge 29 15 2.00
1.50 Rigid 450/500 mm Star ring 28 15 2.00
1.50 Rigid 550/600 mm Star ring 28 15 2.00
1.50 Rigid Twin 450/450 mm Star ring  17 15 2.00
1.50 Rigid Twin 550/550 mm Star ring 17 15 2.00
1.50 Rigid 485-530 mm Crosskill 15 15 2.00
1.50 Rigid 550-600 mm Crosskill 15 15 2.00
1.50 Rigid 600 mm V-Profile ring 12 15 2.00
2.60 Rigid 510 mm/21” Cambridge 45 20 2.60
2.60 Rigid 560 mm/22,5” Cambridge 45 20 2.60
2.60 Rigid 620 mm/24” Cambridge 45 20 2.60
2.60 Rigid 450/500 mm Star ring 42 20 2.60
2.60 Rigid 550/600 mm Star ring 42 20 2.60
2.60 Rigid Twin 450/450 mm Star ring  31 20 2.60
2.60 Rigid Twin 550/550 mm Star ring 31 20 2.60
2.60 Rigid 485-530 mm Crosskill 23 20 2.60
2.60 Rigid 550-600 mm Crosskill 23 20 2.60
2.60 Rigid 600 mm V-Profile ring 19 20 2.60
3.00 Rigid 510 mm/21” Cambridge 53 25 3.00
3.00 Rigid 560 mm/22,5” Cambridge 53 25 3.00
3.00 Rigid 620 mm/24” Cambridge 53 25 3.00
3.00 Rigid 450/500 mm Star ring 50 25 3.00
3.00 Rigid 550/600 mm Star ring 50 25 3.00
3.00 Rigid Twin 450/450 mm Star ring  35 25 3.00
3.00 Rigid Twin 550/550 mm Star ring 35 25 3.00
3.00 Rigid 485-530 mm Crosskill 27 25 3.00
3.00 Rigid 550-600 mm Crosskill 27 25 3.00
3.00 Rigid 600 mm V-Profile ring 23 25 3.00
3.00 Rigid 595 mm Cutter-Roller - - 3.00
3.50 Rigid 510 mm/21” Cambridge 61 30 3.50
3.50 Rigid 560 mm/22,5” Cambridge 61 30 3.50
3.50 Rigid 620 mm/24” Cambridge 61 30 3.50
3.50 Rigid 450/500 mm Star ring 60 30 3.50
3.50 Rigid 550/600 mm Star ring 60 30 3.50
3.50 Rigid Twin 450/450 mm Star ring  41 30 3.50
3.50 Rigid Twin 550/550 mm Star ring 41 30 3.50
3.50 Rigid 485-530 mm Crosskill 31 30 3.50
3.50 Rigid 550-600 mm Crosskill 31 30 3.50
3.50 Rigid 600 mm V-Profile ring 27 30 3.50
3.50 Rigid 595 mm Cutter-Roller - - 3.50

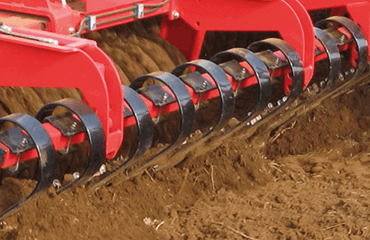

Spring-Board
Spring-Board

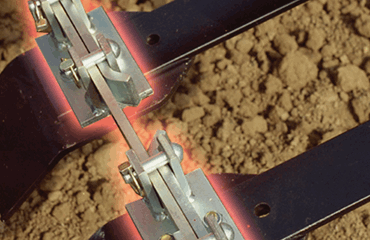

Transverse locking system
Transverse locking system

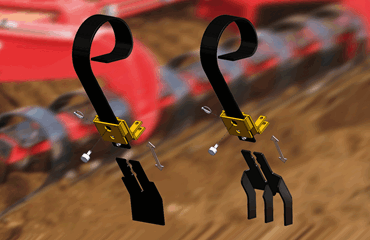

Easy-Change
Easy-Change

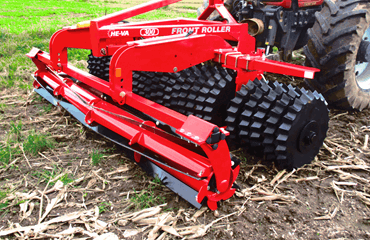

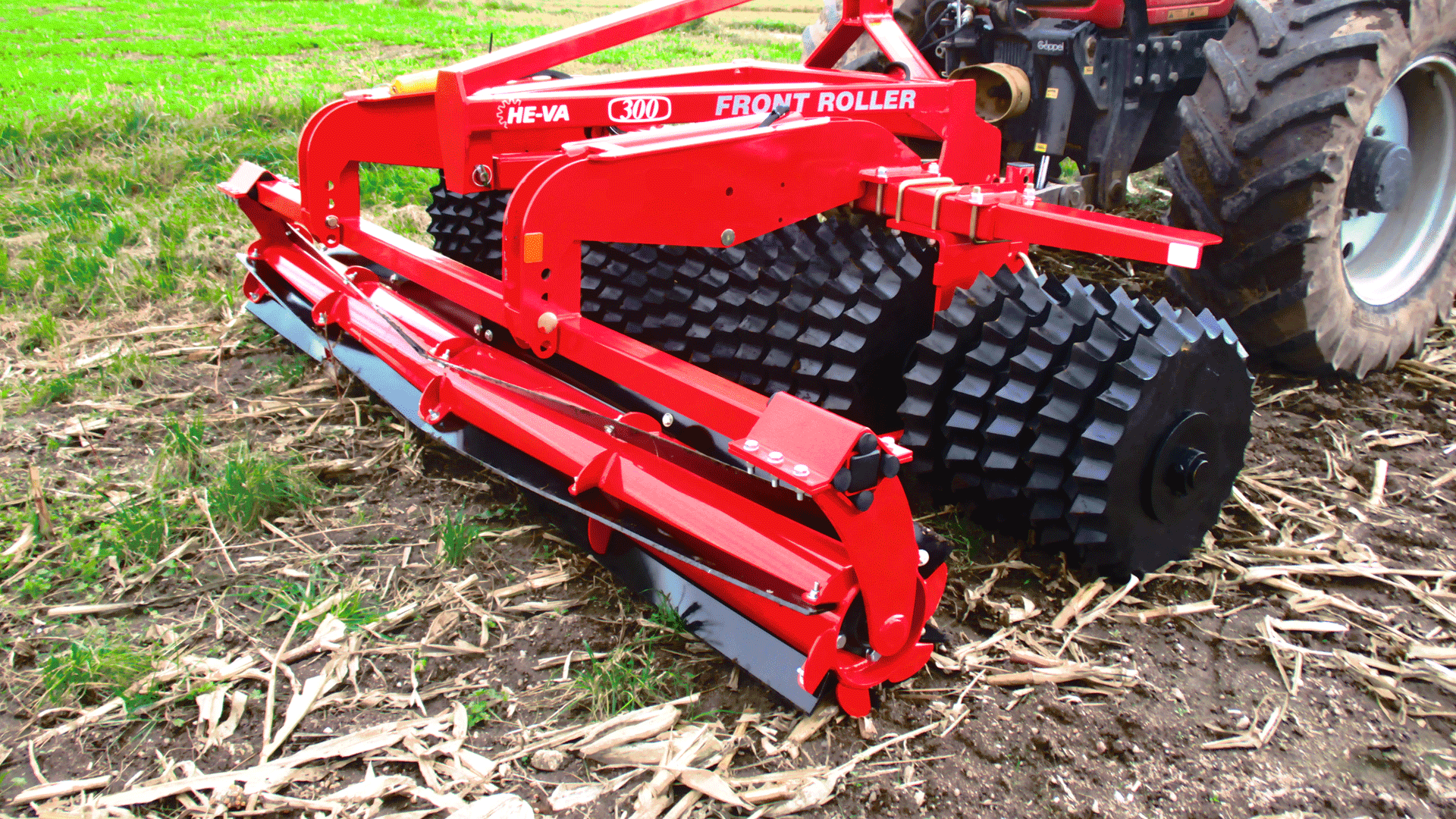

Top-Cutter
Top-Cutter

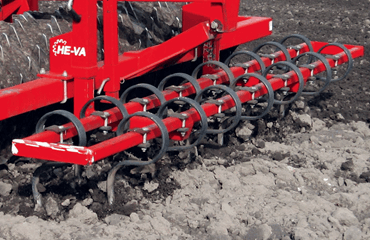

Front-harrow, 2-row
Front-harrow, 2-row

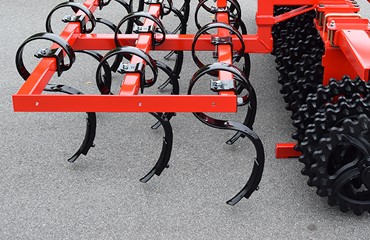

Front-harrow, 3-row
Front-harrow, 3-row
Extra equipment Specification
LED lights Lights : set with wire and socket
Stone box set Gathering of rocks : 2 pcs
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Serbian
Czech
Finnish
Polish
Swedish

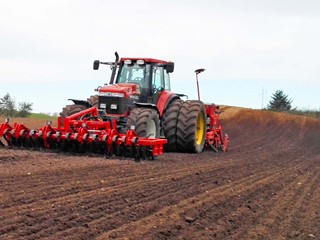

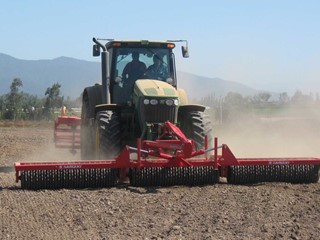

Front-Roller

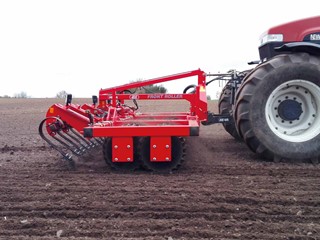

The roller that effectively crushes and consolidates the soil

The Front-Roller is especially suitable for light and medium soil types and consists of a strong main frame and a flexible linkage that ensures the machine is pulled rather than pushed. This allows the machine to run freely on the soil surface without affecting tractor steering. The Front-Roller features automatic self-centering when lifted on the headland, ensuring that it does not swing from side to side during transport.

The Front-Roller can be equipped with different ring types, where Cambridge and Crosskill rings provide even consolidation across the entire working width and are particularly suitable for light and medium soil types. V-profile rings are recommended for stony soil conditions.

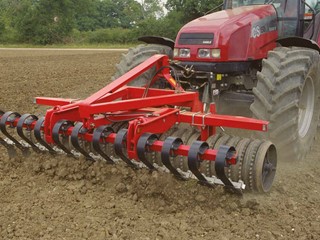

Front-Roller Twin

The Front-Roller is also available with two rows of star rings, providing exceptionally effective soil consolidation.

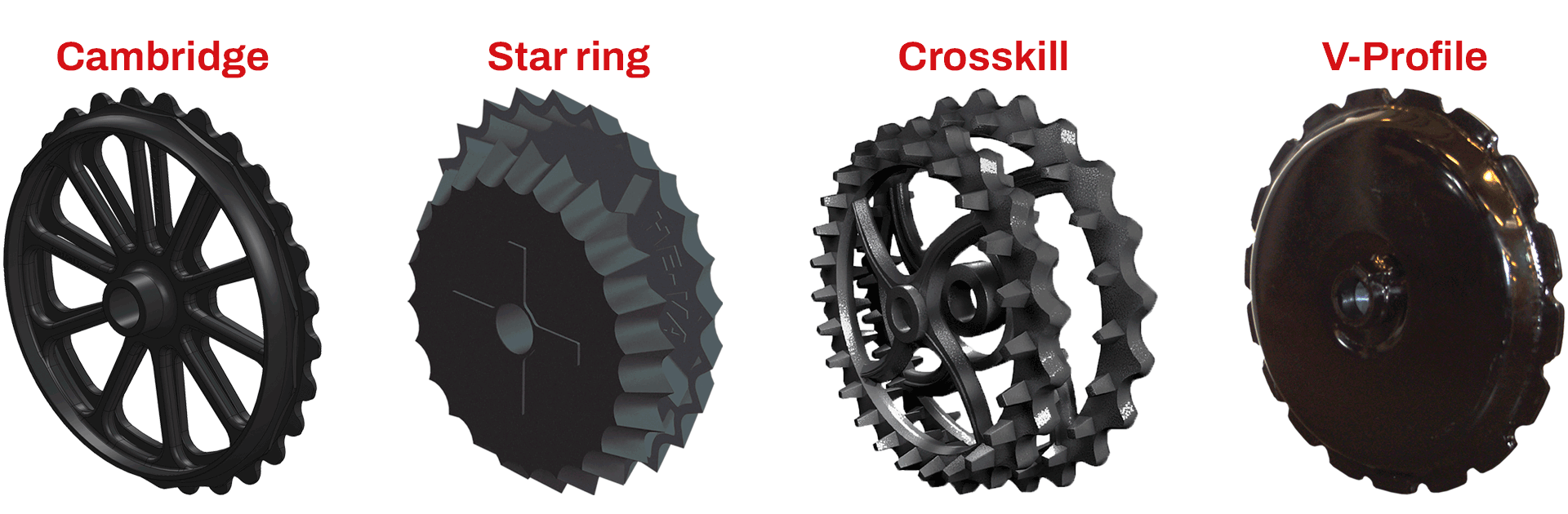

Rings for Front-Roller

Read more about ring types
Ring types

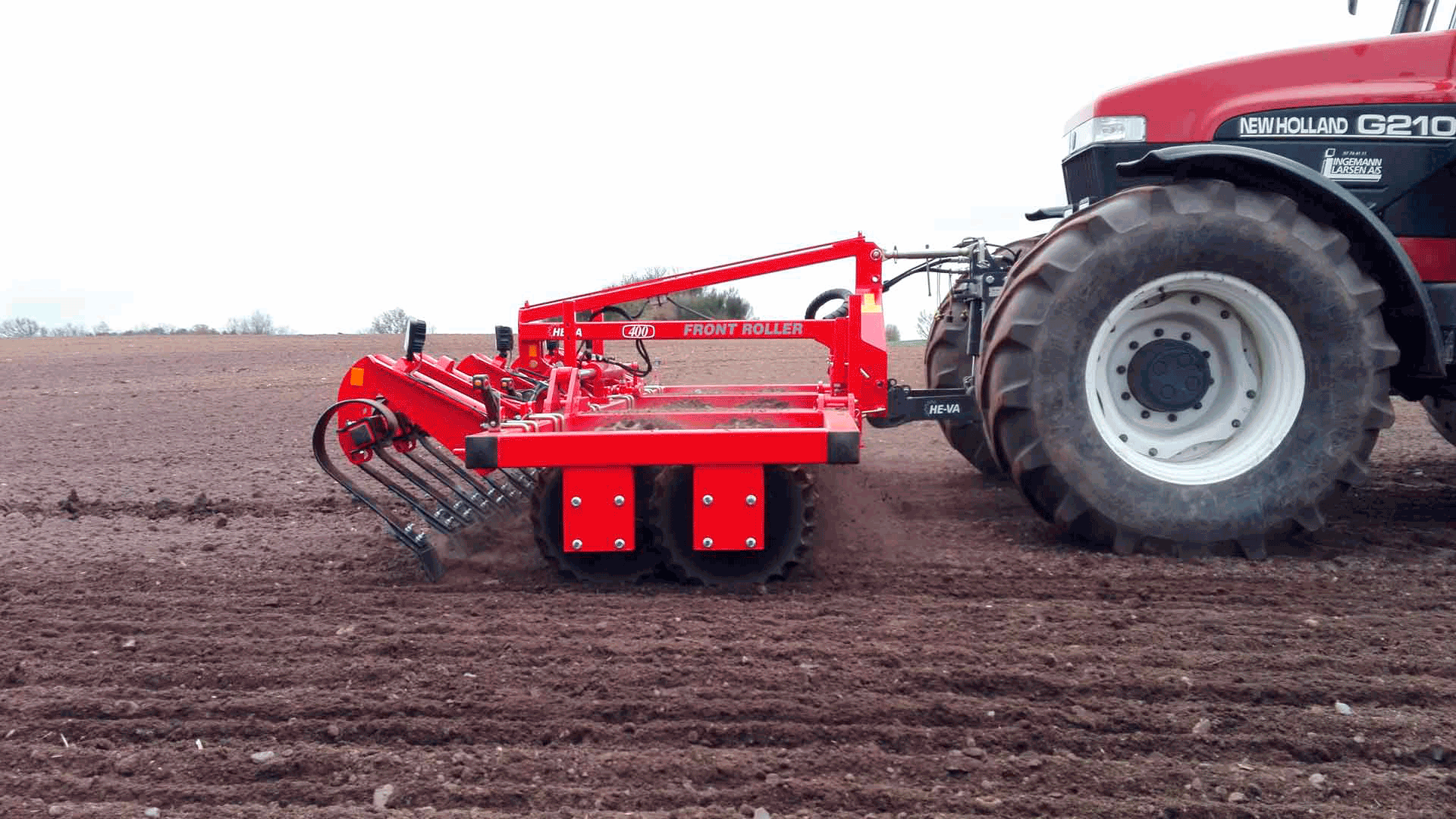

Front-Roller COMPACT

The Front-Roller COMPACT is approximately 48 cm shorter than a standard Front-Roller and was developed in collaboration with customers who requested solutions capable of meeting country-specific transport regulations.

The Front-Roller COMPACT is available in both self-steering and non-self-steering versions.

Self-Steering Front-Roller COMPACT

Self-Steering Front-Roller COMPACT

Non-Self-Steering Front-Roller COMPACT

Non-Self-Steering Front-Roller COMPACT

Cutter-Roller Knife Roller

The Front-Roller COMPACT is also available with a Cutter-Roller knife roller.

Read more about the knife roller
