Front-Lift 25.01 (70-130 HP)
Front-Lift 25.01 (70-130 HP)
70-130 HP
2500 KG
flip-to-se-table

rotate device to see table.

Model Specifications
25.01 Adjusted to the individual tractor model
  Painted in the colour of the tractor
  Hydraulic connection for several tractor models
  Parking device for top link
  Category 2, DS/ISO 8759/1/2, 825 mm between the arms' balls
  Stop valve device on the hydraulic hose at tractor connection - the lift can then be locked
  Single acting hydraulic with air filter on the lowering side



Front-PTO
Front-PTO
Shock absorption kit
Shock absorption kit
Spring suspension kit
Spring suspension kit
Position stop
Position stop

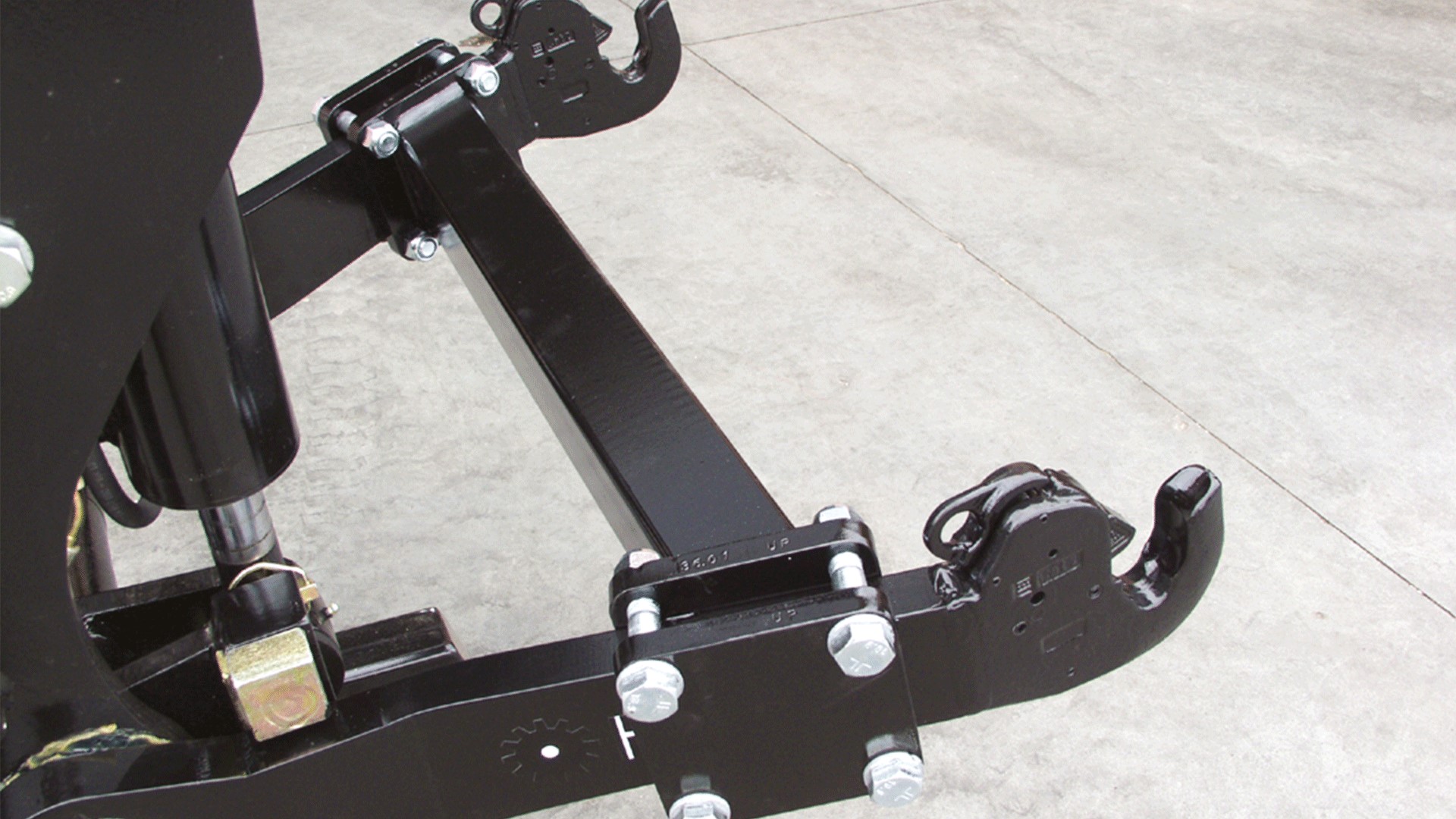

Torsion bar
Torsion bar
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
German
English
French
Finnish
Swedish
Russian
Italian
Spanish

Images


Front-Lift

This Front-Lift is integrated as much as possible with the tractor to achieve maximum strength and make the Front-Lift an integrated part of the tractor. This specific Front-Lift is suitable for tractors from 70–130 hp and offers the following advantages:

  • These Front-Lifts are developed specifically for each tractor model
  • The Front-Lift has four different lift arm positions – fixed, limited, fully movable, and fully tilted back for parking
  • Supplied as standard with single-acting hydraulics with an air filter on the lowering side
  • Lifting capacity of 2,500 kg at 190 bar
  • Most models are adapted for Front-PTO (see more about Front-PTO under optional equipment above)

A Wide Range of Front-Lift Extra Equipment

It is highly possible to customize your Front-Lift with a comprehensive range of optional equipment, including:

  • Front-weights
  • Front-PTO
  • Front-weight frames
  • Shock absorber
  • Position stop
  • Suspension kit
  • Lift arm reinforcement

Read more about optional equipment in the tables above.
