Front-Lift 25.01 (70-130 HP)
Front-Lift 25.01 (70-130 HP)
70-130 HP
2500 KG

Front-Lift

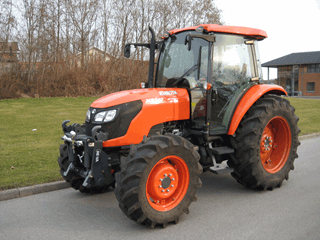

This Front-Lift is integrated as much as possible with the tractor in terms of gaining strength and making the Front-Lift an integrated part of the tractor. This specific Front-Lift is suited for tractors from 70 - 130 hp and contributes with the following benefits,

  • This Front-Lift is developed specifically for the individual tractor models
  • The Front-Lift has 4 different lift arm positions - locked position, transport position, limited moving and free moving
  • Comes standard with single acting hydraulic with air filter on the lowering side
  • Lifting capacity of 2500 kg with 190 bars
  • Most models are adapted to Front-PTO (read about Front-PTO under extra equipment at the bottom of this page)

Front_lift til alle traktormodeller

A wide variety of Front-Lift extra equipment

Get your Front-Lift adjusted to your needs with a lot of extra equipment

  • Front-Weights
  • Front-PTO
  • Front-Weight Frames
  • Shock absorption kit
  • Position stop
  • Spring Suspension kit

see extra equipment below

flip-to-se-table

rotate device to see table.

Model Specifications
25.01 Adjusted to the individual tractor model
  Painted in the colour of the tractor
  Hydraulic connection for several tractor models
  Parking device for top link
  Category 2, DS/ISO 8759/1/2, 825 mm between the arms' balls
  Stop valve device on the hydraulic hose at tractor connection - the lift can then be locked
  Single acting hydraulic with air filter on the lowering side



Front-PTO
Front-PTO
Shock absorption kit
Shock absorption kit
Spring suspension kit
Spring suspension kit

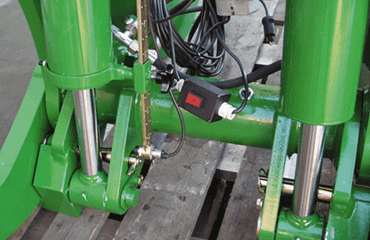

Position stop
Position stop
Torsion bar
Torsion bar
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
German
English
Finnish
French
Polish
Swedish
Russian
Italian
