Euro-Tiller
Euro-Tiller
6.00 - 10.00 M
3.00 - 4.00 M
120 - 225 HP
3,150 - 4,200 KG
41 - 117 PCS
flip-to-se-table

rotate device to see table.

Work Width, m Type Wheels Power Req., HP No. of Tines Weight, kg Transport Height, m Transport Width, m
6.00 Hydraulic folding 4 boogie 120+ 73/41 3,150 2.80 3.00
7.00 Hydraulic folding 4 boogie 150+ 83/47 3,400 3.30 3.00
8.00 Hydraulic folding 4 boogie 175+ 97/55 3,650 3.80 3.00
9.00 Hydraulic folding

4 boogie

3 m middle section

200+ 105/61 3,900 4.30 3.00
9.00 Hydraulic folding

4 boogie

4 m middle section

200+ 109/63 3,900 3.80 4.00
10.00 Hydraulic folding

4 boogie

4 m middle section

225+ 117/69 4,200 4.30 4.00



Strong front-harrow
Strong front-harrow
Spring-Board
Spring-Board
Transverse locking system
Transverse locking system
Spring-Board after-harrow
Spring-Board after-harrow
Long finger after-harrow
Long finger after-harrow

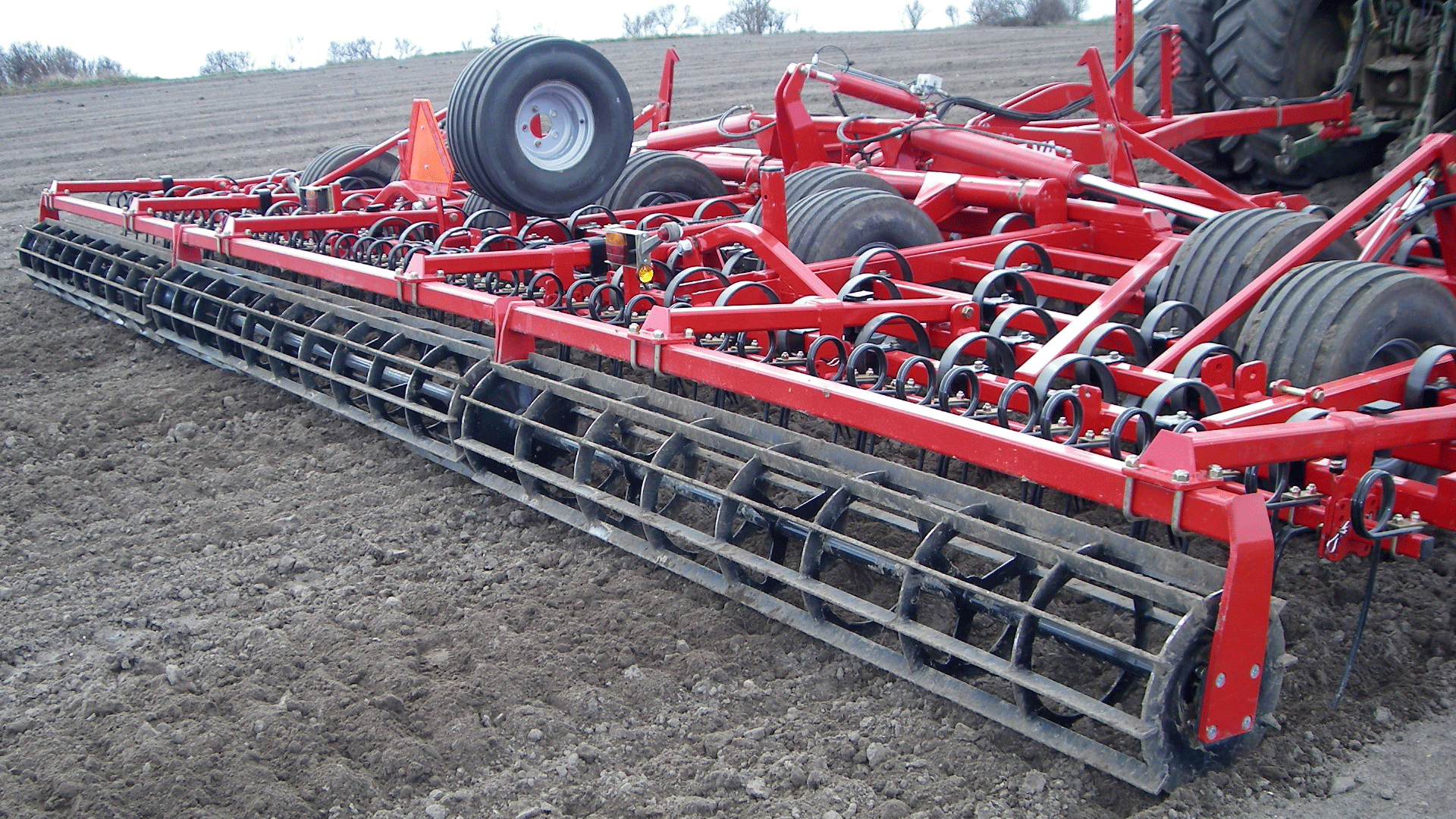

Flat bar roller
Flat bar roller

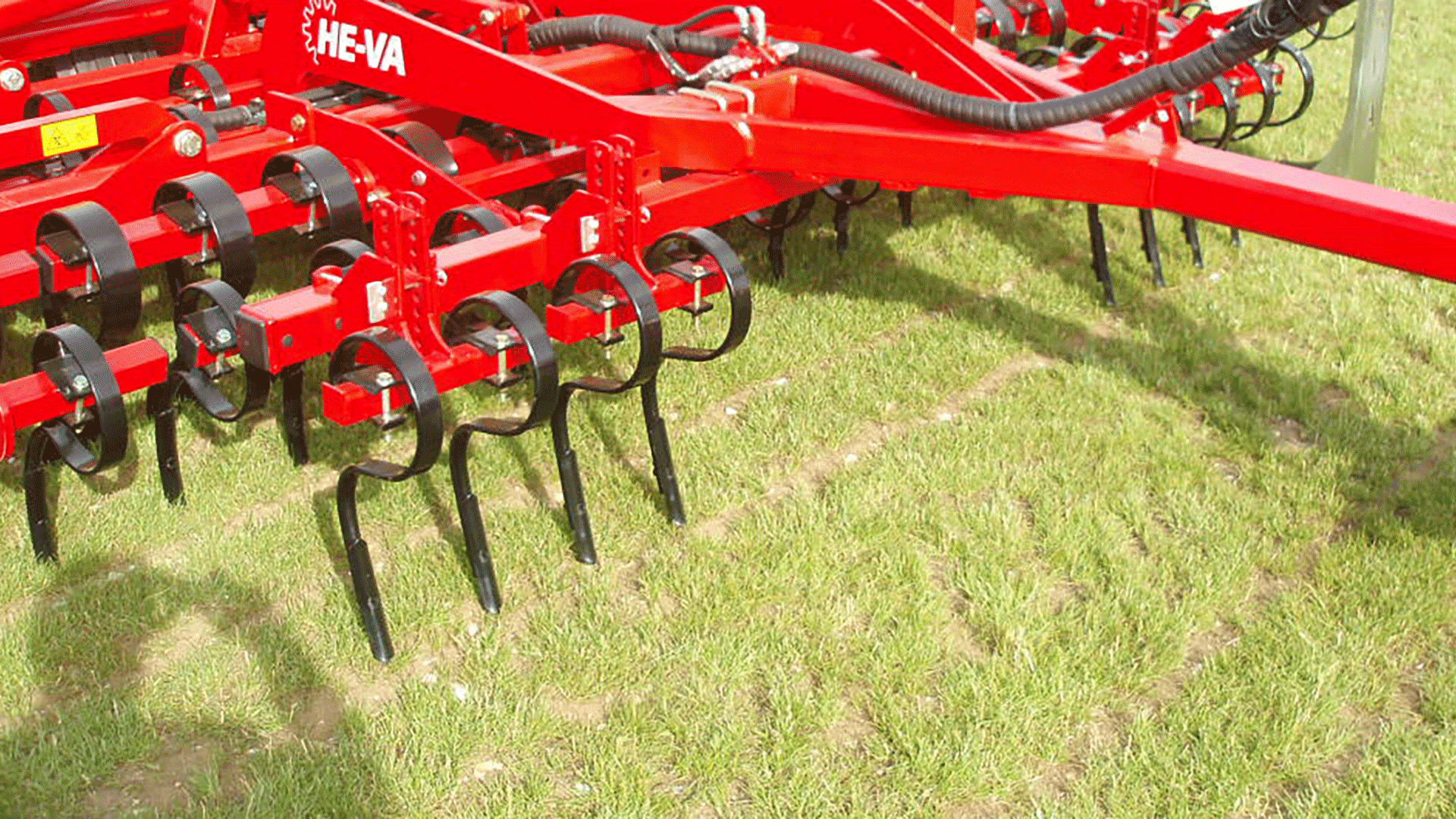

Wheel track eradicator set
Wheel track eradicator set
Extra equipment Specification
Brakes Air : Factory mounted
Brakes 1-circuit Hydraulic : Factory mounted
Brakes 2-circuit Hydraulic : Factory mounted
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Hungarian
Italian
Norsk
Swedish

Images

Videos

Euro-Tiller

A strong harrow for all soil types

The Euro-Tiller seedbed harrow differs from the other seedbed harrows in the range by featuring seven rows of tines. The harrow has a strong frame construction, and the wide 300 mm boogie wheels ensure excellent stability during operation and precise working depth regardless of soil conditions.

The working depth is easily adjusted centrally at one location on the harrow, and the electric depth stop ensures the same working depth every time.

The Euro-Tiller seedbed harrow ensures an optimal seedbed for grains, beets, maize, potatoes and other specialty crops.

The harrow with a wide range of optional equipment

With its extensive range of optional equipment, the Euro-Tiller can be adapted to individual needs. For example, extra-efficient soil cultivation in difficult soil types can be achieved by fitting a Spring-Board followed by a front harrow, providing the following advantages:

  • Breaks the soil crust and loosens wheel tracks
  • The Spring-Board ensures precise levelling of the loosened soil
  • The seven rows of tines cultivate at an exact working depth
