Combi-Disc
Combi-Disc
160 - 450 HP
22 - 42 PCS
3,00 - 5,50 M
2,60 - 3,50 M

Combi-Disc

A Multi-functional disc cultivator

HE-VA Combi-Disc is a multi-functional cultivator designed for in-depth soil loosening, surface treatment as well as consolidation - all in one pass.

Combi-Disc is a versatile tool for smaller farms, because of the fact that it can do everything from primary to secondary tillage and from in-depth soil loosening to surface treatment.

Versatile tillage using one machine

Combi-Disc - designed for the tractor driver

Combi-Disc has been designed to make the field work easier and more efficient for the tractor driver and it can be equipped with a wide variety of extra equipment making it possible to adjust it to individual needs.

It is possible to process the soil using only the discs and by lifting the discs up, the Combi-Disc can be used for in depth soil loosening using only the tines. So for smaller farms, you get a versatile cultivator with many different combinations and all in all a user friendly machine.

For the bigger machine pools, the versatility means that you will be able to use it on different soil types and you only have to invest in one machine for different jobs.

Lifting the discs, the Combi Disc can be used for in-depth soil loosening.

Lifting the discs, the Combi Disc can be used for in-depth soil loosening.

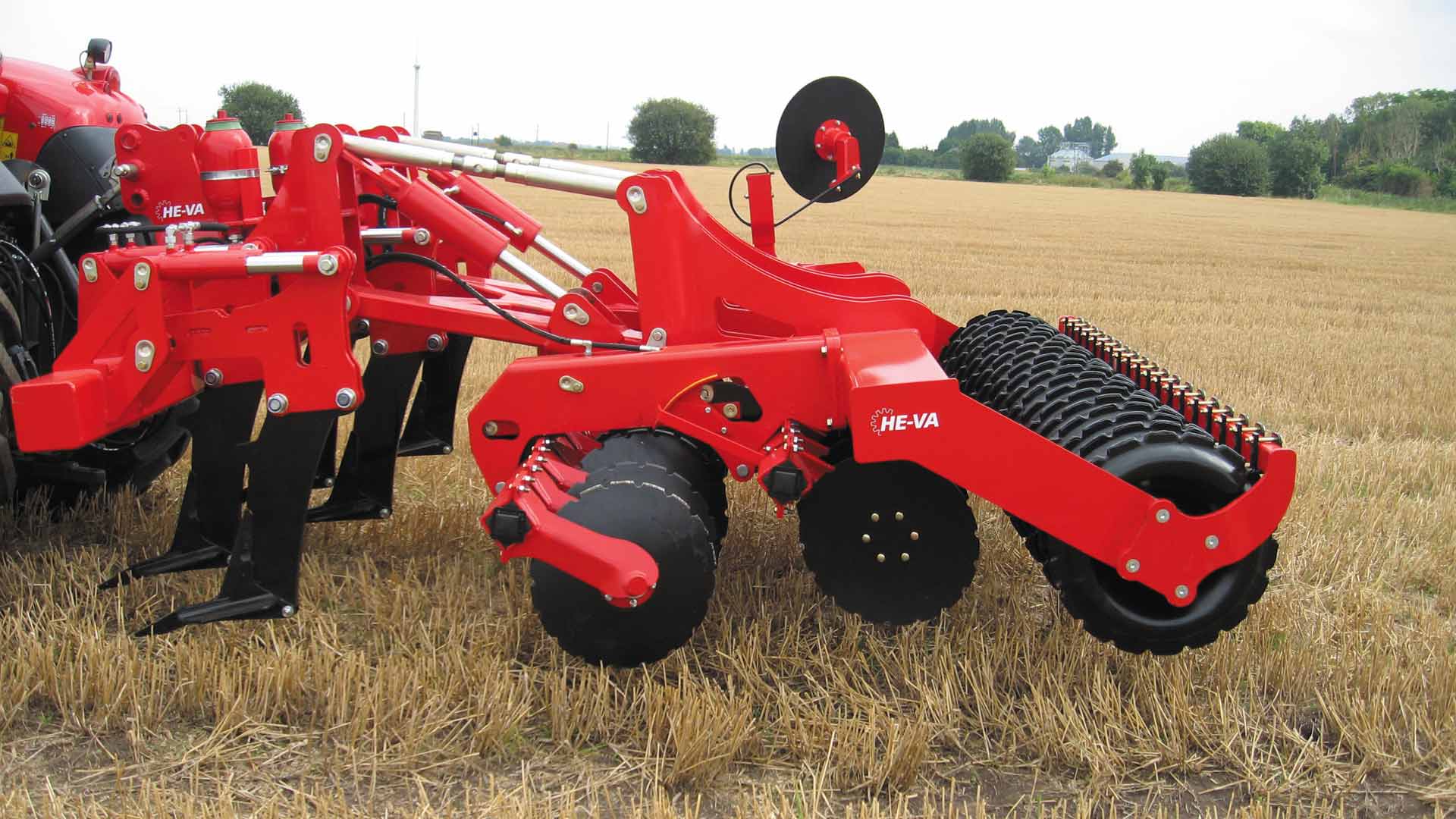

Here, the tines are lifted and you thereby only process the soil with the discs and consolidate it with the roller afterwards.

Here, the tines are lifted and you thereby only process the soil with the discs and consolidate it with the roller afterwards.

Control the tillage

When preparing for stale seedbeds or incorporating crop residues, the unique DSD-technology (Depth Synchronized Disc) automatically changes the angle of the discs.

Using the Combi-Discs for tillage near the surface, the discs are almost perpendicular on the soil. Here, the discs press the soil horizontally down and the entire surface is moved. The vertical disc loosens the soil instead of pushing it outwards like a traditional concave disc does and the risk of smearing is reduced.

Using the Combi-Discs for tillage near the surface, the discs are almost perpendicular on the soil. Here, the discs press the soil horizontally down and the entire surface is moved. The vertical disc loosens the soil instead of pushing it outwards like a traditional concave disc does and the risk of smearing is reduced.

When the Combi-Disc is being used as a deep cultivator for residue mixing and incorporation, a more aggressive disc angle is required. The DSD-System automatically increases the aggressiveness of the disc angle relative to the soil surface. All this happens automatically and hydraulically as the depth of the discs is being altered by the tractor driver.

When the Combi-Disc is being used as a deep cultivator for residue mixing and incorporation, a more aggressive disc angle is required. The DSD-System automatically increases the aggressiveness of the disc angle relative to the soil surface. All this happens automatically and hydraulically as the depth of the discs is being altered by the tractor driver.

Maximum mixture of soil

Combi-Disc is equipped with the unique HE-VA Sabre-Disc. With its limited angle and when placed in 2 rows on the Combi-Disc, it efficiently moves and mixes the soil - also during surface treatment. This flat disc also has the advantage of not smearing the soil and causing the tractor to get stuck in rainy weather. The traditional, concave shaped disc often smears the soil, which can create problems for the roots and drainage.

Get a roller for your soil type

Combi-Disc can be equipped with different roller types - and each meet different needs.

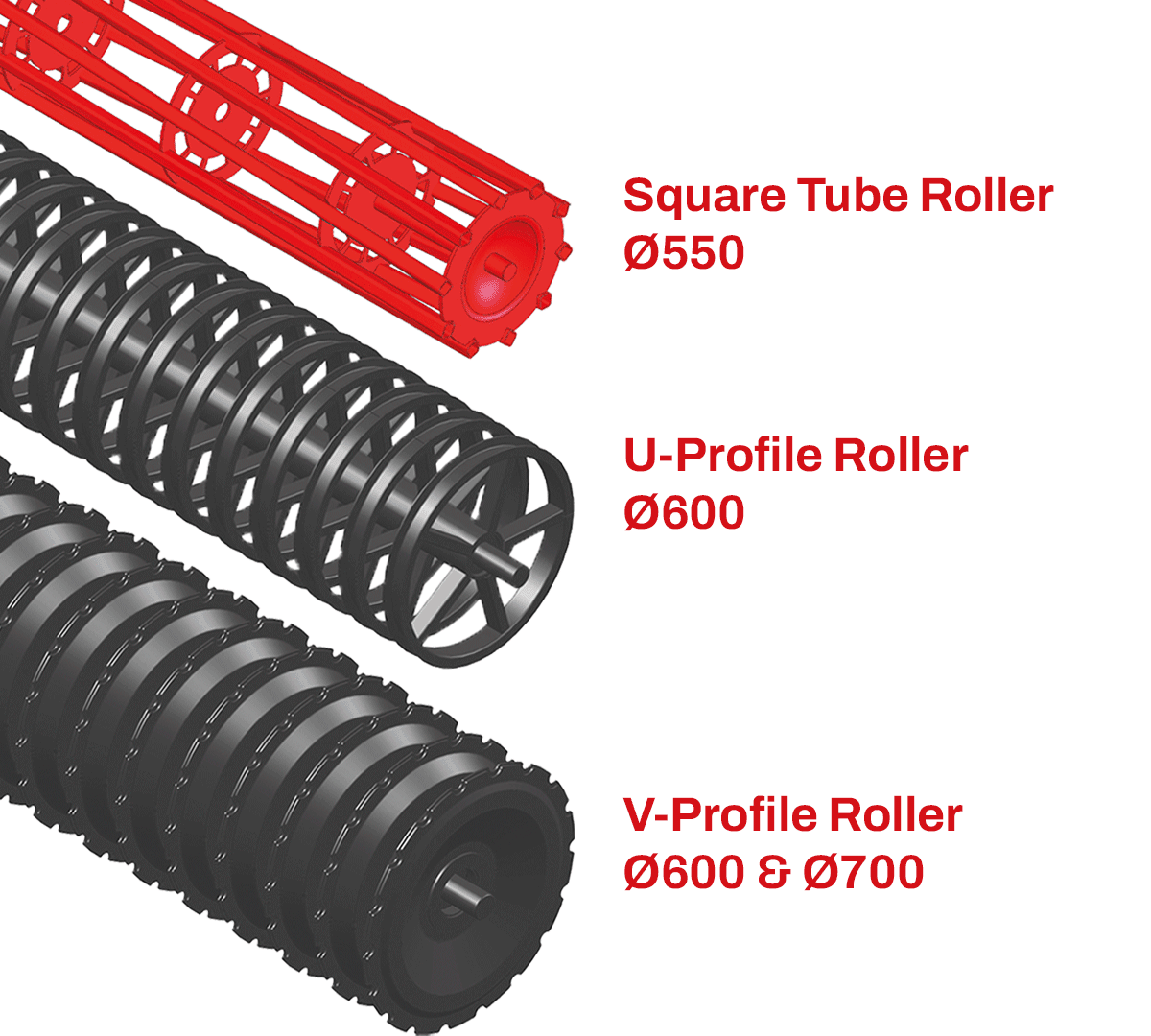

The three-point mounted models can be ordered with Square tube roller, V-profile roller and a U-profile roller.

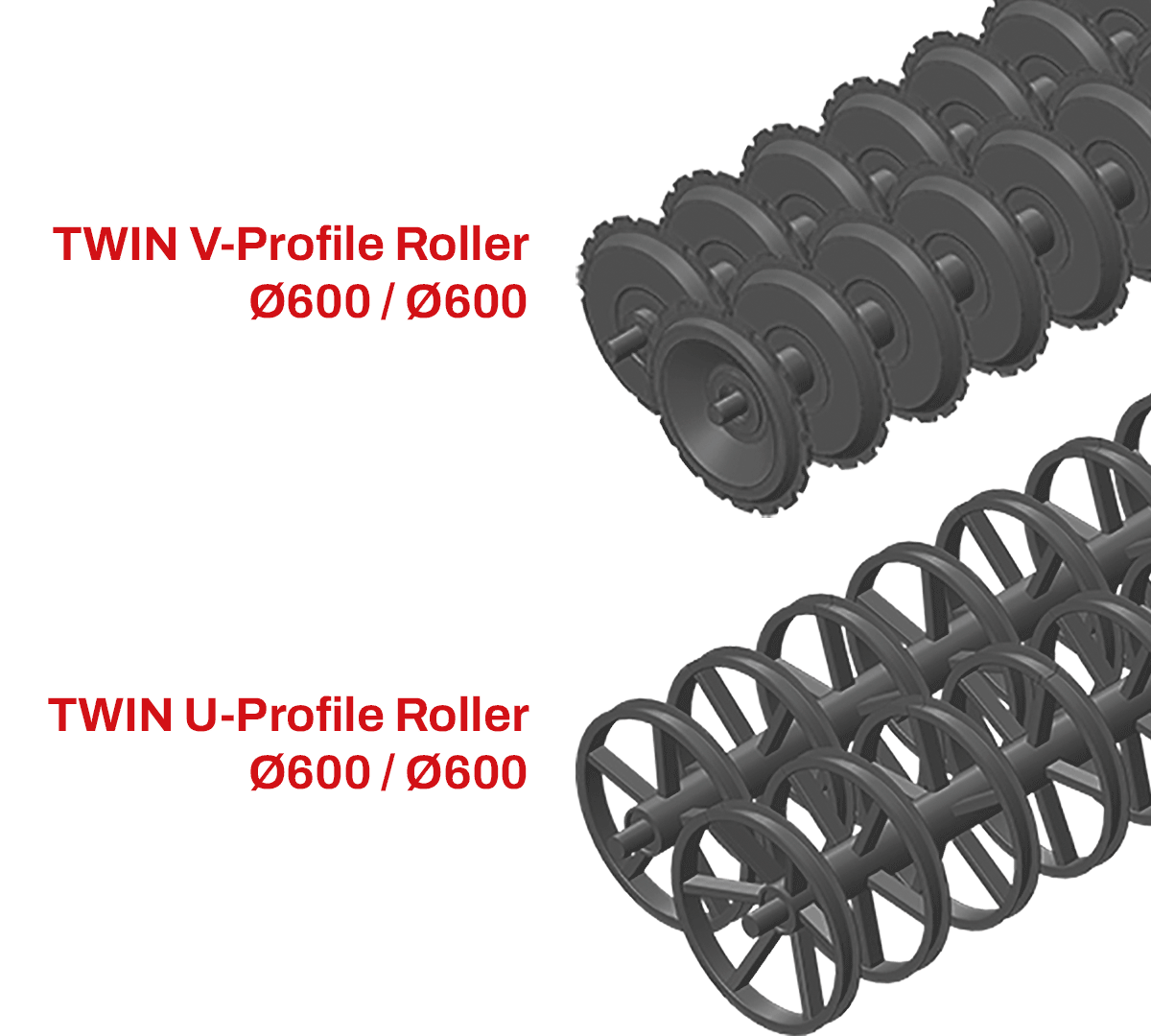

The trailed models can be ordered with U-profile roller, V-profile roller, Twin (double) U-profile roller and Twin (double) V-profile roller.

Learn more about rollers here

Wide selection of extra equipment

Combi-Disc comes with a world of extra equipment enabling you to get the exact machine for your needs. If you have a lot of road transport, hydraulic or air brakes can be mounted on the machine. Also, if you wish to seed at the same time as tilling, you can mount a Multi-Seeder.

flip-to-se-table

rotate device to see table.

Combi-Disc, three-point mounted

Model Working width, m No. of tines, pcs No. of discs, pcs Power requirement, hp
3,00 m 2,75 5 22 160 - 240
3,50 m 3,25 6 26 190 - 270
4,00 m 3,75 7 30 220 - 300

Combi-Disc, trailed

Model Working width, m No. of tines, pcs No. of discs, pcs Power requirement, hp
3,00 m, 1-section rigid 2,75 5 22 180 - 240
3,50 m, 1-section rigid 3,25 6 26 210 - 270
4,00 m, 1-section rigid 3,75 7 30 240 - 300
4,50 m 2-sections hydraulic 4,25 7 34 300 - 400
5,50 m, 2-sections hydraulic 5,25 9 42 350 - 450



Multi-Seeder
Multi-Seeder
Long finger after-harrow
Long finger after-harrow
120 mm tine
120 mm tine
350 mm tine
350 mm tine
200 mm with hard metal plate
200 mm with hard metal plate
Easy-Draft w/hard metal plate
Easy-Draft w/hard metal plate
Extra equipment Specification
Air brakes Mounted before delivery :
Hydraulic brakes Mounted before delivery :
LED lights Lights : set with wire and socket
HPV-Controller Weight : 7,2 kg
Mounting set for Multi-Seeder :
flip-to-se-table

rotate device to see table.
