Sub-Tiller Eco

2.50 - 3.50 M

60 - 200 HP

500 - 2,100 KG

Specifications

Extras

Downloads

Images & videos

rotate device to see table.

Without Roller

Work Width, m	Stone Protection	No. of Tines	Row Spacing / Spacing btw. outer Tines, cm	Power Req., HP	Max hp	Weight, kg
2.50	Quick-Push	2	180 / 195	60-100	250	500
2.50	Quick-Push	3	90 / 195	90-120	250	580
2.50	Hydr. auto.	2	180 / 195	60-100	250	540
2.50	Hydr. auto.	3	90 / 195	90-120	250	630
3.00	Quick-Push	2	200 / 245	60-100	250	520
3.00	Quick-Push	3	100 / 245	90-120	250	600
3.00	Quick-Push	4	75 / 245	110-160	250	680
3.00	Hydr. auto.	2	200 / 245	60-100	250	580
3.00	Hydr. auto.	3	100 / 245	90-120	250	690
3.00	Hydr. auto.	4	75 / 245	110-160	250	810
3.50	Quick-Push	5	70 / 295	130-200	300	780
3.50	Hydr. auto.	5	70 / 295	130-200	300	900

Square Tube Roller Ø550 mm

Work Width, m	Stone Protection	No. of Tines	Row Spacing / Spacing btw. outer Tines, cm	Power Req., HP	Max hp	Weight, kg
2.50	Quick-Push	2	180 / 195	60-100	250	860
2.50	Quick-Push	3	90 / 195	90-120	250	940
2.50	Hydr. auto.	2	180 / 195	60-100	250	900
2.50	Hydr. auto.	3	90 / 195	90-120	250	990
3.00	Quick-Push	2	200 / 245	60-100	250	930
3.00	Quick-Push	3	100 / 245	90-120	250	1,010
3.00	Quick-Push	4	75 / 245	110-160	250	1,090
3.00	Hydr. auto.	2	200 / 245	60-100	250	990
3.00	Hydr. auto.	3	100 / 245	90-120	250	1,100
3.00	Hydr. auto.	4	75 / 245	110-160	250	1,220
3.50	Quick-Push	5	70 / 295	130-200	300	1,260
3.50	Hydr. auto.	5	70 / 295	130-200	300	1,380

V-Profile Roller Ø600 mm

Work Width, m	Stone Protection	No. of Tines	Row Spacing / Spacing btw. outer Tines, cm	Power Req., HP	Max hp	Weight, kg
2.50	Quick-Push	2	180 / 195	60-100	250	1,375
2.50	Quick-Push	3	90 / 195	90-120	250	1,445
2.50	Hydr. auto.	2	180 / 195	60-100	250	1,405
2.50	Hydr. auto.	3	90 / 195	90-120	250	1,495
3.00	Quick-Push	2	200 / 245	60-100	250	1,550
3.00	Quick-Push	3	100 / 245	90-120	250	1,630
3.00	Quick-Push	4	75 / 245	110-160	250	1,710
3.00	Hydr. auto.	2	200 / 245	60-100	250	1,610
3.00	Hydr. auto.	3	100 / 245	90-120	250	1,720
3.00	Hydr. auto.	4	75 / 245	110-160	250	1,840
3.50	Quick-Push	5	70 / 295	130-200	300	1,980
3.50	Hydr. auto.	5	70 / 295	130-200	300	2,100

Point types

Extra equipment	Specification
LED lights	Lights : set with wire and socket
Tine for retrofitting	: Quick Push
Tine for retrofitting	: Hydraulic

rotate device to see table.

Languages	Brochure	Technical Specification	Manual / Spare Parts Catalog
Danish
English
German
French
Swedish
Finnish
Spanish

Images

Sub-Tiller Eco

The Subsoiler That Effectively Relieves Plough Pans and Headlands

The Sub-Tiller Eco is an affordable member of the Sub-Tiller family, aimed at farmers requiring a subsoiler for loosening plough pans and compacted headlands. The Sub-Tiller Eco is available with different types of points, positioned slightly staggered on a straight and robust frame construction.

The Subsoiler for Multiple Tasks

The Sub-Tiller Eco can be used with or without a roller. By choosing a roller, subsoiling can be combined with surface cultivation, leaving the field more level.

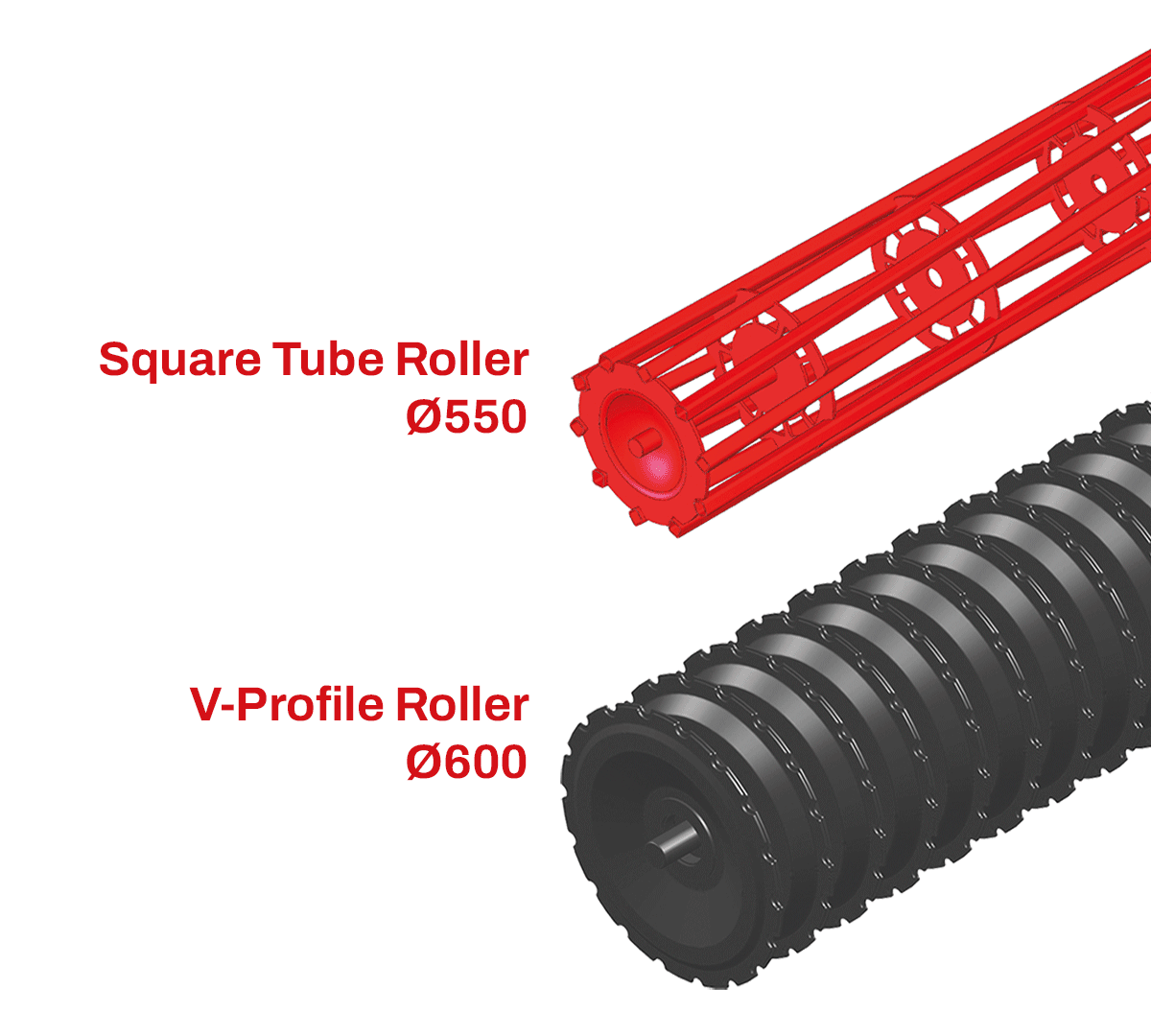

Here are the two roller types available for the Sub-Tiller Eco:

Square Tube Roller

Provides excellent depth control and crushes soil clods effectively on lighter soil types.

V-Profile Roller

Provides aggressive clod crushing and leaves the soil surface level and even.

Efficient Stone Protection

For Stony Soil Conditions

Hydraulic stone protection

Hydraulic stone protection is the ideal solution for stony soil conditions. A hydraulic cylinder on each tine ensures automatic lifting when obstacles are encountered, after which the tine automatically returns to working position.

For Stone-Free Loam Soils

Quick-Push stone protection

For stone-free loam soils and smaller acreages, Quick-Push stone protection is an ideal solution. When a tine strikes a stone, a specially designed 8-groove shear bolt automatically breaks. The lynch pin can be removed without tools, the bolt pushed back into place, and work can quickly continue.
