Terra-Dan MKII

3.00 - 7.50 M

2.45 M

75 - 240 HP

1,770 - 5,560 KG

35/20 - 82/46 PCS

Specifications

Extras

Downloads

Images & videos

rotate device to see table.

Three Point Mounted Models - 1-Section Rigid

Work Width, m	Type	Power Req., HP	No. of Tines	Lifting Req., kg	Transport Width, m	Weight, kg
3.00	Square Tube Roller Ø550 mm	75-100	35/20	3,150	3.00	1,770
3.00	Double Roller Ø550/Ø410 mm	75-100	35/20	3,325	3.00	1,867
3.00	V-Profile Roller Ø600 mm	85-110	35/20	3,470	3.00	1,950
3.00	U-Profile Roller Ø600 mm	85-110	35/20	3,470	3.00	1,950
3.50	Square Tube Roller Ø550 mm	90-125	41/23	3,675	3.50	2,065
3.50	Double Roller Ø550/Ø410 mm	90-125	41/23	3,876	3.50	2,178
3.50	V-Profile Roller Ø600 mm	95-130	41/23	4,050	3.50	2,275
3.50	U-Profile Roller Ø600 mm	95-130	41/23	4,050	3.50	2,275
4.00	Square Tube Roller Ø550 mm	100-150	47/26	4,200	4.00	2,360
4.00	Double Roller Ø550/Ø410 mm	100-150	47/26	4,430	4.00	2,490
4.00	V-Profile Roller Ø600 mm	110-160	47/26	4,630	4.00	2,600
4.00	U-Profile Roller Ø600 mm	110-160	47/26	4,630	4.00	2,600

Three Point Mounted Models - 2-Section Foldable

Work Width, m	Type	Power Req., HP	No. of Tines	Lifting Req., kg	Transport Width, m	Weight, kg
4.00	Square Tube Roller Ø550 mm	100-150	47/26	4,950	2.45	2,766
4.00	Double Roller Ø550/Ø410 mm	100-150	47/26	5,100	2.45	2,836
4.00	V-Profile Roller Ø600 mm	110-160	47/26	5,600	2.45	2,946
4.00	U-Profile Roller Ø600 mm	110-160	47/26	5,600	2.45	2,946
5.00	Square Tube Roller Ø550 mm	125-175	59/33	5,350	2.45	2,979
5.00	Double Roller Ø550/Ø410 mm	125-175	59/33	5,500	2.45	3,049
5.00	V-Profile Roller Ø600 mm	135-185	59/33	6,000	2.45	3,159
5.00	U-Profile Roller Ø600 mm	135-185	59/33	6,000	2.45	3,159
6.00	Square Tube Roller Ø550 mm	150-200	70/40	5,750	2.45	3,196
6.00	Double Roller Ø550/Ø410 mm	150-200	70/40	5,900	2.45	3,266
6.00	V-Profile Roller Ø600 mm	160-210	70/40	6,400	2.45	3,376
6.00	U-Profile Roller Ø600 mm	160-210	70/40	6,400	2.45	3,376
7.50	Square Tube Roller Ø550 mm	175-225	82/46	6,350	2.45	3,530
7.50	Double Roller Ø550/Ø410 mm	175-225	82/46	6,500	2.45	3,600
7.50	V-Profile Roller Ø600 mm	190-240	82/46	7,050	2.45	3,710
7.50	U-Profile Roller Ø600 mm	190-240	82/46	7,050	2.45	3,710

Trailed Models

Work Width, m	Type	Power Req., HP	No. of Tines	Transport Width, m	Weight, kg
4.00	Square Tube Roller Ø550 mm	100-150	47/26	2.45	4,030
4.00	Double Roller Ø550/Ø410 mm	100-150	47/26	2.45	4,290
4.00	V-Profile Roller Ø600 mm	110-160	47/26	2.45	4,600
4.00	Twin U-Profile Ø600-Ø600 mm	110-160	47/26	2.45	4,600
5.00	Square Tube Roller Ø550 mm	125-175	59/33	2.45	4,280
5.00	Double Roller Ø550/Ø410 mm	125-175	59/33	2.45	4,540
5.00	V-Profile Roller Ø600 mm	135-185	59/33	2.45	4,870
5.00	Twin U-Profile Ø600-Ø600 mm	135-185	59/33	2.45	4,870
6.00	Square Tube Roller Ø550 mm	150-200	70/40	2.45	4,520
6.00	Double Roller Ø550/Ø410 mm	150-200	70/40	2.45	4,810
6.00	V-Profile Roller Ø600 mm	160-210	70/40	2.45	5,140
6.00	Twin U-Profile Ø600-Ø600 mm	160-210	70/40	2.45	5,140
7.50	Square Tube Roller Ø550 mm	175-225	82/46	2.45	4,910
7.50	Double Roller Ø550/Ø410 mm	175-225	82/46	2.45	5,210
7.50	V-Profile Roller Ø600 mm	190-240	82/46	2.45	5,560
7.50	Twin U-Profile Ø600-Ø600 mm	190-240	82/46	2.45	5,560

Longfinger after-harrow behind roller

Wheel track eradicator

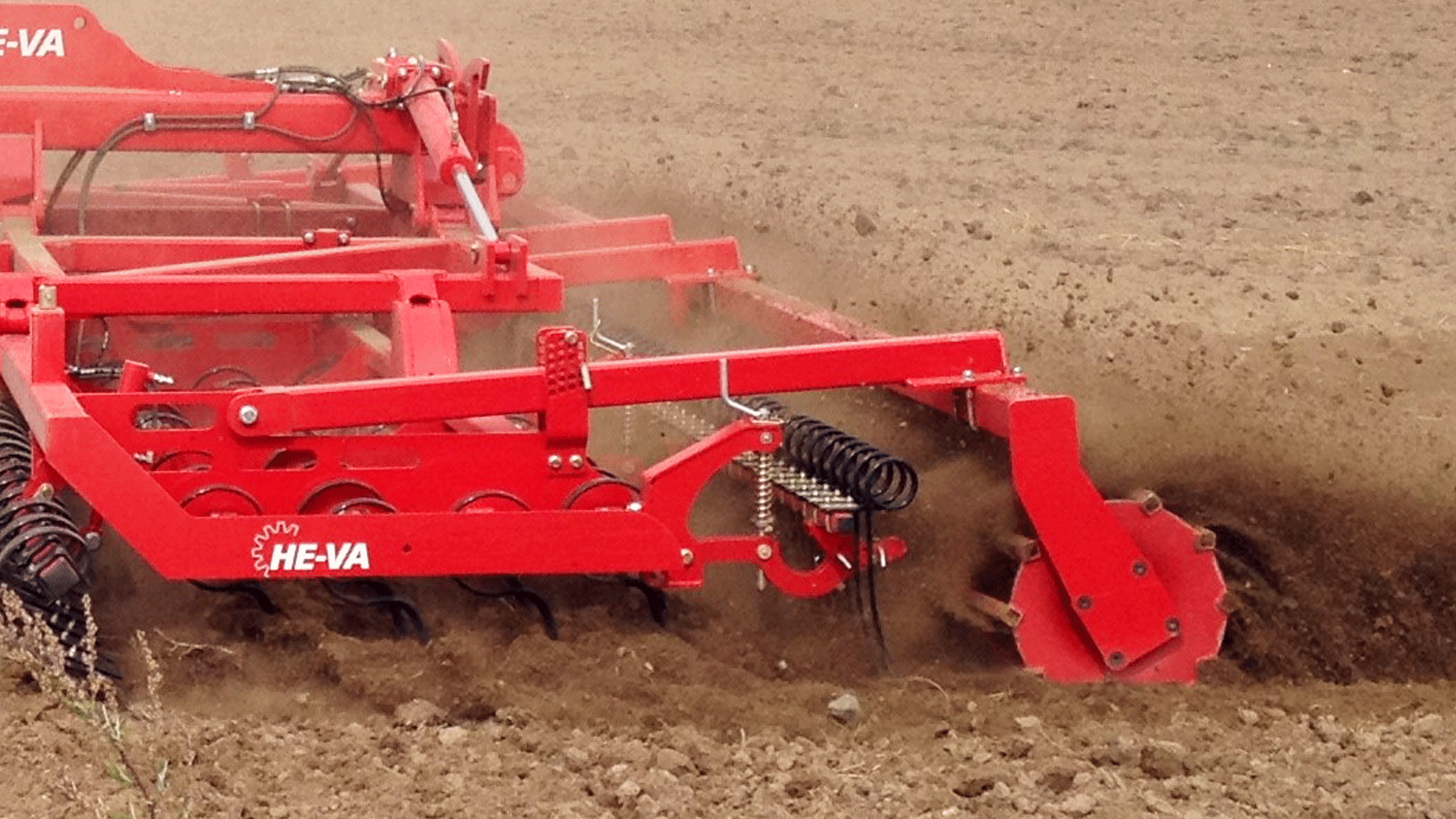

Rollers

Extra equipment	Specification
LED lights	Lights : set with wire and socket
Brakes	Air : Factory mounted
Brakes	1-circuit Hydraulic : Factory mounted
Brakes	2-circuit Hydraulic : Factory mounted

rotate device to see table.

Languages	Brochure	Technical Specification	Manual / Spare Parts Catalog
Danish
English
German
French
Italian
Chinese
Swedish

Images

Videos

Terra-Dan MKII

The seedbed harrow that ensures uniform soil consolidation

The Terra-Dan MKII harrow is developed to provide precise depth-controlled cultivation while achieving completely uniform soil consolidation. This unique combination is possible due to the special design of the harrow.

The Terra-Dan MKII is built with two centrally suspended harrow sections, enabling the harrow to follow the field surface in uneven terrain.

As standard, the Terra-Dan MKII is equipped with a front-mounted Spring-Board, whose heavy-duty tines level the field and break down the largest clods. This is followed by a four-row harrow section, then a longfinger afterharrow, and finally a roller that leaves the soil airy and uniform.

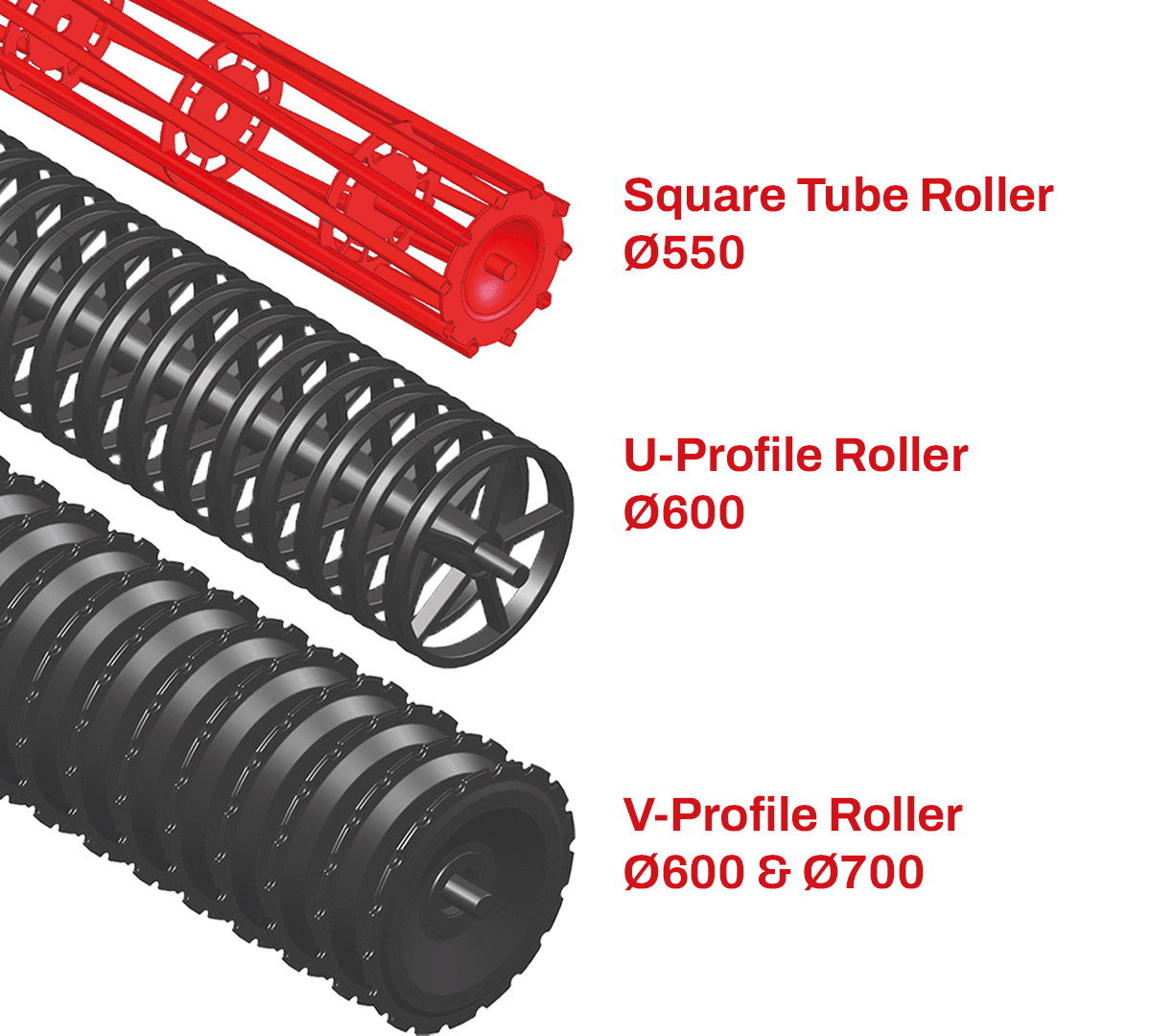

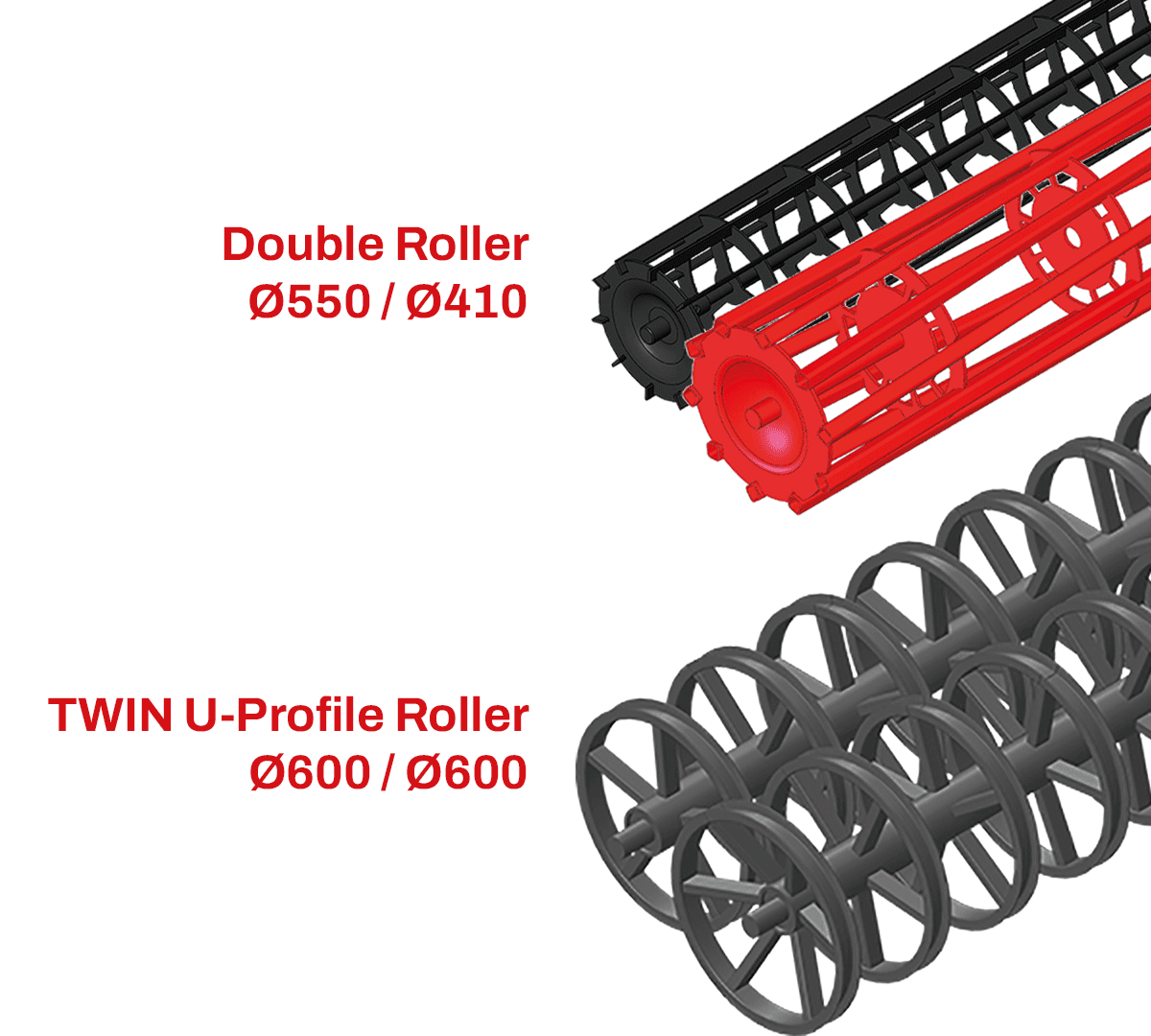

The roller is available as:

Ø550 mm square tube roller
Ø550/410 mm double roller
Ø600 mm V-profile roller
Ø600 mm U-profile roller
Twin U-profile roller (for trailed models)

The Terra-Dan MKII is available as both mounted and trailed models and comes in working widths from 3.00 m to 7.50 m.
