King-Roller
King-Roller
12.30 - 20.30 M
3.00 M
170 - 300 HP
7,168 - 14,280 KG
flip-to-se-table

rotate device to see table.

Work Width, m Ring Type No. of Rings No. of Spokes Power Req., HP Weight, kg
12.30 510 mm/21” Cambridge 236 8 170-200 8,283
12.30 560 mm/22,5” Cambridge 236 9 190-220 8,991
12.30 620 mm/24” Cambridge 236 10 190-220 9,820
12.30 450/500 mm Star ring 224 - 170-200 7,493
12.30 550/600 mm Star ring 224 - 190-200 8,658
12.30 485-530 mm Crosskill 125 - 170-200 8,604
12.30 550-600 mm Crosskill 125 - 170-200 9,968
12.30 500 mm 2D-Corrugated 150 8 170-200 7,685
12.30 550 mm 2D-Corrugated 150 9 180-210 8,135
12.30 600 mm 2D-Corrugated 150 10 180-210 8,735
12.30 595 mm Cutter-Roller - - - -
15.30 510 mm/21” Cambridge 292 8 180-230 9,330
15.30 560 mm/22,5” Cambridge 292 9 200-250 10,206
15.30 620 mm/24” Cambridge 292 10 200-250 11,164
15.30 450/500 mm Star ring 282 - 180-230 8,609
15.30 550/600 mm Star ring 282 - 200-250 10,075
15.30 485-530 mm Crosskill 153 - 180-230 9,794
15.30 550-600 mm Crosskill 153 - 180-230 10,261
15.30 500 mm 2D-Corrugated 187 8 180-230 8,595
15.30 550 mm 2D-Corrugated 187 9 190-240 9,156
15.30 600 mm 2D-Corrugated 187 10 190-240 9,904
15.30 595 mm Cutter-Roller - - - -
16.30 510 mm/21” Cambridge 306 8 190-240 11,043
16.30 560 mm/22,5” Cambridge 306 9 210-260 11,961
16.30 620 mm/24” Cambridge 306 10 210-260 12,960
16.30 450/500 mm Star ring 296 - 190-240 10,334
16.30 550/600 mm Star ring 296 - 210-260 11,873
16.30 485-530 mm Crosskill 163 - 190-240 10,369
16.30 550-600 mm Crosskill 163 - 190-240 12,162
16.30 500 mm 2D-Corrugated 199 8 190-240 10,365
16.30 550 mm 2D-Corrugated 199 9 200-250 10,962
16.30 600 mm 2D-Corrugated 199 10 200-250 11,758
16.30 595 mm Cutter-Roller - - - -
18.30 510 mm/21” Cambridge 346 8 210-260 11,855
18.30 560 mm/22,5” Cambridge    346 9 230-280 12,893
18.30 620 mm/24” Cambridge    346 10 230-280 14,027
18.30 450/500 mm Star ring 328 - 210-260 10,920
18.30 550/600 mm Star ring 328 - 230-280 12,625
18.30 485-530 mm Crosskill 183 - 210-260 11,025
18.30 550-600 mm Crosskill 183 - 210-260 13,038
18.30 500 mm 2D-Corrugated 223 8 210-260 11,031
18.30 550 mm 2D-Corrugated 223 9 220-270 11,699
18.30 600 mm 2D-Corrugated 223 10 220-270 12,591
18.30 595 mm Cutter-Roller - - - -
20.30 510 mm/21” Cambridge 386 8 220-280 12,807
20.30 560 mm/22,5” Cambridge    386 9 240-300 13,965
20.30 450/500 mm Star ring 376 - 220-280 11,926
20.30 485-530 mm Crosskill 203 - 220-280 11,857
20.30 500 mm 2D-Corrugated 248 8 220-280 11,877
20.30 550 mm 2D-Corrugated 248 9 240-300 12,621
20.30 595 mm Cutter-Roller - - - -

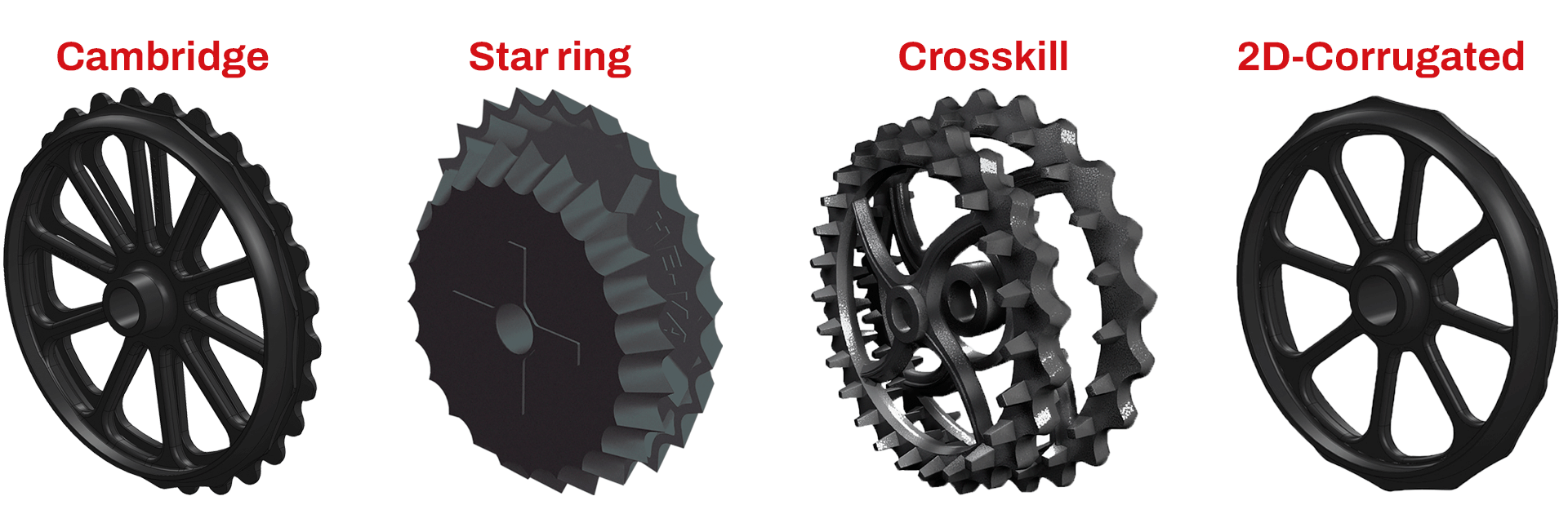

Ring types
Ring types
Wheel track eradicator
Wheel track eradicator

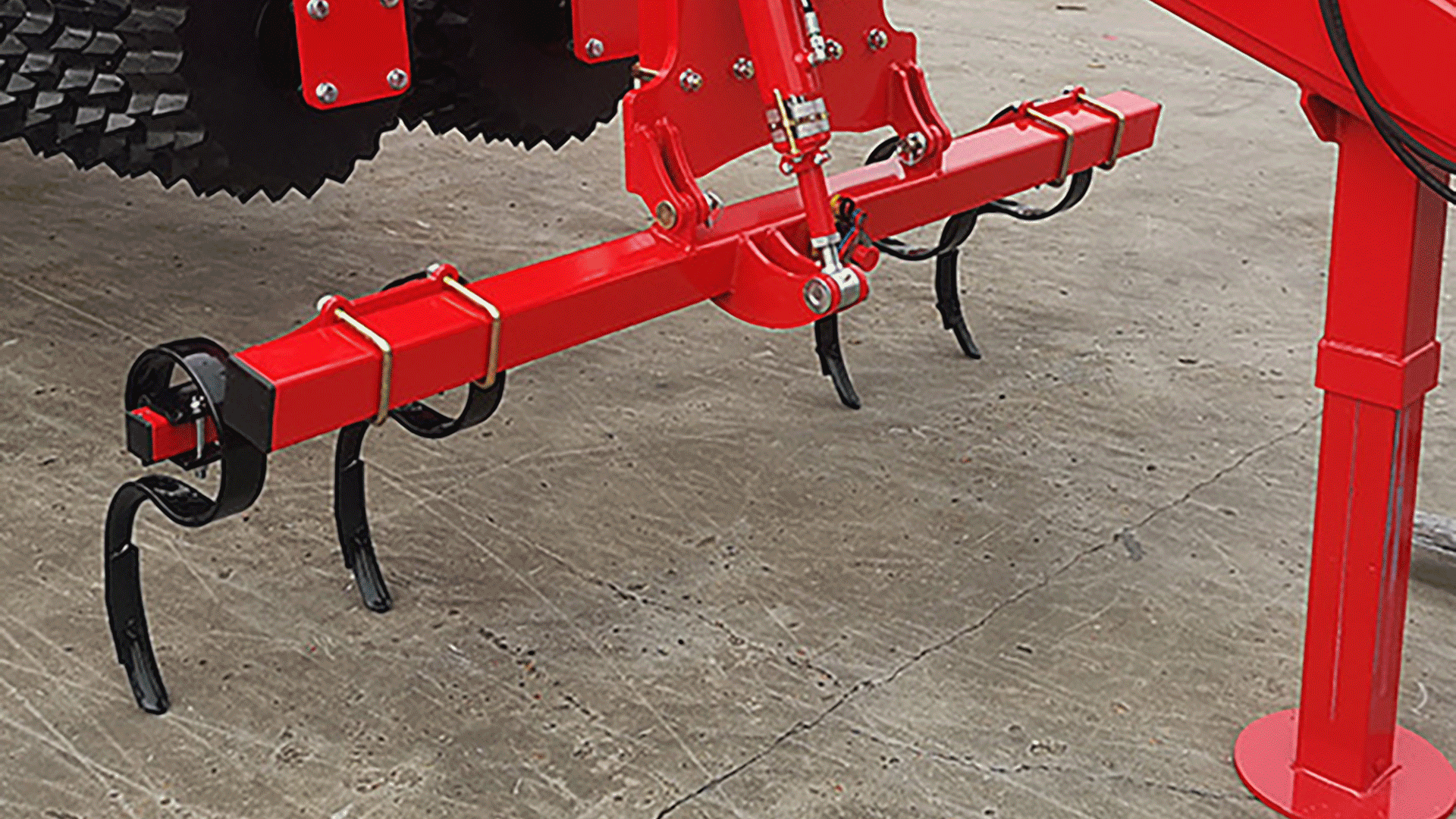

Wheel track eradicator, Hydr.
Wheel track eradicator, Hydr.
Multi-Seeder
Multi-Seeder
Extra equipment Specification
Air brakes
Stone box For following models : 4,50 m, 5,40 m, 6,30 m, 7,30 m & 8,20 m
Mounting set for Multi-Seeder
Platform with railing and ladder for mounting set :
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Czech
Swedish
Russian
Hungarian

Images

Videos

King-Roller

Roller that follows the surface of the field

For maximum, almost royal capacity

This roller offers working widths from 12.3 m. to 20.3 m. and therefore ensures a particularly efficient soil packing. Alongside the wideness of the roller, it also comes with a great selection of extra equipment

  • Automatic locking system that ensures safe transport outside the field
  • Hydraulic support legs
  • LED lights
  • 200 degree over-centre folding
  • Support bearings on all sections
  • Radial tyres (on the following models, 16.3, 18.3 and 20.3 m. )

King-Roller has been designed to resist great work loads and is therefore heavier than similar rollers. The weight guarantees a perfect packing of the soil.

HE-VA SAT-System ensures flexibility across the entire working width of the roller

All 5 roller sections on the HE-VA King-Roller are centre suspended and can therefore move freely in relation to each other. This makes this big roller able to follow the contours of the field and pack the soil in the entire working width.

Roller with great efficiency

Rings for every need

King-Roller offers almost royal benefits - also when it comes to ring types. King-Roller comes with a wide selection of rings making it possible to match the roller to individual needs.

Learn more about THE RINGS
