Triple-Tiller
Triple-Tiller
3.00 - 5.00 M
2.48 - 4.00 M
100 - 280 HP
1,850 - 5,540 KG
flip-to-se-table

rotate device to see table.

Three-Point Mounted 1-section models without hydraulic folding

Work Width, m Roller Type Tine Type No. of Tines Power Req., HP Lifting Req., kg Transport Width, m Weight, kg
3.00 Square Tube Roller Ø550mm Spring Tine 12 100-200 4,070 3.00 1,850
3.00 Square Tube Roller Ø550mm Shear bolt 12 100-200 4,070 3.00 1,850
3.00 Square Tube Roller Ø550mm Automatic 12 100-200 4,070 3.00 1,850
3.00 Wave Roller Ø600mm Spring Tine 12 100-200 - 3.00 2,000
3.00 Wave Roller Ø600mm Shear bolt 12 100-200 - 3.00 -
3.00 Wave Roller Ø600mm Automatic 12 100-200 - 3.00 2,470
3.00 U-Profile Roller Ø600mm Spring Tine 12 100-200 5,000 3.00 2,100
3.00 U-Profile Roller Ø600mm Shear bolt 12 100-200 5,000 3.00 2,100
3.00 U-Profile Roller Ø600mm Automatic 12 100-200 5,000 3.00 1,360
3.00 V-Profile Roller Ø600mm Spring Tine 12 100-200 5,430 3.00 2,470
3.00 V-Profile Roller Ø600mm Shear bolt 12 100-200 5,430 3.00 2,470
3.00 V-Profile Roller Ø600mm Automatic 12 100-200 5,430 3.00 2,470
3.50 Square Tube Roller Ø550mm Spring Tine 14 120-240 4,690 3.50 2,135
3.50 Square Tube Roller Ø550mm Shear bolt 14 120-240 4,690 3.50 2,135
3.50 Square Tube Roller Ø550mm Automatic 14 120-240 4,690 3.50 2,135
3.50 Wave Roller Ø600mm Spring Tine 14 120-240 - 3.50 -
3.50 Wave Roller Ø600mm Shear bolt 14 120-240 - 3.50 -
3.50 Wave Roller Ø600mm Automatic 14 120-240 - 3.50 -
3.50 U-Profile Roller Ø600mm Spring Tine 14 120-240 5,620 3.50 2,540
3.50 U-Profile Roller Ø600mm Shear bolt 14 120-240 5,620 3.50 2,540
3.50 U-Profile Roller Ø600mm Automatic 14 120-240 5,620 3.50 2,540
3.50 V-Profile Roller Ø600mm Spring Tine 14 120-240 6,290 3.50 2,860
3.50 V-Profile Roller Ø600mm Shear bolt 14 120-240 6,290 3.50 2,860
3.50 V-Profile Roller Ø600mm Automatic 14 120-240 6,290 3.50 2,860
4.00 Square Tube Roller Ø550mm Spring Tine 16 180-300 5,290 4.00 2,420
4.00 Square Tube Roller Ø550mm Shear bolt 16 180-300 5,290 4.00 2,420
4.00 Square Tube Roller Ø550mm Automatic 16 180-300 5,290 4.00 2,420
4.00 Wave Roller Ø600mm Spring Tine 16 180-300 - 4.00 -
4.00 Wave Roller Ø600mm Shear bolt 16 180-300 - 4.00 -
4.00 Wave Roller Ø600mm Automatic 16 180-300 - 4.00 -
4.00 U-Profile Roller Ø600mm Spring Tine 16 180-300 6,570 4.00 3,010
4.00 U-Profile Roller Ø600mm Shear bolt 16 180-300 6,570 4.00 3,010
4.00 U-Profile Roller Ø600mm Automatic 16 180-300 6,570 4.00 3,010
4.00 V-Profile Roller Ø600mm Spring Tine 16 180-300 7,185 4.00 3,300
4.00 V-Profile Roller Ø600mm Shear bolt 16 180-300 7,185 4.00 3,300
4.00 V-Profile Roller Ø600mm Automatic 16 180-300 7,185 4.00 3,300

Three-Point Mounted 2-section models with hydraulic folding

Work Width, m Roller Type Tine Type No. of Tines Power Req., HP Lifting Req., kg Transport Width, m Weight, kg
4.00 Square Tube Roller Ø550mm Spring Tine 16 180-300 6,470 2.48 2,570
4.00 Square Tube Roller Ø550mm Shear bolt 16 180-300 6,470 2.48 2,570
4.00 Square Tube Roller Ø550mm Automatic 16 180-300 6,470 2.48 2,570
4.00 Wave Roller Ø600mm Spring Tine 16 180-300 - 2.48 -
4.00 Wave Roller Ø600mm Shear bolt 16 180-300 - 2.48 -
4.00 Wave Roller Ø600mm Automatic 16 180-300 - 2.48 -
4.00 U-Profile Roller Ø600mm Spring Tine 16 180-300 8,100 2.48 3,090
4.00 U-Profile Roller Ø600mm Shear bolt 16 180-300 8,100 2.48 3,090
4.00 U-Profile Roller Ø600mm Automatic 16 180-300 8,100 2.48 3,090
4.00 V-Profile Roller Ø600mm Spring Tine 16 180-300 8,290 2.48 3,400
4.00 V-Profile Roller Ø600mm Shear bolt 16 180-300 8,290 2.48 3,400
4.00 V-Profile Roller Ø600mm Automatic 16 180-300 8,290 2.48 3,400
5.00 Square Tube Roller Ø550mm Spring Tine 20 200-300 6,470 2.48 3,880
5.00 Square Tube Roller Ø550mm Shear bolt 20 200-300 6,470 2.48 3,880
5.00 Square Tube Roller Ø550mm Automatic 20 200-300 6,470 2.48 3,880
5.00 Wave Roller Ø600mm Spring Tine 20 200-300 - 2.48 -
5.00 Wave Roller Ø600mm Shear bolt 20 200-300 - 2.48 -
5.00 Wave Roller Ø600mm Automatic 20 200-300 - 2.48 -
5.00 U-Profile Roller Ø600mm Spring Tine 20 200-300 8,100 2.48 4,560
5.00 U-Profile Roller Ø600mm Shear bolt 20 200-300 8,100 2.48 4,560
5.00 U-Profile Roller Ø600mm Automatic 20 200-300 8,100 2.48 4,560
5.00 V-Profile Roller Ø600mm Spring Tine 20 200-300 8,290 2.48 4,870
5.00 V-Profile Roller Ø600mm Shear bolt 20 200-300 8,290 2.48 4,870
5.00 V-Profile Roller Ø600mm Automatic 20 200-300 8,290 2.48 4,870

Trailed 1-section models without hydraulic folding

Work Width, m Roller Type Tine Type No. of Tines Power Req., HP Transport Width, m Weight, kg
3.00 Square Tube Roller Ø550mm Spring Tine 12 100-200 3 2,430
3.00 Square Tube Roller Ø550mm Shear bolt 12 100-200 3 2,430
3.00 Square Tube Roller Ø550mm Automatic  12 100-200 3 2,430
3.00 Wave Roller Ø600mm Spring Tine 12 100-200 3 -
3.00 Wave Roller Ø600mm Shear bolt 12 100-200 3 -
3.00 Wave Roller Ø600mm Automatic  12 100-200 3 -
3.00 U-Profile Roller Ø600mm Spring Tine 12 100-200 3 2,700
3.00 U-Profile Roller Ø600mm Shear bolt 12 100-200 3 2,700
3.00 U-Profile Roller Ø600mm Automatic  12 100-200 3 2,700
3.00 V-Profile Roller Ø600mm Spring Tine 12 100-200 3 3,050
3.00 V-Profile Roller Ø600mm Shear bolt 12 100-200 3 3,050
3.00 V-Profile Roller Ø600mm Automatic  12 100-200 3 3,050
3.50 Square Tube Roller Ø550mm Spring Tine 14 120-240 3.5 2,715
3.50 Square Tube Roller Ø550mm Shear bolt 14 120-240 3.5 2,715
3.50 Square Tube Roller Ø550mm Automatic  14 120-240 3.5 2,715
3.50 Wave Roller Ø600mm Spring Tine 14 120-240 3.5 -
3.50 Wave Roller Ø600mm Shear bolt 14 120-240 3.5 -
3.50 Wave Roller Ø600mm Automatic  14 120-240 3.5 -
3.50 U-Profile Roller Ø600mm Spring Tine 14 120-240 3.5 3,100
3.50 U-Profile Roller Ø600mm Shear bolt 14 120-240 3.5 3,100
3.50 U-Profile Roller Ø600mm Automatic  14 120-240 3.5 3,100
3.50 V-Profile Roller Ø600mm Spring Tine 14 120-240 3.5 3,440
3.50 V-Profile Roller Ø600mm Shear bolt 14 120-240 3.5 3,440
3.50 V-Profile Roller Ø600mm Automatic  14 120-240 3.5 3,440
4.00 Square Tube Roller Ø550mm Spring Tine 16 180-300 4 3,090
4.00 Square Tube Roller Ø550mm Shear bolt 16 180-300 4 3,090
4.00 Square Tube Roller Ø550mm Automatic  16 180-300 4 3,090
4.00 Wave Roller Ø600mm Spring Tine 16 180-300 4 -
4.00 Wave Roller Ø600mm Shear bolt 16 180-300 4 -
4.00 Wave Roller Ø600mm Automatic  16 180-300 4 -
4.00 U-Profile Roller Ø600mm Spring Tine 16 180-300 4 3,615
4.00 U-Profile Roller Ø600mm Shear bolt 16 180-300 4 3,615
4.00 U-Profile Roller Ø600mm Automatic  16 180-300 4 3,615
4.00 V-Profile Roller Ø600mm Spring Tine 16 180-300 4 3,900
4.00 V-Profile Roller Ø600mm Shear bolt 16 180-300 4 3,900
4.00 V-Profile Roller Ø600mm Automatic  16 180-300 4 4,650

Trailed 2-section models with hydraulic folding

Work Width, m Roller Type Tine Type No. of Tines Power Req., HP Transport Width, m Weight, kg
4.00 Square Tube Roller Ø550mm Spring Tine 16 180-300 2.48 3,890
4.00 Square Tube Roller Ø550mm Shear bolt 16 180-300 2.48 3,890
4.00 Square Tube Roller Ø550mm Automatic  16 180-300 2.48 3,890
4.00 U-Profile Roller Ø600mm Spring Tine 16 180-300 2.48 3,760
4.00 U-Profile Roller Ø600mm Shear bolt 16 180-300 2.48 3,760
4.00 U-Profile Roller Ø600mm Automatic  16 180-300 2.48 4,720
4.00 V-Profile Roller Ø600mm Spring Tine 16 180-300 2.48 4,720
4.00 V-Profile Roller Ø600mm Shear bolt 16 180-300 2.48 4,720
4.00 V-Profile Roller Ø600mm Automatic  16 180-300 2.48 4,720
5.00 Square Tube Roller Ø550mm Spring Tine 20 200-300 2.48 4,550
5.00 Square Tube Roller Ø550mm Shear bolt 20 200-300 2.48 4,550
5.00 Square Tube Roller Ø550mm Automatic  20 200-300 2.48 4,550
5.00 U-Profile Roller Ø600mm Spring Tine 20 200-300 2.48 5,230
5.00 U-Profile Roller Ø600mm Shear bolt 20 200-300 2.48 5,230
5.00 U-Profile Roller Ø600mm Automatic  20 200-300 2.48 5,230
5.00 V-Profile Roller Ø600mm Spring Tine 20 200-300 2.48 5,540
5.00 V-Profile Roller Ø600mm Shear bolt 20 200-300 2.48 5,540
5.00 V-Profile Roller Ø600mm Automatic  20 200-300 2.48 5,540
6.00 Square Tube Roller Ø550mm Spring Tine 24 250-400 2.48 -
6.00 Square Tube Roller Ø550mm Shear bolt 24 250-400 2.48 -
6.00 Square Tube Roller Ø550mm Automatic  24 250-400 2.48 -
6.00 U-Profile Roller Ø600mm Spring Tine 24 250-400 2.48 -
6.00 U-Profile Roller Ø600mm Shear bolt 24 250-400 2.48 -
6.00 U-Profile Roller Ø600mm Automatic  24 250-400 2.48 -
6.00 V-Profile Roller Ø600mm Spring Tine 24 250-400 2.48 -
6.00 V-Profile Roller Ø600mm Shear bolt 24 250-400 2.48 -
6.00 V-Profile Roller Ø600mm Automatic  24 250-400 2.48 -
Multi-Seeder
Multi-Seeder

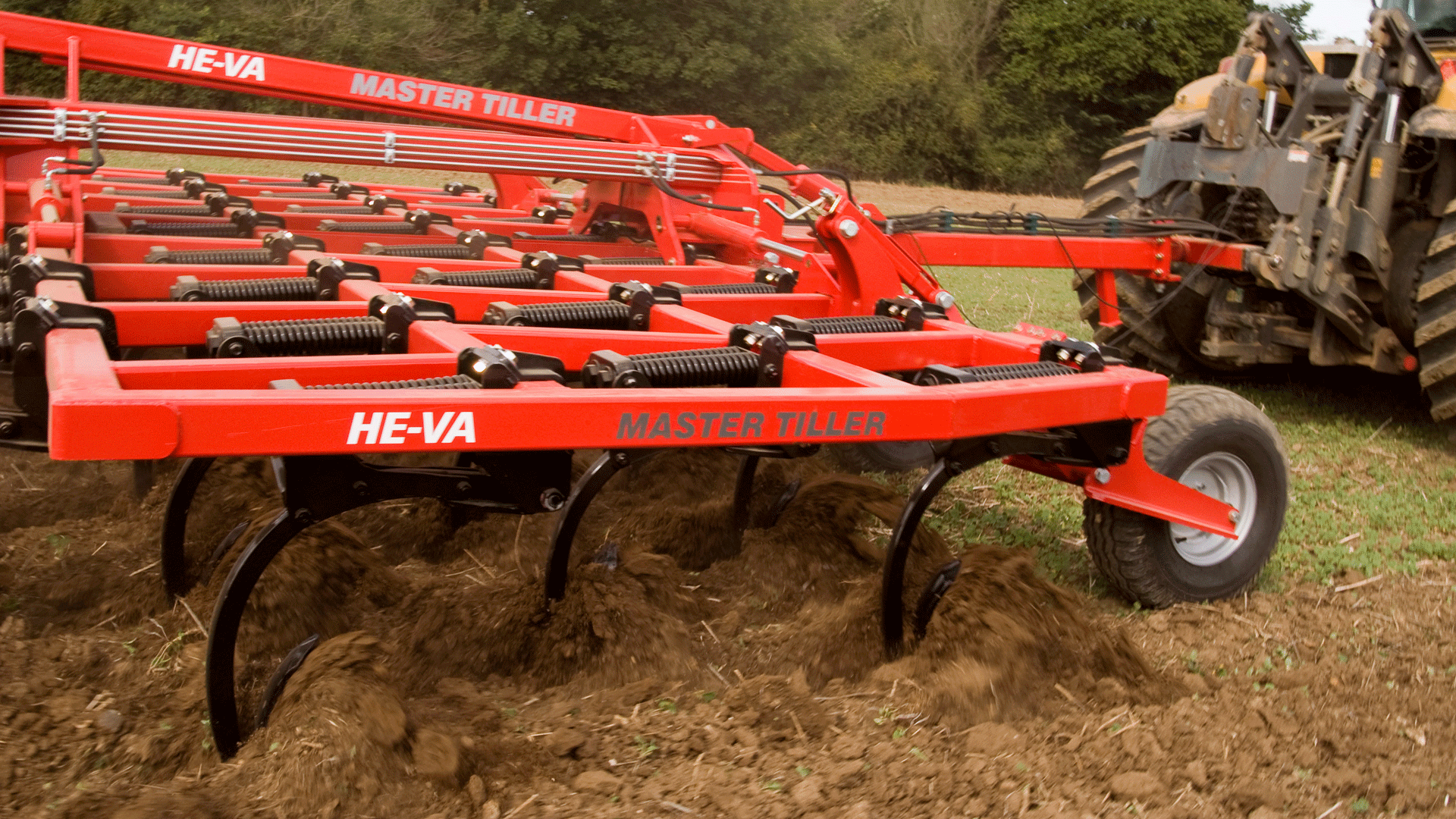

Tine types
Tine types
Point types
Point types
Longfinger after-harrow behind roller
Longfinger after-harrow behind roller
Extra equipment Specification
LED lights Lights : set with wire and socket
Edge disc set Weight : 33-82 kg
Mounting set for Multi-Seeder
Brakes Air : Factory mounted
Brakes 1-circuit Hydraulic : Factory mounted
Brakes 2-circuit Hydraulic : Factory mounted
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Slovakia
Spanish
Italian
Swedish
Hungarian

Triple-Tiller

Versatile Stubble Cultivator

The Triple-Tiller is the ideal stubble equipment for farms seeking a versatile machine for both traditional stubble cultivation and deep soil cultivation. The machine is designed to achieve maximum soil cultivation within one implement.

The three rows of tines ensure perfect cultivation and soil loosening in all soil types, followed by serrated levelling discs that leave the soil surface level and ready for consolidation by the roller. By consolidating the soil after cultivation, optimal germination conditions for weed seeds are ensured.

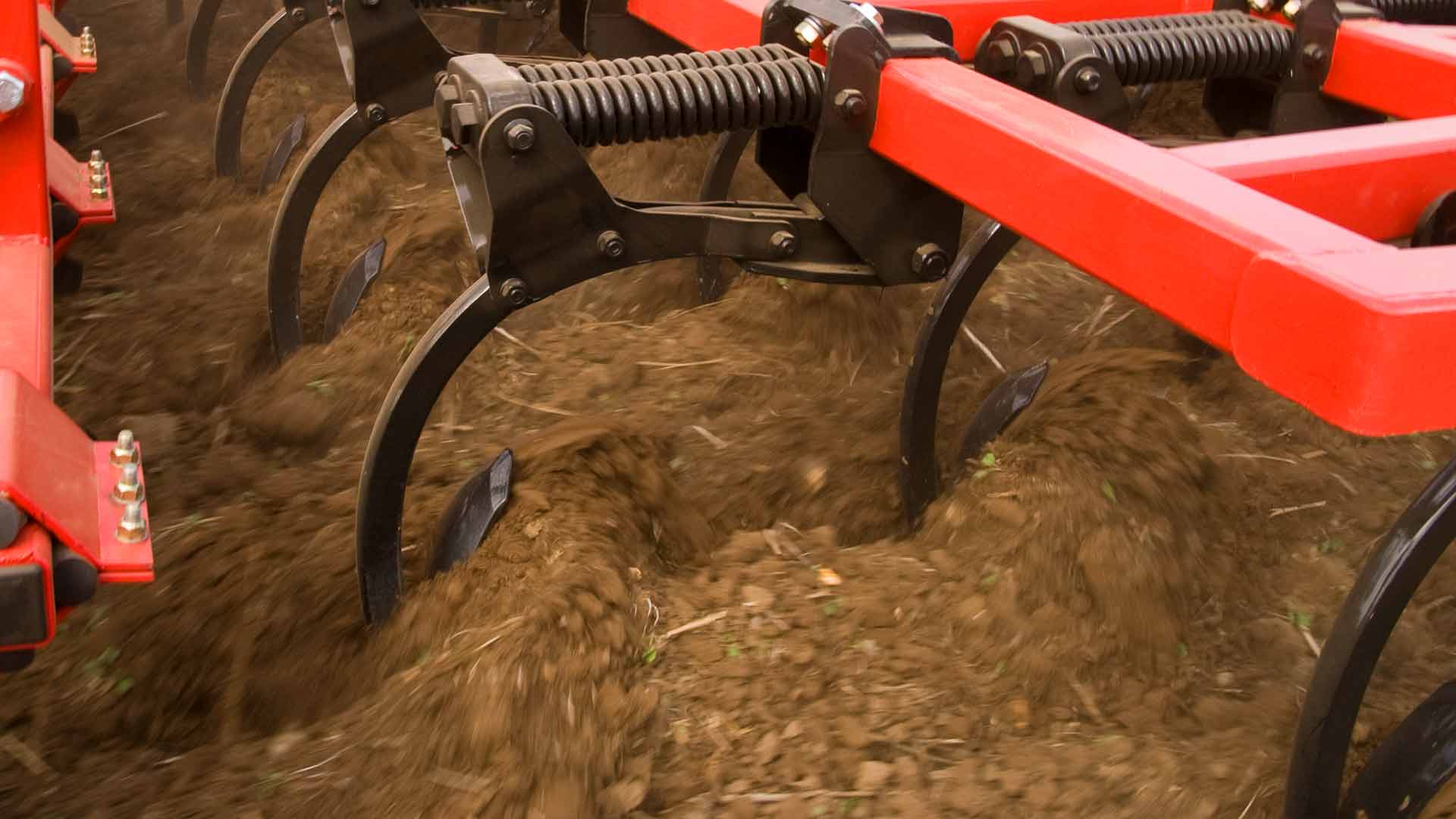

Choose the Tine According to Your Soil Conditions

The Triple-Tiller is available with four different tine options

  • Automatic tine with spring release
  • Shear bolt tine
  • Spring tine 35x35 mm
  • Spring tine 40x40 mm

The 35x35 mm spring tine has a working depth of 0–20 cm, while the automatic tine, shear bolt tine, and 40x40 mm spring tine have a working depth of 0–30 cm. The automatic tine provides a vibrating effect, ensuring low draft requirements and reduced fuel consumption.

Efficient Soil Consolidation

Rollers for All Soil Types

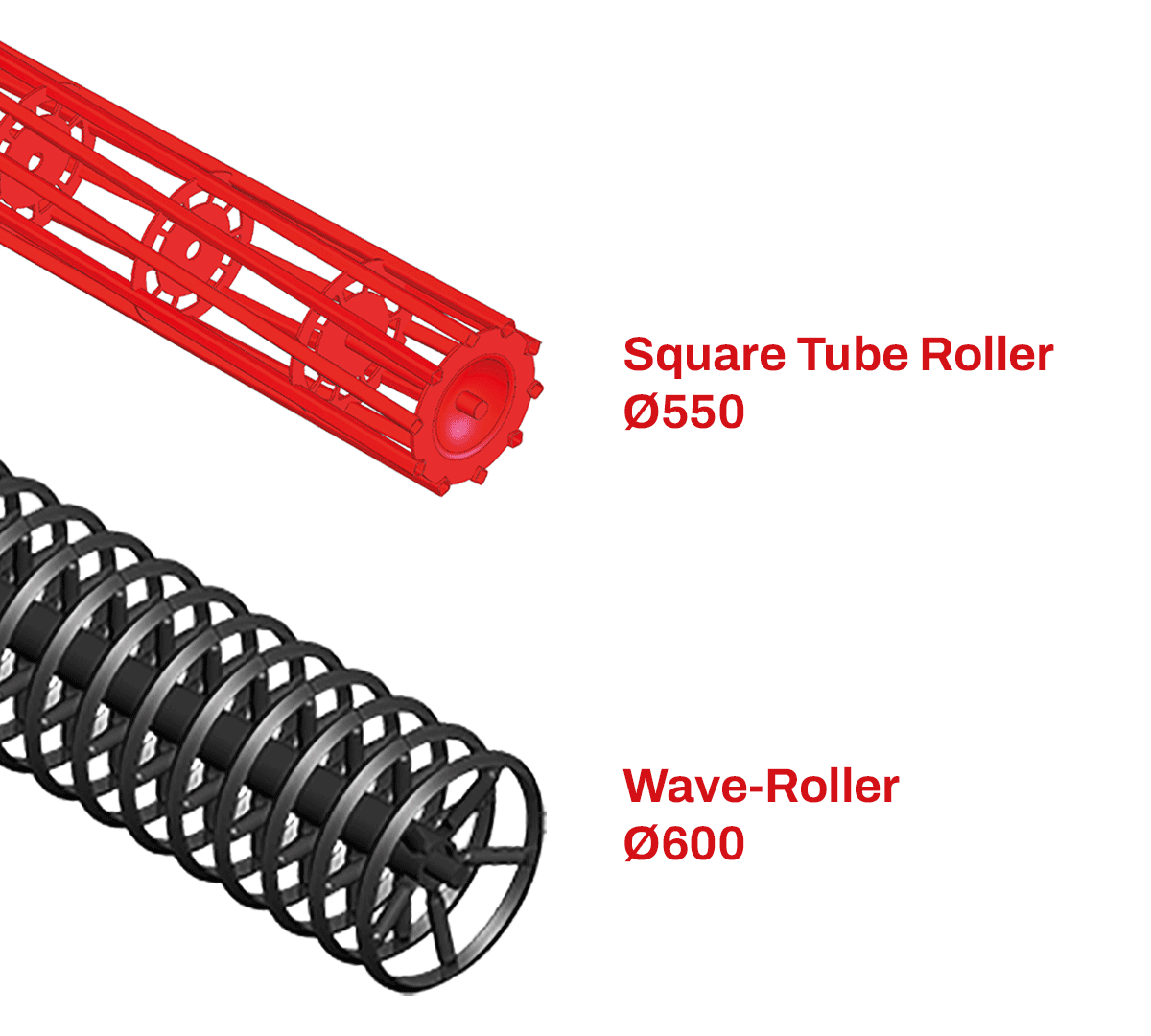

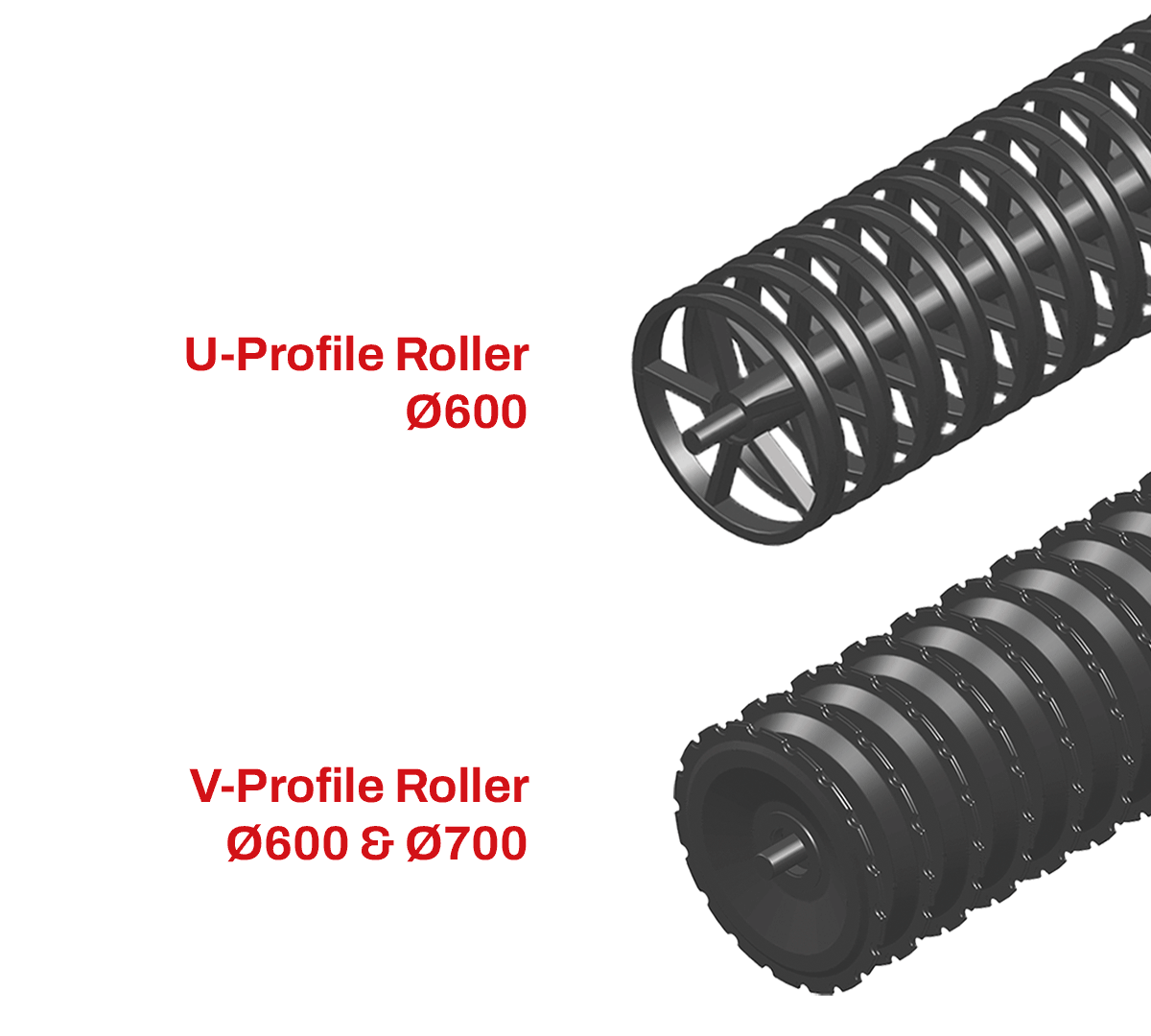

The Triple-Tiller is available with four different rollers:

  • Square Tube Roller
  • Wave-Roller
  • U-Profile Roller
  • V-Profile Roller

The V-Profile Roller creates a smooth and level surface, while the U-Profile Roller provides excellent soil-to-soil consolidation. The Wave-Roller and Square Tube Roller are well suited for lighter soil types.

Read more about the rollers here
