Stealth
Stealth
3.00 - 6.00 M
2.54 - 4.00 M
100 - 350 HP
1,500 - 5,760 KG
flip-to-se-table

rotate device to see table.

Three-point mounted

Work Width, m Type Stone Protection No. of Tines Weight, kg
3.00 Rigid Quick-Push 5 1.500 - 2.050
3.00 Rigid Quick-Push 6 1.500 - 2.050
3.00 Rigid Hydr. auto. 5 1.500 - 2.050
3.00 Rigid Hydr. auto. 6 1.500 - 2.050
3.50 Rigid Quick-Push 6 2.000 - 2.370
3.50 Rigid Quick-Push 7 2.000 - 2.370
3.50 Rigid Quick-Push 8 2.000 - 2.370
3.50 Rigid Hydr. auto. 6 2.000 - 2.370
3.50 Rigid Hydr. auto. 7 2.000 - 2.370
3.50 Rigid Hydr. auto. 8 2.000 - 2.370
4.00 Rigid Quick-Push 7 2.450 - 2.950
4.00 Rigid Quick-Push 8 2.450 - 2.950
4.00 Rigid Quick-Push 9 2.450 - 2.950
4.00 Rigid Hydr. auto. 7 2.450 - 2.950
4.00 Rigid Hydr. auto. 8 2.450 - 2.950
4.00 Rigid Hydr. auto. 9 2.450 - 2.950
4.00 Foldable Quick-Push 7 2.890 - 3.670
4.00 Foldable Quick-Push 8 2.890 - 3.670
4.00 Foldable Quick-Push 9 2.890 - 3.670
4.00 Foldable Hydr. auto. 7 2.890 - 3.670
4.00 Foldable Hydr. auto. 8 2.890 - 3.670
4.00 Foldable Hydr. auto. 9 2.890 - 3.670
5.00 Foldable Quick-Push 9 3.700 - 4.600
5.00 Foldable Quick-Push 10 3.700 - 4.600
5.00 Foldable Quick-Push 11 3.700 - 4.600
5.00 Foldable Hydr. auto. 9 3.700 - 4.600
5.00 Foldable Hydr. auto. 10 3.700 - 4.600
5.00 Foldable Hydr. auto. 11 3.700 - 4.600
6.00 Foldable Quick-Push 11 4.700 - 5.600
6.00 Foldable Quick-Push 12 4.700 - 5.600
6.00 Foldable Quick-Push 13 4.700 - 5.600
6.00 Foldable Hydr. auto. 11 4.700 - 5.600
6.00 Foldable Hydr. auto. 12 4.700 - 5.600
6.00 Foldable Hydr. auto. 13 4.700 - 5.600

Trailed

Work Width, m Type Stone Protection No. of Tines
4.00 Foldable Quick-Push 7
4.00 Foldable Quick-Push 8
4.00 Foldable Quick-Push 9
4.00 Foldable Hydr. auto. 7
4.00 Foldable Hydr. auto. 8
4.00 Foldable Hydr. auto. 9
5.00 Foldable Quick-Push 9
5.00 Foldable Quick-Push 10
5.00 Foldable Quick-Push 11
5.00 Foldable Hydr. auto. 9
5.00 Foldable Hydr. auto. 10
5.00 Foldable Hydr. auto. 11
6.00 Foldable Quick-Push 11
6.00 Foldable Quick-Push 12
6.00 Foldable Quick-Push 13
6.00 Foldable Hydr. auto. 11
6.00 Foldable Hydr. auto. 12
6.00 Foldable Hydr. auto. 13
Point types
Point types
Extra equipment Specification
Tine for retrofitting : Quick Push
Tine for retrofitting : Hydraulic
LED lights Lights : set with wire and socket
Brakes Air : Factory mounted
Brakes 1-circuit Hydraulic : Factory mounted
Brakes 2-circuit Hydraulic : Factory mounted
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Italian
Swedish
Spanish
Hungarian

Stealth

Low-disturbance subsoiling

The Stealth significantly reduces surface disturbance compared with a traditional subsoiler. This results in reduced emergence of waste grains and weeds while minimizing mixing between upper and lower soil layers. Stealth also improves drainage, aeration, nitrogen uptake and crop rooting - contributing to improved soil health and crop performance.

The tines on the Stealth are arranged in two rows, allowing excess material to pass easily through the machine while reducing tractor draft and lifting requirements. Stealth has a working depth of 0–300 mm and can be adjusted hydraulically directly from the tractor seat using HE-VA hydraulic depth control.

High Efficiency with Stone Protection

Stony Soil Types

Hydraulic stone protection

For very stony soil types, it is recommended that the HE-VA Stealth is equipped with hydraulic stone protection. A cylinder on each tine ensures that the tines automatically swing upwards to deviate from the obstackles in the soil.

For very stony soil types, it is recommended that the HE-VA Stealth is equipped with hydraulic stone protection. A cylinder on each tine ensures that the tines automatically swing upwards to deviate from the obstackles in the soil.

Loam Soils

Quick-Push stone protection

Quick-Push stone protection on Stealth is an effective tool. A specially designed shearbolt with grooves is cut across if the tine encounters stone. The split pin is removed, the safety bolt is pushed into place and the split pin is reassembled. You can then continue the work.

Quick-Push stone protection on Stealth is an effective tool. A specially designed shearbolt with grooves is cut across if the tine encounters stone. The split pin is removed, the safety bolt is pushed into place and the split pin is reassembled. You can then continue the work.

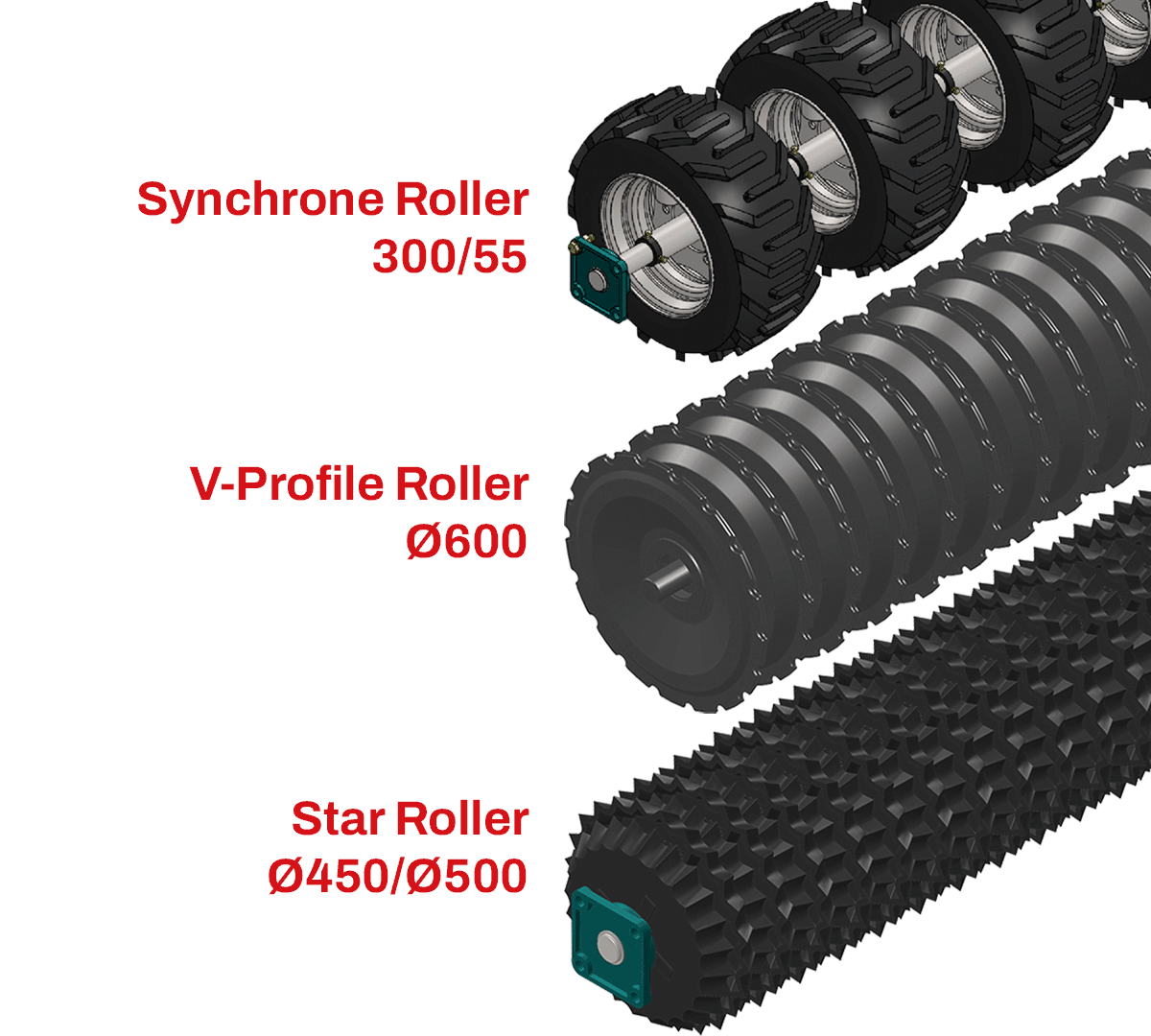

Rollers



Synchrone Roller 300/55 reconsolidates the soil precisely where cultivation takes place, leaving the surrounding soil undisturbed.



V-Profile Roller provides aggressive clod crushing and leaves the soil surface smooth and level.



Star Roller leaves the soil consolidated with a loose structure and a slightly ridged surface.

Till-Seeding

With a Stealth operating simultaneously with sowing, optimal growth conditions can be created for crops such as oilseed rape and cover crops including mustard and oil radish.

Plant roots gain unrestricted access to deeper soil layers, resulting in stronger roots and larger root systems - laying the foundation for high yields.

Read more about Till-Seeding here
