Weeder
Weeder
3.00 - 15.00 M
3.00 M
30 - 110 HP
500 - 1,900 KG
60 - 300 PCS
flip-to-se-table

rotate device to see table.

Work Width, m Type Tines/points Sections Wheels Height Folded, m Power Req., HP Lifting Req., kg Weight, kg
3.00 Rigid 60/120 2 2 1.10 30 750 309
4.50 Foldable 90/180 3 2 2.00 40 825 550
6.00 Foldable 120/240 4 2 2.95 50 975 650
7.50 Foldable 150/300 5 4 3.40 60 1,200 800
9.00 Foldable 180/360 6 4 3.70 70 1,650 1,000
9.00 LOW - Foldable 180/360 6 4 3.35 70 1,650 1,180
12.00 Foldable 240/480 8 4 3.35 90 2,250 1,500
15.00 Foldable 300/600 10 6 4.25 110 2,850 1,900
Levelling board
Levelling board
Multi-Seeder
Multi-Seeder

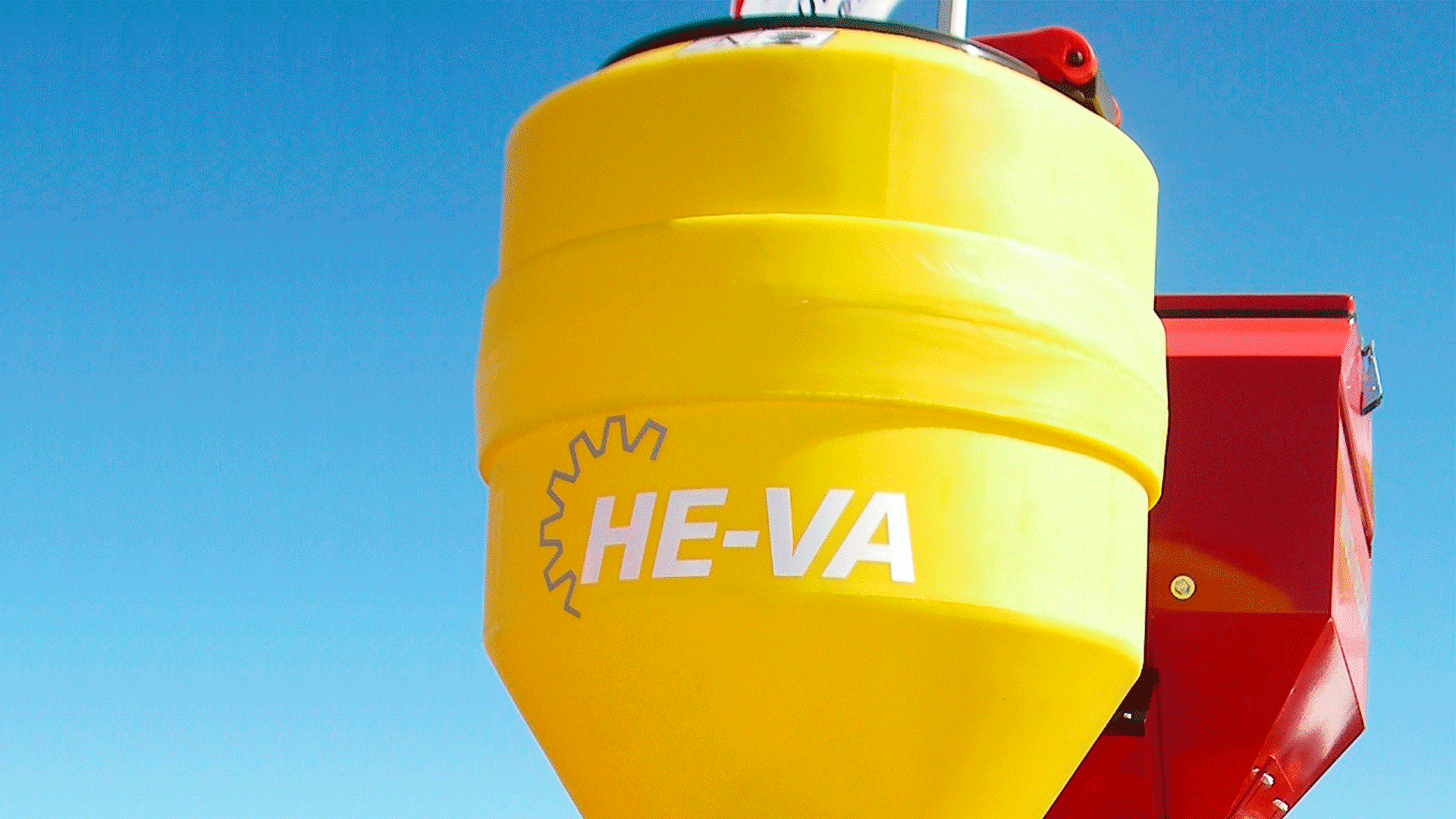

Universal-Spreader
Universal-Spreader

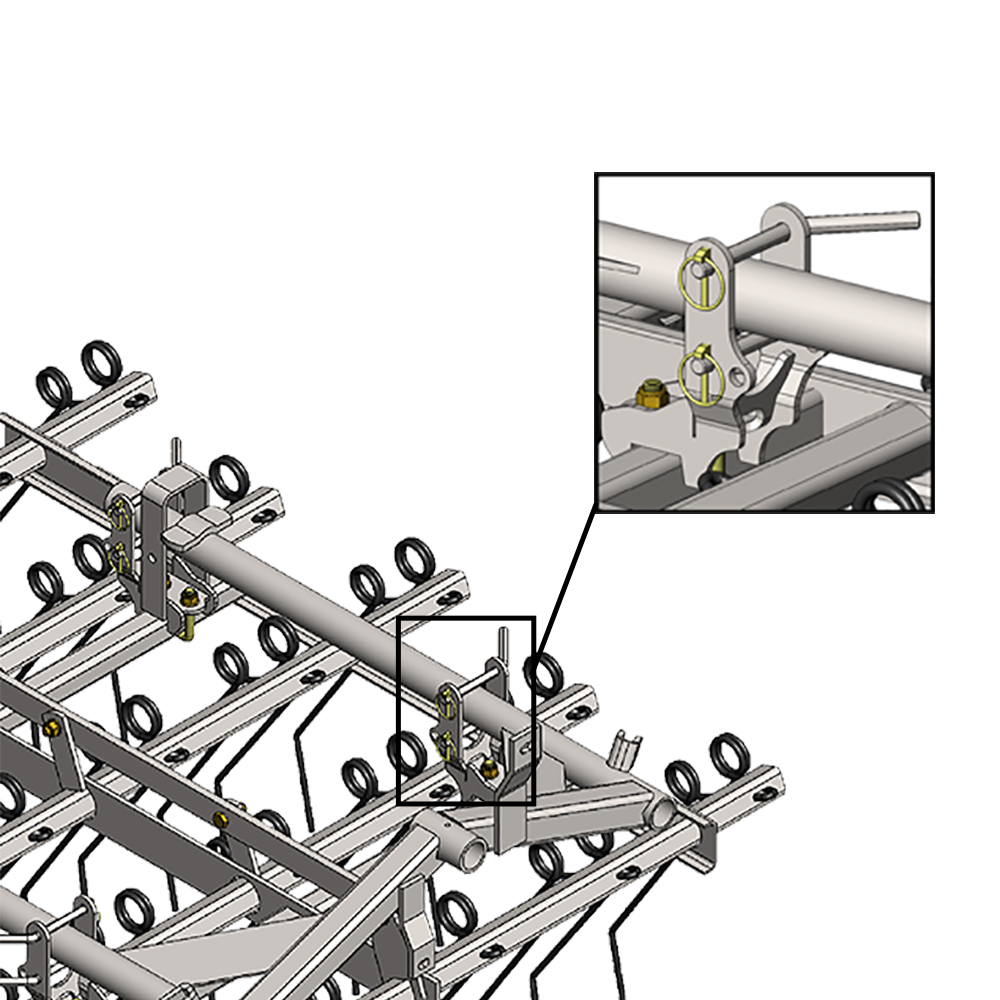

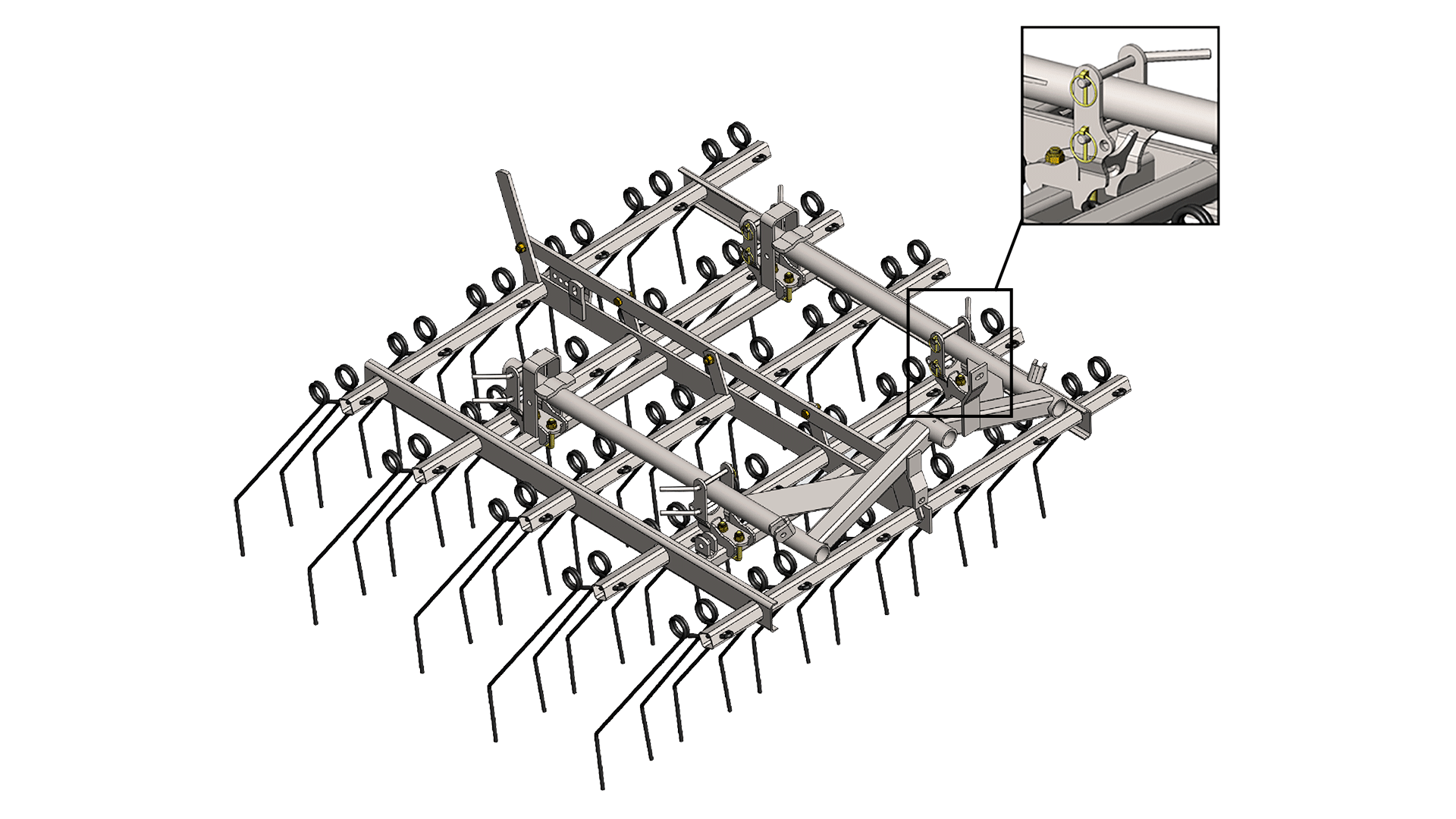

Fixation brackets
Fixation brackets
Extra equipment Specification
LED lights Lights : set with wire and socket
Hydraulic adjustable tine pressure Weight : 20-80 kg
Mounting set for Multi-Seeder
Hydraulic lifting of seed wheels
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Finnish
Hungarian
Italian
Serbian
Swedish
Spanish

Weeder

Weeding and grassland maintenance

HE-VA Weeder is a user-friendly and solid weeder that fulfils the modern farmer’s requirements for efficient weeding in grain crops and aeration of grassland.

The Weeder is especially efficient for weeding in grain, rape, beets and potatoes - and can advantageously be used for aerating grass fields.

The double tines on the Weeder, measuring Ø7 mm x 600 mm, are particularly suitable for row sowing of crops such as wheat, where light tillage is required so that only the weeds are uprooted.

Efficient weeding

Follows the contours of the field

HE-VA Weeder is equipped with 1.5 m free-floating sections, enabling it to follow the contours of the field and thereby ensuring more even cultivation across the full working width of the machine. The long and flexible double tines are mounted on five rows and can quickly be removed without tools. The tine angle can easily be adjusted using the handle on each section.

Extra equipment for Weeder

For heavy soil types, smaller tines measuring Ø7 mm x 450 mm can advantageously be fitted. Due to their size, they are able to work the soil more aggressively, resulting in more intensive tillage.

If sowing while weeding is required, a Multi-Seeder can be mounted. Read more about the optional equipment in the tables above.
