Vip-Roller
Vip-Roller
3.30 - 8.20 M
MAX 2.45 M
40 - 140 HP
1,090 - 4,190 KG
flip-to-se-table

rotate device to see table.

Work Width, m Ring Type No. of Rings No. of Spokes Power Req., HP Weight, kg
3.30 510 mm/21” Cambridge 63 3 40-60 1,500
3.30 510 mm/21” Cambridge 63 8 40-60 1,550
3.30 560 mm/22,5” Cambridge 63 9 40-60 1,830
3.30 450/500 mm Star ring 60 - 40-60 1,520
3.30 550 mm Cam ring 22 - 40-60 1,090
3.30 485-530 mm Crosskill 33 - 40-60 1,430
3.30 500 mm 2D-Corrugated 41 8 40-60 1,470
3.30 550 mm 2D-Corrugated 41 9 40-60 1,730
3.70 510 mm/21” Cambridge 71 3 45-65 1,640
3.70 510 mm/21” Cambridge 71 8 45-65 1,660
3.70 560 mm/22,5” Cambridge 71 9 45-65 2,000
3.70 450/500 mm Star ring 68 - 45-65 1,670
3.70 550 mm Cam ring 25 - 45-65 1,150
3.70 485-530 mm Crosskill 37 - 45-65 1,570
3.70 500 mm 2D-Corrugated 46 8 45-65 1,480
3.70 550 mm 2D-Corrugated 46 9 45-65 1,900
4.10 510 mm/21” Cambridge 79 3 50-70 1,870
4.10 510 mm/21” Cambridge 79 8 50-70 1,890
4.10 560 mm/22,5” Cambridge 79 9 50-70 2,260
4.10 450/500 mm Star ring 76 - 50-70 1,890
4.10 550 mm Cam ring 28 - 50-70 1,330
4.10 485-530 mm Crosskill 41 - 50-70 1,780
4.10 500 mm 2D-Corrugated 51 8 50-70 1,830
4.10 550 mm 2D-Corrugated 51 9 50-70 2,160
4.50 510 mm/21” Cambridge 87 3 60-80 2,020
4.50 510 mm/21” Cambridge 87 8 60-80 2,190
4.50 560 mm/22,5” Cambridge 87 9 60-80 2,450
4.50 450/500 mm Star ring 84 - 60-80 2,050
4.50 550 mm Cam ring 30 - 60-80 1,430
4.50 485-530 mm Crosskill 45 - 60-80 1,970
4.50 500 mm 2D-Corrugated 57 8 60-80 1,910
4.50 550 mm 2D-Corrugated 57 9 60-80 2,140
5.40 510 mm/21” Cambridge 105 3 70-90 2,560
5.40 510 mm/21” Cambridge 105 8 70-90 2,600
5.40 560 mm/22,5” Cambridge 105 9 70-90 3,020
5.40 450/500 mm Star ring 98 - 70-90 2,520
5.40 550 mm Cam ring 36 - 70-90 1,790
5.40 485-530 mm Crosskill 54 - 70-90 2,500
5.40 500 mm 2D-Corrugated 69 8 70-90 2,340
5.40 550 mm 2D-Corrugated 69 9 70-90 2,880
6.30 510 mm/21” Cambridge 123 3 80-100 3,100
6.30 510 mm/21” Cambridge 123 8 80-100 3,260
6.30 560 mm/22,5” Cambridge 123 9 80-100 3,610
6.30 450/500 mm Star ring 120 - 80-100 3,170
6.30 550 mm Cam ring 42 - 80-100 2,000
6.30 485-530 mm Crosskill 63 - 80-100 3,010
6.30 500 mm 2D-Corrugated 78 8 80-100 2,800
6.30 550 mm 2D-Corrugated 78 9 80-100 3,140
7.30 510 mm/21” Cambridge 143 3 100-120 3,440
7.30 510 mm/21” Cambridge 143 8 100-120 3,720
7.30 560 mm/22,5” Cambridge 143 9 100-120 4,190
7.30 450/500 mm Star ring 140 - 100-120 3,590
7.30 550 mm Cam ring 43 - 85-105 2,450
7.30 485-530 mm Crosskill 73 - 100-120 3,300
7.30 500 mm 2D-Corrugated 90 8 90-110 3,380
7.30 550 mm 2D-Corrugated 90 9 90-110 3,750
7.60 510 mm/21” Cambridge 151 3 100-120 3,614
7.60 510 mm/21” Cambridge 151 8 100-120 3,874
7.60 560 mm/22,5” Cambridge 151 9 100-120 4,368
7.60 450/500 mm Star ring 148 - 100-120 3,730
7.60 550 mm Cam ring 45 - 85-105 2,588
7.60 485-530 mm Crosskill 79 - 100-120 3,370
7.60 500 mm 2D-Corrugated 99 8 90-110 3,490
7.60 550 mm 2D-Corrugated 99 9 90-110 3,872
8.20 510 mm/21” Cambridge 161 3 120-140 3,670
8.20 510 mm/21” Cambridge 161 8 120-140 3,840
8.20 450/500 mm Star ring 152 - 120-140 3,750
8.20 550 mm Cam ring 55 - 100-120 2,640
8.20 485-530 mm Crosskill 81 - 120-140 3,580
8.20 500 mm 2D-Corrugated 102 8 110-130 3,340
Wheel track eradicator
Wheel track eradicator
Extra equipment Specification
Stone box set Gathering of rocks : 2 pcs
Air brakes
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Serbian
Spanish
Finnish
Hungarian
Italian
Norsk
Polish
Swedish

Images

Vip-Roller

Simple and strong roller

Vip-Roller is easy to operate, has very little requirement for power and the solid, strong construction ensures reliability along with a long liftetime.

The roller is able to follow the contours of the field due to the moveable side sections. Also, it is safe to transport and keep stored due to the fact that the side sections are supported horizontally in a locking cradle, which keeps the roller automatically locked during transport and maximum relief of the hydraulic system is achieved.

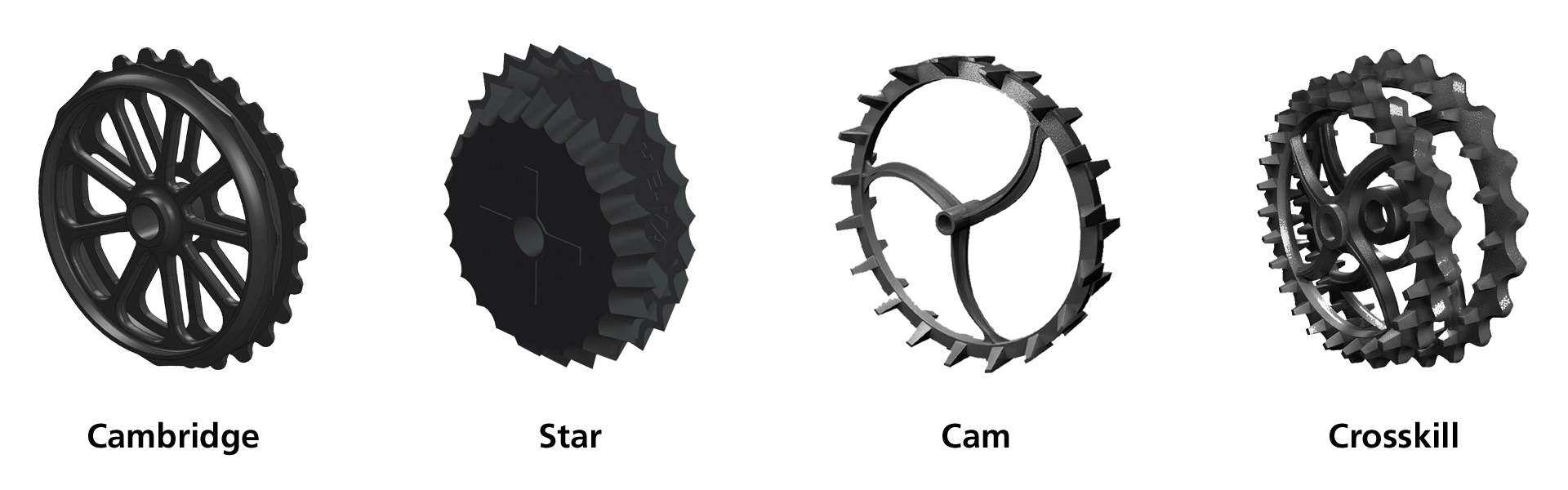

Ring profiles for Vip-Roller

Choose the exact ring profile for your soil type

Quality is also a keyword here as the rings are mounted on 60 mm axles of special steel in order to ensure high strength and endurance. Vip-Roller comes with the following ring types



Learn more about the rings
