Combi-Tiller MKI
Combi-Tiller MKI
2.50 - 4.00 M
2.50 - 4.00 M
75 - 200 HP
470 - 715 KG
flip-to-se-table

rotate device to see table.

With three-point linkage for combination with a lift mounted Disc-Roller Contour.

Incl. 1 set of hydr. extension hoses, extension cord for lights and supporting legs f/Disc-Roller Contour.

Work Width, m Stone Protection No. of Tines Row Spacing, cm Power Req., HP Weight, kg
2.50 Shear bolt 4 57.5 100 505
3.00 Shear bolt 5 56 125 560
3.00 Shear bolt 6 46.7 150 595
3.50 Shear bolt 6 55 150 615
3.50 Shear bolt 7 47.1 175 650
4.00 Shear bolt 7 54.3 175 670
4.00 Shear bolt 8 47.5 200 705

With three-point linkage for combination with several lift mounted/trailed implements.

E.g. bed formers for potatoes or trailed drill units.

Work Width, m Stone Protection No. of Tines Row Spacing, cm Power Req., HP Weight, kg
2.50 Shear bolt 3 83.3 75 470
2.50 Shear bolt 4 62.5 100 515
3.00 Shear bolt 5 60 125 570
3.00 Shear bolt 6 50 150 605
3.50 Shear bolt 5 70 125 590
3.50 Shear bolt 6 58.3 150 625
3.50 Shear bolt 7 50 175 660
4.00 Shear bolt 7 57.1 175 680
4.00 Shear bolt 8 50 200 715

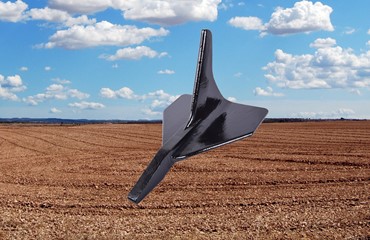

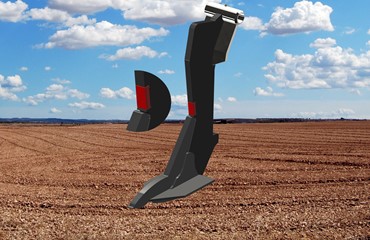

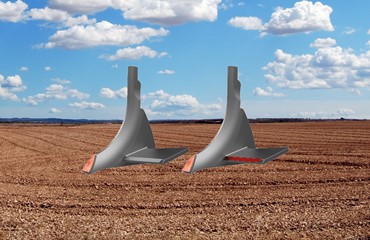

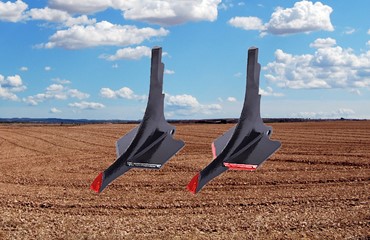

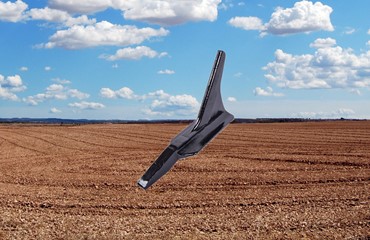

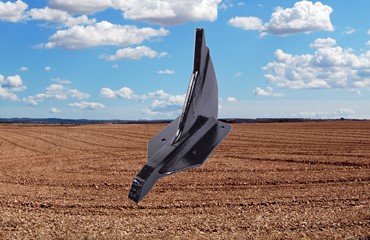

Point types
Point types
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Swedish

Images


Combi-Tiller MKI

Optimal Soil Loosening

The HE-VA Combi-Tiller MKI provides efficient soil loosening and is designed for both solo operation and operation in combination with another agricultural implement — for example a stubble cultivator.

Combi-Tiller MKI Handles Multiple Tasks

The Combi-Tiller MKI is capable of performing a wide range of tasks in the field.

Subsoiling

When used on its own, the Combi-Tiller MKI leaves the soil loose and unconsolidated.

When combined with a stubble cultivator such as the Disc-Roller Classic, with the discs lifted clear of the soil, the soil is loosened while the surface is cultivated, levelled and reconsolidated.

False Seedbed / Seedbed Preparation in Ploughed Soil

When the Combi-Tiller is combined with a Disc-Roller Classic or Disc-Roller Contour, with the tines lifted clear of the soil, straw and plant residues are mixed into a false seedbed. The packer roller on the Disc-Roller reconsolidates the soil and seeds, creating optimal conditions for rapid emergence.

The combined implement also becomes heavier, which is an advantage when cultivating newly ploughed land and extremely hard soil conditions.

Seedbed Preparation

Combined with a Disc-Roller Classic or Disc-Roller Contour, the tines on the Combi-Tiller loosen and aerate the soil, after which the discs on the Disc-Roller mix and cultivate the soil at seeding depth. The roller then reconsolidates the soil to create an airy seedbed.

Sowing

When combined with a Disc-Roller equipped with Multi-Seeder (fine seed equipment), the Combi-Tiller can subsoil and reconsolidate the soil simultaneously during seeding. When sowing oilseed rape, subsoiling provides clear advantages, and the operator can decide whether or not to cultivate the surface using the discs on the Disc-Roller.
