Disc-Roller Contour
Disc-Roller Contour
2.25 - 7.75 M
2.30 - 4.00 M
80 - 240 HP
18 - 64 PCS
flip-to-se-table

rotate device to see table.

Three-Point Mounted 1-section models without hydraulic folding

Model, m Work Width, m Transport Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
2.50 2.25 2.50 Square Tube Roller / 550 mm - 18 80 + 1,300
2.50 2.25 2.50 Wave Roller / 600 mm 16 18 80 + 1,600
2.50 2.25 2.50 U-Profile Roller / 600 mm 16 18 90 + -
2.50 2.25 2.50 V-Profile Roller / 600 mm 16 18 90 + 1,820
2.50 2.25 2.50 V-Profile Roller / 700 mm 16 18 90 + -
2.50 2.25 2.50 Twin U-Profile 600-600 mm 16 18 90 + -
2.50 2.25 2.50 Twin V-Profile 600-600 mm 16 18 90 + -
3.00 2.75 3.00 Square Tube Roller / 550 mm - 22 90 + 1,500
3.00 2.75 3.00 Wave Roller / 600 mm 20 22 90 + 1,850
3.00 2.75 3.00 U-Profile Roller / 600 mm 20 22 100 + -
3.00 2.75 3.00 V-Profile Roller / 600 mm 20 22 100 + 2,120
3.00 2.75 3.00 V-Profile Roller / 700 mm 20 22 100 + -
3.00 2.75 3.00 Twin U-Profile 600-600 mm 20 22 100 + -
3.00 2.75 3.00 Twin V-Profile 600-600 mm 20 22 100 + -
3.50 3.25 3.50 Square Tube Roller / 550 mm - 26 100 + 1,710
3.50 3.25 3.50 Wave Roller / 600 mm 23 26 100 + 2,165
3.50 3.25 3.50 U-Profile Roller / 600 mm 23 26 110 + -
3.50 3.25 3.50 V-Profile Roller / 600 mm 23 26 110 + 2,435
3.50 3.25 3.50 V-Profile Roller / 700 mm 23 26 110 + -
3.50 3.25 3.50 Twin U-Profile 600-600 mm 23 26 110 + -
3.50 3.25 3.50 Twin V-Profile 600-600 mm 23 26 110 + -
4.00 3.75 4.00 Square Tube Roller / 550 mm - 30 110 + 1,920
4.00 3.75 4.00 Wave Roller / 600 mm 26 30 110 + 2,480
4.00 3.75 4.00 U-Profile Roller / 600 mm 26 30 120 + -
4.00 3.75 4.00 V-Profile Roller / 600 mm 26 30 120 + 2,750
4.00 3.75 4.00 V-Profile Roller / 700 mm 26 30 120 + -
4.00 3.75 4.00 Twin U-Profile 600-600 mm 26 30 120 + -
4.00 3.75 4.00 Twin V-Profile 600-600 mm 26 30 120 + -

Three-Point Mounted 2-section models with hydraulic folding

Model, m Work Width, m Transport Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
4.50 4.25 2.32 Square Tube Roller / 550 mm - 34 130 + -
4.50 4.25 2.32 Wave Roller / 600 mm 30 34 140 + -
4.50 4.25 2.32 U-Profile Roller / 600 mm 30 34 140 + -
4.50 4.25 2.32 V-Profile Roller / 600 mm 30 34 140 + -
4.50 4.25 2.32 V-Profile Roller / 700 mm 30 34 140 + -
5.50 5.25 2.32 Square Tube Roller / 550 mm - 42 160 + -
5.50 5.25 2.32 Wave Roller / 600 mm 36 42 170 + -
5.50 5.25 2.32 U-Profile Roller / 600 mm 36 42 170 + -
5.50 5.25 2.32 V-Profile Roller / 600 mm 36 42 170 + -
5.50 5.25 2.32 V-Profile Roller / 700 mm 36 42 170 + -
6.50 6.25 2.32 Square Tube Roller / 550 mm - 50 190 + 4,010
6.50 6.25 2.32 Wave Roller / 600 mm 42 50 200 + -
6.50 6.25 2.32 U-Profile Roller / 600 mm 42 50 200 + -
6.50 6.25 2.32 V-Profile Roller / 600 mm 42 50 200 + -
6.50 6.25 2.32 V-Profile Roller / 700 mm 42 50 200 + -

Trailed 1-section models without hydraulic folding

Model, m Work Width, m Transport Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
2.50 2.25 2.50 Wave Roller / 600 mm 16 18 80 + -
2.50 2.25 2.50 U-Profile Roller / 600 mm 16 18 90 + -
2.50 2.25 2.50 V-Profile Roller / 600 mm 16 18 90 + -
2.50 2.25 2.50 V-Profile Roller / 700 mm 16 18 90 + -
2.50 2.25 2.50 Twin U-Profile 600-600 mm 16 18 90 + -
2.50 2.25 2.50 Twin V-Profile 600-600 mm 16 18 90 + -
3.00 2.75 3.00 Wave Roller / 600 mm 20 22 100 + 2,400
3.00 2.75 3.00 U-Profile Roller / 600 mm 20 22 100 + 2,500
3.00 2.75 3.00 V-Profile Roller / 600 mm 20 22 100 + 3,040
3.00 2.75 3.00 V-Profile Roller / 700 mm 20 22 100 + -
3.00 2.75 3.00 Twin U-Profile 600-600 mm 20 22 100 + -
3.00 2.75 3.00 Twin V-Profile 600-600 mm 20 22 100 + -
3.50 3.25 3.50 Wave Roller / 600 mm 23 26 100 + 2,710
3.50 3.25 3.50 U-Profile Roller / 600 mm 23 26 110 + -
3.50 3.25 3.50 V-Profile Roller / 600 mm 23 26 110 + 3,160
3.50 3.25 3.50 V-Profile Roller / 700 mm 23 26 110 + -
3.50 3.25 3.50 Twin U-Profile 600-600 mm 23 26 110 + -
3.50 3.25 3.50 Twin V-Profile 600-600 mm 23 26 110 + -
4.00 3.75 4.00 Wave Roller / 600 mm 26 30 110 + 3,030
4.00 3.75 4.00 U-Profile Roller / 600 mm 26 30 120 + -
4.00 3.75 4.00 V-Profile Roller / 600 mm 26 30 120 + 3,300
4.00 3.75 4.00 V-Profile Roller / 700 mm 26 30 120 + -
4.00 3.75 4.00 Twin U-Profile 600-600 mm 26 30 120 + -
4.00 3.75 4.00 Twin V-Profile 600-600 mm 26 30 120 + -

Trailed 2-section models with hydraulic folding

Model, m Work Width, m Transport Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
4.50 4.25 2.42 Wave Roller / 600 mm 30 34 130 + -
4.50 4.25 2.42 U-Profile Roller / 600 mm 30 34 140 + -
4.50 4.25 2.42 V-Profile Roller / 600 mm 30 34 140 + 3,715
4.50 4.25 2.42 V-Profile Roller / 700 mm 30 34 140 + 4,380
4.50 4.25 2.42 Twin U-Profile 600-600 mm 30 34 140 + 4,200
4.50 4.25 2.42 Twin V-Profile 600-600 mm 30 34 140 + 4,825
5.50 5.25 2.42 Wave Roller / 600 mm 36 42 160 + -
5.50 5.25 2.42 U-Profile Roller / 600 mm 36 42 170 + -
5.50 5.25 2.42 V-Profile Roller / 600 mm 36 42 170 + 4,770
5.50 5.25 2.42 V-Profile Roller / 700 mm 36 42 170 + 5,090
5.50 5.25 2.42 Twin U-Profile 600-600 mm 36 42 170 + -
5.50 5.25 2.42 Twin V-Profile 600-600 mm 36 42 170 + 5,090
6.50 6.25 2.62 Wave Roller / 600 mm 42 50 190 + -
6.50 6.25 2.62 U-Profile Roller / 600 mm 42 50 200 + -
6.50 6.25 2.62 V-Profile Roller / 600 mm 42 50 200 + 5,915
6.50 6.25 2.62 V-Profile Roller / 700 mm 42 50 200 + -
6.50 6.25 2.62 Twin U-Profile 600-600 mm 42 50 200 + -
6.50 6.25 2.62 Twin V-Profile 600-600 mm 42 50 200 + -

Trailed 3-section models with hydraulic folding

Model, m Work Width, m Transport Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
8.00 7.75 2.45 Wave Roller / 600 mm 53 64 220 + -
8.00 7.75 2.45 U-Profile Roller / 600 mm 53 64 240 + -
8.00 7.75 2.45 V-Profile Roller / 600 mm 53 64 240 + -

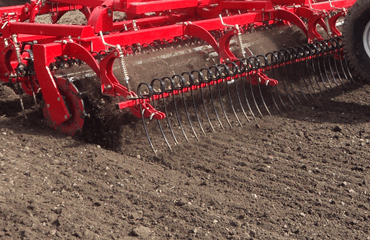

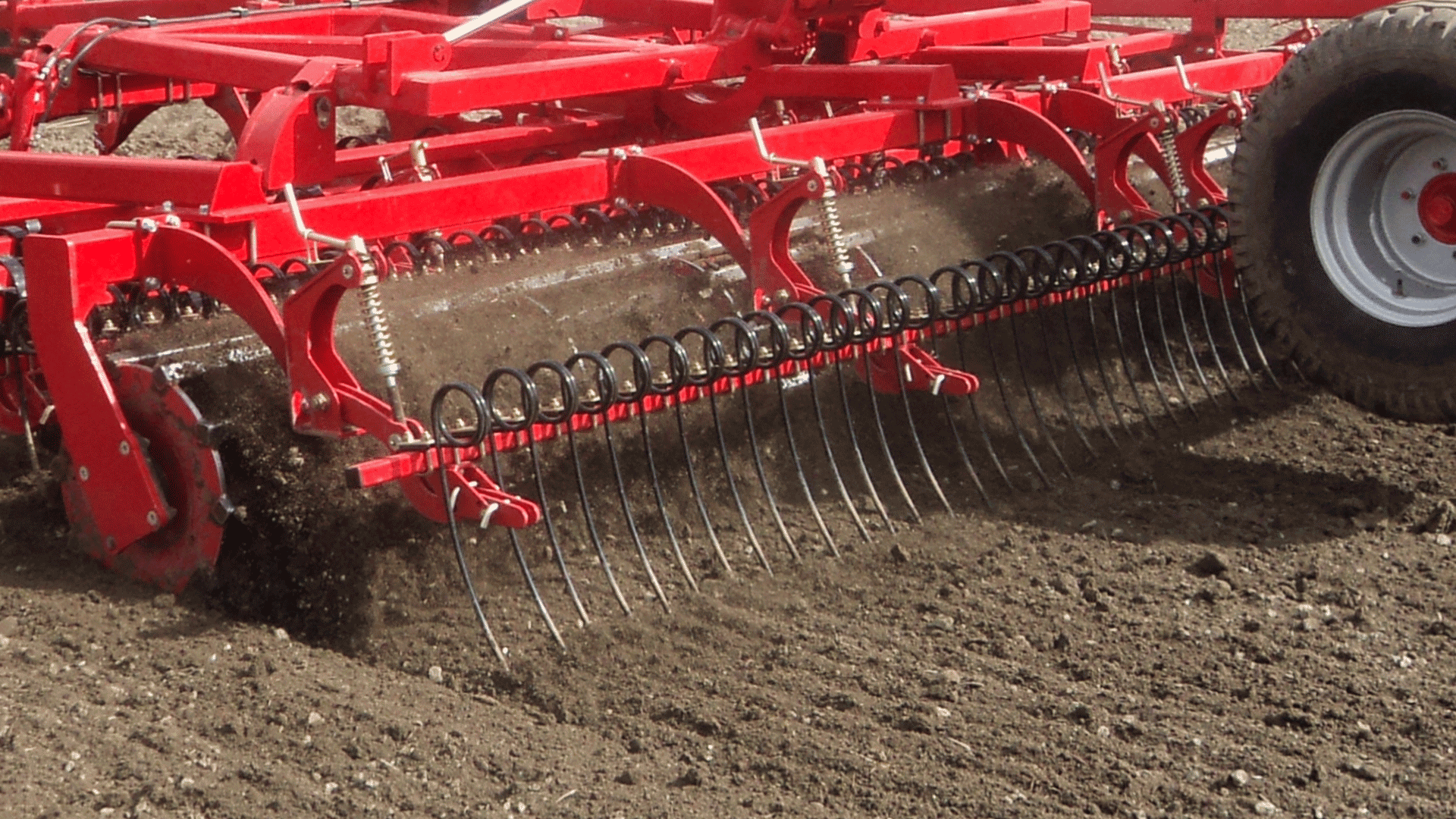

Longfinger after-harrow behind roller
Longfinger after-harrow behind roller
Spring-Board
Spring-Board
Transverse locking system
Transverse locking system
Top-Cutter
Top-Cutter
Sabre disc
Sabre disc
Multi-Seeder
Multi-Seeder
Extra equipment Specification
LED lights Lights : set with wire and socket
HPV-Controller Weight : 7,2 kg
Mounting set for Multi-Seeder
Platform with railing and ladder for mounting set for Multi-Seeder :
Brakes Air : Factory mounted
Brakes 1-circuit Hydraulic : Factory mounted
Brakes 2-circuit Hydraulic : Factory mounted
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Italian
Polish
Swedish
Spanish
Finnish

Disc-Roller Contour

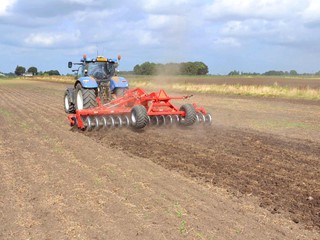

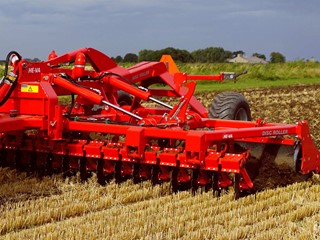

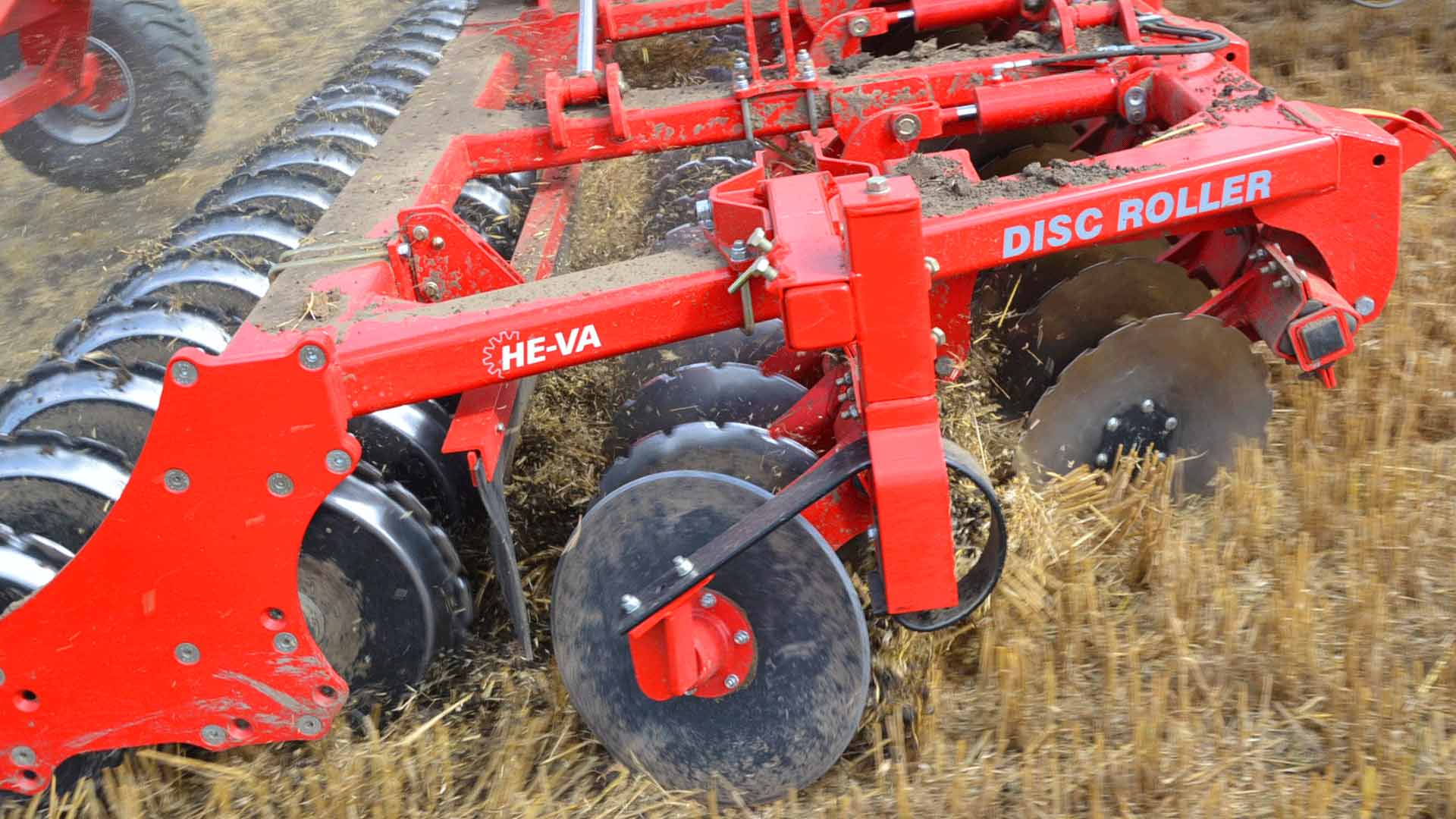

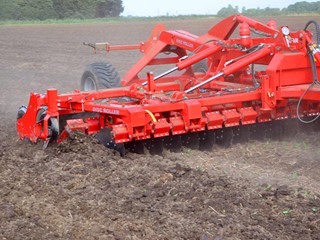

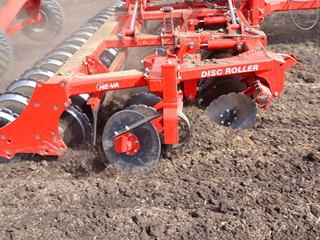

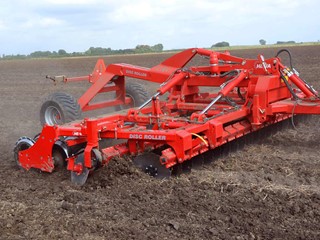

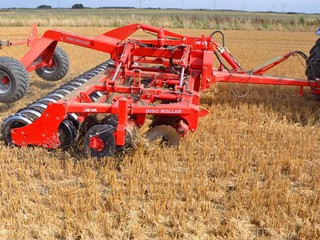

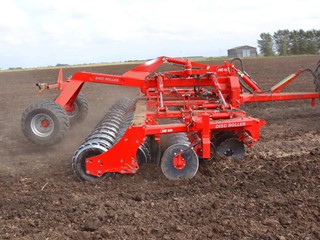

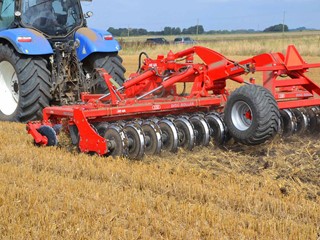

The Disc-Roller Contour is an excellent cultivator for stubble cultivation and incorporation of crop residues at depths up to 125 mm (5") in reduced tillage systems. It is also well suited for seedbed preparation on ploughed land, and with 1 tonne per metre it ensures effective soil consolidation.

Multifunctional Stubble Cultivator

Stale Seedbeds and Crop Residue Incorporation with One Machine

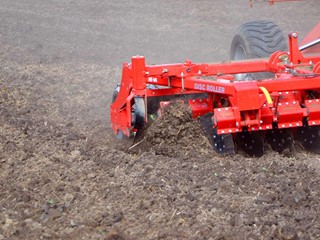

The Disc-Roller Contour enables both shallow cultivation for stale seedbeds at 2–5 cm and deep incorporation of crop residues in heavy soils. By automatically adjusting disc aggressiveness, the Disc-Roller Contour can switch from shallow to deeper cultivation using the tractor’s hydraulics.

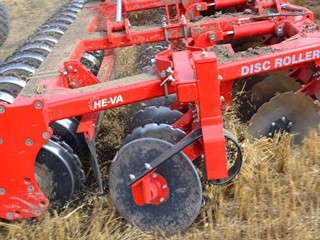

  1. During shallow cultivation, the DSD system ensures that the discs press the soil horizontally sideways, moving the entire soil surface. This lifts the soil instead of pushing it sideways, thereby preventing smearing and reducing the risk of getting stuck.

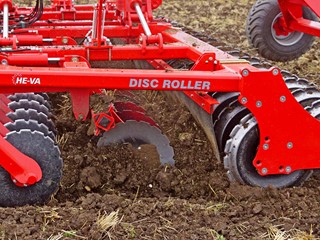

  2. During mixing or incorporation of crop residues, where a more aggressive disc angle is required, the DSD system automatically adjusts the disc angle. Thanks to the disc design and angle, the discs pull themselves deeper into the soil than traditional discs, turning more soil and incorporating more crop residues.

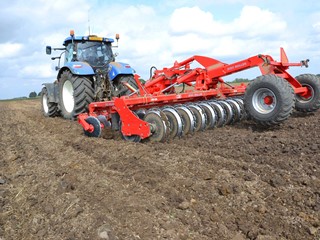

Disc-Roller Contour Follows the Field Contours

Uniform Cultivation Across the Entire Working Width

The Disc-Roller Contour creates optimal conditions for preparing a seedbed or creating a stale seedbed by cultivating the soil uniformly across the full working width, significantly improving crop growth and yield.

The unique HE-VA SAT system — a hydraulic weight transfer system — distributes the weight from the centre of the machine across the entire implement, ensuring uniform pressure across the whole soil surface.

The Cultivator for All Soil Types and Requirements

Wide Range of Rollers for Surface Cultivation

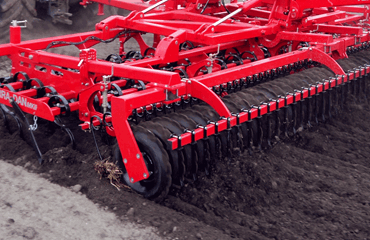

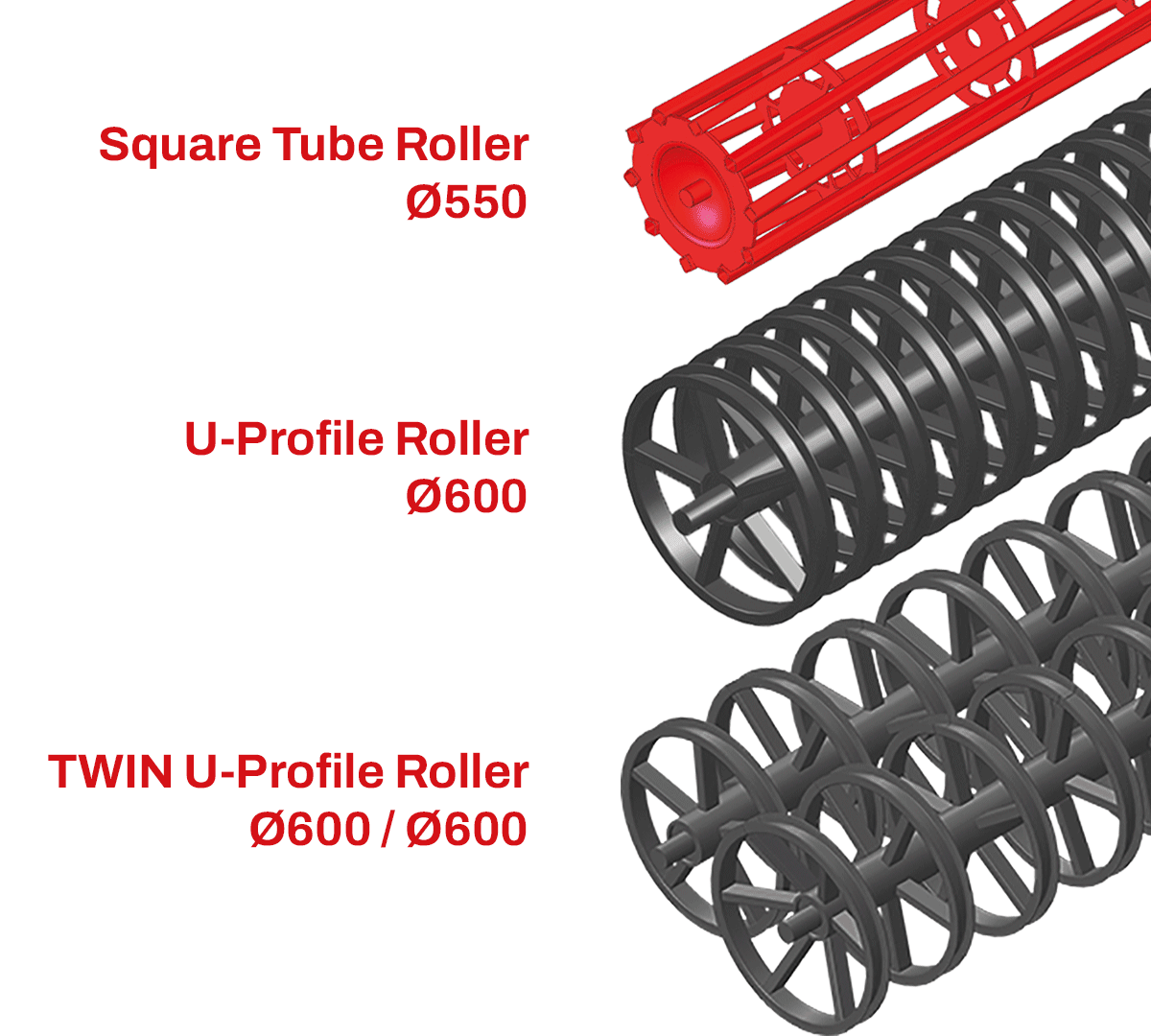

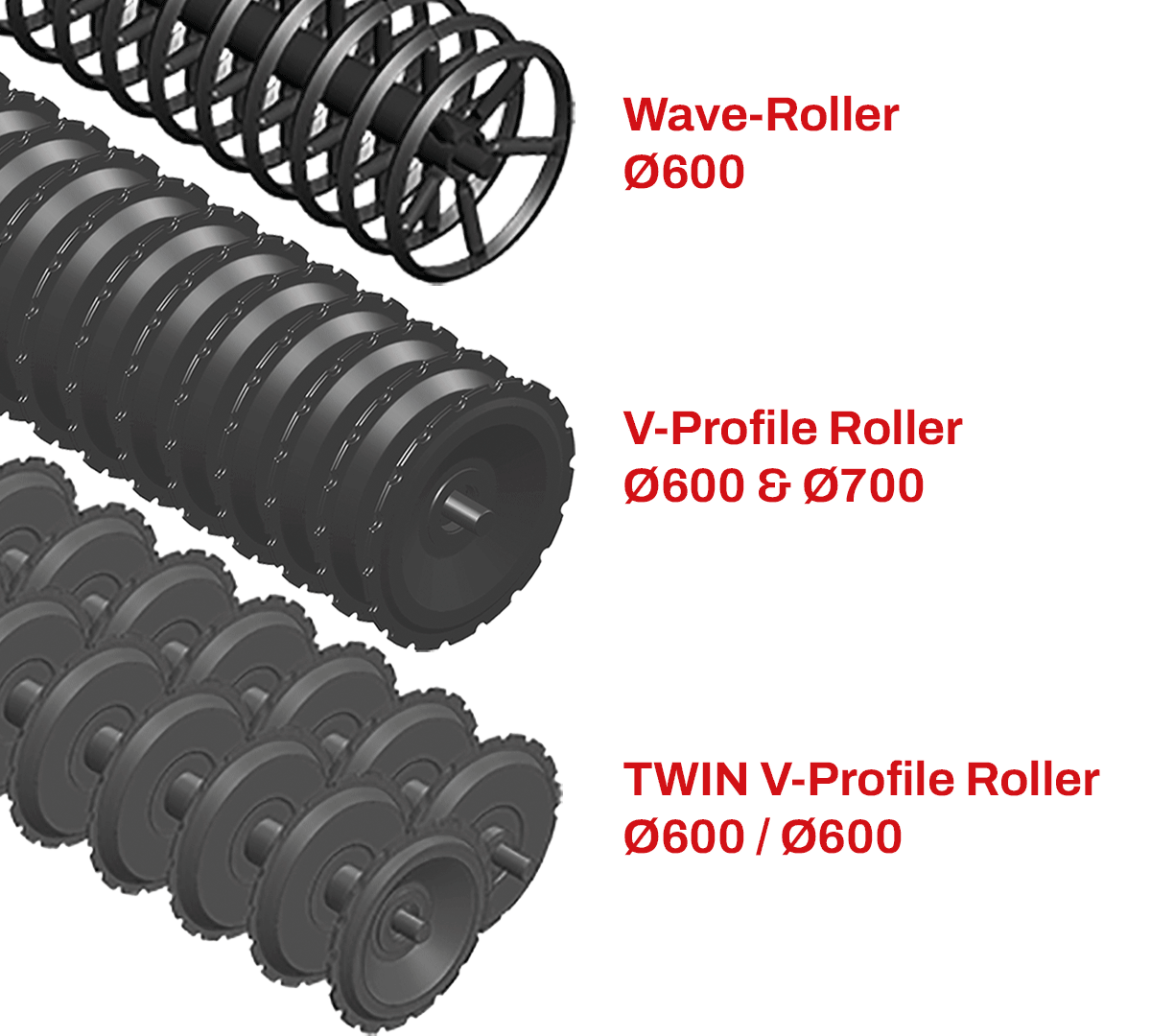

With a choice of six different rollers for reconsolidation after disc cultivation, the Disc-Roller Contour can be adapted to most soil types.

Available rollers include Wave-Roller, V-Profile Roller, Twin V-Profile Roller, Square Tube Roller, U-Profile Roller and Twin U-Profile Roller. Each offers different advantages depending on soil type and the desired soil surface after consolidation.

Read more about the rollers here

Extensive Range of Optional Equipment

The extensive roller range combined with a comprehensive optional equipment programme allows the Disc-Roller Contour to be adapted to most requirements.

For additional levelling of soil and clods, a Spring-Board can be recommended. Various brake systems and seeding equipment are also available, allowing cultivation and seeding in one pass.
