Tip-Roller

4.50 - 10.20 M

MAX 2.45 M

60 - 220 HP

1,510 - 6,850 KG

Specifications

Extras

Downloads

Images & videos

rotate device to see table.

Work Width, m	Ring Type	No. of Rings	No. of Spokes	Power Req., HP	Weight, kg
4.50	510 mm/21" Cambridge	87	3	60-80	2,160
4.50	510 mm/21” Cambridge	87	8	60-80	2,260
4.50	560 mm/22,5” Cambridge	87	9	70-90	2,540
4.50	620 mm/24" Cambridge	87	10	70-90	2,810
4.50	450/500 mm Star ring	88	-	60-80	2,100
4.50	550/600 mm Star ring	88	-	70-90	2,570
4.50	550 mm Cam ring	30	-	60-80	1,480
4.50	485-530 mm Crosskill	45	-	60-80	1,900
4.50	550-600 mm Crosskill	45	-	70-90	2,460
4.50	500 mm 2D-Corrugated	57	8	60-80	1,860
4.50	550 mm 2D-Corrugated	57	9	70-90	2,050
4.50	600 mm 2D-Corrugated	57	10	70-90	2,230

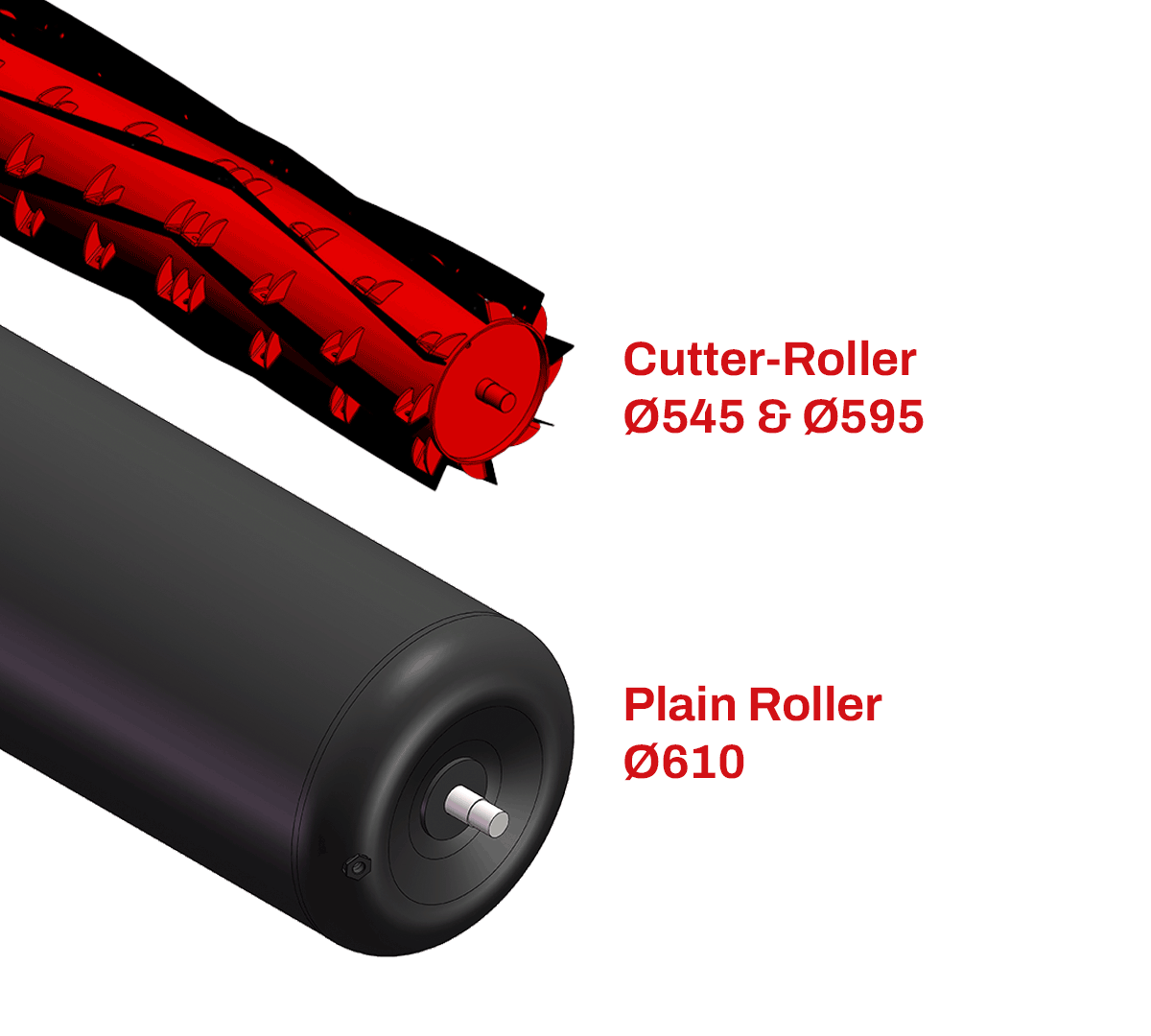

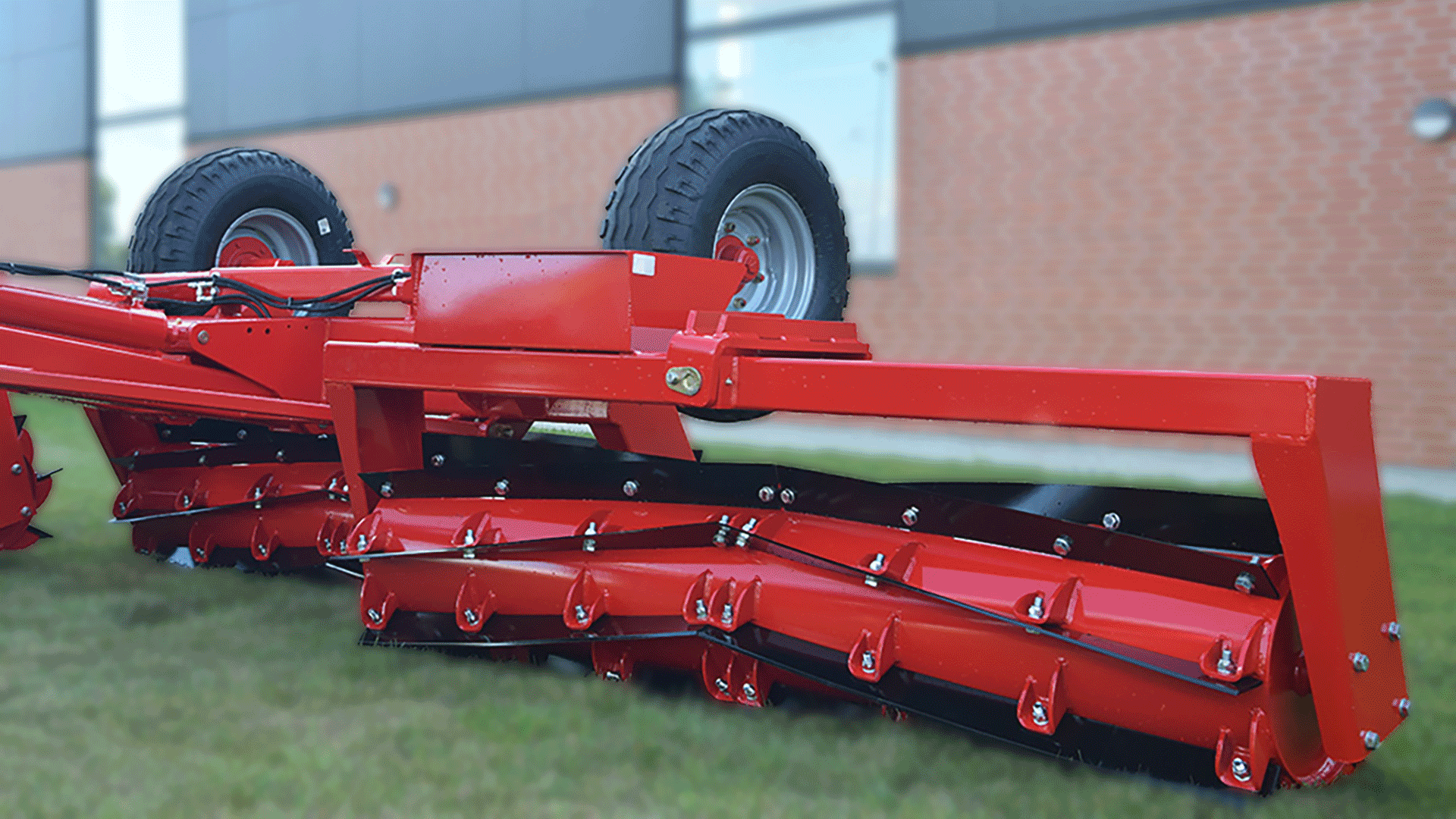

4.50	545 mm Cutter-Roller	-	-	-	-
5.40	510 mm/21" Cambridge	105	3	70-90	2,510
5.40	510 mm/21” Cambridge	105	8	70-90	2,680
5.40	560 mm/22,5” Cambridge	105	9	80-100	3,060
5.40	620 mm/24" Cambridge	105	10	80-100	3,220
5.40	450/500 mm Star ring	102	-	70-90	2,570
5.40	550/600 mm Star ring	102	-	80-100	3,140
5.40	550 mm Cam ring	36	-	70-90	1,880
5.40	485-530 mm Crosskill	54	-	70-90	2,350
5.40	550-600 mm Crosskill	54	-	80-100	3,010
5.40	500 mm 2D-Corrugated	69	8	70-90	2,430
5.40	550 mm 2D-Corrugated	69	9	80-100	2,510
5.40	600 mm 2D-Corrugated	69	10	80-100	2,970
5.40	545 mm Cutter-Roller	-	-	-	-
6.30	510 mm/21" Cambridge	123	3	80-100	2,950
6.30	510 mm/21” Cambridge	123	8	80-100	3,080
6.30	450/500 mm Star ring	120	-	80-100	3,010
6.30	550 mm Cam ring	42	-	80-100	2,080
6.30	485-530 mm Crosskill	63	-	80-100	2,700
6.30	500 mm 2D-Corrugated	78	8	80-100	2,640
6,30 HD	560 mm/22,5” Cambridge	123	9	100-120	3,670
6,30 HD	620 mm/24" Cambridge	123	10	100-120	4,190
6,30 HD	550/600 mm Star ring	120	-	100-120	3,870
6,30 HD	550-600 mm Crosskill	63	-	100-120	3,490
6,30 HD	550 mm 2D-Corrugated	78	9	90-110	3,000
6,30 HD	600 mm 2D-Corrugated	78	10	90-110	3,360
6,30 HD	545 mm Cutter-Roller	-	-	-	-
6,30 HD	595 mm Cutter-Roller	-	-	-	-
6,30 HD	610 mm Plain Roller	-	-	90-110	2,240 w/o water 3,860 w/water
7.30	510 mm/21" Cambridge	143	3	100-120	3,730
7.30	510 mm/21” Cambridge	143	8	100-120	3,840
7.30	560 mm/22,5” Cambridge	143	9	120-140	4,430
7.30	620 mm/24" Cambridge	143	10	120-140	4,580
7.30	450/500 mm Star ring	140	-	100-120	3,810
7.30	550/600 mm Star ring	140	-	120-140	4,730
7.30	550 mm Cam ring	48	-	100-120	2,710
7.30	485-530 mm Crosskill	73	-	100-120	3,460
7.30	550-600 mm Crosskill	73	-	120-140	4,380
7.30	500 mm 2D-Corrugated	90	8	100-120	3,370
7.30	550 mm 2D-Corrugated	90	9	110-130	3,860
7.30	600 mm 2D-Corrugated	90	10	110-130	3,810
7.30	545 mm Cutter-Roller	-	-	-	-
7.30	595 mm Cutter-Roller	-	-	-	-
7.60	510 mm/21" Cambridge	151	3	100-120	3,784
7.60	510 mm/21” Cambridge	151	8	100-120	3,994
7.60	560 mm/22,5” Cambridge	151	9	120-140	4,608
7.60	620 mm/24" Cambridge	151	10	120-140	4,984
7.60	450/500 mm Star ring	148	-	100-120	3,900
7.60	550/600 mm Star ring	148	-	120-140	4,655
7.60	550 mm Cam ring	45	-	100-120	2,778
7.60	485-530 mm Crosskill	79	-	100-120	3,530
7.60	550-600 mm Crosskill	79	-	120-140	4,472
7.60	500 mm 2D-Corrugated	99	8	100-120	3,630
7.60	550 mm 2D-Corrugated	99	9	110-130	3,982
7.60	600 mm 2D-Corrugated	99	10	110-130	4,148
7.60	545 mm Cutter-Roller	-	-	-	-
7.60	595 mm Cutter-Roller	-	-	-	-
8.20	510 mm/21" Cambridge	157	3	120-140	4,050
8.20	510 mm/21” Cambridge	157	8	120-140	4,190
8.20	560 mm/22,5” Cambridge	157	9	130-160	4,700
8.20	620 mm/24" Cambridge	157	10	130-160	5,200
8.20	450/500 mm Star ring	152	-	120-140	3,920
8.20	550/600 mm Star ring	152	-	130-160	5,120
8.20	550 mm Cam ring	55	-	120-140	3,110
8.20	485-530 mm Crosskill	81	-	120-140	3,880
8.20	550-600 mm Crosskill	81	-	130-160	4,900
8.20	500 mm 2D-Corrugated	102	8	120-140	3,840
8.20	550 mm 2D-Corrugated	102	9	120-150	4,100
8.20	600 mm 2D-Corrugated	102	10	120-150	4,350
8.20	545 mm Cutter-Roller	-	-	-	-
8.20	595 mm Cutter-Roller	-	-	-	-
9.50	510 mm/21" Cambridge	180	3	130-160	5,110
9.50	510 mm/21" Cambridge	180	8	130-160	5,180
9.50	560 mm/22,5” Cambridge	180	9	140-170	5,770
9.50	620 mm/24” Cambridge	180	10	140-170	6,350
9.50	450/500 mm Star ring	172	-	130-160	5,230
9.50	550/600 mm Star ring	172	-	140-170	6,200
9.50	550 mm Cam ring	63	-	130-160	3,870
9.50	485-530 mm Crosskill	95	-	130-160	4,820
9.50	550-600 mm Crosskill	95	-	140-170	6,020
9.50	500 mm 2D-Corrugated	118	8	130-160	4,740
9.50	550 mm 2D-Corrugated	118	9	140-160	5,030
9.50	600 mm 2D-Corrugated	118	10	140-160	5,320
9.50	545 mm Cutter-Roller	-	-	-	-
9.50	595 mm Cutter-Roller	-	-	-	-
9.50	610 mm Plain Roller	-	-	140-160	3,400 w/o water 5,840 w/water
10.20	510 mm/21" Cambridge	196	3	150-200	5,470
10.20	510 mm/21" Cambridge	196	8	150-200	5,690
10.20	560 mm/22,5” Cambridge	196	9	160-220	6,220
10.20	620 mm/24” Cambridge	196	10	160-220	6,850
10.20	450/500 mm Star ring	186	-	150-200	5,590
10.20	550/600 mm Star ring	186	-	160-220	6,640
10.20	485-530 mm Crosskill	101	-	150-200	5,120
10.20	550-600 mm Crosskill	101	-	160-220	6,390
10.20	500 mm 2D-Corrugated	126	8	150-200	5,020
10.20	550 mm 2D-Corrugated	126	9	150-210	5,310
10.20	600 mm 2D-Corrugated	126	10	150-210	5,650
10.20	545 mm Cutter-Roller	-	-	-	-
10.20	595 mm Cutter-Roller	-	-	-	5,555

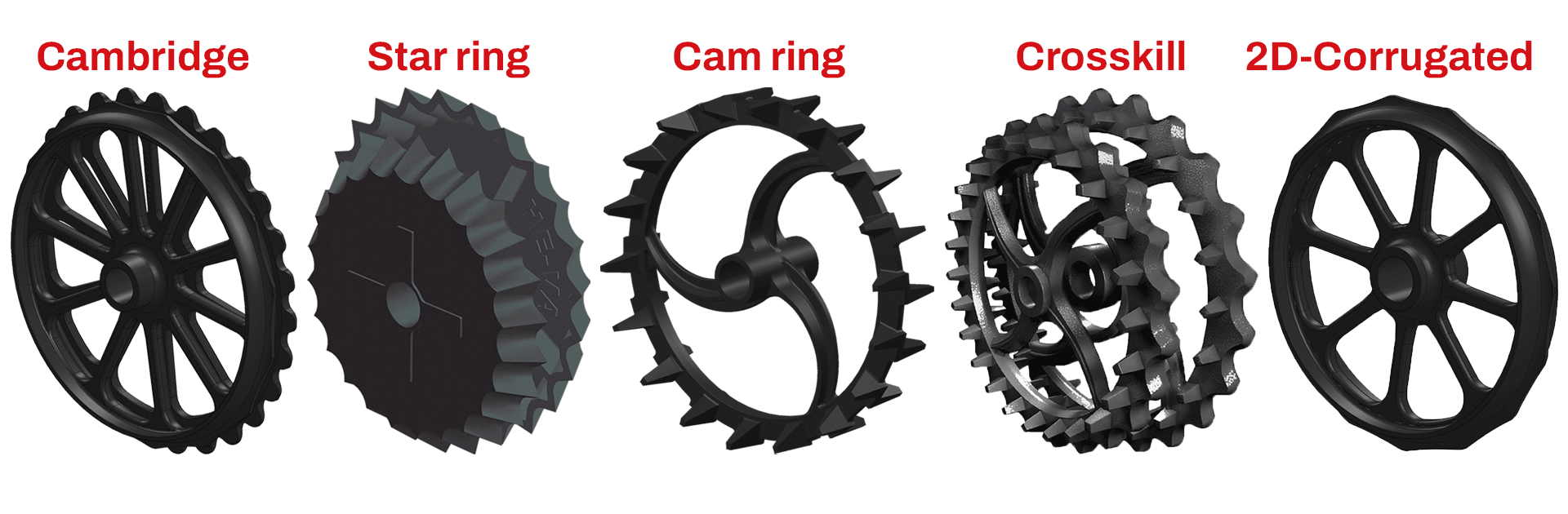

Ring types

Multi-Seeder

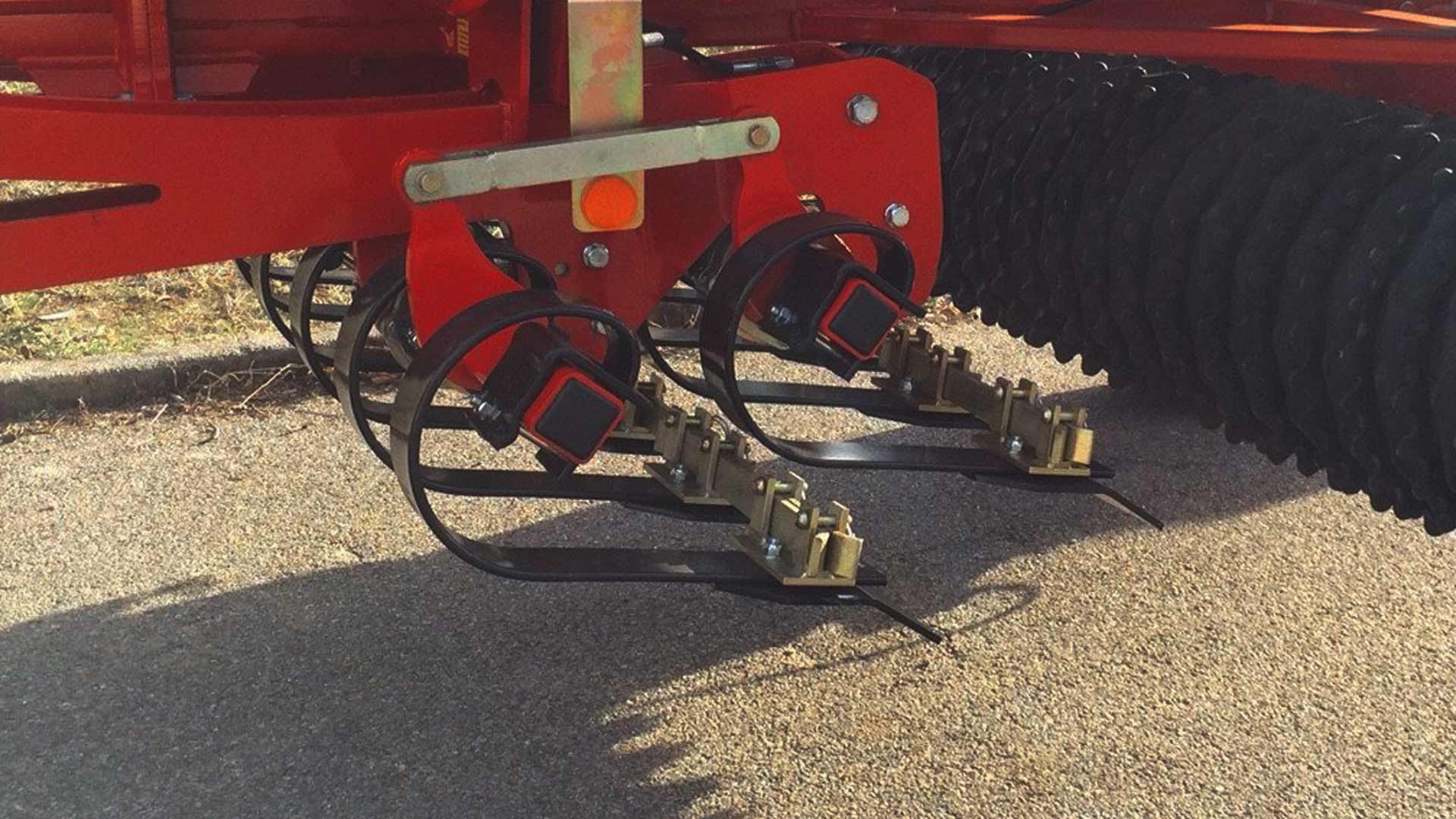

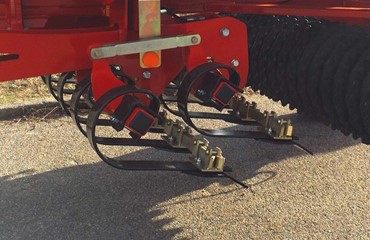

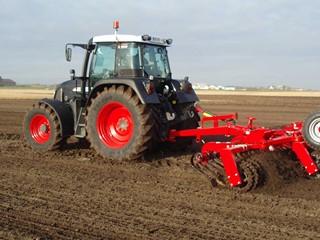

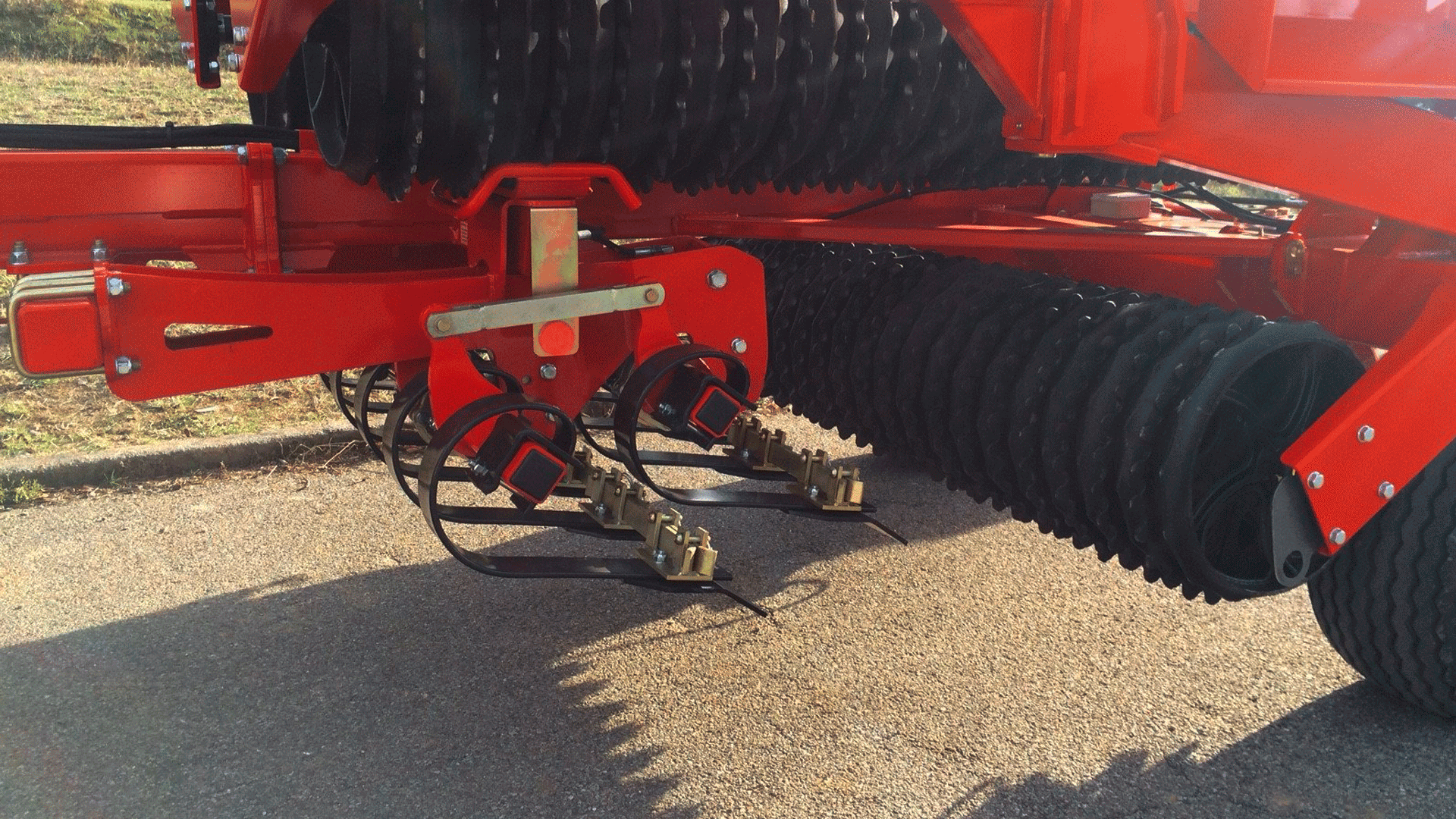

Double Spring-Board

Transverse locking system

Easy-Change

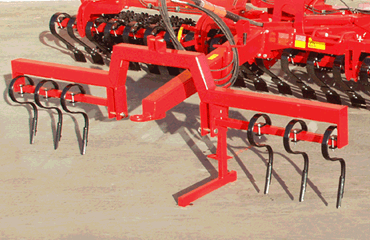

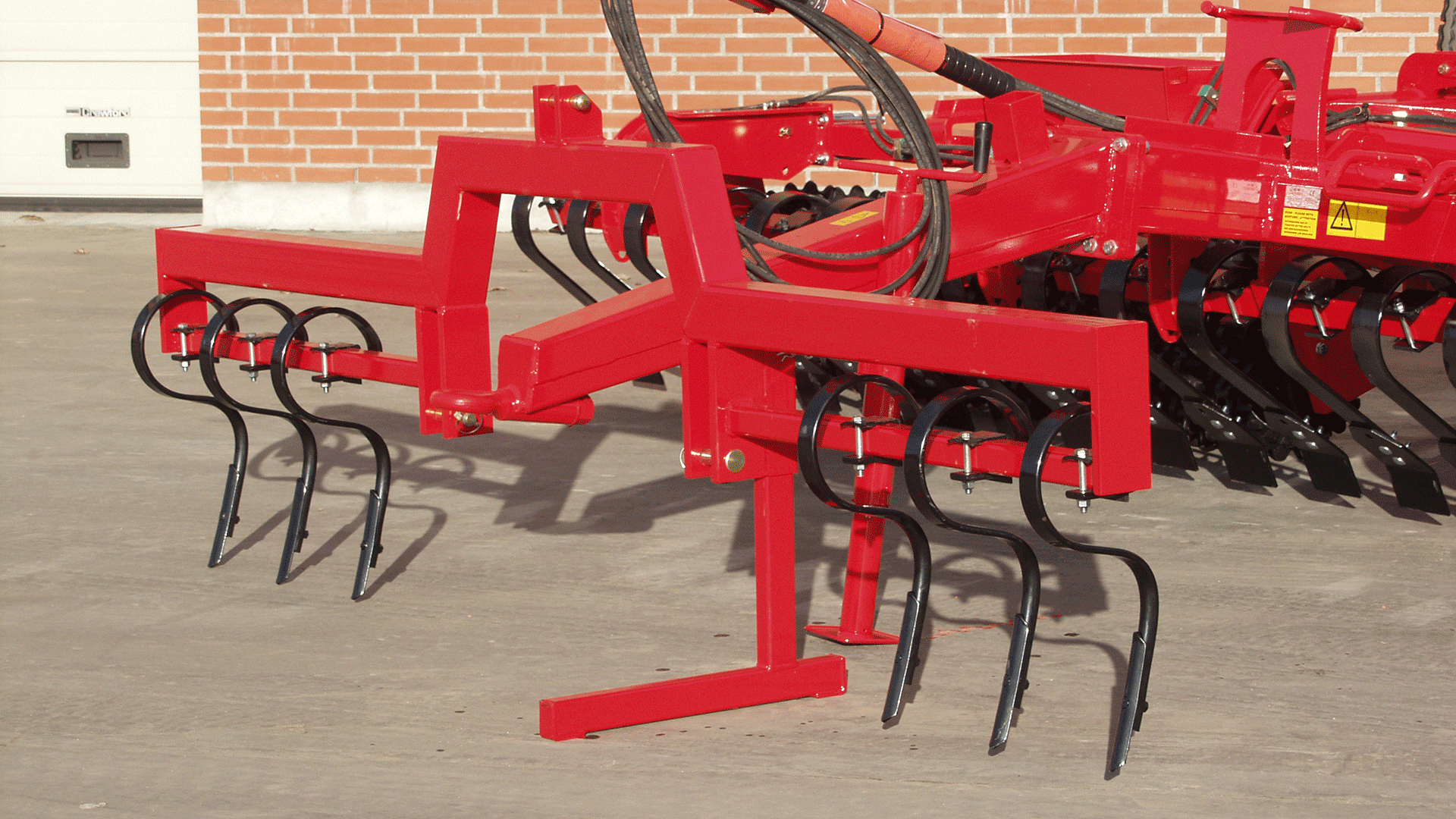

Wheel track eradicator

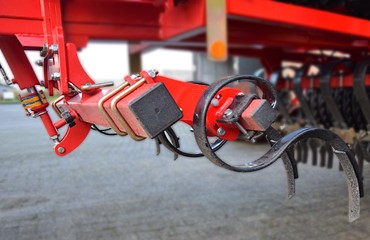

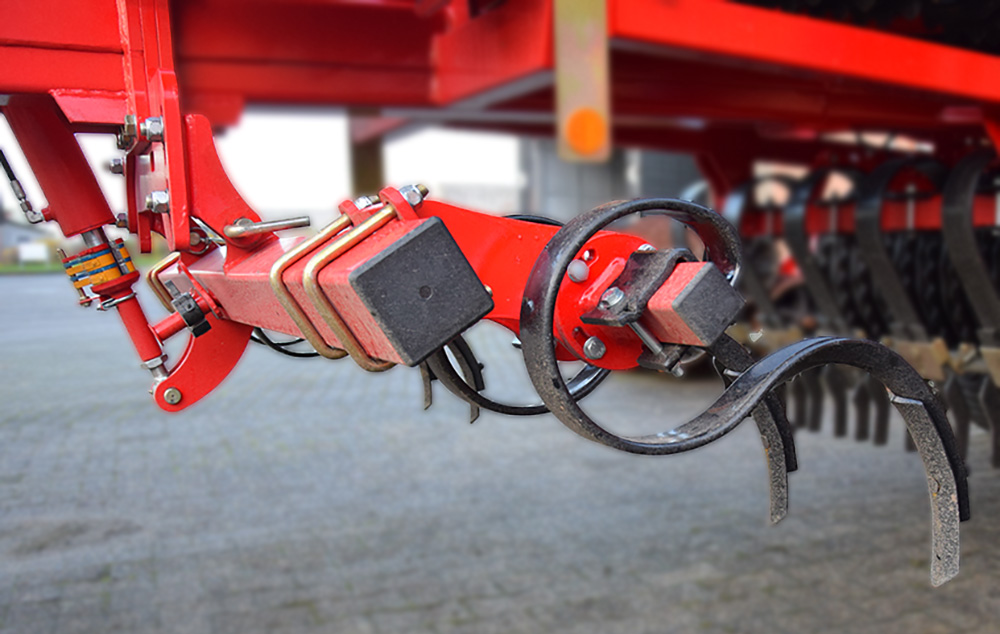

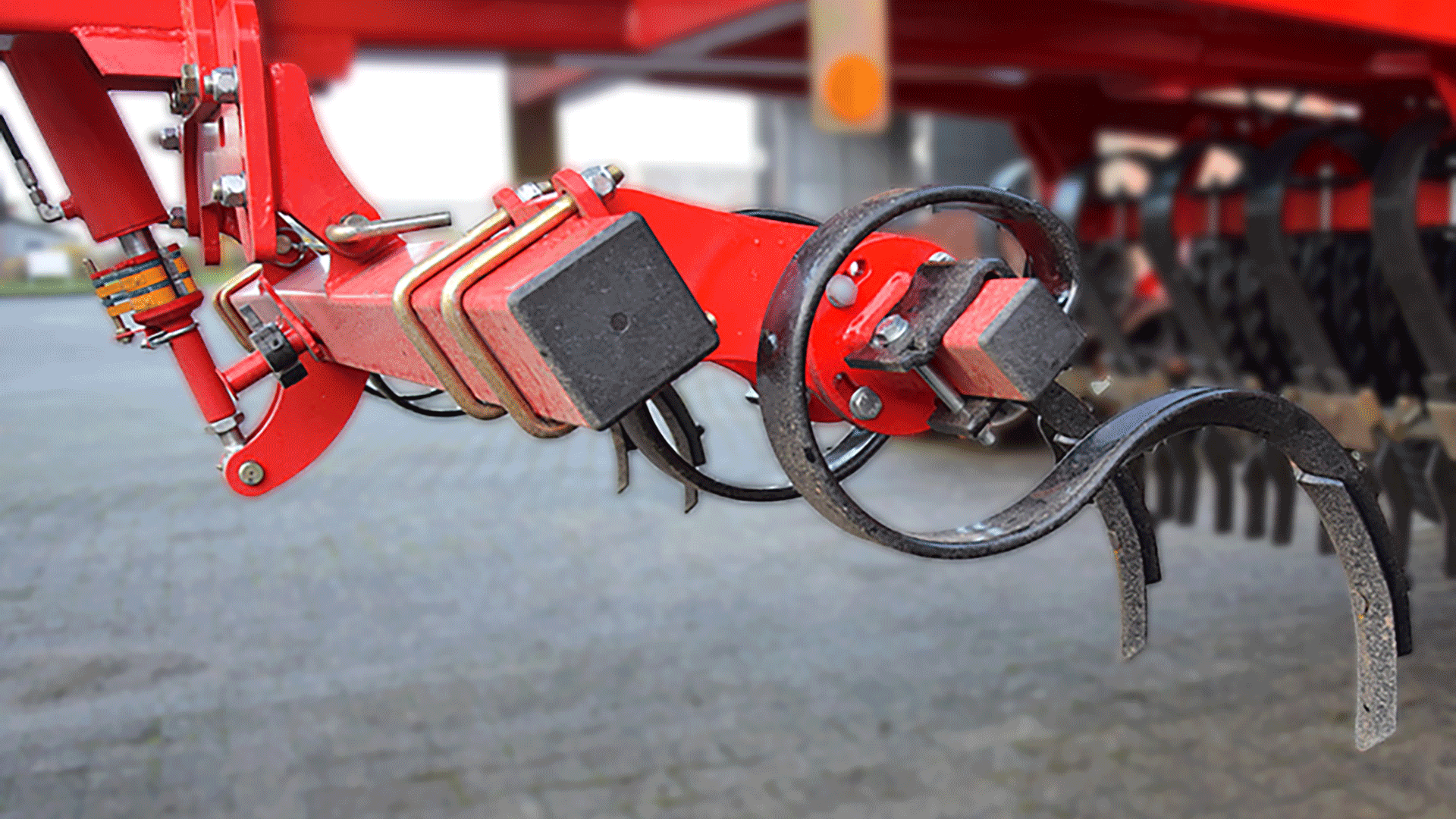

Wheel track eradicator, Hydr.

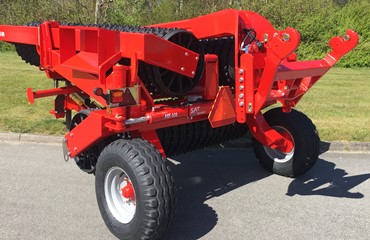

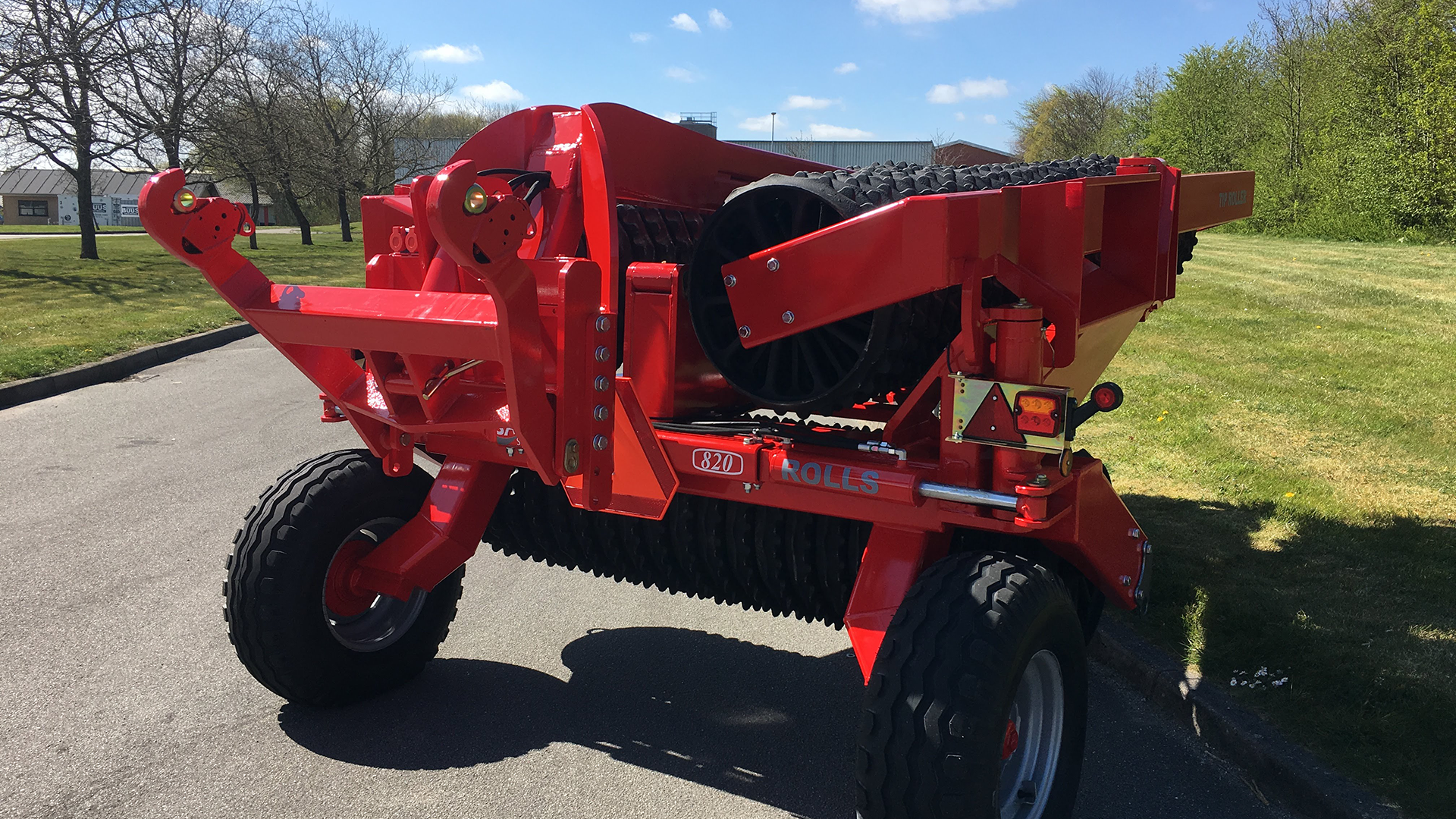

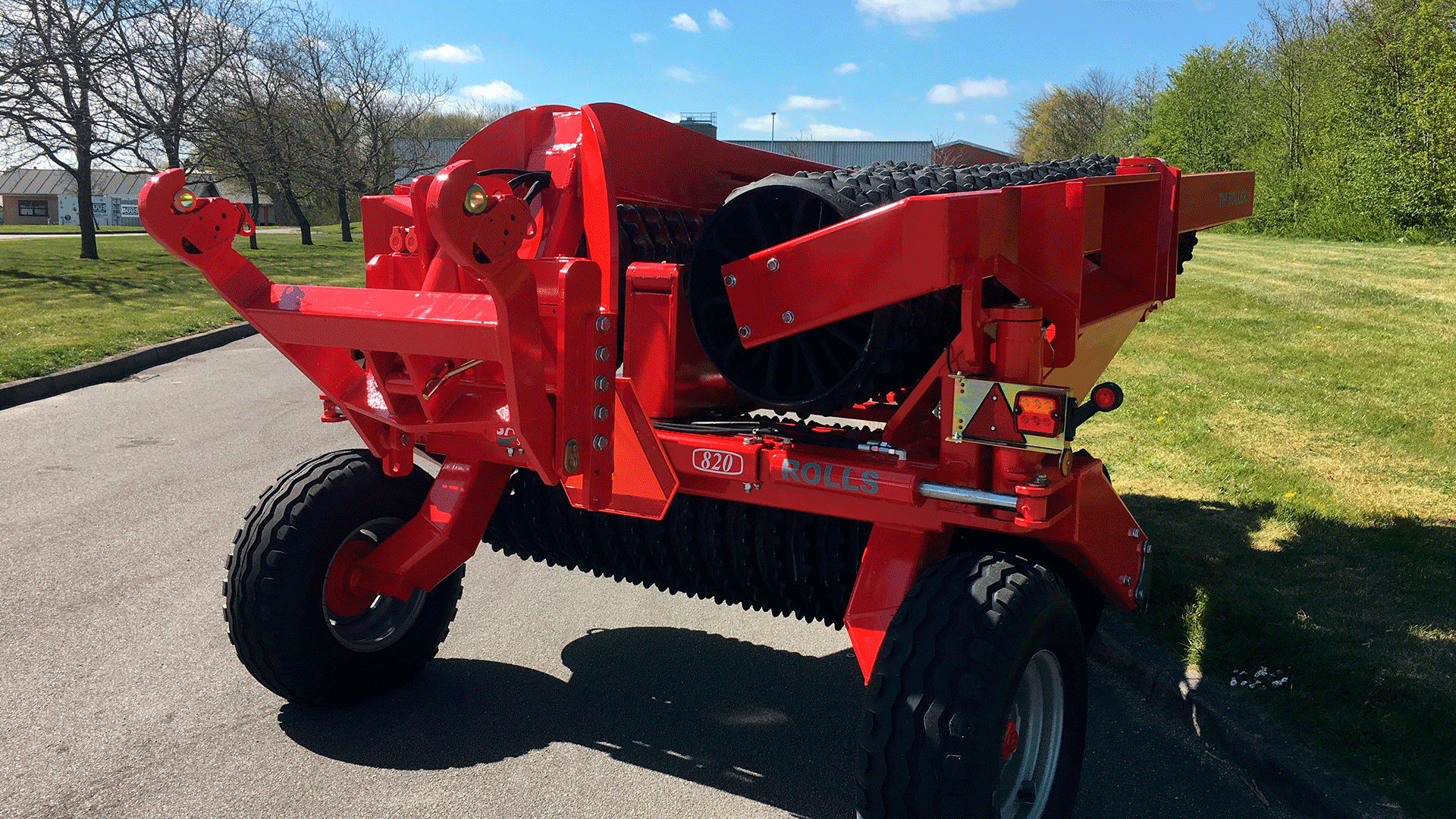

Tool Lift

Extra equipment	Specification
HPV-Controller	Weight : 7,2 kg
Air brakes
Stone box set	Gathering of rocks : 2 pcs
Mounting set for Multi-Seeder

rotate device to see table.

Languages	Brochure	Technical Specification	Manual / Spare Parts Catalog
Danish
English
German
French
Polish
Russian
Serbian
Greece
Hungarian
Italian
Latvian
Swedish
Finnish

Images

Videos

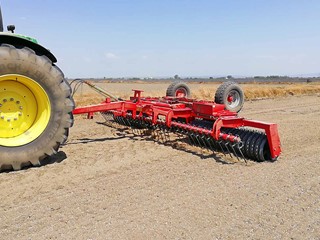

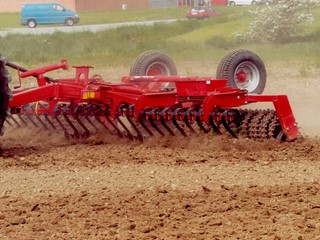

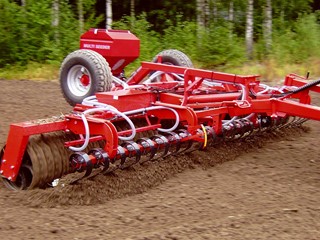

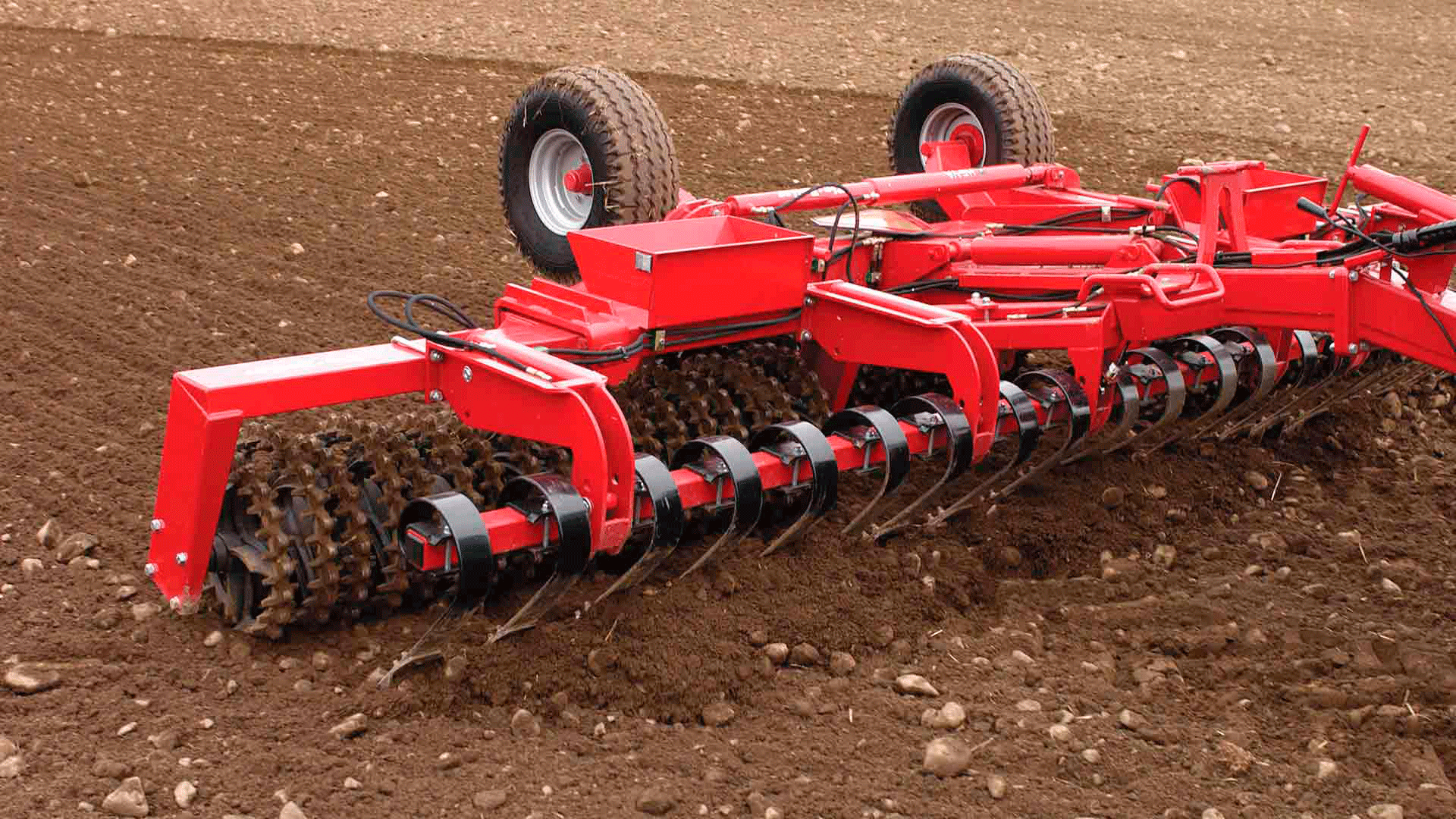

Tip-Roller

More than just a roller

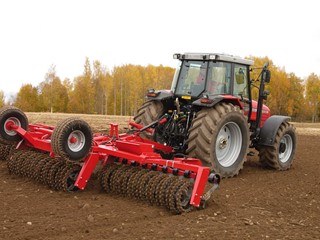

The Tip-Roller roller comes in working widths of 4.5 m - 10.2 m. and contains centre-suspended side sections and is equipped with the unique HE-VA SAT-System - a Spring-Active-Transfer-System.

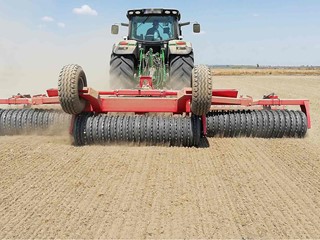

The SAT-System trasfers the weight from the centre section to the side sections, which ensures uniform packing of the soil in the entire working width of the machine.

Adjust the roller for your needs

choose your own roller ring

Tip-Roller can be fitted with a wide variety of roller rings, which makes it possible to find the exact right ring that matchES local ways of cultivation and fits different soil types.

Learn more ABOUT the rings

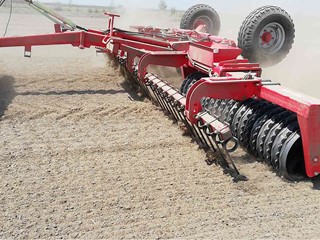

Tip-Roller offers a variety of extra equipment

Besides the great selection of roller rings, Tip-Roller also comes with a variety of extra equipment that makes it possible to level, crush clods and harrow in one workflow. See the wide variety of extra equipment in the top folders.
