Three-Point Mounted / Square Tube Roller Ø550 mm

Work Width, m Type Stone Protection No. of Tines Row Spacing, cm Transport Width, m Power Req., HP Max hp Weight, kg
2.00 Rigid Quick-Push 2 150 2.00 60-80 250 1,150
2.00 Rigid Quick-Push 3 67 2.00 90-120 250 1,200
2.00 Rigid Hydr. auto. 2 150 2.00 60-80 250 1,150
2.00 Rigid Hydr. auto. 3 67 2.00 90-120 250 1,200
2.50 Rigid Quick-Push 2 180 2.50 60-80 350 900
2.50 Rigid Quick-Push 3 90 2.50 90-120 350 985
2.50 Rigid Hydr. auto. 2 180 2.50 60-80 350 970
2.50 Rigid Hydr. auto. 3 90 2.50 90-120 350 1,090
3.00 Rigid Quick-Push 2 200 3.00 60-80 350 975
3.00 Rigid Quick-Push 3 100 3.00 90-120 350 1,060
3.00 Rigid Quick-Push 5 60 3.00 135-200 350 1,230
3.00 Rigid Hydr. auto. 2 200 3.00 60-80 350 1,050
3.00 Rigid Hydr. auto. 3 100 3.00 90-120 350 1,170
3.00 Rigid Hydr. auto. 5 60 3.00 135-200 350 1,410
3.50 Rigid Quick-Push 5 65 3.50 140-200 350 1,310
3.50 Rigid Quick-Push 7 50 3.50 190-280 350 1,480
3.50 Rigid Hydr. auto. 5 65 3.50 140-200 350 1,490
3.50 Rigid Hydr. auto. 7 50 3.50 190-280 350 1,720
4.00 Rigid Quick-Push 7 57 4.00 200-280 350 1,560
4.00 Rigid Hydr. auto. 7 57 4.00 200-280 350 1,640
4.00 Foldable Quick-Push 7 57 2.43 200-280 450 1,910
4.00 Foldable Hydr. auto. 7 57 2.43 200-280 450 1,990
5.00 Foldable Quick-Push 9 55.5 2.43 260-360 450 2,240
5.00 Foldable Hydr. auto. 9 55.5 2.43 260-360 450 2,390

Three-Point Mounted / V-Profile Roller Ø600 mm

Work Width, m Type Stone Protection No. of Tines Row Spacing, cm Transport Width, m Power Req., HP Max hp Weight, kg
2.00 Rigid Quick-Push 2 150 2.00 60-80 250 1,165
2.00 Rigid Quick-Push 3 67 2.00 90-120 250 1,250
2.00 Rigid Hydr. auto. 2 150 2.00 60-80 250 1,235
2.00 Rigid Hydr. auto. 3 67 2.00 90-120 250 1,150
2.50 Rigid Quick-Push 2 180 2.50 60-80 350 1,415
2.50 Rigid Quick-Push 3 90 2.50 90-120 350 1,500
2.50 Rigid Hydr. auto. 2 180 2.50 60-80 350 1,485
2.50 Rigid Hydr. auto. 3 90 2.50 90-120 350 1,605
3.00 Rigid Quick-Push 2 200 3.00 60-80 350 1,595
3.00 Rigid Quick-Push 3 100 3.00 90-120 350 1,680
3.00 Rigid Quick-Push 5 60 3.00 135-200 350 1,850
3.00 Rigid Hydr. auto. 2 200 3.00 60-80 350 1,665
3.00 Rigid Hydr. auto. 3 100 3.00 90-120 350 1,785
3.00 Rigid Hydr. auto. 5 60 3.00 135-200 350 2,025
3.50 Rigid Quick-Push 5 65 3.50 140-200 350 2,030
3.50 Rigid Quick-Push 7 50 3.50 190-280 350 2,200
3.50 Rigid Hydr. auto. 5 65 3.50 140-200 350 2,210
3.50 Rigid Hydr. auto. 7 50 3.50 190-280 350 2,440
4.00 Rigid Quick-Push 7 57 4.00 200-280 350 2,380
4.00 Rigid Hydr. auto. 7 57 4.00 200-280 350 2,620
4.00 Foldable Quick-Push 7 57 2.43 200-280 450 2,730
4.00 Foldable Hydr. auto. 7 57 2.43 200-280 450 2,970
5.00 Foldable Quick-Push 9 55.5 2.43 260-360 450 3,260
5.00 Foldable Hydr. auto. 9 55.5 2.43 260-360 450 3,690

Three-Point Mounted / Star Roller Ø450/500 mm

Work Width, m Type Stone Protection No. of Tines Row Spacing, cm Transport Width, m Power Req., HP Max hp Weight, kg
2.00 Rigid Quick-Push 2 150 2.00 60-80 250 1,255
2.00 Rigid Quick-Push 3 67 2.00 90-120 250 1,340
2.00 Rigid Hydr. auto. 2 150 2.00 60-80 250 1,325
2.00 Rigid Hydr. auto. 3 67 2.00 90-120 250 1,445
2.50 Rigid Quick-Push 2 180 2.50 60-80 350 1,470
2.50 Rigid Quick-Push 3 90 2.50 90-120 350 1,555
2.50 Rigid Hydr. auto. 2 180 2.50 60-80 350 2,055
2.50 Rigid Hydr. auto. 3 90 2.50 90-120 350 1,660
3.00 Rigid Quick-Push 2 200 3.00 60-80 350 1,685
3.00 Rigid Quick-Push 3 100 3.00 90-120 350 1,770
3.00 Rigid Quick-Push 5 60 3.00 135-200 350 1,940
3.00 Rigid Hydr. auto. 2 200 3.00 60-80 350 1,760
3.00 Rigid Hydr. auto. 3 100 3.00 90-120 350 1,880
3.00 Rigid Hydr. auto. 5 60 3.00 135-200 350 2,120
3.50 Rigid Quick-Push 5 65 3.50 140-200 350 2,150
3.50 Rigid Quick-Push 7 50 3.50 190-280 350 2,320
3.50 Rigid Hydr. auto. 5 65 3.50 140-200 350 2,330
3.50 Rigid Hydr. auto. 7 50 3.50 190-280 350 2,560
4.00 Rigid Quick-Push 7 57 4.00 200-280 350 2,530
4.00 Rigid Hydr. auto. 7 57 4.00 200-280 350 2,610
4.00 Foldable Quick-Push 7 57 2.43 200-280 450 2,880
4.00 Foldable Hydr. auto. 7 57 2.43 200-280 450 2,960
5.00 Foldable Quick-Push 9 55.5 2.43 260-360 450 3,470
5.00 Foldable Hydr. auto. 9 55.5 2.43 260-360 450 3,620

Trailed / V-Profile Roller Ø600 mm

Work Width, m Type Stone Protection No. of Tines Row Spacing, cm Transport Width, m Power Req., HP Max hp Weight, kg
4.00 Foldable Quick-Push 7 57 2.43 220-320 600 5,200
4.00 Foldable Hydr. auto. 7 57 2.43 220-320 600 5,200
5.00 Foldable Quick-Push 9 55.5 2.43 260-360 650 5,700
5.00 Foldable Hydr. auto. 9 55.5 2.43 260-360 650 5,860
6.00 Foldable Quick-Push 11 54.5 2.43 300-500 650 6,200
6.00 Foldable Hydr. auto. 11 54.5 2.43 300-500 650 6,400
7.00 Foldable Quick-Push 13 53.8 2.43 400-600 650 6,800
7.00 Foldable Hydr. auto. 13 53.8 2.43 400-600 650 7,030

Trailed / V-Profile Roller Ø700 mm

Work Width, m Type Stone Protection No. of Tines Row Spacing, cm Transport Width, m Power Req., HP Max hp Weight, kg
4.00 Foldable Quick-Push 7 57 2.43 220-320 600 5,600
4.00 Foldable Hydr. auto. 7 57 2.43 220-320 600 6,000
5.00 Foldable Quick-Push 9 55.5 2.43 260-360 650 5,900
5.00 Foldable Hydr. auto. 9 55.5 2.43 260-360 650 6,060
6.00 Foldable Quick-Push 11 54.5 2.43 300-500 650 6,500
6.00 Foldable Hydr. auto. 11 54.5 2.43 300-500 650 6,700
7.00 Foldable Quick-Push 13 53.8 2.43 400-600 650 7,150
7.00 Foldable Hydr. auto. 13 53.8 2.43 400-600 650 7,380
Point types
Point types
Extra equipment Specification
Tine for retrofitting : Quick Push
Tine for retrofitting : Hydraulic
LED lights Lights : set with wire and socket
Brakes Air : Factory mounted
Brakes 1-circuit Hydraulic : Factory mounted
Brakes 2-circuit Hydraulic : Factory mounted
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Chinese
Czech
Spanish
Finnish
Hungarian
Italian
Latvian
Polish
Serbian
Swedish

Sub-Tiller

The Flexible Subsoiler

The HE-VA Sub-Tiller is a heavy-duty subsoiler featuring a unique V-shaped design that reduces draft requirement and enables greater working widths.

The Sub-Tiller can easily be adapted to local conditions. Tine spacing can be adjusted and unnecessary tines removed — for example when subsoiling tramlines.

The Sub-Tiller can work down to a maximum depth of 600 mm. The points are fitted with 200 mm wing shares that lift and loosen the soil at the selected working depth. The point design ensures that stones and raw subsoil are not brought to the surface. The Sub-Tiller can be equipped with different points. See the selection under extra equipment above.

High Efficiency with Stone Protection

Stony Soil Types

Hydraulic stone protection

For stony soil types, a HE-VA Sub-Tiller can be equipped with hydraulic stone protection. A cylinder on each tine ensure that the tines automatically swing upwards to deviate from the obstacles in the soil.

For stony soil types, a HE-VA Sub-Tiller can be equipped with hydraulic stone protection. A cylinder on each tine ensure that the tines automatically swing upwards to deviate from the obstacles in the soil.

Loam Soils

Quick-Push stone protection

For top soil without stones and when subsoiling a small amount of acres, the Quick-Push stone protection proves very efficient. A special shearbolt with 8 steps per bolt will be cut, if the tine hits a stone. So just remove the R-clip, place the shearbolt one notch forward and after having mounted the R-clip again, you can continue your work. Simple and easy without using any tools.

For top soil without stones and when subsoiling a small amount of acres, the Quick-Push stone protection proves very efficient. A special shearbolt with 8 steps per bolt will be cut, if the tine hits a stone. So just remove the R-clip, place the shearbolt one notch forward and after having mounted the R-clip again, you can continue your work. Simple and easy without using any tools.

Control of Reconsolidation and Working Depth

With the correct roller, the soil receives the required reconsolidation while also controlling the subsoiler’s working depth, reducing unnecessary strain on the tractor linkage. The soil-seeking effect of the points also helps press the roller into the ground, improving reconsolidation. The HE-VA Sub-Tiller can operate without reconsolidation or be equipped with different rollers depending on the model.

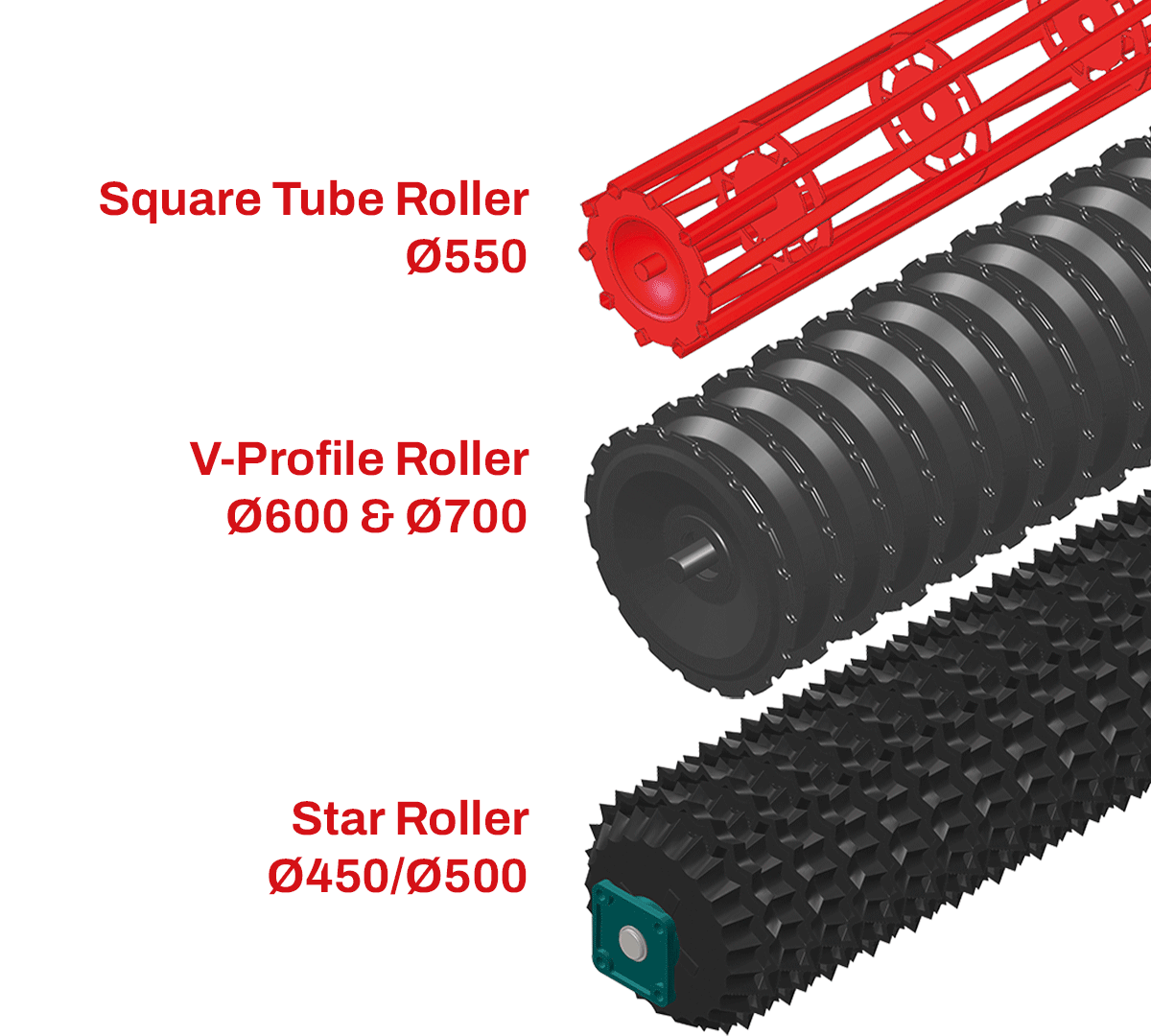

The Square Tube Roller provides excellent depth control and crushes soil clods effectively on lighter soils.



The V-Profile Roller provides aggressive clod crushing and leaves the soil surface smooth and level.



The Star Roller leaves the soil consolidated with a loose structure and a slightly ridged surface.

Read more about the rollers here

Trailed Sub-Tiller

The trailed Sub-Tiller can be equipped with a V-Profile Roller for aggressive clod crushing and a level surface finish.

Three-Point Mounted Sub-Tiller

Three-point mounted Sub-Tillers can be equipped with three different rollers — Square Tube Roller, V-Profile Roller and Star Roller.

The Square Tube Roller is ideal for lighter soil types, while the Star Roller excels in highly effective reconsolidation.

Till-seeding

With a Sub-Tiller operating simultaneously with sowing, optimal growth conditions can be created for crops such as oilseed rape and cover crops including mustard and oil radish.

Plant roots gain unrestricted access to deeper soil layers, resulting in stronger roots and larger root systems — creating the foundation for high yields.

Read more about Till-Seeding here
