Disc-Roller XL Contour
Disc-Roller XL Contour
2.25 - 7.25 M
2.50 - 2.62 M
80 - 240 HP
18 - 58 PCS
flip-to-se-table

rotate device to see table.

Three-Point Mounted 1-section models without hydraulic folding

Model, m Work Width, m Transport Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
2.50 2.25 2.50 Square Tube Roller / 550 mm - 18 80 + 1,330
2.50 2.25 2.50 Wave Roller / 600 mm 16 18 80 + 1,600
2.50 2.25 2.50 U-Profile Roller / 600 mm 16 18 90 + 1,680
2.50 2.25 2.50 V-Profile Roller / 600 mm 16 18 90 + 1,850
2.50 2.25 2.50 V-Profile Roller / 700 mm 16 18 90 + 2,010
2.50 2.25 2.50 Twin U-Profile 600-600 mm 16 18 90 + 1,820
2.50 2.25 2.50 Twin V-Profile 600-600 mm 16 18 90 + 2,110
2.50 2.25 2.50 Twin V-Profile 700-700 mm 16 18 90 + -
3.00 2.75 3.00 Square Tube Roller / 550 mm - 22 90 + 1,540
3.00 2.75 3.00 Wave Roller / 600 mm 20 22 90 + 1,890
3.00 2.75 3.00 U-Profile Roller / 600 mm 20 22 100 + 1,990
3.00 2.75 3.00 V-Profile Roller / 600 mm 20 22 100 + 2,160
3.00 2.75 3.00 V-Profile Roller / 700 mm 20 22 100 + 2,340
3.00 2.75 3.00 Twin U-Profile 600-600 mm 20 22 100 + 2,140
3.00 2.75 3.00 Twin V-Profile 600-600 mm 20 22 100 + 2,430
3.00 2.75 3.00 Twin V-Profile 700-700 mm 20 22 100 + -
3.50 3.25 3.50 Square Tube Roller / 550 mm - 26 100 + 1,670
3.50 3.25 3.50 Wave Roller / 600 mm 23 26 100 + 2,205
3.50 3.25 3.50 U-Profile Roller / 600 mm 23 26 110 + 2,310
3.50 3.25 3.50 V-Profile Roller / 600 mm 23 26 110 + 2,485
3.50 3.25 3.50 V-Profile Roller / 700 mm 23 26 110 + 2,695
3.50 3.25 3.50 Twin U-Profile 600-600 mm 23 26 110 + 2,465
3.50 3.25 3.50 Twin V-Profile 600-600 mm 23 26 110 + 2,775
3.50 3.25 3.50 Twin V-Profile 700-700 mm 23 26 110 + -
4.00 3.75 4.00 Square Tube Roller / 550 mm - 30 110 + 1,980
4.00 3.75 4.00 Wave Roller / 600 mm 26 30 110 + 2,520
4.00 3.75 4.00 U-Profile Roller / 600 mm 26 30 120 + 2,630
4.00 3.75 4.00 V-Profile Roller / 600 mm 26 30 120 + 2,810
4.00 3.75 4.00 V-Profile Roller / 700 mm 26 30 120 + 3,050
4.00 3.75 4.00 Twin U-Profile 600-600 mm 26 30 120 + 2,790
4.00 3.75 4.00 Twin V-Profile 600-600 mm 26 30 120 + 3,120
4.00 3.75 4.00 Twin V-Profile 700-700 mm 26 30 120 + -

Trailed 1-section models without hydraulic folding

Model, m Work Width, m Transport Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
2.50 2.25 2.50 Wave Roller / 600 mm 16 18 80 + 2,080
2.50 2.25 2.50 U-Profile Roller / 600 mm 16 18 90 + 2,310
2.50 2.25 2.50 V-Profile Roller / 600 mm 16 18 90 + 2,480
2.50 2.25 2.50 V-Profile Roller / 700 mm 16 18 90 + 2,660
2.50 2.25 2.50 Twin U-Profile 600-600 mm 16 18 90 + 2,470
2.50 2.25 2.50 Twin V-Profile 600-600 mm 16 18 90 + 2,760
2.50 2.25 2.50 Twin V-Profile 700-700 mm 16 18 90 + -
3.00 2.75 3.00 Wave Roller / 600 mm 20 22 100 + 2,190
3.00 2.75 3.00 U-Profile Roller / 600 mm 20 22 100 + 2,640
3.00 2.75 3.00 V-Profile Roller / 600 mm 20 22 100 + 2,810
3.00 2.75 3.00 V-Profile Roller / 700 mm 20 22 100 + 2,990
3.00 2.75 3.00 Twin U-Profile 600-600 mm 20 22 100 + 2,790
3.00 2.75 3.00 Twin V-Profile 600-600 mm 20 22 100 + 3,080
3.00 2.25 3.00 Twin V-Profile 700-700 mm 20 22 100 + -
3.50 3.25 3.50 Wave Roller / 600 mm 23 26 100 + 2,320
3.50 3.25 3.50 U-Profile Roller / 600 mm 23 26 110 + 2,960
3.50 3.25 3.50 V-Profile Roller / 600 mm 23 26 110 + 3,135
3.50 3.25 3.50 V-Profile Roller / 700 mm 23 26 110 + 3,345
3.50 3.25 3.50 Twin U-Profile 600-600 mm 23 26 110 + 3,115
3.50 3.25 3.50 Twin V-Profile 600-600 mm 23 26 110 + 3,425
3.50 3.25 3.50 Twin V-Profile 700-700 mm 23 26 110 + 3,617
4.00 3.75 4.00 Wave Roller / 600 mm 26 30 110 + 2,630
4.00 3.75 4.00 U-Profile Roller / 600 mm 26 30 120 + 3,280
4.00 3.75 4.00 V-Profile Roller / 600 mm 26 30 120 + 3,460
4.00 3.75 4.00 V-Profile Roller / 700 mm 26 30 120 + 3,700
4.00 3.75 4.00 Twin U-Profile 600-600 mm 26 30 120 + 3,440
4.00 3.75 4.00 Twin V-Profile 600-600 mm 26 30 120 + 3,770
4.00 3.75 4.00 Twin V-Profile 700-700 mm 26 30 120 + -

Trailed 2-section models with hydraulic folding

Model, m Work Width, m Transport Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
4.50 4.25 2.52 Wave Roller / 600 mm 30 34 130 + -
4.50 4.25 2.52 U-Profile Roller / 600 mm 30 34 140 + -
4.50 4.25 2.52 V-Profile Roller / 600 mm 30 34 140 + 4,030
4.50 4.25 2.52 V-Profile Roller / 700 mm 30 34 140 + 5,399
4.50 4.25 2.52 Twin U-Profile 600-600 mm 30 34 140 + 4,010
4.50 4.25 2.52 Twin V-Profile 600-600 mm 30 34 140 + 4,340
4.50 4.25 2.52 Twin V-Profile 700-700 mm 30 34 140 + -
5.50 5.25 2.52 Wave Roller / 600 mm 36 42 160 + -
5.50 5.25 2.52 U-Profile Roller / 600 mm 36 42 170 + -
5.50 5.25 2.52 V-Profile Roller / 600 mm 36 42 170 + 4,770
5.50 5.25 2.52 V-Profile Roller / 700 mm 36 42 170 + -
5.50 5.25 2.52 Twin U-Profile 600-600 mm 36 42 170 + 4,740
5.50 5.25 2.52 Twin V-Profile 600-600 mm 36 42 170 + 5,090
5.50 5.25 2.52 Twin V-Profile 700-700 mm 36 42 170 + -

Trailed 3-section models with hydraulic folding  (2-sect. disc-section + 3-sect. roller section)

Model, m Work Width, m Transport Width, m Roller Type No. of Rings No. of Discs Power Req., HP Weight, kg
6.50 6.25 2.84 Wave Roller / 600 mm 42 50 190 + -
6.50 6.25 2.84 U-Profile Roller / 600 mm 42 50 200 + -
6.50 6.25 2.84 V-Profile Roller / 600 mm 42 50 200 + -
6.50 6.25 2.84 V-Profile Roller / 700 mm 42 50 200 + 8,525
6.50 6.25 2.84 Twin U-Profile 600-600 mm 42 50 200 + -
6.50 6.25 2.84 Twin V-Profile 600-600 mm 42 50 200 + -
6.50 6.25 2.84 Twin V-Profile 700-700 mm 42 50 200 + 7,475
7.50 7.25 2.84 Wave Roller / 600 mm 48 58 190 + -
7.50 7.25 2.84 U-Profile Roller / 600 mm 48 58 240 + -
7.50 7.25 2.84 V-Profile Roller / 600 mm 48 58 240 + -
7.50 7.25 2.84 V-Profile Roller / 700 mm 48 58 240 + -
7.50 7.25 2.84 Twin U-Profile 600-600 mm 48 58 240 + 8,150
7.50 7.25 2.84 Twin V-Profile 600-600 mm 48 58 240 + -
7.50 7.25 2.84 Twin V-Profile 700-700 mm 48 58 240 + 8,625

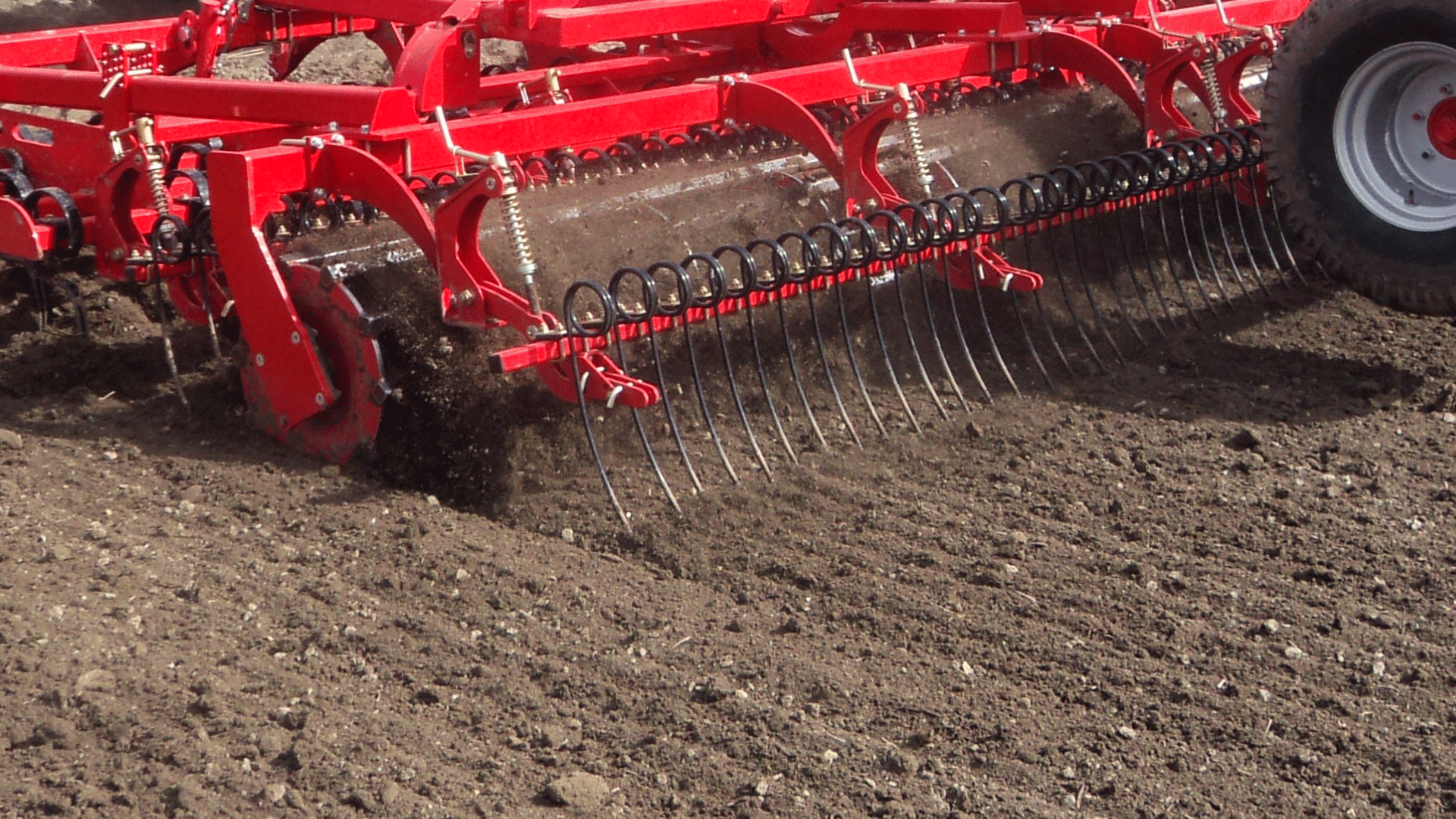

Longfinger after-harrow behind roller
Longfinger after-harrow behind roller

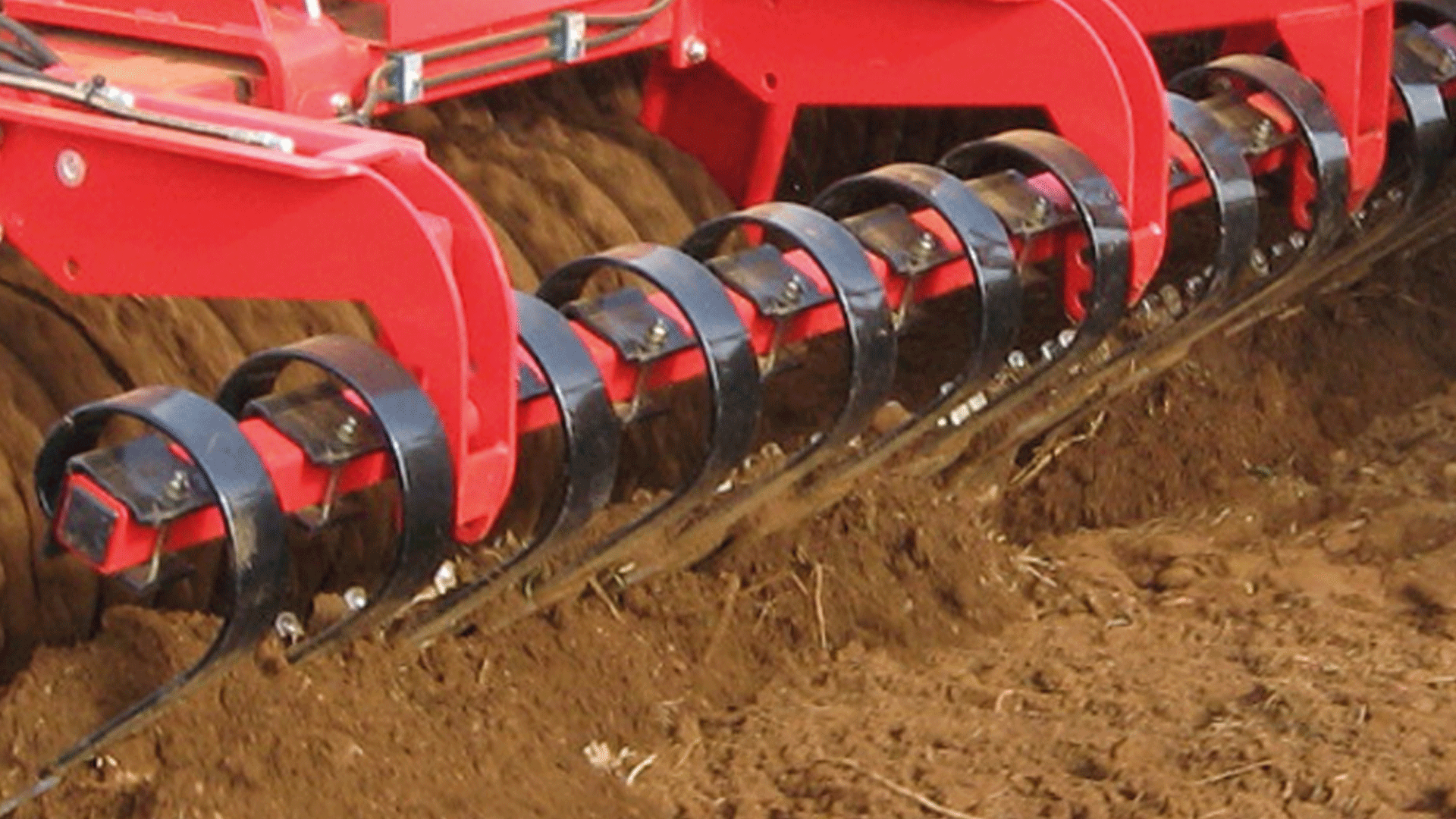

Spring-Board
Spring-Board
Transverse locking system
Transverse locking system
Top-Cutter
Top-Cutter

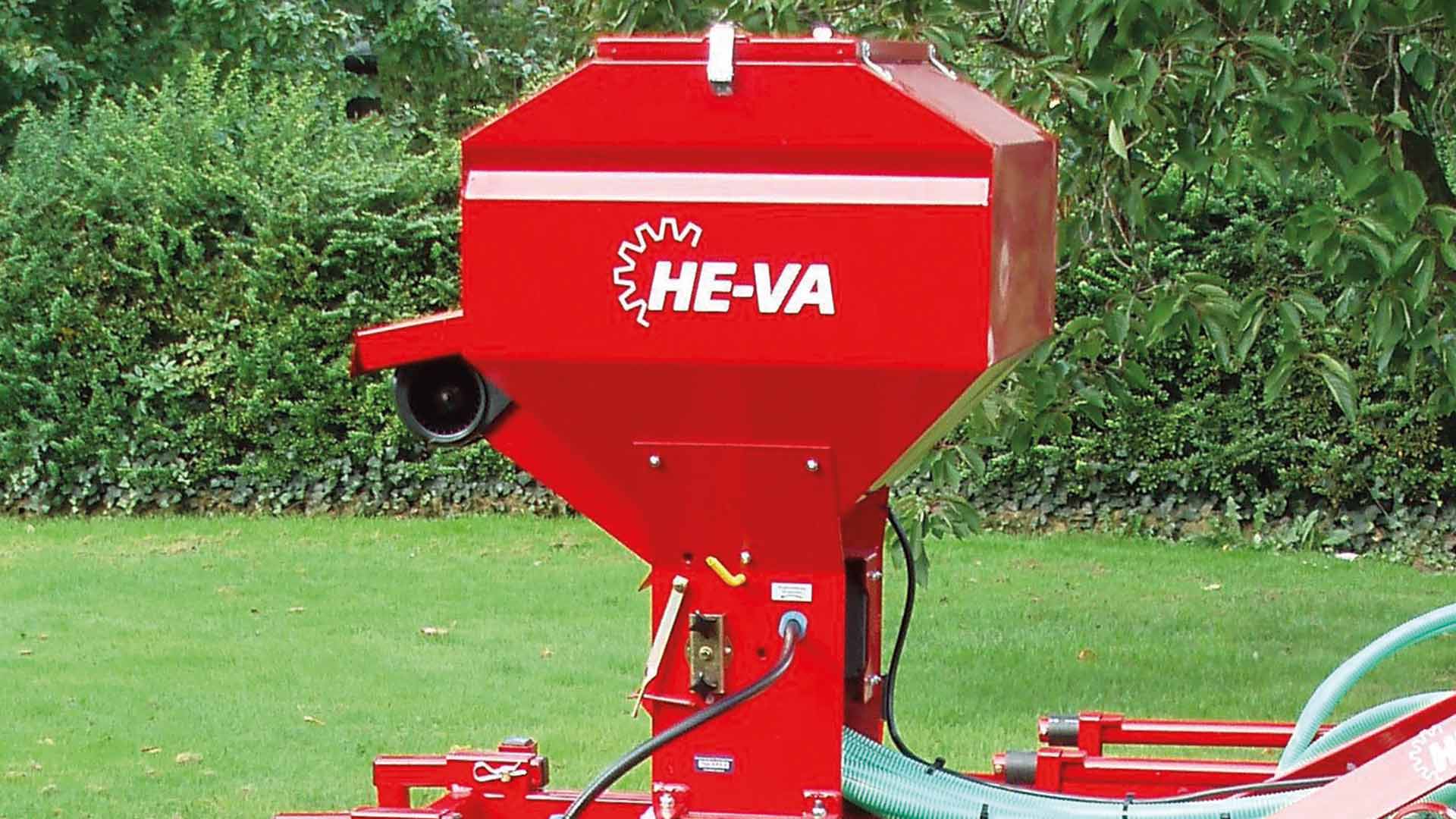

Multi-Seeder
Multi-Seeder
Extra equipment Specification
LED lights Lights : set with wire and socket
HPV-Controller Weight : 7,2 kg
Mounting set for Multi-Seeder
Profiled Mixing Disc : Ø570x5mm
Disc with rough profile : Ø610x6mm
Brakes Air : Factory mounted
Brakes 1-circuit Hydraulic : Factory mounted
Brakes 2-circuit Hydraulic : Factory mounted
flip-to-se-table

rotate device to see table.

Languages Brochure Technical Specification Manual / Spare Parts Catalog
Danish
English
German
French
Italian
Polish
Serbian
Swedish

Images


Disc-Roller XL Contour

The Stubble Cultivator that Ensures Excellent Soil Flow

The Disc-Roller XL Contour has been enlarged in several areas compared with traditional disc harrows. For example, it is equipped with Ø610 mm discs, whereas many traditional disc harrows today use smaller discs. This provides several advantages:

  • The discs penetrate deeper into the soil and cultivate effectively without clogging
  • The discs can better incorporate large amounts of plant and stubble material, such as maize stalks and cover crops

In addition to the larger disc size, the disc design has also been modified to ensure optimal soil flow. The discs are larger, stronger, and designed with larger notches, increasing soil grip and minimising the risk of blockage during operation.

The HE-VA Disc-Roller Has Grown

It is not only the discs that have changed. The entire Disc-Roller XL Contour construction has also been redesigned to ensure optimal soil flow and passage of large amounts of plant and stubble material. The frame construction has been raised, and extra spacing has been designed between the discs so that soil and material can be distributed freely.

Rollers

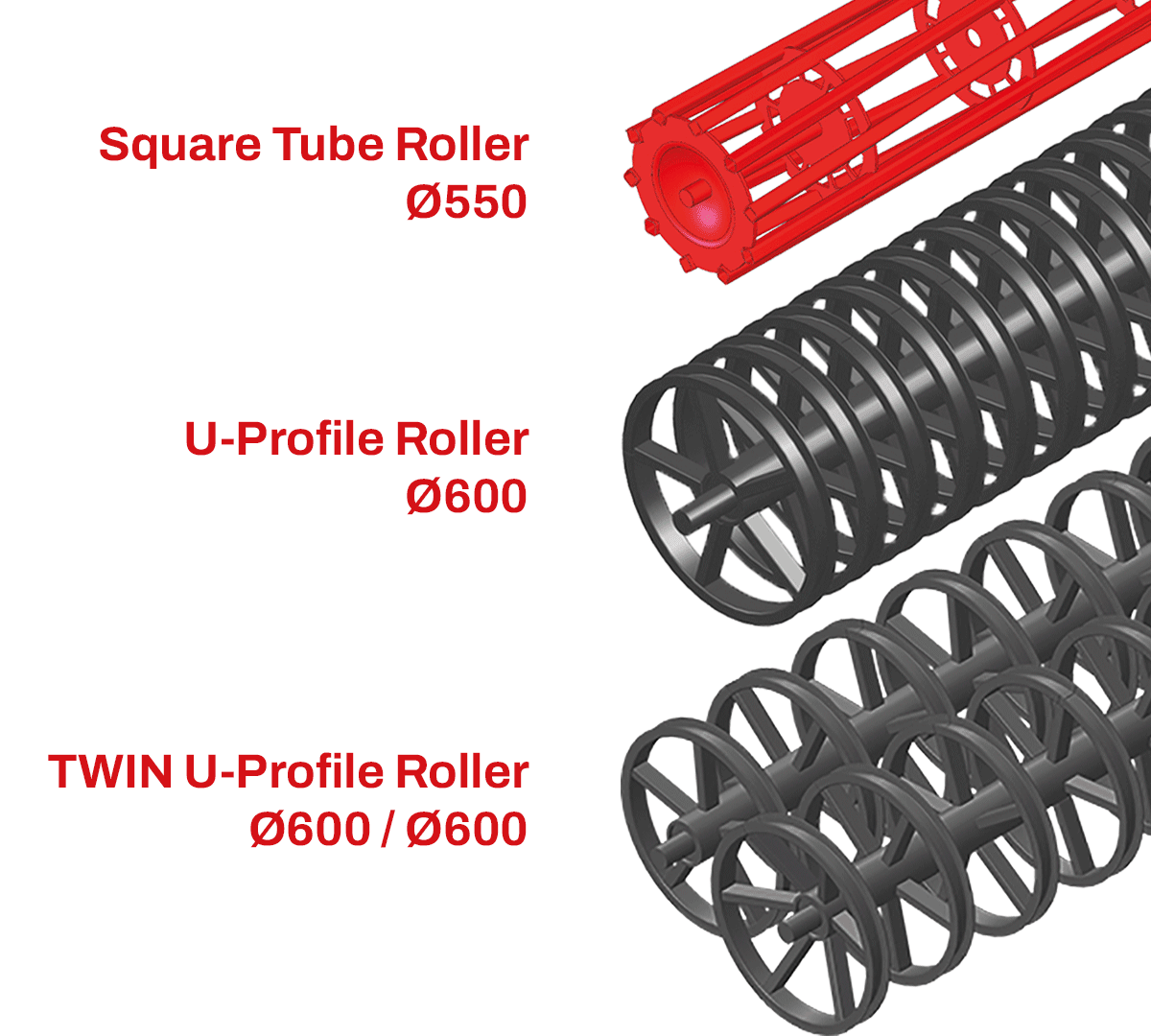

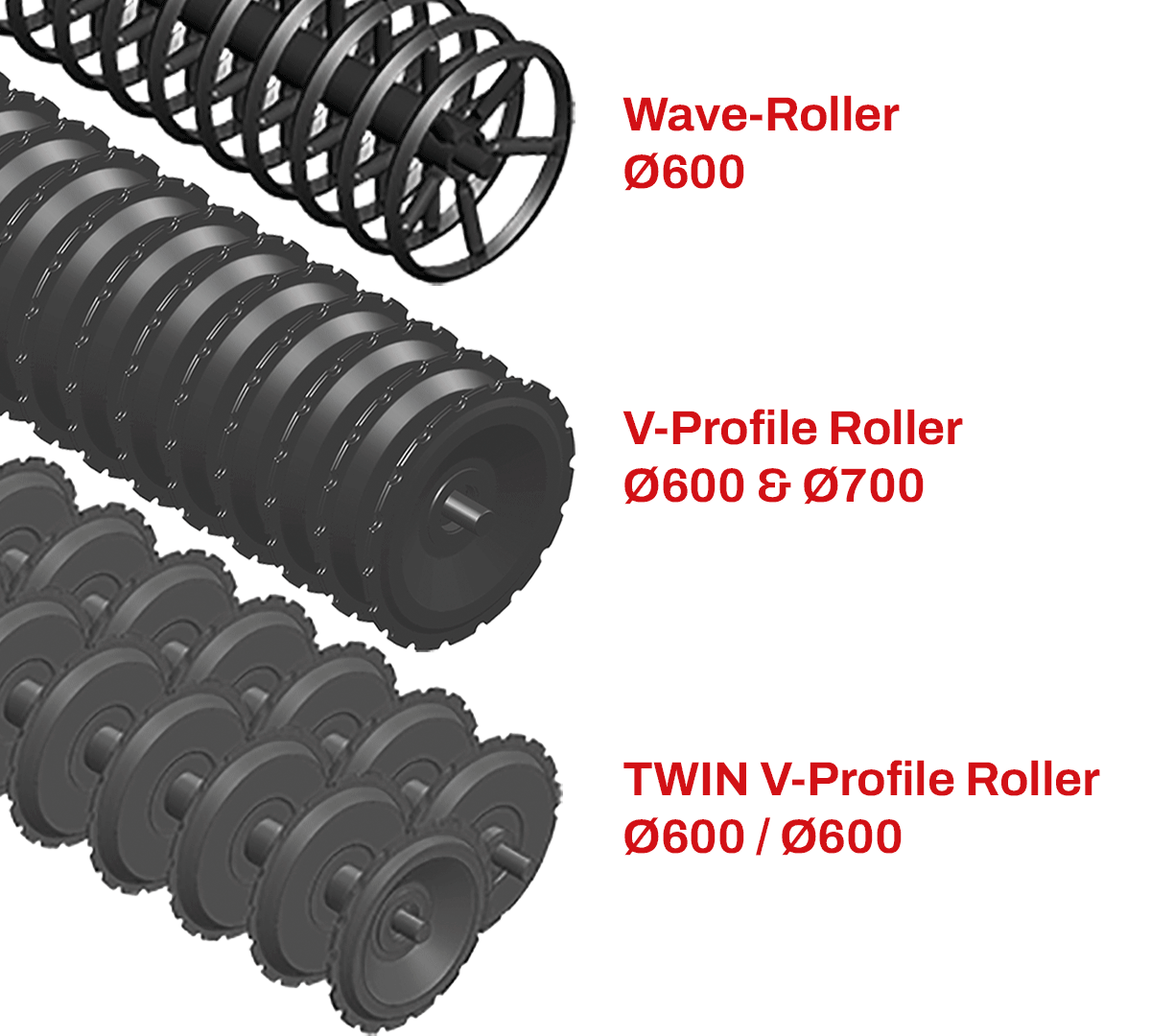

The Disc-Roller XL Contour can be equipped with Wave-Roller, V-Profile Roller, Twin V-Profile Roller, Square Tube Roller, U-Profile Roller and Twin U-Profile Roller. Each roller offers different advantages depending on soil type and the required finish after consolidation.

Read more about the rollers here

Automation Increases Field Efficiency

The Disc-Roller XL Contour builds on the well-known HE-VA DSD system, characterised by discs automatically becoming more aggressive the deeper they penetrate into the soil — all automatically during operation. This automation ensures a high level of field efficiency by minimising stops during operation, particularly in varying soil conditions.

Disc-Roller XL Contour with Extensive Optional Equipment

The Disc-Roller XL Contour is available with a wide range of optional equipment, allowing it to be customised to the requirements of each farm.
